![maserati 4200 coupe (2003) front under frame and undermotor shields parts diagram](/img/ixAAAETdFtv3g5ZmKUPOQARFtQzRKDRIdD7OpZ8XFY1HCS9hY8sAAw%3D%3D/maserati-4200-coupe-(2003)-part-diagram-041.webp)

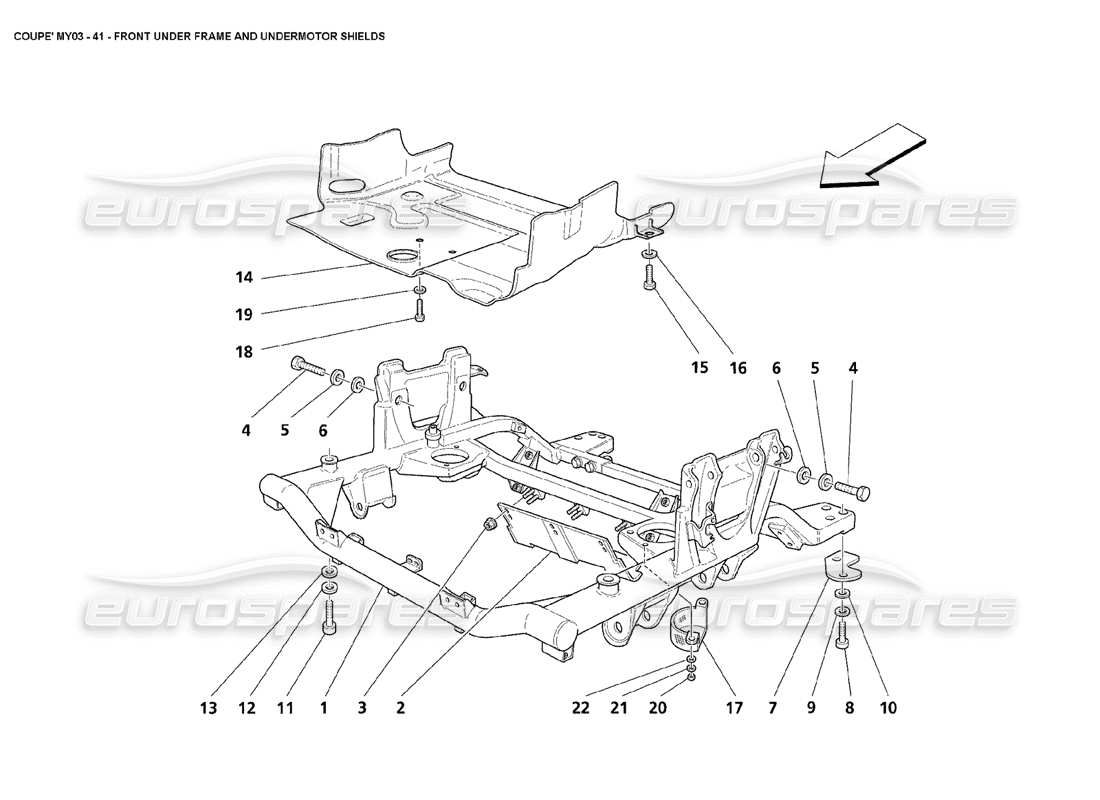

041 - Front Under Frame and Undermotor Shields
Maserati 4200 Coupe (2003) Front Under Frame and Undermotor Shields Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67650500
FRONT UNDER FRAME
from £1,281.87
from £1,281.87
This part replaces part number 66069200
# 002
MPN: 184141
ANTI HEAT SHIELD
from £22.43
from £22.43
# 003
MPN: 14039614
NUT
from £0.52
from £0.52
# 004
MPN: 11306924
SCREW
from £1.32
from £1.32
# 005
MPN: 12620774
WASHER
from £1.40
from £1.40
# 006
MPN: 12626224
WASHER
from £0.53
from £0.53
# 007
MPN: 66318700
REAR PLATE
from £2.03
from £2.03
# 008
MPN: 14422574
SCREW
from £1.87
from £1.87
# 009
MPN: 11198674
WASHER
from £1.40
from £1.40
# 010
MPN: 10732531
WASHER
from £0.47
from £0.47
# 011
MPN: 14422574
SCREW
from £1.87
from £1.87
# 012
MPN: 12601574
WASHER
from £0.53
from £0.53
This part replaces part number 12601579 which we have in stock
# 013
MPN: 10732531
WASHER
from £0.47
from £0.47
# 014
MPN: 184842
UNDERMOTOR SHIELD
- Not for USA and CDN
from £63.63
from £63.63
# 015
MPN: 16043324
SCREW
- Not for USA and CDN
from £0.47
from £0.47
# 016
MPN: 14496524
WASHER
- Not for USA and CDN
from £0.47
from £0.47
# 017
MPN: 191790
PAD LOWER SHIELD
- Valid for USA and CDN
from £7.87
from £7.87
# 018
MPN: 16043224
SCREW
from £0.53
from £0.53
# 019
MPN: 14496524
WASHER
from £0.47
from £0.47
# 020
MPN: 15896214
NUT
- Valid for USA and CDN
from £0.53
from £0.53
This part replaces part number 15896211
# 021
MPN: 13579224
WASHER
- Valid for USA and CDN
from £0.47
from £0.47
# 022
MPN: 12601274
WASHER
- Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 12601270
