maserati 4200 coupe (2003) differential box - rear underbody parts diagram

029 - Differential Box - Rear Underbody

Maserati 4200 Coupe (2003) Differential Box - Rear Underbody Parts Diagram

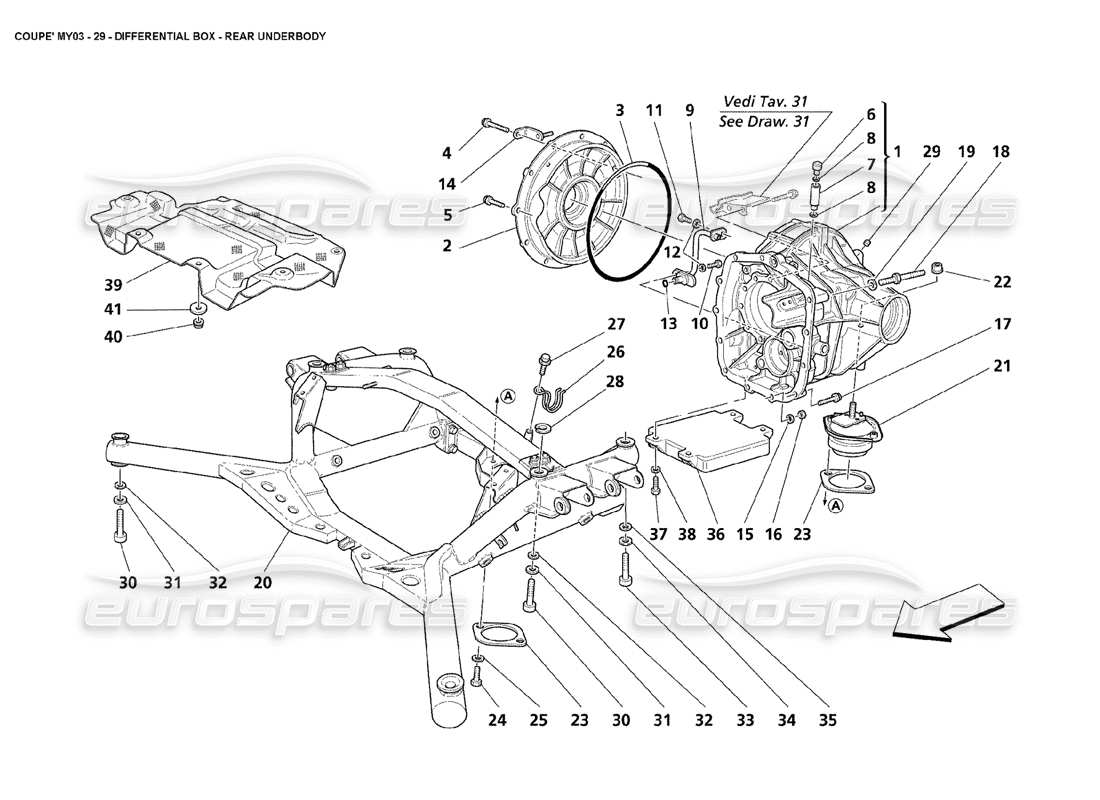

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 192732
                                                                      COMPLETE DIFFERENTIAL BOX
                                                                      from £807.14
                                                                      from £807.14
                                                                      This part replaces part number 184644
                                                                      # 002
                                                                      MPN: 184767
                                                                      DIFFERENTIAL COVER
                                                                      from £146.60
                                                                      from £146.60
                                                                      # 003
                                                                      MPN: 14468781
                                                                      O.R. GASKET
                                                                      from £23.08
                                                                      from £23.08
                                                                      # 004
                                                                      MPN: 16287321
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 006
                                                                      MPN: 13414691
                                                                      OIL BREATHER
                                                                      from £5.52
                                                                      from £5.52
                                                                      # 007
                                                                      MPN: 186900
                                                                      ADAPTER FOR VENT
                                                                      from £50.39
                                                                      from £50.39
                                                                      # 008
                                                                      MPN: 13415400
                                                                      COPPER GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 009
                                                                      MPN: 185720
                                                                      LUBRICATION TUBE
                                                                      from £87.31
                                                                      from £87.31
                                                                      # 010
                                                                      MPN: 10902224
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 011
                                                                      MPN: 10979424
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 012
                                                                      MPN: 11194377
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 013
                                                                      MPN: 137192
                                                                      O.R. GASKET
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 014
                                                                      MPN: 149694
                                                                      FIXING BRACKET
                                                                      - Valid for F1
                                                                      from £3.84
                                                                      from £3.84
                                                                      # 015
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 016
                                                                      MPN: 16100812
                                                                      NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 017
                                                                      MPN: 16287521
                                                                      SCREW
                                                                      - M 8X40
                                                                      from £2.13
                                                                      from £2.13
                                                                      # 017
                                                                      MPN: 16287624
                                                                      SCREW
                                                                      - M 8X45
                                                                      from £1.85
                                                                      from £1.85
                                                                      This part replaces part number 16287421
                                                                      # 017
                                                                      MPN: 16287921
                                                                      SCREW
                                                                      - M 8X60 - Not for F1
                                                                      from £2.45
                                                                      from £2.45
                                                                      # 018
                                                                      MPN: 190044
                                                                      STUD
                                                                      - Valid for F1
                                                                      from £16.17
                                                                      from £16.17
                                                                      This part replaces part number 190094
                                                                      # 019
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      - Valid for F1
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 020
                                                                      MPN: 67390400
                                                                      REAR UNDER FRAME
                                                                      from £556.50
                                                                      from £556.50
                                                                      # 021
                                                                      MPN: 186908
                                                                      FLEXIBLE PAD
                                                                      from £1,156.78
                                                                      from £1,156.78
                                                                      # 022
                                                                      MPN: 177018
                                                                      NUT
                                                                      from £0.67
                                                                      from £0.67
                                                                      # 023
                                                                      MPN: 66428300
                                                                      GEAR SUPPORT FLANGE
                                                                      from £3.84
                                                                      from £3.84
                                                                      # 024
                                                                      MPN: 14307534
                                                                      SCREW
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 025
                                                                      MPN: 11198374
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 675000618
                                                                      # 026
                                                                      MPN: 188971
                                                                      PIPES RETAINING SPRING
                                                                      - Valid for F1
                                                                      from £2.94
                                                                      from £2.94
                                                                      # 027
                                                                      MPN: 16297034
                                                                      SCREW
                                                                      - Valid for F1-
                                                                      from £1.54
                                                                      from £1.54
                                                                      # 028
                                                                      MPN: 377030380
                                                                      WASHER
                                                                      - Tickness mm. 1
                                                                      from £17.08
                                                                      from £17.08
                                                                      # 028
                                                                      MPN: 377030382
                                                                      WASHER
                                                                      - Tickness mm. 3
                                                                      from £4.53
                                                                      from £4.53
                                                                      # 029
                                                                      MPN: 14326101
                                                                      THREADED PLUG
                                                                      from £0.72
                                                                      from £0.72
                                                                      This part replaces part number 10152350
                                                                      # 030
                                                                      MPN: 14331574
                                                                      SCREW
                                                                      from £7.66
                                                                      from £7.66
                                                                      # 031
                                                                      MPN: 11198674
                                                                      WASHER
                                                                      from £1.38
                                                                      from £1.38
                                                                      # 032
                                                                      MPN: 10738021
                                                                      WASHER
                                                                      from £0.73
                                                                      from £0.73
                                                                      # 033
                                                                      MPN: 14312174
                                                                      SCREW
                                                                      from £7.66
                                                                      from £7.66
                                                                      # 034
                                                                      MPN: 66490100
                                                                      WASHER
                                                                      from £1.84
                                                                      from £1.84
                                                                      # 035
                                                                      MPN: 67246100
                                                                      WASHER
                                                                      from £5.36
                                                                      from £5.36
                                                                      This part replaces part number 102694
                                                                      # 036
                                                                      MPN: 187872
                                                                      torsion damper
                                                                      from £96.82
                                                                      from £96.82
                                                                      # 037
                                                                      MPN: 10902334
                                                                      SCREW
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 038
                                                                      MPN: 12620474
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 039
                                                                      MPN: 66303000
                                                                      GEAR BOX HEAT SHIELD
                                                                      from £22.01
                                                                      from £22.01
                                                                      # 040
                                                                      MPN: 14059111
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 041
                                                                      MPN: 12624124
                                                                      WASHER
                                                                      from £0.94
                                                                      from £0.94
