Maserati 4200 Coupe (2003) Nourice - Cooling System - Not for GD Parts Diagram

019 - Nourice - Cooling System - Not for GD

Maserati 4200 Coupe (2003) Nourice - Cooling System - Not for GD Parts Diagram

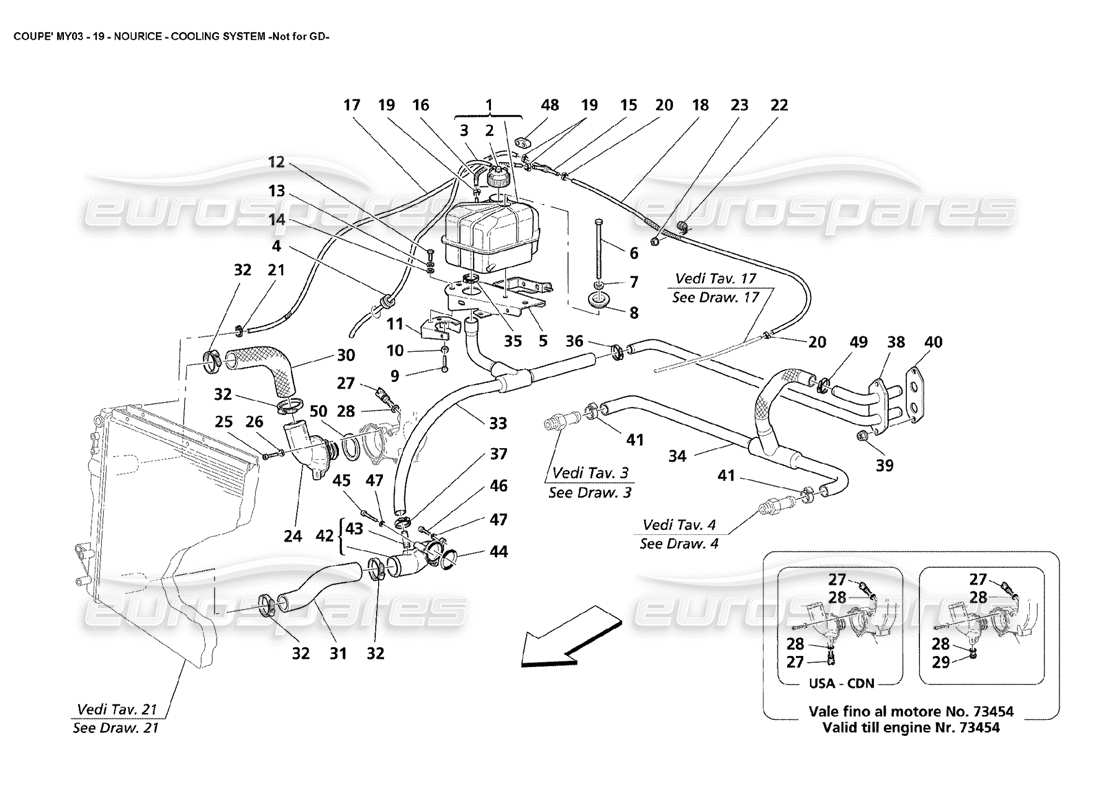

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 384000102
                                                                                              COMPLETE EXPANSION TANK
                                                                                              WITH CAP
                                                                                              from £27.17
                                                                                              from £27.17
                                                                                              This part replaces part number 60597447 - and 1 more. Click to view details
                                                                                              # 002
                                                                                              MPN: 980145477
                                                                                              TANK PLUG
                                                                                              from £12.37
                                                                                              from £12.37
                                                                                              This part replaces part number 46556738
                                                                                              # 003
                                                                                              MPN: 384001316
                                                                                              HOSE
                                                                                              from £7.63
                                                                                              from £7.63
                                                                                              # 004
                                                                                              MPN: 10461987
                                                                                              RING
                                                                                              from £1.57
                                                                                              from £1.57
                                                                                              # 005
                                                                                              MPN: 189782
                                                                                              NOURICE SUPPORTING BRACKET
                                                                                              from £22.79
                                                                                              from £22.79
                                                                                              # 006
                                                                                              MPN: 60607472
                                                                                              SPECIAL SCREW
                                                                                              from £4.93
                                                                                              from £4.93
                                                                                              # 007
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 12601270
                                                                                              # 008
                                                                                              MPN: 82404496
                                                                                              CUP
                                                                                              from £1.89
                                                                                              from £1.89
                                                                                              # 009
                                                                                              MPN: 10979421
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 010
                                                                                              MPN: 12620474
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 011
                                                                                              MPN: 384000135
                                                                                              SUPPORT FOR BRACKET
                                                                                              from £14.96
                                                                                              from £14.96
                                                                                              # 012
                                                                                              MPN: 14305521
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 013
                                                                                              MPN: 12620474
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 014
                                                                                              MPN: 12646601
                                                                                              WASHER
                                                                                              from £0.49
                                                                                              from £0.49
                                                                                              # 015
                                                                                              MPN: 189345
                                                                                              3 WAY UNION
                                                                                              from £14.05
                                                                                              from £14.05
                                                                                              # 016
                                                                                              MPN: 192621
                                                                                              RUBBER HOSE
                                                                                              from £19.82
                                                                                              from £19.82
                                                                                              # 017
                                                                                              MPN: 192614
                                                                                              RUBBER HOSE
                                                                                              from £165.06
                                                                                              from £165.06
                                                                                              # 018
                                                                                              MPN: 192615
                                                                                              RUBBER HOSE
                                                                                              from £10.12
                                                                                              from £10.12
                                                                                              # 019
                                                                                              MPN: 13125470
                                                                                              STRAP COLLAR
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              # 020
                                                                                              MPN: 183919
                                                                                              STRAP COLLAR
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 021
                                                                                              MPN: 13000190
                                                                                              SCREW COLLAR
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 022
                                                                                              MPN: 10441390
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 023
                                                                                              MPN: 14058411
                                                                                              NUT
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 024
                                                                                              MPN: 230890
                                                                                              COVER WITH THERMOSTAT
                                                                                              from £88.71
                                                                                              from £88.71
                                                                                              This part replaces part number 224623
                                                                                              # 024
                                                                                              MPN: 230890
                                                                                              COVER WITH THERMOSTAT
                                                                                              from £88.71
                                                                                              from £88.71
                                                                                              This part replaces part number 224623
                                                                                              # 025
                                                                                              MPN: 14305324
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 14305321
                                                                                              # 026
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 027
                                                                                              MPN: 180137
                                                                                              WATER TEMPERATURE SENSOR
                                                                                              - (Quantity 2 for cars USA and CDN with engine till Nr. 73454)
                                                                                              from £9.88
                                                                                              from £9.88
                                                                                              # 028
                                                                                              MPN: 10298460
                                                                                              GASKET
                                                                                              - (Quantity 2 for cars with engine till Nr. 73454)
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 029
                                                                                              MPN: 10300540
                                                                                              THREADED PLUG
                                                                                              - Not for USA and CDN - Valid till engine Nr. 73454
                                                                                              from £2.90
                                                                                              from £2.90
                                                                                              # 030
                                                                                              MPN: 190354
                                                                                              DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                              from £78.82
                                                                                              from £78.82
                                                                                              This part replaces part number 181747 - and 1 more. Click to view details
                                                                                              # 031
                                                                                              MPN: 181748
                                                                                              RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                              from £29.09
                                                                                              from £29.09
                                                                                              # 032
                                                                                              MPN: 13000790
                                                                                              SCREW COLLAR
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 312420106
                                                                                              # 033
                                                                                              MPN: 187080
                                                                                              RUBBER HOSE
                                                                                              from £9.06
                                                                                              from £9.06
                                                                                              This part replaces part number 186654 which we have in stock - and 1 more. Click to view details
                                                                                              # 034
                                                                                              MPN: 187082
                                                                                              WATER OUTLET PIPE
                                                                                              from £101.02
                                                                                              from £101.02
                                                                                              # 035
                                                                                              MPN: 13000590
                                                                                              SCREW COLLAR
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 036
                                                                                              MPN: 186680
                                                                                              CLAMP
                                                                                              from £0.87
                                                                                              from £0.87
                                                                                              # 037
                                                                                              MPN: 183126
                                                                                              CLAMP
                                                                                              from £0.90
                                                                                              from £0.90
                                                                                              # 038
                                                                                              MPN: 66069000
                                                                                              COMPLETE RIGID PIPE TO HEATER
                                                                                              from £29.96
                                                                                              from £29.96
                                                                                              # 039
                                                                                              MPN: 12575421
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 12575411
                                                                                              # 040
                                                                                              MPN: 385500371
                                                                                              GASKET
                                                                                              from £1.10
                                                                                              from £1.10
                                                                                              # 041
                                                                                              MPN: 178053
                                                                                              CLAMP
                                                                                              from £0.99
                                                                                              from £0.99
                                                                                              # 042
                                                                                              MPN: 188067
                                                                                              WATER ENTRY COVER
                                                                                              from £203.21
                                                                                              from £203.21
                                                                                              # 043
                                                                                              MPN: 111628
                                                                                              THREADED UNION
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 044
                                                                                              MPN: 154191
                                                                                              GASKET
                                                                                              from £0.81
                                                                                              from £0.81
                                                                                              # 045
                                                                                              MPN: 14306024
                                                                                              SCREW
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              This part replaces part number 14306034 which we have in stock
                                                                                              # 046
                                                                                              MPN: 14432224
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 047
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 048
                                                                                              MPN: 192650
                                                                                              CLIP
                                                                                              from £1.10
                                                                                              from £1.10
                                                                                              # 049
                                                                                              MPN: 186680
                                                                                              CLAMP
                                                                                              from £0.87
                                                                                              from £0.87
                                                                                              # 050
                                                                                              MPN: 137873
                                                                                              GASKET
                                                                                              from £2.95
                                                                                              from £2.95
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
