maserati 4200 coupe (2002) stereo equipment - accesories parts diagram

145 - Stereo Equipment - Accesories

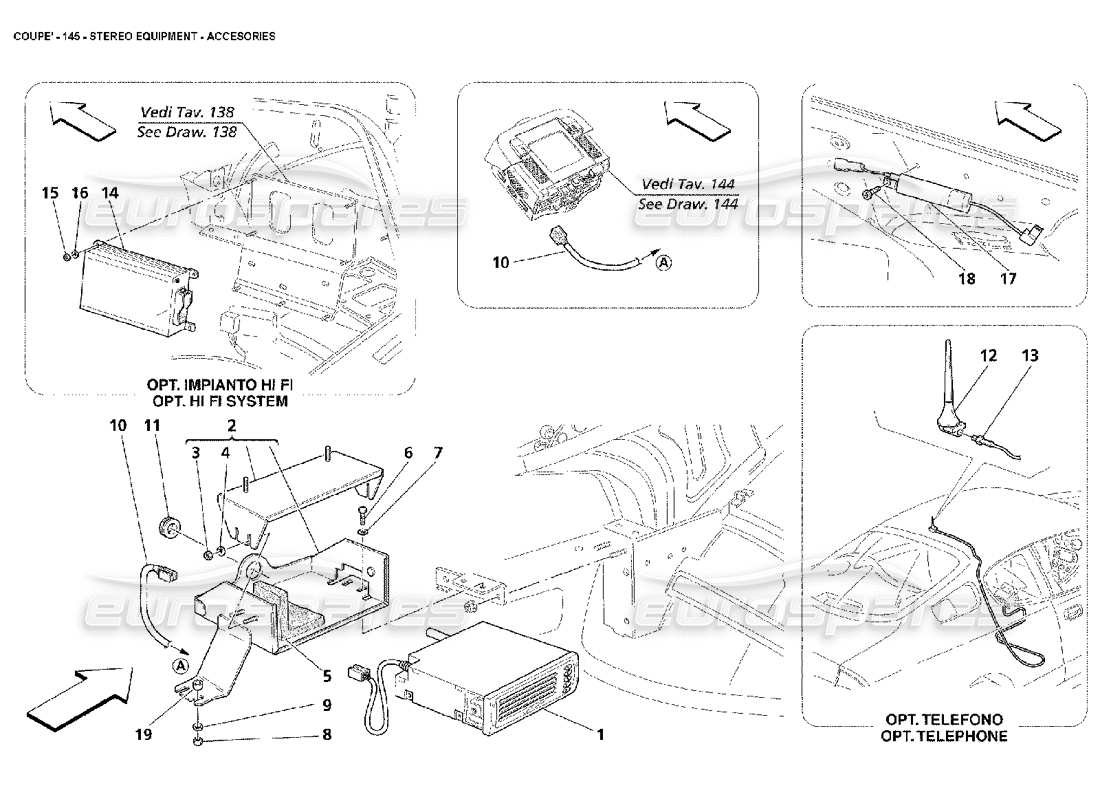

Maserati 4200 Coupe (2002) Stereo Equipment - Accesories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 233649
      CD CHARGER
      - Optional - CD charger - Not for J
      from £526.29
      from £526.29
      This part replaces part number 383500140
      # 002
      MPN: 192912
      COMPLETE CD CHARGER BRACKET
      - Optional - CD charger
      Supersession
      Supersession
      This part replaces part number 192914
      # 003
      MPN: 15896211
      NUT
      - Optional - CD charger
      Supersession
      Supersession
      # 004
      MPN: 13579224
      WASHER
      - Optional - CD charger
      from £0.47
      from £0.47
      # 005
      MPN: 67116100
      ANTI-VIBRATION GASKET
      - Optional - CD charger
      from £3.75
      from £3.75
      # 006
      MPN: 10977724
      SCREW
      - Optional - CD charger
      from £0.47
      from £0.47
      # 007
      MPN: 13577707
      WASHER
      - Optional - CD charger
      from £0.71
      from £0.71
      # 008
      MPN: 15896211
      NUT
      - Optional - CD charger
      Supersession
      Supersession
      # 009
      MPN: 13579224
      WASHER
      - Optional - CD charger
      from £0.47
      from £0.47
      # 010
      MPN: 190278
      CD CHARGER CABLE
      - Optional - CD charger - Not for J - Not for cars USA, CDN and GB with outer radio antenna (draw 144 pos. 14) - See also draw 134
      Supersession
      Supersession
      # 011
      MPN: 319220361
      RUBBER
      - Optional - CD charger
      from £2.39
      from £2.39
      # 012
      MPN: 183667
      TELEPHONE ANTENNA
      - Optional - Telephone - Not for USA, CDN and J - Not for cars GB with outer radio antenna (draw 144 pos. 14) - See also draw 134
      from £98.08
      from £98.08
      # 013
      MPN: 183668
      ANTENNA CABLE TO TELEPHONE
      - Optional - Telephone - Not for USA, CDN and J - Not for cars GB with outer radio antenna (draw 144 pos. 14) - See also draw 134
      from £53.31
      from £53.31
      # 014
      MPN: 193476
      AMPLIFIER
      - Optional - HI FI system
      from £707.17
      from £707.17
      # 015
      MPN: 15896211
      NUT
      - Optional - HI FI system
      Supersession
      Supersession
      # 016
      MPN: 13579224
      WASHER
      - Optional - HI FI system
      from £0.47
      from £0.47
      # 017
      MPN: 383500110
      POSITIVE REAR WINDOW FILTER
      from £12.69
      from £12.69
      # 018
      MPN: 13273824
      SCREW
      from £1.24
      from £1.24
      # 019
      MPN: 13604015
      SPACER
      - Optional - CD charger
      from £0.47
      from £0.47
