Maserati 4200 Coupe (2002) Evaporator Group Parts Diagram

142 - Evaporator Group

Maserati 4200 Coupe (2002) Evaporator Group Parts Diagram

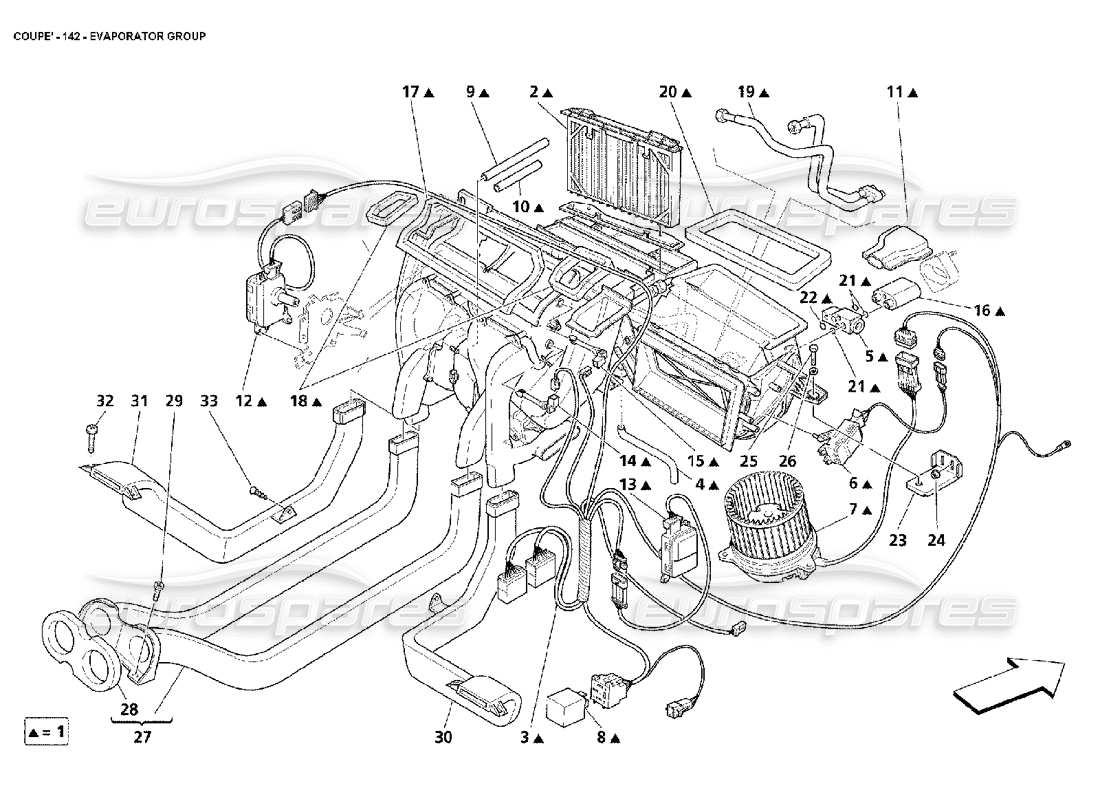

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 66731300
                                                          COMPLETE EVAPORATOR SET
                                                          - Valid for GD
                                                          Supersession
                                                          Supersession
                                                          # 001
                                                          MPN: 67707700
                                                          COMPLETE EVAPORATOR SET
                                                          - Not for GD
                                                          from £758.03
                                                          from £758.03
                                                          This part replaces part number 66306100 - and 1 more. Click to view details
                                                          # 002
                                                          MPN: 382400304
                                                          ANTIPOLLEN FILTER
                                                          from £24.57
                                                          from £24.57
                                                          # 003
                                                          MPN: 980001125
                                                          RELAY COMPLETE CABLE
                                                          - Not for GD
                                                          from £122.25
                                                          from £122.25
                                                          # 003
                                                          MPN: 980001200
                                                          RELAY COMPLETE CABLE
                                                          - Valid for GD
                                                          from £142.48
                                                          from £142.48
                                                          # 004
                                                          MPN: 980000979
                                                          EXAUST PIPE
                                                          from £2.29
                                                          from £2.29
                                                          # 005
                                                          MPN: 375530166
                                                          EXPANSION VALVLE
                                                          from £344.82
                                                          from £344.82
                                                          # 006
                                                          MPN: 980000975
                                                          RICIRCLE ACTUATOR
                                                          from £51.02
                                                          from £51.02
                                                          # 007
                                                          MPN: 980010980
                                                          ELECTROFAN
                                                          from £239.22
                                                          from £239.22
                                                          This part replaces part number 980000980
                                                          # 008
                                                          MPN: 46451295
                                                          RELAY
                                                          from £32.50
                                                          from £32.50
                                                          # 009
                                                          MPN: 385500479
                                                          WATER INLET DUCT
                                                          - Not for GD
                                                          from £16.97
                                                          from £16.97
                                                          # 009
                                                          MPN: 385510479
                                                          WATER INLET DUCT
                                                          - Valid for GD
                                                          from £14.89
                                                          from £14.89
                                                          # 010
                                                          MPN: 385500481
                                                          WATER OUTLET DUCT
                                                          - Not for GD
                                                          from £15.83
                                                          from £15.83
                                                          # 010
                                                          MPN: 385510481
                                                          WATER OUTLET DUCT
                                                          - Valid for GD
                                                          from £15.90
                                                          from £15.90
                                                          # 011
                                                          MPN: 980000984
                                                          FREON VALVLE GASKET
                                                          from £6.03
                                                          from £6.03
                                                          # 012
                                                          MPN: 980000974
                                                          ACTUATOR
                                                          from £85.54
                                                          from £85.54
                                                          # 013
                                                          MPN: 980000999
                                                          ACTUATOR
                                                          from £59.96
                                                          from £59.96
                                                          # 014
                                                          MPN: 980000977
                                                          TT2 AIR SENSOR
                                                          from £13.10
                                                          from £13.10
                                                          # 015
                                                          MPN: 980000976
                                                          TT1 AIR SENSOR
                                                          from £13.10
                                                          from £13.10
                                                          # 016
                                                          MPN: 980001126
                                                          FLANGE FOR VALVLE
                                                          from £31.80
                                                          from £31.80
                                                          # 017
                                                          MPN: 385500501
                                                          GASKET
                                                          from £1.57
                                                          from £1.57
                                                          # 018
                                                          MPN: 385500502
                                                          GASKET
                                                          from £2.90
                                                          from £2.90
                                                          # 019
                                                          MPN: 980001127
                                                          FREON PIPES
                                                          - Not for GD
                                                          from £65.74
                                                          from £65.74
                                                          # 019
                                                          MPN: 980001201
                                                          FREON PIPES
                                                          - Valid for GD
                                                          from £93.83
                                                          from £93.83
                                                          # 020
                                                          MPN: 385500503
                                                          UPPER GASKET FOR ADAPTATOR
                                                          from £3.29
                                                          from £3.29
                                                          # 021
                                                          MPN: 375500458
                                                          RUBBER
                                                          from £5.36
                                                          from £5.36
                                                          # 022
                                                          MPN: 375500457
                                                          RUBBER
                                                          from £3.66
                                                          from £3.66
                                                          # 023
                                                          MPN: 66412200
                                                          BRACKET
                                                          from £38.60
                                                          from £38.60
                                                          # 024
                                                          MPN: 14059214
                                                          NUT M6
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12578121
                                                          # 025
                                                          MPN: 16043124
                                                          SCREW
                                                          from £0.30
                                                          from £0.30
                                                          # 026
                                                          MPN: 12646724
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          # 027
                                                          MPN: 66661700
                                                          COMPLETE CENTRAL AIR DUCTING
                                                          from £86.11
                                                          from £86.11
                                                          # 028
                                                          MPN: 382300375
                                                          AIR OPENING GASKET
                                                          from £1.96
                                                          from £1.96
                                                          # 029
                                                          MPN: 14778010
                                                          SCREW
                                                          from £1.10
                                                          from £1.10
                                                          This part replaces part number 1477810
                                                          # 030
                                                          MPN: 382300467
                                                          RH SIDE AIR DUCT
                                                          from £27.13
                                                          from £27.13
                                                          # 031
                                                          MPN: 382300466
                                                          LH LATERAL AIR DUCTING
                                                          from £27.13
                                                          from £27.13
                                                          # 032
                                                          MPN: 15530107
                                                          SCREW
                                                          from £2.51
                                                          from £2.51
                                                          # 033
                                                          MPN: 15917217
                                                          SCREW
                                                          from £1.10
                                                          from £1.10
