116 - Doors - Framework and Coverings

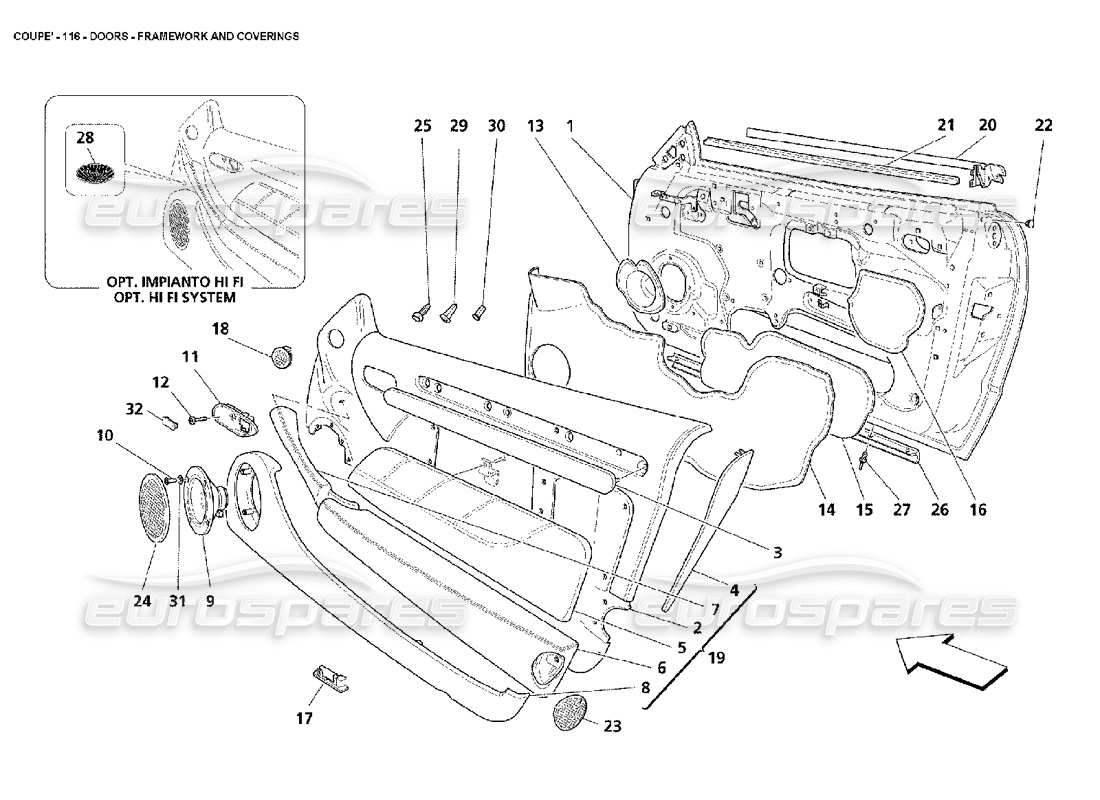

Maserati 4200 Coupe (2002) Doors - Framework and Coverings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001037
COMPLETE LH DOOR
from £787.50
from £787.50
PORTA SX. COMPLETE M138 SENZA CE Genuine Maserati Part - Used In stock
Red, blue, dark blue, silver, white
Red, blue, dark blue, silver, white
# 001
MPN: 980001038
COMPLETE RH DOOR
from £1,596.46
from £1,596.46
PORTA DX SENZA CERNIERE M138 Genuine Maserati Part - Used In stock
Red, blue, dark blue, silver, grey, white
Red, blue, dark blue, silver, grey, white
# 002
MPN: 667740..
RH DOOR PANEL UPHOLSTERED
- For order specify car number
from £262.50
from £262.50
# 002
MPN: 667741..
LH DOOR PANEL UPHOLSTERED
- For order specify car number
from £99.75
from £99.75
# 003
MPN: 66112700
RH DOOR MOULDING
- Standard
from £65.33
from £65.33
This part replaces part number 66198900
# 003
MPN: 66112800
LH DOOR MOULDING
- Standard
from £65.33
from £65.33
This part replaces part number 66198800
# 003
MPN: 67027600
RH DOOR MOULDING
- Optional - Carbon
from £480.47
from £480.47
# 003
MPN: 67027700
LH DOOR MOULDING
- Optional - Carbon
from £333.96
from £333.96
# 003
MPN: 67027800
RH DOOR MOULDING
- Optional - Brier
from £295.73
from £295.73
# 003
MPN: 67027900
LH DOOR MOULDING
- Optional - Brier
from £623.70
from £623.70
# 003
MPN: 67247000
RH DOOR MOULDING
Gray
from £30.13
from £30.13
# 003
MPN: 67247300
LH DOOR MOULDING
Gray
from £30.13
from £30.13
# 004
MPN: 663683..
RH UPHOLSTERED TERMINAL PLUG
- For order specify car number
Supersession
Supersession
# 004
MPN: 663684..
LH UPHOLSTERED TERMINAL PLUG
- For order specify car number
Supersession
Supersession
# 005
MPN: 663681..
RH DOOR SIDE- BAG COVER
- For order specify car number
Supersession
Supersession
# 005
MPN: 663682..
LH DOOR SIDE BAG COVER
- For order specify car number
Supersession
Supersession
# 005
MPN: 67288507
RHS DOOR AIR BAG (BORDEAUX)
Please note: (Collection or Delivery by road within Europe)
from £581.50
from £581.50
This part replaces part number 66368107 - and 1 more. Click to view details
# 006
MPN: 663679..
RH ARM REST DOOR
- For order specify car number
Supersession
Supersession
# 006
MPN: 66368000
LH ARM REST DOOR
- For order specify car number
from £229.46
from £229.46
# 007
MPN: 667744..
RH UPHOLSTERED HANDLE MOULDING
- For order specify car number
Supersession
Supersession
# 007
MPN: 667746..
LH UPHOLSTERED HANDLE MOULDING
- For order specify car number
Supersession
Supersession
# 008
MPN: 667742..
RH POCKET UPHOLSTERED
- For order specify car number
Supersession
Supersession
# 008
MPN: 667743..
LH POCKET UPHOLSTERED
- For order specify car number
Supersession
Supersession
# 009
MPN: 189389
LOUD SPEAKER WOOFER
- Standard
from £115.55
from £115.55
# 009
MPN: 189390
LOUD SPEAKER WOOFER
- Optional - HI FI system
from £57.41
from £57.41
# 010
MPN: 13274014
SCREW
from £3.54
from £3.54
# 011
MPN: 67393629
RH HANDLE PLATE
from £25.70
from £25.70
This part replaces part number 66112900
# 011
MPN: 67393729
LH HANDLE PLATE
from £34.74
from £34.74
This part replaces part number 66113000
# 012
MPN: 15689907
SCREW
from £1.09
from £1.09
# 013
MPN: 66661100
WATER SHIELD FOR LH LOUD SPEAKER
from £16.23
from £16.23
# 013
MPN: 66661200
WATER SHIELD FOR RH LOUD SPEAKER
from £15.31
from £15.31
# 014
MPN: 66420100
WATER SHIELD IN THE RH DOOR
from £17.08
from £17.08
# 014
MPN: 66420200
WATER SHIELD IN THE LH DOOR
from £17.08
from £17.08
# 015
MPN: 66661300
LH LOWER CENTRAL WATER FOR SHIELD
from £16.23
from £16.23
# 015
MPN: 66661400
RH LOWER CENTRAL WATER FOR SHIELD
from £15.02
from £15.02
# 016
MPN: 66661500
LH UPPER LATERAL WATER FOR SHIELD
from £30.39
from £30.39
# 016
MPN: 66661600
RH UPPER LATERAL WATER FOR SHIELD
from £12.62
from £12.62
# 017
MPN: 60608165
UNDER DOOR LAMP
- Standard
from £6.16
from £6.16
# 018
MPN: 185969
LOUD SPEAKER TWEETER
from £27.91
from £27.91
# 018
MPN: 185970
LOUD SPEAKER TWEETER
- Optional - HI FI system
from £31.07
from £31.07
# 019
MPN: 667738..
COMPLETE RH DOOR PANEL UPHOLSTERED
- For order specify car number
from £99.75
from £99.75
COMPLETE RH DOOR PANEL UPHOLSTERED Genuine Maserati Part - Used In stock
AIR BAG PANEL NEEDS REPAIRING.
AIR BAG PANEL NEEDS REPAIRING.
# 019
MPN: 667739..
COMPLETE LH DOOR PANEL UPHOLSTERED
- For order specify car number
Supersession
Supersession
# 020
MPN: 67820200
RH OUTER GLASS SCRAPER GASKET
from £253.35
from £253.35
This part replaces part number 387700324
# 020
MPN: 67820300
LH Outer Glass Scraper Gasket
from £139.34
from £139.34
This part replaces part number 387700323 - and 1 more. Click to view details
# 021
MPN: 67021400
LH INNER GLASS SCRAPER GASKET
- Valid till stock exhaustion
Supersession
Supersession
# 021
MPN: 67245400
LH INNER GLASS SCRAPER GASKET
- Valid after stock exhaustion of 67021400
from £16.84
from £16.84
This part replaces part number 67021400
# 022
MPN: 388300805
button
from £0.86
from £0.86
# 023
MPN: 46427291
REFLECTOR FOR RH DOOR PANEL
from £4.27
from £4.27
# 023
MPN: 46427292
REFLECTOR FOR LH DOOR PANEL
from £4.27
from £4.27
# 024
MPN: 388300600
LOUD SPEAKER PLATE
from £5.08
from £5.08
This part replaces part number 388300496
# 025
MPN: 66805100
PIN
from £0.70
from £0.70
# 026
MPN: 384500441
UNDERDOOR GASKET
from £14.44
from £14.44
# 027
MPN: 384500442
RIVET
from £1.09
from £1.09
# 028
MPN: 388300398
PLATE
- Optional - HI FI system
from £34.86
from £34.86
# 029
MPN: 7745194
BUSHING
from £1.16
from £1.16
# 030
MPN: 15180311
RIVET
from £1.87
from £1.87
# 031
MPN: 12620374
WASHER
from £0.47
from £0.47
# 032
MPN: 388300603
PLUG
from £45.59
from £45.59
This part replaces part number 388300556
