maserati 4200 coupe (2002) front bumper parts diagram

106 - FRONT BUMPER

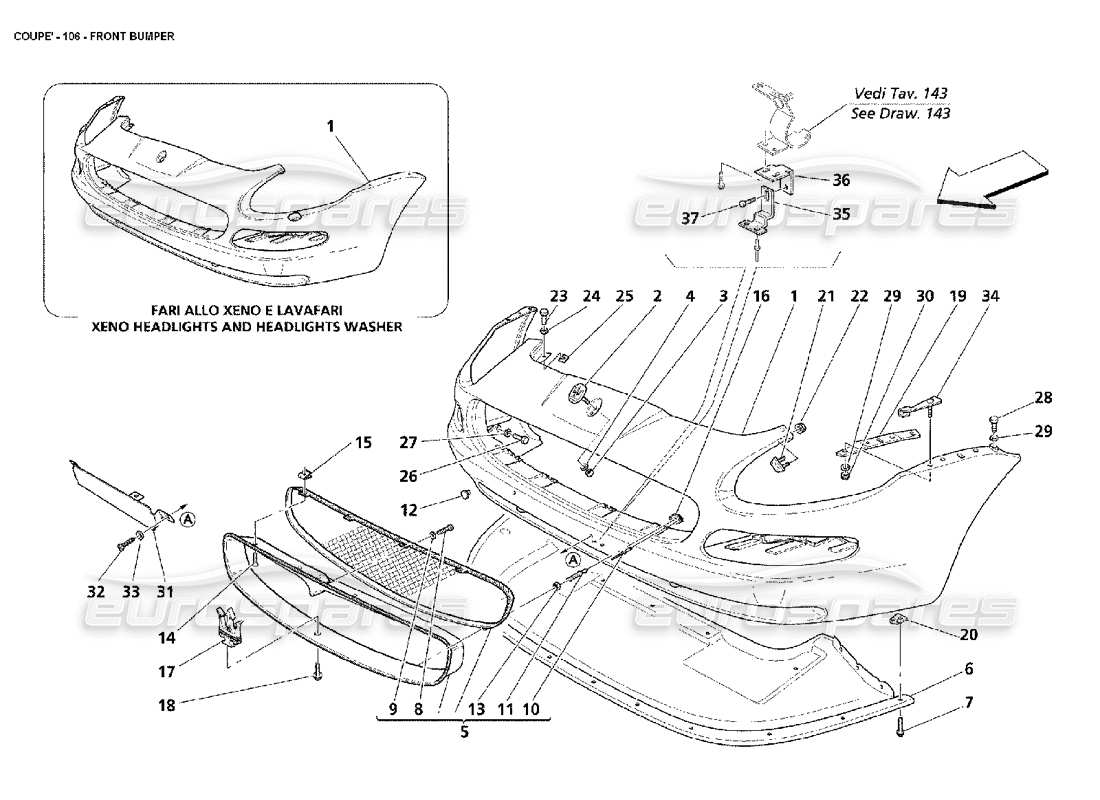

Maserati 4200 Coupe (2002) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 980001063
                                                                      CPL. FRONT BUMPER
                                                                      - Standard - Not for USA and CDN
                                                                      from £721.49
                                                                      from £721.49
                                                                      # 001
                                                                      MPN: 980001064
                                                                      COMPLETE FRONT BUMPER
                                                                      - Optional - Xeno Headlights and - Headlights Washer - Not for USA and CDN
                                                                      from £920.30
                                                                      from £920.30
                                                                      # 001
                                                                      MPN: 980001065
                                                                      COMPLETE FRONT BUMPER
                                                                      - Standard - Valid for USA and CDN
                                                                      from £920.30
                                                                      from £920.30
                                                                      # 001
                                                                      MPN: 980001066
                                                                      COMPLETE FRONT BUMPER
                                                                      - Optional - Xeno Headlights and - Headlights Washer - Valid for USA and CDN
                                                                      from £1,295.28
                                                                      from £1,295.28
                                                                      # 002
                                                                      MPN: 66294600
                                                                      Maserati MARK
                                                                      - Valid till stock exhaustion
                                                                      from £214.70
                                                                      from £214.70
                                                                      This part replaces part number 67389900
                                                                      # 002
                                                                      MPN: 67389900
                                                                      Maserati MARK
                                                                      - Valid after stock exhaustion of 66294600
                                                                      Supersession
                                                                      Supersession
                                                                      # 003
                                                                      MPN: 10794014
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 004
                                                                      MPN: 12642801
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 005
                                                                      MPN: 66663700
                                                                      COMPLETE REMOVABLE CALENDER
                                                                      - Standard
                                                                      from £387.78
                                                                      from £387.78
                                                                      # 005
                                                                      MPN: 68334300
                                                                      COMPLETE REMOVABLE CALENDER
                                                                      Optional - Black net
                                                                      from £397.29
                                                                      from £397.29
                                                                      # 006
                                                                      MPN: 66232900
                                                                      SHIELD FRONT UNDER THE BODY SHELL
                                                                      from £171.16
                                                                      from £171.16
                                                                      # 007
                                                                      MPN: 16296924
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 009
                                                                      MPN: 12642878
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 010
                                                                      MPN: 372580638
                                                                      RIVET
                                                                      from £4.67
                                                                      from £4.67
                                                                      # 011
                                                                      MPN: 386100385
                                                                      THREADED PIN
                                                                      from £18.42
                                                                      from £18.42
                                                                      # 012
                                                                      MPN: 67118900
                                                                      PLUG FOR TOW HOOK HOLE
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 013
                                                                      MPN: 10794011
                                                                      NUT
                                                                      from £0.26
                                                                      from £0.26
                                                                      This part replaces part number 10794040
                                                                      # 014
                                                                      MPN: 15693504
                                                                      SCREW
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 015
                                                                      MPN: 14369179
                                                                      FIXING BRACKET
                                                                      from £3.74
                                                                      from £3.74
                                                                      # 016
                                                                      MPN: 61529200
                                                                      FIXING CLIP
                                                                      from £3.37
                                                                      from £3.37
                                                                      This part replaces part number 94074075 which we have in stock
                                                                      # 017
                                                                      MPN: 67365200
                                                                      EMBLEM
                                                                      from £211.05
                                                                      from £211.05
                                                                      This part replaces part number 66608700
                                                                      # 018
                                                                      MPN: 46401657
                                                                      SCREW
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 019
                                                                      MPN: 66370800
                                                                      RH SIDE BRACKET
                                                                      from £19.91
                                                                      from £19.91
                                                                      # 019
                                                                      MPN: 66370900
                                                                      LH SIDE BRACKET
                                                                      from £19.91
                                                                      from £19.91
                                                                      # 020
                                                                      MPN: 14189071
                                                                      BRACKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 021
                                                                      MPN: 66494700
                                                                      RH BRACKET
                                                                      from £23.55
                                                                      from £23.55
                                                                      # 021
                                                                      MPN: 66494800
                                                                      LH BRACKET
                                                                      from £21.65
                                                                      from £21.65
                                                                      # 022
                                                                      MPN: 13831811
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 023
                                                                      MPN: 10902387
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 024
                                                                      MPN: 10523478
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 025
                                                                      MPN: 66361500
                                                                      ADJUSTING PLATE
                                                                      from £3.25
                                                                      from £3.25
                                                                      # 026
                                                                      MPN: 16043321
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 027
                                                                      MPN: 163020080
                                                                      WASHER
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 028
                                                                      MPN: 10902834
                                                                      SCREW
                                                                      from £0.50
                                                                      from £0.50
                                                                      # 029
                                                                      MPN: 10523424
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 030
                                                                      MPN: 14059211
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 675000181
                                                                      # 031
                                                                      MPN: 66361600
                                                                      SUPPORT FOR FRONT PLATE HOLDER
                                                                      from £52.50
                                                                      from £52.50
                                                                      # 032
                                                                      MPN: 13283217
                                                                      SCREW
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 033
                                                                      MPN: 12637807
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 034
                                                                      MPN: 386300132
                                                                      RH FRONT BRACKET
                                                                      from £30.93
                                                                      from £30.93
                                                                      # 034
                                                                      MPN: 386300133
                                                                      LH FRONT BRACKET
                                                                      from £52.66
                                                                      from £52.66
                                                                      # 035
                                                                      MPN: 67257300
                                                                      LOWER BRACKET
                                                                      from £70.50
                                                                      from £70.50
                                                                      # 036
                                                                      MPN: 67257400
                                                                      UPPER BRACKET
                                                                      from £5.71
                                                                      from £5.71
                                                                      # 037
                                                                      MPN: 11730626
                                                                      SCREW
                                                                      from £1.90
                                                                      from £1.90
