maserati 3500 gt fuel tank, handbrake, water radiator parts diagram

033 - Fuel Tank, Handbrake, Water Radiator

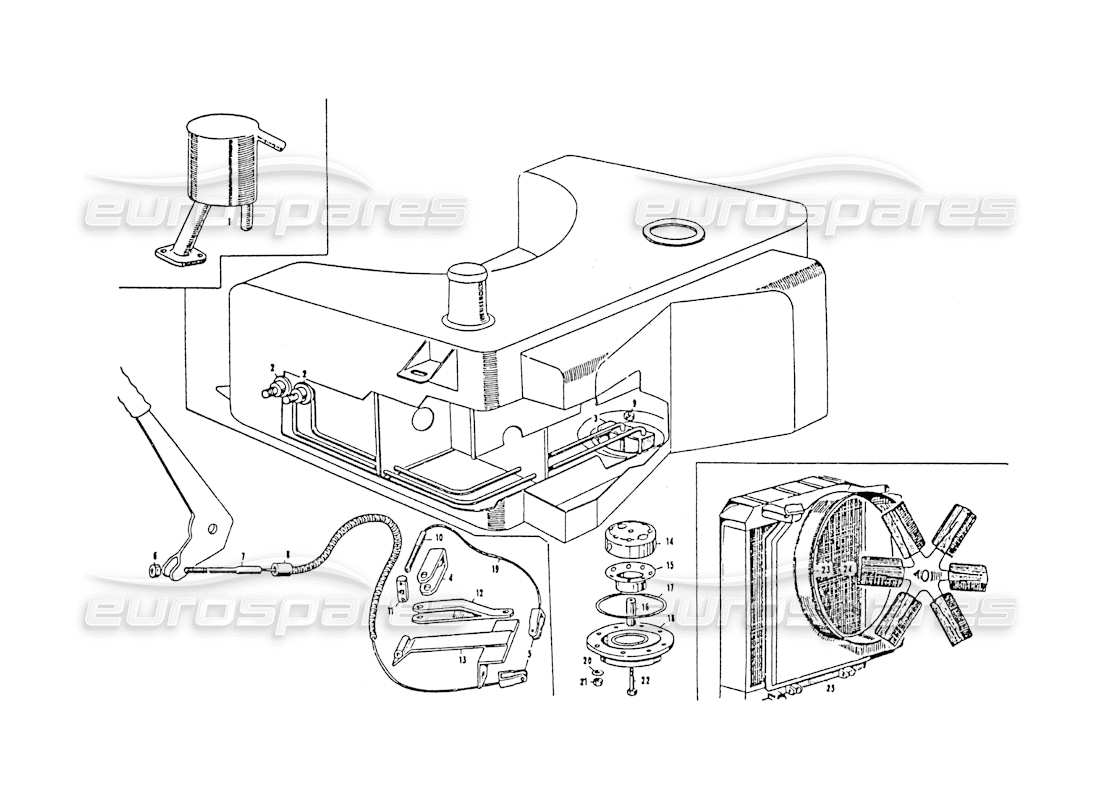

Maserati 3500 GT Fuel Tank, Handbrake, Water Radiator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
Part in stock
Available in a part set
Part supersession in stock
Available in a part set to order (subject to availability)
Part available to order (subject to availability)
Available in a part kit
                                                      Part number
                                                      # 001
                                                      MPN: 4322/52763
                                                      SOFFIANTE PER MOTORE INIEZIONE
                                                      # 002
                                                      MPN: 16050/32646
                                                      FUEL EXHAUST FITTING ASSEMBLY
                                                      # 003
                                                      MPN: 16123/52170
                                                      SEAL JUMPER Tubi PETROL EXHAUST SOCKET
                                                      # 004
                                                      MPN: 15670/52611
                                                      CAVALOTTO PER SNODO CAVI
                                                      # 005
                                                      MPN: 15650/52615
                                                      # 006
                                                      MPN: DN/47047
                                                      # 007
                                                      MPN: 15685/52612
                                                      TIE ROD
                                                      # 008
                                                      MPN: 15675/52616
                                                      COMPLETE CABLE FROM THE LEVER TO THE REAR BRAKES
                                                      # 009
                                                      MPN: DST/45666
                                                      # 010
                                                      MPN: 15689/52614
                                                      TIRENTE SUL LATO POSTERIORE DESTRO
                                                      # 011
                                                      MPN: 15681/52613
                                                      PIVOT FASTENING
                                                      # 012
                                                      MPN: 15684/52610
                                                      # 013
                                                      MPN: 15502/52608
                                                      BRACKET / SUPPORT
                                                      # 014
                                                      MPN: 16117/52171
                                                      CAGE FOR PETROL INTAKE AND EXHAUST PIPE
                                                      # 015
                                                      MPN: 16119/52172
                                                      RING FOR CAGE Tubi PETROL INTAKE AND DISCHARGE
                                                      # 016
                                                      MPN: 16121/52173
                                                      SPACER BETWEEN THE COCKPIT AND THE PETROL INTAKE AND EXHAUST CAGE
                                                      # 017
                                                      MPN: GOM 52319
                                                      RUBBER Ø 80X75X2,5 FLANGE AND SOCKET SEAL
                                                      # 018
                                                      MPN: 16125/52169
                                                      PETROL INTAKE AND EXHAUST SOCKET
                                                      # 019
                                                      MPN: 15686/52609
                                                      COMPLETE CABLE FROM JOINT TO REAR BRAKE
                                                      # 020
                                                      MPN: RAT/45679
                                                      RONDALLA Ø 6,4X11X0,5 FISSAGGIO FLANGIA E POZZETTO
                                                      # 021
                                                      MPN: D5T/45669
                                                      # 022
                                                      MPN: BNT/52215
                                                      # 023
                                                      MPN: 16256/52863
                                                      TUNNEL ON RADIATOR FOR FAN
                                                      # 024
                                                      MPN: 5002/52787
                                                      SIX BLADE FAN
                                                      # 025
                                                      MPN: 16254/50182
                                                      RADIATORE ACQUA
                                                      # 026
                                                      MPN: 16119/52216
                                                      INJECTION FUEL TANK
