014 - Rear Suspension

Maserati 3500 GT Rear Suspension Parts Diagram

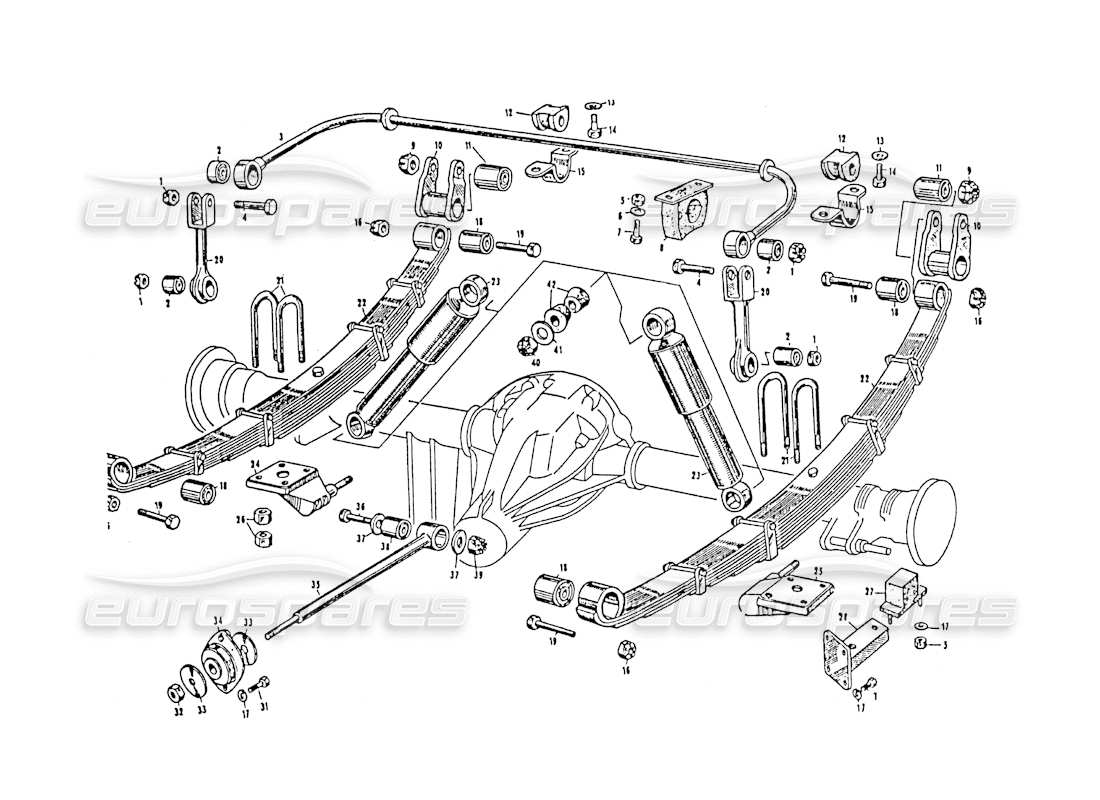

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: DCN/44858
                                                                                      NUT
                                                                                      # 002
                                                                                      MPN: SLN34748
                                                                                      SUPPORT
                                                                                      from £49.32
                                                                                      from £49.32
                                                                                      # 003
                                                                                      MPN: 12550/50319
                                                                                      REAR STABILIZER BAR
                                                                                      # 004
                                                                                      MPN: BN 47451
                                                                                      BOLT
                                                                                      # 005
                                                                                      MPN: DNT. 47031
                                                                                      NUT
                                                                                      # 006
                                                                                      MPN: RAT/45680
                                                                                      WASHER
                                                                                      # 008
                                                                                      MPN: 11192/42713
                                                                                      BUFFER TO THE UPPER STROKE
                                                                                      # 009
                                                                                      MPN: DCNT/47106
                                                                                      NUT
                                                                                      # 010
                                                                                      MPN: 11537/47976
                                                                                      COMPLETE BISCUIT FOR CROSSBOW
                                                                                      # 011
                                                                                      MPN: SLN/42537
                                                                                      SUPPORT
                                                                                      # 012
                                                                                      MPN: 12574 44118
                                                                                      ELASTIC PLUSH FOR FRONT AND REAR STABILIZER BAR SUPPORT
                                                                                      # 013
                                                                                      MPN: RSN/33112
                                                                                      WASHER
                                                                                      from £1.70
                                                                                      from £1.70
                                                                                      # 015
                                                                                      MPN: 12572/44117
                                                                                      Supports per tau.lto elasllco barn st.blticutrlce ant.. post.
                                                                                      # 016
                                                                                      MPN: DCNT/47103
                                                                                      NUT
                                                                                      # 017
                                                                                      MPN: RSN/33635
                                                                                      WASHER
                                                                                      # 018
                                                                                      MPN: SLN/47969
                                                                                      Silentblok per molla e bbalestra sospensione posteriore
                                                                                      from £71.10
                                                                                      from £71.10
                                                                                      # 019
                                                                                      MPN: BN/47971
                                                                                      BOLT
                                                                                      # 020
                                                                                      MPN: 12558/47988
                                                                                      BIALLETTA PER BARRA STABILIZZATORE POSTERIORE
                                                                                      # 021
                                                                                      MPN: 11670/47979
                                                                                      BRACKET FOR FIXING THE LOWER SPRING SUPPORT PLATE
                                                                                      # 022
                                                                                      MPN: 11500/46412
                                                                                      SPRING
                                                                                      # 023
                                                                                      MPN: 12504/46996
                                                                                      REAR SHOCK ABSORBER
                                                                                      from £414.55
                                                                                      from £414.55
                                                                                      # 024
                                                                                      MPN: 11589/47994
                                                                                      PIASTRA FISSAGGIO BALESTRA E AMMORTIZAZATORE LATO DESTRO SOSP. POST.
                                                                                      # 025
                                                                                      MPN: 11590/47993
                                                                                      PIASTRA FISSAGGIUO BALESTRA E AMMORTIZZATORE LATO DESTRO SOSP. POST.
                                                                                      # 026
                                                                                      MPN: DNT/47053
                                                                                      NUT
                                                                                      # 027
                                                                                      MPN: 11354/47009
                                                                                      STOP BUFFER FOR REAR SUSPENSION
                                                                                      # 028
                                                                                      MPN: 11202/51977
                                                                                      SUPPORT
                                                                                      # 029
                                                                                      MPN: 11203/51978
                                                                                      SUPPORT
                                                                                      # 030
                                                                                      MPN: DNT/47064
                                                                                      NUT
                                                                                      # 031
                                                                                      MPN: RNT/17015
                                                                                      BOLT
                                                                                      # 033
                                                                                      MPN: AN/49442
                                                                                      WASHER
                                                                                      # 034
                                                                                      MPN: SLH/49441
                                                                                      SILENTBLOK ANTERIORE PER PUNTONE REAZIONE
                                                                                      # 035
                                                                                      MPN: 11698/49440
                                                                                      BRIDGE REACTION STRUT
                                                                                      # 036
                                                                                      MPN: BN/49447
                                                                                      BOLT
                                                                                      # 037
                                                                                      MPN: RN/49446
                                                                                      WASHER
                                                                                      # 038
                                                                                      MPN: SLN/49449
                                                                                      SiIentblok posteriore per puntone reazione
                                                                                      # 039
                                                                                      MPN: DC/45498
                                                                                      NUT
                                                                                      # 040
                                                                                      MPN: DCNT/47091
                                                                                      NUT
                                                                                      # 041
                                                                                      MPN: RNT 47091
                                                                                      WASHER
                                                                                      # 042
                                                                                      MPN: GOM/52762
                                                                                      BUSH
