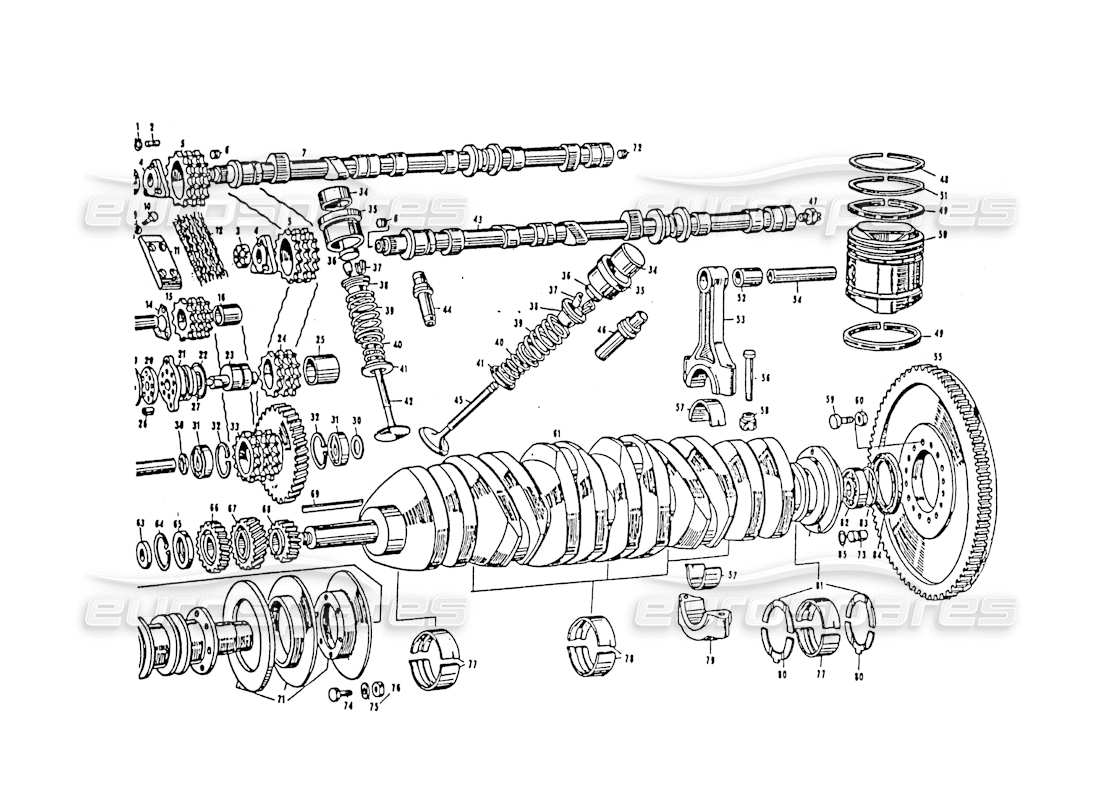

002 - Moving Parts and Timing

Maserati 3500 GT Moving Parts and Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: ART 49642
ANNELLO DI FORMO PER GRANO INNESTO INGRANAGGIO ALBERO DISTRBUZIONE
# 002
MPN: GRN 31105
GRAIN 6X10 CLUTCH SEAL WITH TIMING CONTROL GEAR FLANGE
# 003
MPN: 3014 44017
NUT
# 004
MPN: 3027/47580
CLUTCH WITH FLANGE FOR TIMING CONTROL GEAR
# 005
MPN: 3602/44036
GEAR FOR TIMING SHAFT
# 006
MPN: TN/43815
CAP 16X1,5 FOR FRONT CAMSHAFT
# 007
MPN: 3002/48021
ALBERO DISTRIBUZIONE LATO ASPIRAZIONE
# 008
MPN: DN 46766
NUT
# 009
MPN: RN/49273
WASHER
# 011
MPN: 1082/47956
NYLON CHAIN ​​GUIDE SLIDE
# 012
MPN: 47556
CHAIN ​​FOR TIMING CONTROL
# 013
MPN: 3565/48258
ALBERO PERPIGNONE RAMPITRATTA
# 014
MPN: 3571/47120
GASKET OR SEAL
# 015
MPN: 3717/47952
PIGNONE PER GALOPPINA RAMPITRATTA
# 016
MPN: 3713/48257
BUSSOLA PER PIGNONE RAMPITRATTA
# 017
MPN: DN 33533
NUT
# 018
MPN: RSN/33114
WASHER
# 019
MPN: 3741/49287
WASHER
# 020
MPN: 3743/49286
WASHER
# 021
MPN: 3747/49285
SUPPORT
# 022
MPN: GOM/43143
RUBBER 37X43X3 ON THE CHAIN ​​TENSIONER PIN SUPPORT
# 023
MPN: 3744/49283
PIVOT
# 024
MPN: 3712/A/49282
PINION FOR CHAIN ​​TENSIONER
# 025
MPN: 3713/49284
BUSH FOR CHAIN ​​TENSIONER SPROCKET
# 026
MPN: 3740/49288
PIVOT
# 027
MPN: GOM/45791
RUBBER 18X24X3 ON THE CHAIN ​​TENSIONER PIN SUPPORT
# 028
MPN: 3562/44027
SHAFT FOR DOUBLE GEAR IN THE CYLINDER BASE
# 029
MPN: 3571/46908
GASKET OR SEAL
# 030
MPN: 3509/46572
DISTANZIALE PER INGRAGGIO COMANDO CALANA
# 031
MPN: CSC/47959
Bearing 20X52X15 with steel cage on the shaft for double gear on the base
# 032
MPN: ART 43992
RING
# 033
MPN: 3508/45665
INGRANAGGIO DI RINVIO COM. DISTRIBUZIONE
# 034
MPN: 3413/48009
BICCHIERINO COMANDO VALVOLA
# 035
MPN: 3417/48012
GUIDE BUSH FOR CUP
# 036
MPN: 3322/48003
GLOCO ADJUSTMENT PAD FOR INTAKE AND EXHAUST VALVE
# 037
MPN: 3414/48005
SEMICONI DI RILEGNO SCODELLINO MOLLE VALVOLE
# 038
MPN: 3412/48008
UPPER CAP FOR INTAKE AND EXHAUST VALVE SPRINGS
# 039
MPN: 3402/47982
SPRING
# 040
MPN: 3406/47983
SPRING
# 041
MPN: 1034/48004
LOWER SPRING CAP
# 042

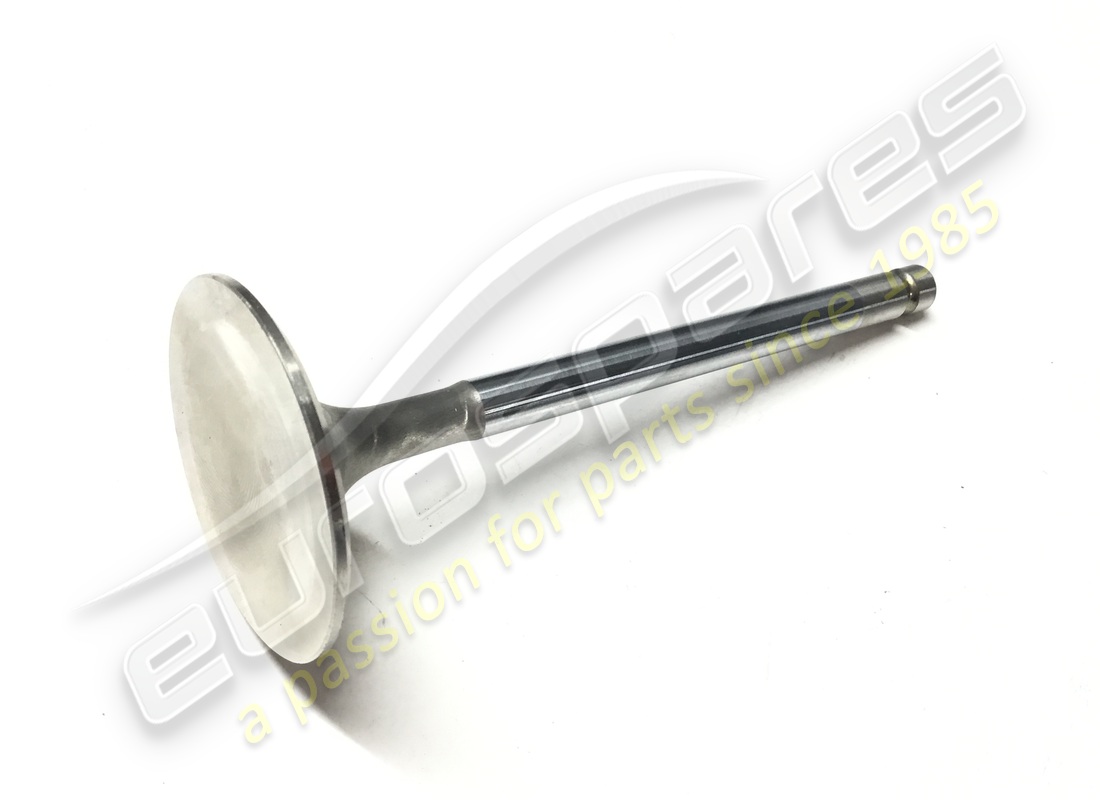

MPN: MD46808
INTAKE VALVES
from £41.48
from £41.48
# 043
MPN: 3004/48022
EXHAUST SIDE TIMING SHAFT
# 044
MPN: 1030/48011
Guida valvola di aspirazione
from £59.58
from £59.58
# 045

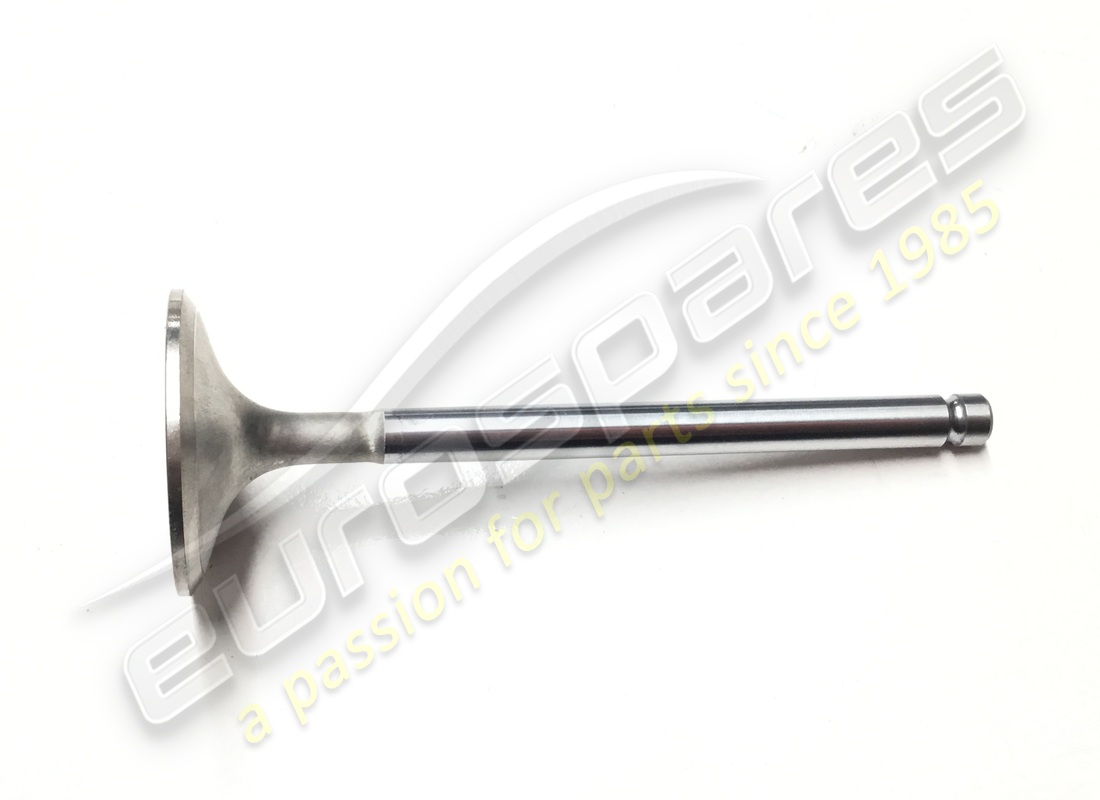

MPN: MD48006
DRAIN VALVES
from £46.73
from £46.73
# 046
MPN: 1032/48010
GUIDA VALVOLA DI SCARICO
# 047
MPN: 3012/47331
CODULA PER INNESTA COMANDO CONTAGIRI
# 048
MPN: 2754/50192
SEGMANIA DI TENUTA TORSIONALE
# 049
MPN: 2104/17581
PERSCHLEOLIA INFERIORE E SUPERIORE
# 050
MPN: 2602/49267
PISTON ASSY
# 051
MPN: 2754/50362
SEALING RING
# 052
MPN: 2520/49214
BUSH
# 053
MPN: 2502/47788
BIELLE
# 054
MPN: 2702/46431
SPINOTTO PER PISTONE
# 055
MPN: 2302/48049
VOLANO MOTORE COMPLETO DI CORONA
# 056
MPN: 2530/47790
BOLT
# 057
MPN: 2504/47791
BUSHING FOR CONNECTING ROD
# 057
MPN: K301020903
MAIN BEARINGS SET
(0.30)
from £892.50
from £892.50
# 058
MPN: 2532/49911
NUT
# 059
MPN: BN/47629
BOLT
# 060
MPN: DCN 43137
NUT
# 061
MPN: 2002/47958
ALBERO MANOVELLA
# 062
MPN: 2102/47649
NUT
# 063
MPN: RNT 49870
WASHER
# 064
MPN: ART/47633
SEEGER RING
# 065
MPN: ANT 47650
SEALING RING
from £29.40
from £29.40
# 066
MPN: 4104//9591
Oil pump control gear on the crankshaft
# 067
MPN: 5272/48024
Ingraggio conduttora comando spinterogeno sull'albero manovella
# 068
MPN: 3502/47526
Ingraggio comando distribuzione sull'albero manovella
# 069
MPN: 2122/47645
Key on the crankshaft for the timing control gear
# 070
MPN: 5122/49825
Pulley for fan and dynamo control on the crankshaft
# 070
MPN: 5122/49825
Pulley for fan and dynamo control on the crankshaft
# 071
MPN: 2310/49827
VOLANO ANTIVIBRATORE
# 072
MPN: TN 47332
CAP 16X1,5 LEFT REAR SIDE OF INTAKE TIMING SHAFT
# 073
MPN: GRN44931
GRINDER 10X15 FOR CENTERING THE FLYWHEEL ON THE CRANKSHAFT
# 074
MPN: BN/49857
BOLT
# 075
MPN: RSN 3 2 6 3 5
WASHER
# 076
MPN: DNT. 47031
NUT
# 077
MPN: 2422/48728
CRUSCINETTO ANTERIORE E POSTERIORE PER ALBERO MANOVELLA VENDERVELL L 5377/2
# 077

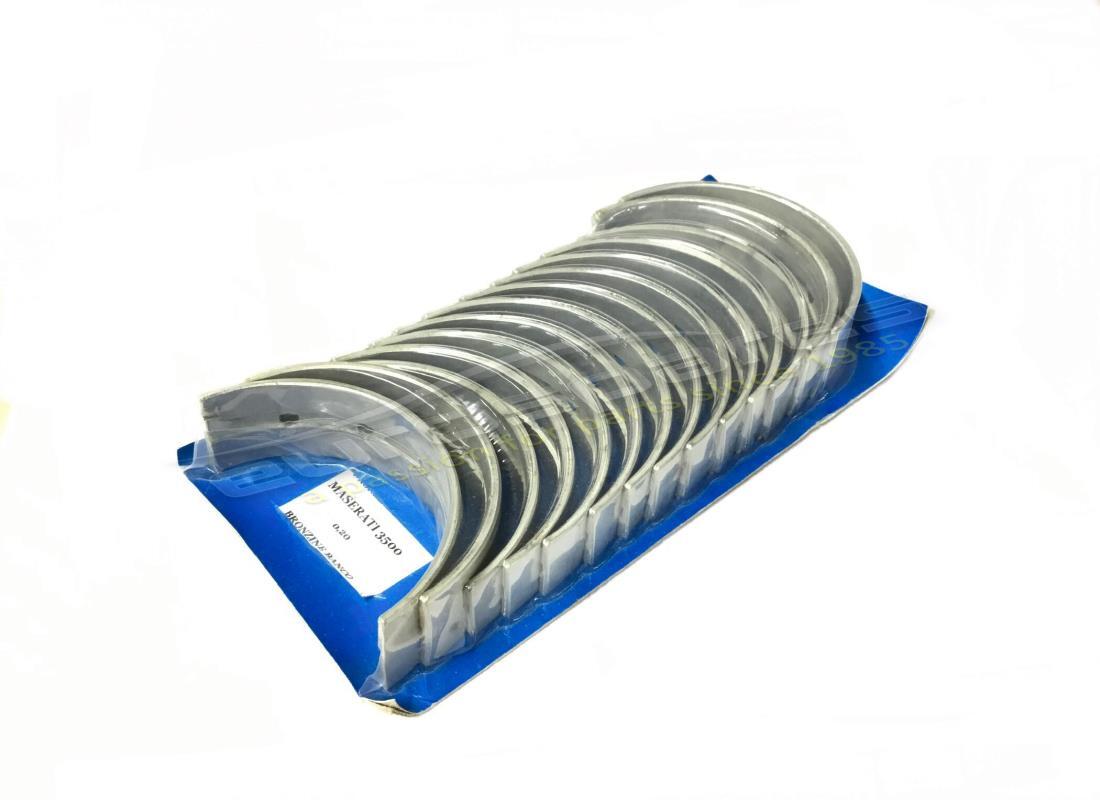

MPN: MMB001
MAIN BEARINGS SET
(0.20)
from £945.00
from £945.00
# 077

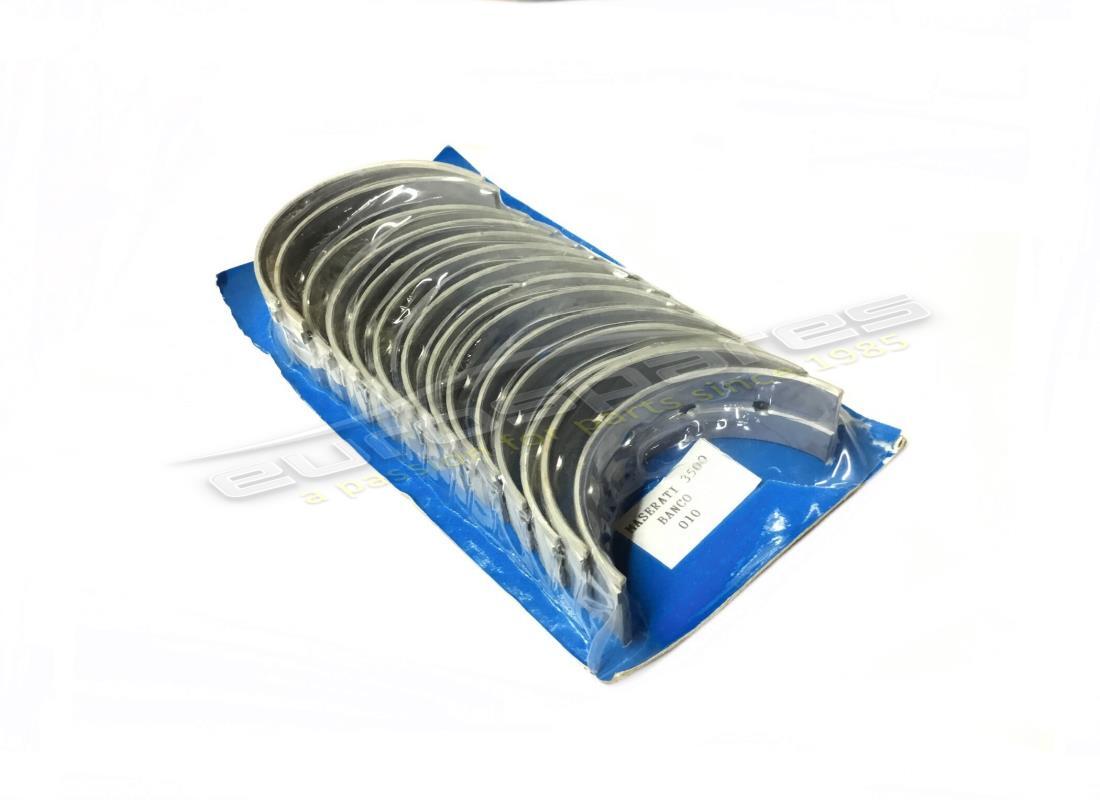

MPN: MMB002
MAIN BEARINGS SET
(0.10)
from £945.00
from £945.00
# 078
MPN: 2412/48727
CRUSCINETTO INTERMEDIO PER ALBERO MANOVELLA VENDERVELL L 5377/1
# 079
MPN: 2502/47788
CAPPELLO PER BIELLA
# 080
MPN: 2432/48738
WASHER
# 081
MPN: 2430/48737
WASHER
# 082
MPN: CSC/46624
Cruscinetto 17X47X14 sull'albero motore parte posteriore
# 083
MPN: ART/46284
SEEGER RING
# 084
MPN: ANT47974
SEALING RING
from £131.25
from £131.25
# 085
MPN: ART/49644
RING
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
