maserati 3200 gt/gta/assetto corsa inner trims: roof parts diagram

139 - Inner Trims: Roof

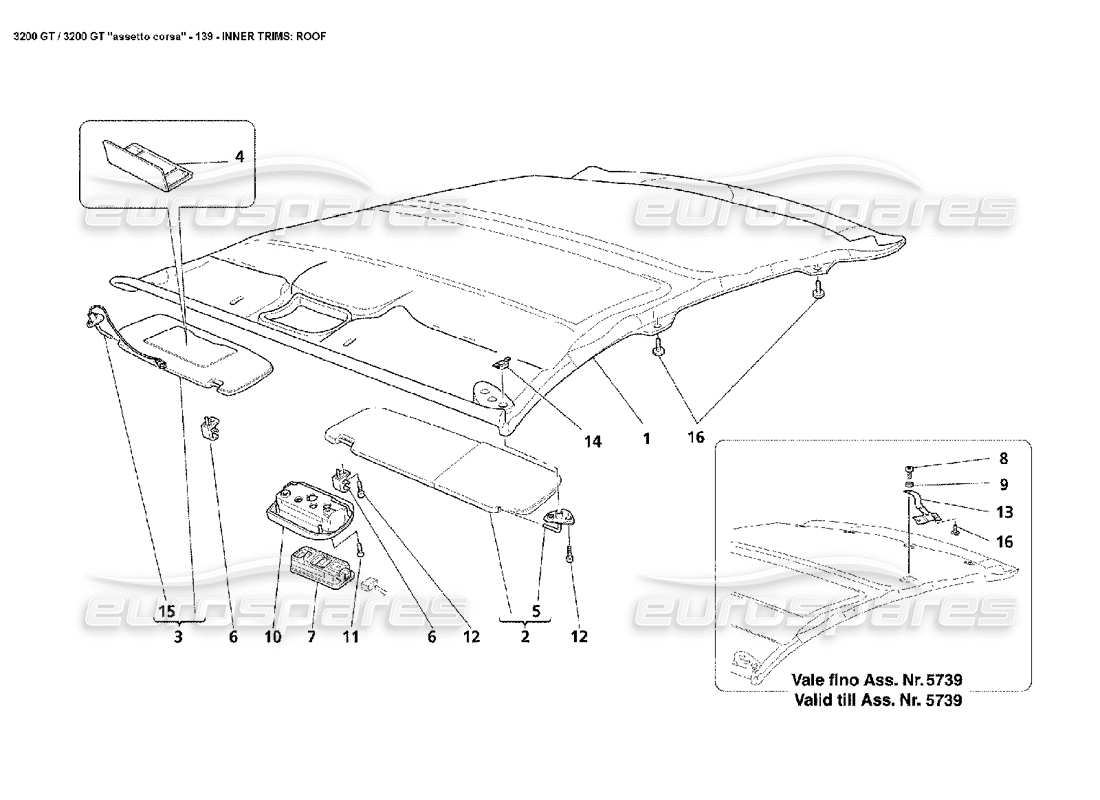

Maserati 3200 GT/GTA/Assetto Corsa Inner Trims: Roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 9810020..
    ROOF ASSY
    -In the order, add the two digits of alcantara colour code - Valid till Ass. Nr. 5739-
    Supersession
    Supersession
    # 001
    MPN: 981210016
    ROOF TRIM
    from £3,651.04
    from £3,651.04
    # 002
    MPN: 9810021..
    LH SUN VISOR. ASSY
    -Only GS - In the order, add the two digits of alcantara colour code - Valid till Ass. Nr. 5739-
    Supersession
    Supersession
    # 002
    MPN: 9810023..
    LH SUN VISOR. ASSY
    -Only GD - In the order, add the two digits of alcantara colour code - Valid till Ass. Nr. 5739-
    Supersession
    Supersession
    # 002
    MPN: 9812053..
    LH SUN VISOR. ASSY
    -Only GS - In the order, add the two digits of alcantara colour code - Valid from Ass. Nr. 5740-
    Supersession
    Supersession
    # 002
    MPN: 9812055..
    LH SUN VISOR. ASSY
    -Only GD - In the order, add the two digits of alcantara colour code - Valid from Ass. Nr. 5740-
    from £152.25
    from £152.25
    # 003
    MPN: 67821400
    RH SUN VISOR. ASSY
    - Not for GD
    from £289.91
    from £289.91
    # 003
    MPN: 981002231
    RH SUN VISOR. ASSY
    -Only GS - In the order, add the two digits of alcantara colour code - Valid till Ass. Nr. 5739-
    from £172.50
    from £172.50
    # 003
    MPN: 981002431
    RH SUN VISOR. ASSY
    -Only GD - In the order, add the two digits of alcantara colour code - Valid till Ass. Nr. 5739-
    from £172.50
    from £172.50
    # 003
    MPN: 981205600
    RH SUN VISOR. ASSY
    -Only GD - In the order, add the two digits of alcantara colour code - Valid from Ass. Nr. 5740- (BLACK)
    from £223.23
    from £223.23
    PARASOLE PILOTA GDX P.NERA Genuine Maserati Part - New (other) In stock
    -Only GD - In the order, add the two digits of alcantara colour code - Valid from Ass. Nr. 5740- (BLACK)
    # 004
    MPN: 388100350
    SUN VISOR MIRROR
    -Valid till Ass. Nr. 5739-
    from £58.26
    from £58.26
    # 005
    MPN: 388100201
    LH HOOK FOR SUN VISOR
    -Only GS - Valid till Ass. Nr. 5739-
    from £20.70
    from £20.70
    # 005
    MPN: 388110201
    LH HOOK FOR SUN VISOR
    -Only GD - Valid till Ass. Nr. 5739-
    from £20.70
    from £20.70
    # 005
    MPN: 67353700
    LH HOOK FOR SUN VISOR
    -Only GS - Valid from Ass. Nr. 5740-
    from £7.18
    from £7.18
    # 005
    MPN: 67353800
    LH HOOK FOR SUN VISOR
    -Only GD - Valid from Ass. Nr. 5740-
    from £7.73
    from £7.73
    # 006
    MPN: 66724400
    SUN VISOR CENTRE SUPP. (COLOURLESS)
    -Valid from Ass. Nr. 5740-
    from £3.32
    from £3.32
    # 006
    MPN: 711815000
    SUN VISOR CENTRE SUPP. (COLOURLESS)
    -Valid till Ass. Nr. 5739-
    from £4.73
    from £4.73
    # 007
    MPN: 383100123

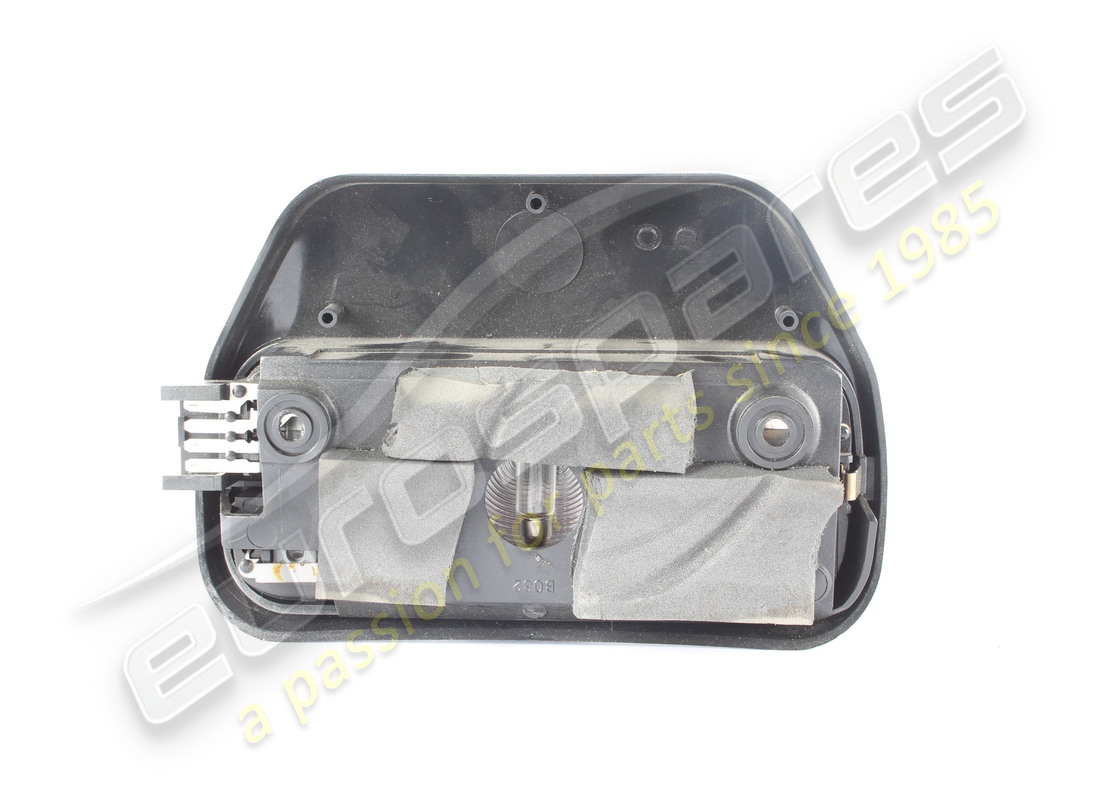

    FRONT INTERNAL LIGHT (BLACK SOFT)
    -Only GS-
    from £50.67
    from £50.67
    This part replaces part number 383100122
    # 007
    MPN: 60599040
    FRONT INTERNAL LIGHT (BLACK SOFT)
    -Only GD - Valid till Ass. Nr. 5739-
    from £23.10
    from £23.10
    # 008
    MPN: 15690875
    FLANGED SCREW
    -Valid till Ass. Nr. 5739-
    from £1.31
    from £1.31
    This part replaces part number 15690807
    # 009
    MPN: 12601174
    LOCK WASHER
    -Valid till Ass. Nr. 5739-
    from £0.47
    from £0.47
    This part replaces part number 675000100
    # 010
    MPN: 383100124
    CEILING LIGHT FRAME.(BLACK SOFT)
    -Only GS-
    from £4.26
    from £4.26
    This part replaces part number 383100121
    # 010
    MPN: 60604496
    CEILING LIGHT FRAME.(BLACK SOFT)
    -Only GD - Valid till Ass. Nr. 5739-
    from £0.47
    from £0.47
    # 011
    MPN: 14440827
    SCREW
    from £1.55
    from £1.55
    # 012
    MPN: 13210117
    SCREW
    -Valid from Ass. Nr. 5740-
    from £0.52
    from £0.52
    # 012
    MPN: 14440930
    SCREW
    -Valid till Ass. Nr. 5739-
    from £1.31
    from £1.31
    # 013
    MPN: 388300387
    LH BRACKET
    -Valid till Ass. Nr. 5739-
    from £5.10
    from £5.10
    # 013
    MPN: 388300388
    RH BRACKET
    -Valid till Ass. Nr. 5739-
    from £5.10
    from £5.10
    # 014
    MPN: 14647490
    NUT WITH CAGE
    -Valid from Ass. Nr. 5740-
    from £0.47
    from £0.47
    # 015
    MPN: 388100202
    RH HOOK FOR SUN VISOR
    -Only GS - Valid till Ass. Nr. 5739-
    from £20.25
    from £20.25
    # 015
    MPN: 388110202
    RH HOOK FOR SUN VISOR
    -Only GD - Valid till Ass. Nr. 5739-
    from £20.70
    from £20.70
    # 015
    MPN: 67353700
    RH HOOK FOR SUN VISOR
    -Only GD - Valid from Ass. Nr. 5740-
    from £7.18
    from £7.18
    # 015
    MPN: 67353800
    RH HOOK FOR SUN VISOR
    -Only GS - Valid from Ass. Nr. 5740-
    from £7.73
    from £7.73
    # 016
    MPN: 373080352

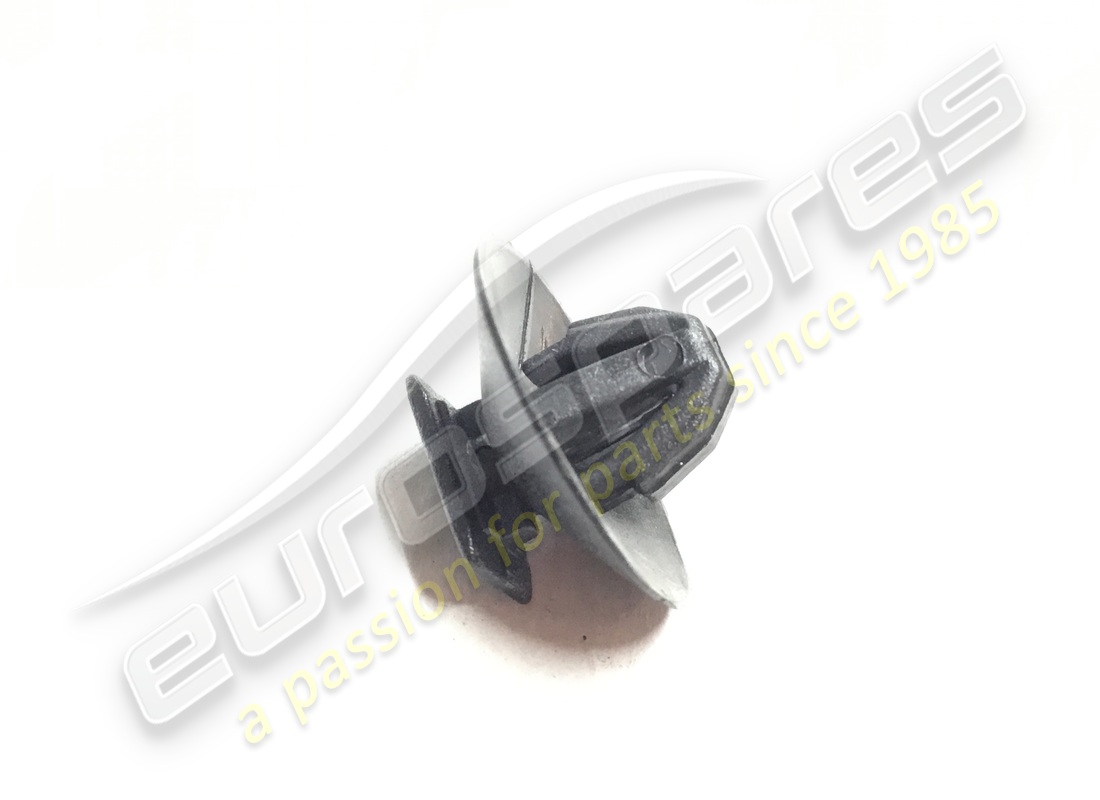

    FIXING BUTTON
    -Valid till Ass. Nr. 5739-
    from £0.70
    from £0.70
    # 016
    MPN: 7560860
    FIXING BUTTON
    -Valid from Ass. Nr. 5740-
    from £1.70
    from £1.70
