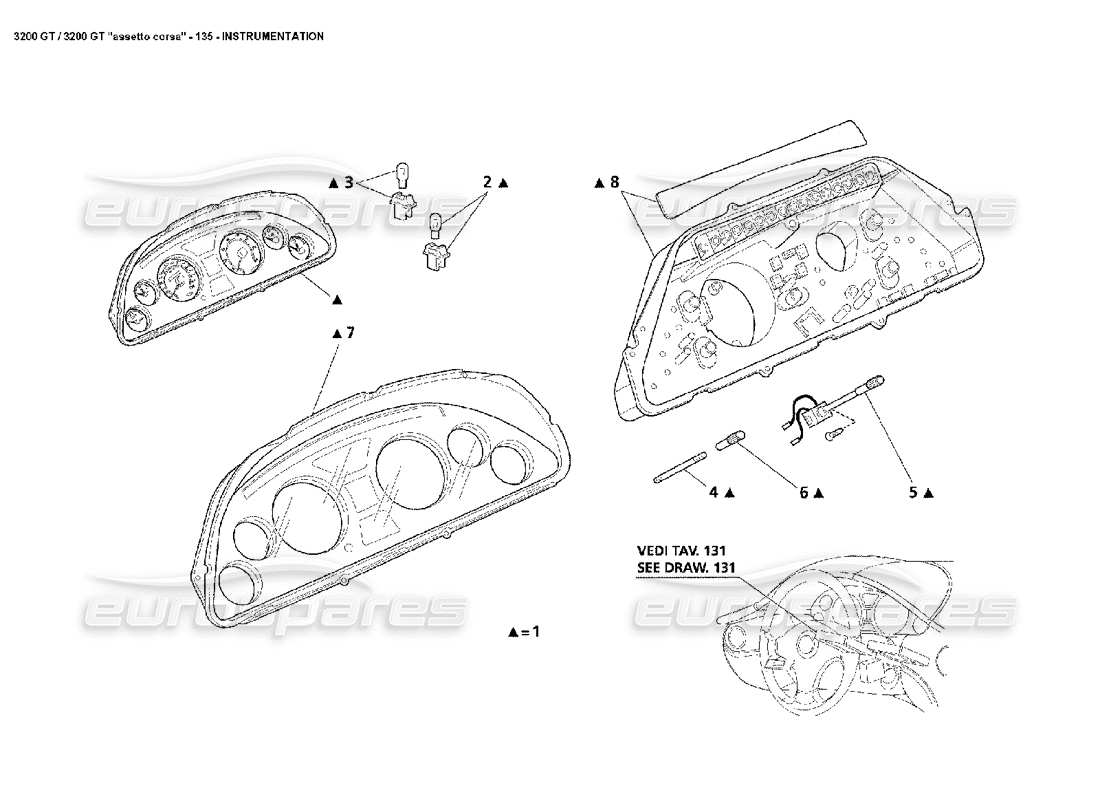

Maserati 3200 GT/GTA/Assetto Corsa Instrumentation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price

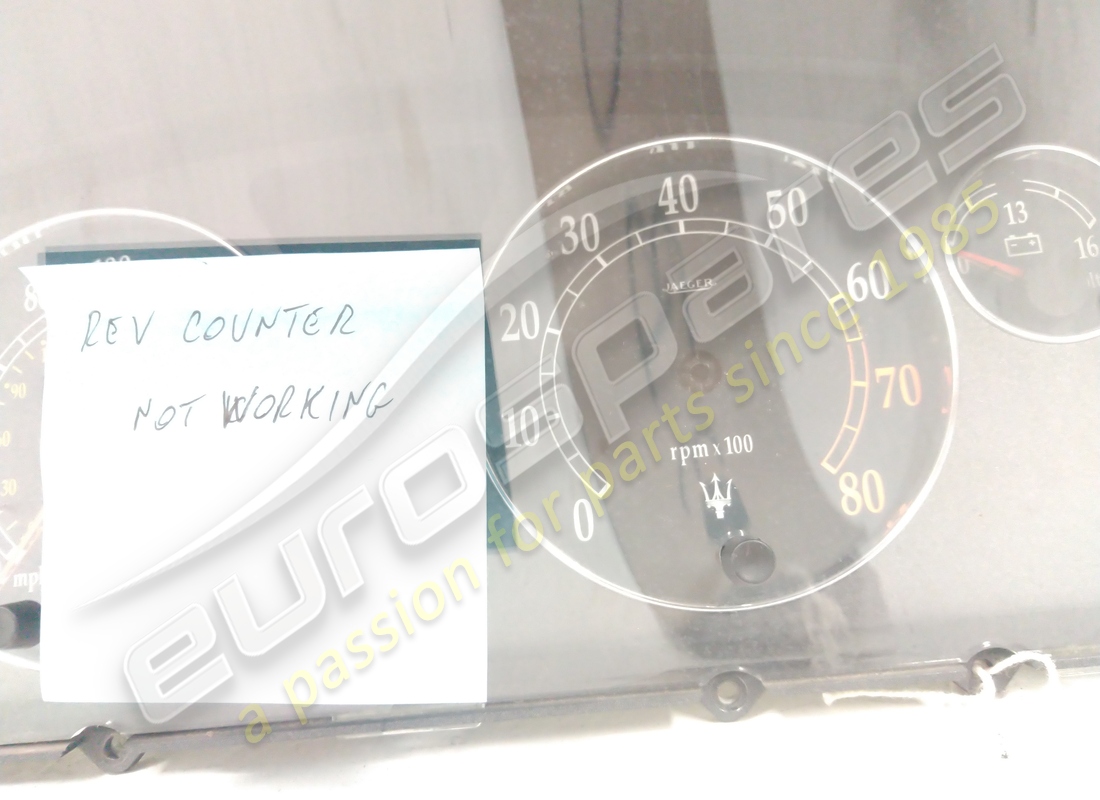

                # 001
                MPN: 383600102
                COMPLETE INSTRUMENT KMH
                -Valid for Manual Transmission - Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454-
                Supersession
                Supersession
                This part replaces part number 383600101
                # 001
                MPN: 383600125
                COMPLETE INSTRUMENT KMH
                -Valid for Manual Transmission - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-1111-
                from £560.18
                from £560.18
                This part replaces part number 383600102
                # 001
                MPN: 383605102
                COMPLETE INSTRUMENT KMH
                -Valid for Automatic Transmission - Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454-
                Supersession
                Supersession
                # 001
                MPN: 383605125
                COMPLETE INSTRUMENT KMH
                -Valid for Automatic Transmission - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-1111-
                from £610.03
                from £610.03
                This part replaces part number 383605102
                # 001
                MPN: 383610101
                COMPLETE INSTRUMENT MPH
                -Valid for Manual Transmission - Only GD - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454-
                Supersession
                Supersession
                # 001
                MPN: 383610125
                COMPLETE INSTRUMENT MPH
                -Valid for Manual Transmission - Only GD - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-1111-
                from £440.30
                from £440.30
                This part replaces part number 383610101 - and 1 more. Click to view details
                # 001
                MPN: 383615101
                COMPLETE INSTRUMENT MPH
                -Valid for Automatic Transmission - Only GD - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454-
                from £610.94
                from £610.94
                This part replaces part number 383615100
                # 001
                MPN: 383615125
                COMPLETE INSTRUMENT MPH
                -Valid for Automatic Transmission - Only GD - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-1112-
                from £690.17
                from £690.17
                # 002
                MPN: 393650216
                BULB HOLDER (RED) + BULB 2 W.
                from £11.76
                from £11.76
                # 003
                MPN: 393650215
                BULB HOLDER (BLACK) + BULB 1.2 W.
                from £1.99
                from £1.99
                This part replaces part number 393650217
                # 004
                MPN: 373600306
                RESET PIN
                from £1.16
                from £1.16
                # 005
                MPN: 393650210
                RHEOSTAT
                from £89.41
                from £89.41
                # 006
                MPN: 373600305
                PUSHBUTTON
                from £1.39
                from £1.39
                # 007
                MPN: 383600208
                BEZEL ASSY
                from £69.79
                from £69.79
