maserati 3200 gt/gta/assetto corsa electrical: dashboard control units parts diagram

131 - Electrical: Dashboard Control Units

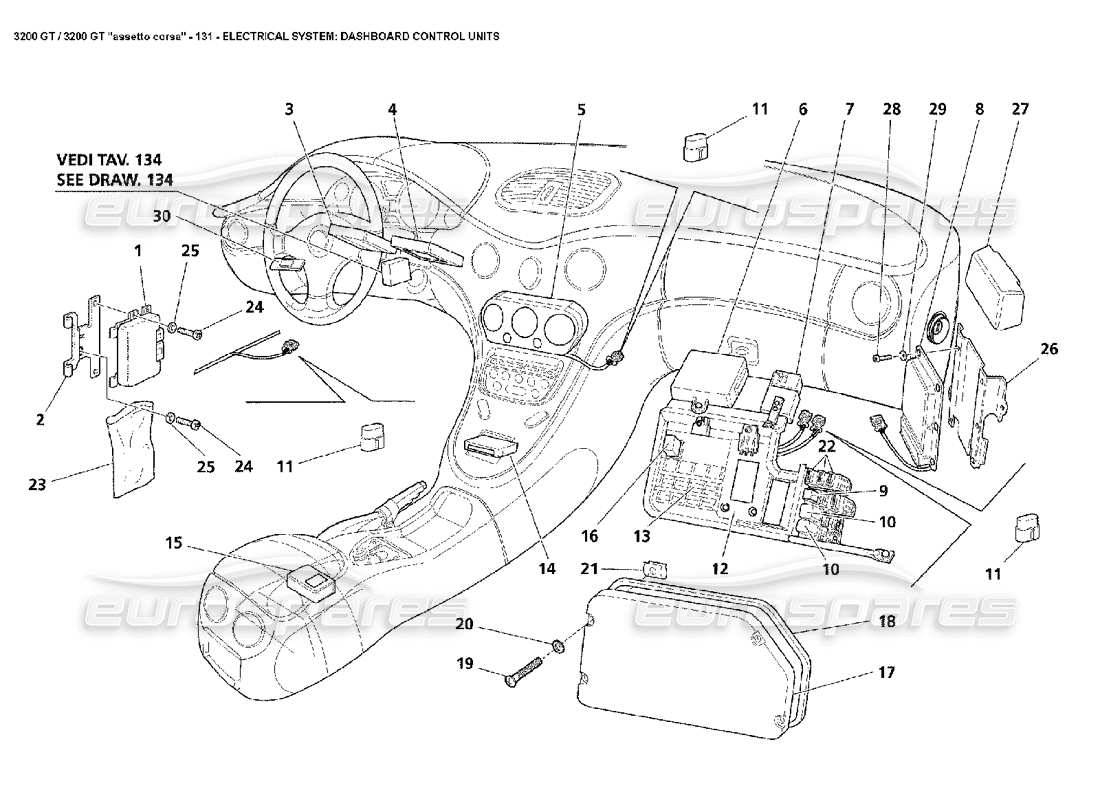

Maserati 3200 GT/GTA/Assetto Corsa Electrical: Dashboard Control Units Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 382905110
AUTOM.GEARBOX CONTROL UNIT
-Valid for Automatic Transmission-
from £295.00
from £295.00
# 002
MPN: 382905115
BRACKET FOR A.T. CONTROL UNIT
-Valid for Automatic Transmission.-
from £85.71
from £85.71
# 003
MPN: 383300211
CAN INTERFACE FOR SPORT INSTRUMENT
-Valid for Manual Transmission-
from £419.87
from £419.87
# 003
MPN: 383301211
CAN INTERFACE FOR NO SPORT INSTRUMENT
-Valid for Manual Transmission-
from £298.87
from £298.87
# 003
MPN: 383305211
CAN INTERFACE FOR NO SPORT INSTRUMENT
-Valid for Automatic Transmission-
from £379.46
from £379.46
# 003
MPN: 383305212
CAN INTERFACE FOR SPORT INSTRUMENT
-Valid for Automatic Transmission-
from £298.87
from £298.87
# 004
MPN: 373307129
IMMOBIL. CEILING LIGHT TIMER.
Supersession
Supersession
# 005
MPN: 385500202
COND.CONTROL UNIT (BLACK SOFT)
alternative = 209472
Supersession
Supersession
This part replaces part number 385500201
# 006
MPN: 213212
WINDOW RISER ELECTRONIC CONTROL UNIT
-Valid from Ass.Nr.1834-
from £563.93
from £563.93
# 006
MPN: 383300151
WINDOW RISER ELECTRONIC CONTROL UNIT
-Valid till Ass.Nr.1833-
from £293.82
from £293.82
# 007
MPN: 184391
DOOR LOCKING CONTROL UNIT
-Valid from Ass.Nr.1834-
from £49.87
from £49.87
This part replaces part number 166851
# 007
MPN: 383300193
DOOR LOCKING CONTROL UNIT
-Valid till Ass.Nr.1833-
from £70.01
from £70.01
# 008
MPN: 383700100

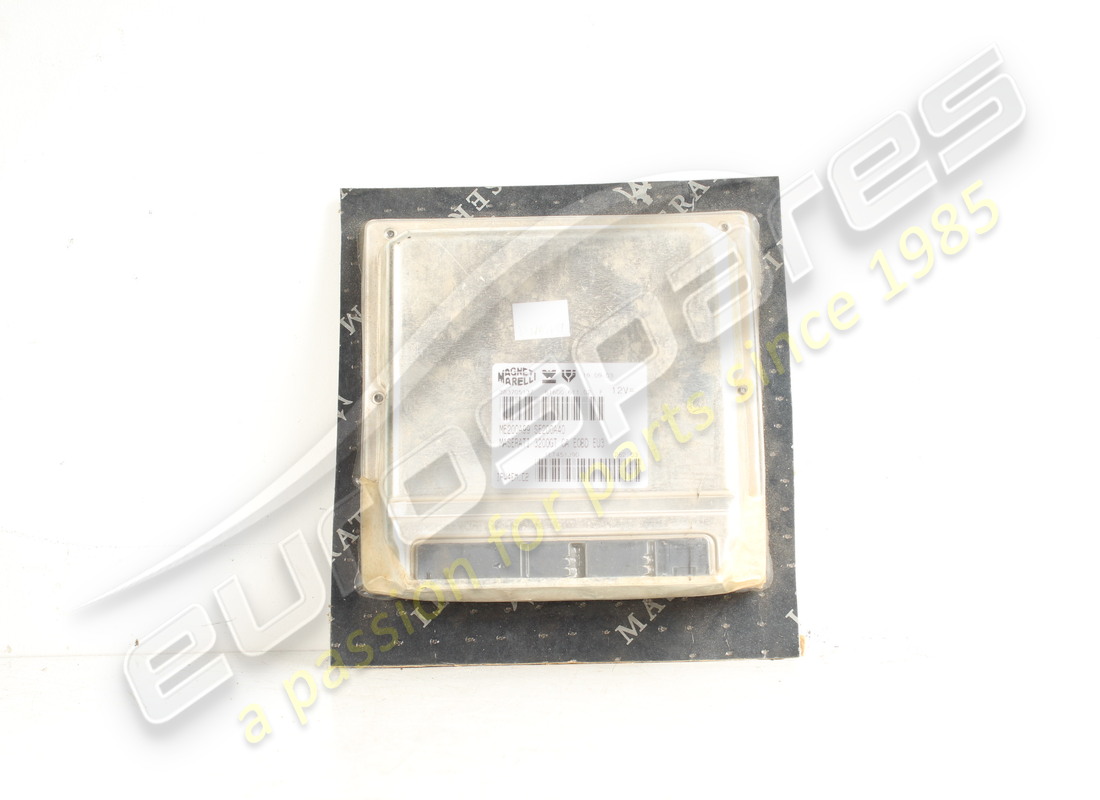

7.1 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Manual Transmission - Not for BRA-Valid for GOL, J and AUS all cars - Valid for GS (excluded GOL and J) till Ass. Nr.4445 and for Ass. Nr.4491, 4499 and 4500 - Valid for GD (excluded AUS) till Ass. Nr.4468 and for Ass. Nr.4451 and 4454-
from £840.00
from £840.00
# 008
MPN: 383700137
4EM ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Manual Transmission - Not for BRA, GOL, J and AUS - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491, 4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-
from £309.75
from £309.75
# 008
MPN: 383705100
7.1 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Automatic Transmission - use :980001027
from £750.00
from £750.00
# 008
MPN: 383705137
4EM ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Automatic Transmission - Not for BRA, GOL, J and AUS - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491, 4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-
from £1,136.09
from £1,136.09
# 008
MPN: 383740100
7.1 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Manual Transmission - Only for Brazil-
from £2,330.06
from £2,330.06
# 008
MPN: 383745100
7.1 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Automatic Transmission - Only for Brazil-
from £2,330.06
from £2,330.06
# 008
MPN: 980000990
6.9 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Manual Transmission-
from £2,321.76
from £2,321.76
# 008
MPN: 980000991
6.9 ELECTRONIC INJECTION. CONTROL UNIT
-Valid for Automatic Transmission-
# 008
MPN: 980001027
7.1 AUTOMATIC ECU
from £1,578.69
from £1,578.69
This part replaces part number 383705100 which we have in stock
# 009
MPN: 184102
MICRO RELAY
from £3.85
from £3.85
This part replaces part number 373330139 which we have in stock
# 010
MPN: 313320134
RELAY 12V NORM.OPEN 30A
from £16.89
from £16.89
This part replaces part number 184101
# 011
MPN: 980000983

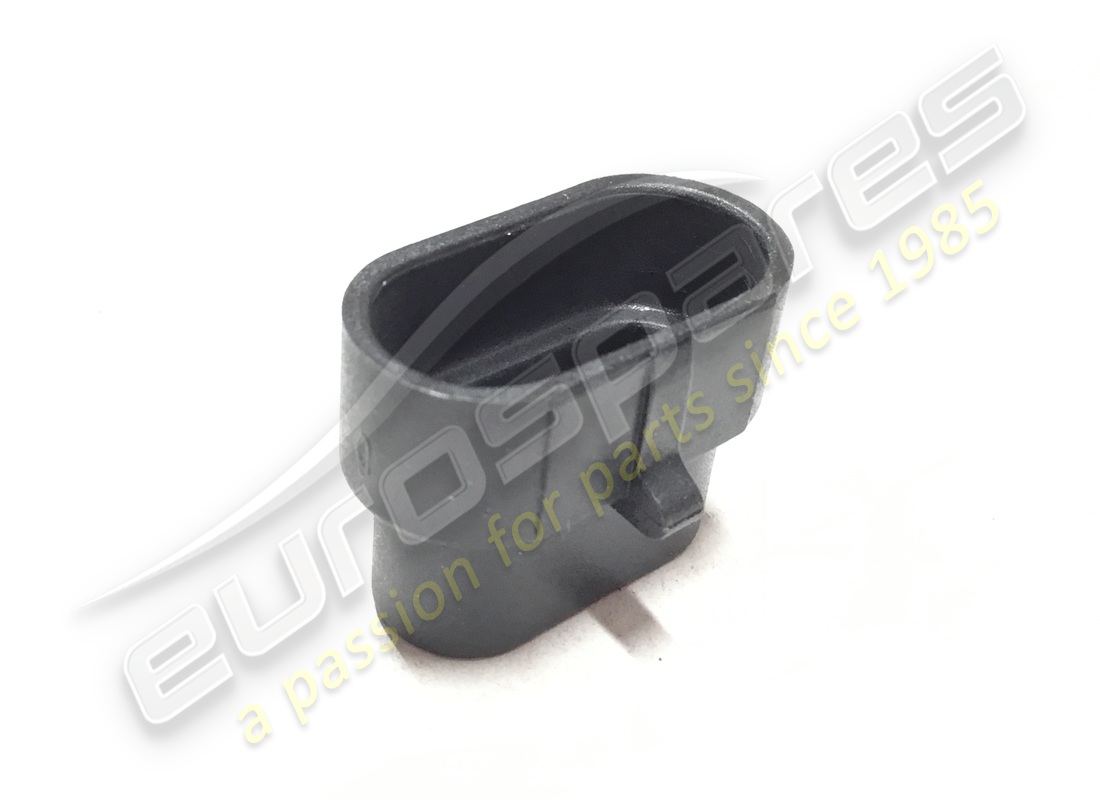

DIAGNOSTIC SOCKET CAP
from £2.31
from £2.31
# 012
MPN: 383100155
IGE ELECTRONIC MODULE
from £151.77
from £151.77
# 013
MPN: 46467695
PASSENGER COMPARTMENT JUNCTION BOX
from £63.17
from £63.17
# 014
MPN: 383300167
AIR-BAG CONTROL UNIT
from £836.15
from £836.15
# 015
MPN: 383300174
CATALYST TEMPERATURE CONTROL UNIT
-Valid till Ass. Nr.3274-
from £175.78
from £175.78
# 015
MPN: 383300184
CATALYST TEMPERATURE CONTROL UNIT
-Valid from Ass. Nr.3275-
from £107.15
from £107.15
# 016
MPN: 7606542
RELAY
from £5.24
from £5.24
This part replaces part number 373330188
# 017
MPN: 388100433
COVER
-Only GS - Valid till Ass.Nr.4337 - See table 149 for cover from Ass.Nr.4338-
from £18.68
from £18.68
# 017
MPN: 388110433
COVER
-Only GD-
from £19.90
from £19.90
# 018
MPN: 388100426
GASKET
from £10.92
from £10.92
# 019
MPN: 15963307
SCREW
from £1.07
from £1.07
# 020
MPN: 14498801
WASHER
from £0.47
from £0.47
# 021
MPN: 14372271
CLIP
from £0.68
from £0.68
# 022
MPN: 7601700
DIODE
from £0.68
from £0.68
# 023
MPN: 388105482
CONTROL UNIT GUARD
-Valid for A.C.-
from £0.68
from £0.68
# 024
MPN: 13274077
SCREW
-Valid for A.C.-
from £0.51
from £0.51
# 025
MPN: 12637807
WASHER
-Valid for A.C.-
from £0.51
from £0.51
# 026
MPN: 386100524
BRACKET FOR ELETTRONIC CONTROL UNIT
from £6.77
from £6.77
# 027
MPN: 386100388
GUARD FOR WATER
from £4.43
from £4.43
# 028
MPN: 14417527
SCREW
from £1.07
from £1.07
# 029
MPN: 12639901
WASHER
from £0.47
from £0.47
# 030
MPN: 980001017
STANDARD DIAGNOSIS SOCKET
from £9.21
from £9.21
