Maserati 3200 GT/GTA/Assetto Corsa Electrical: Airbag & ABS Harness Parts Diagram

126 - Electrical: Airbag & ABS Harness

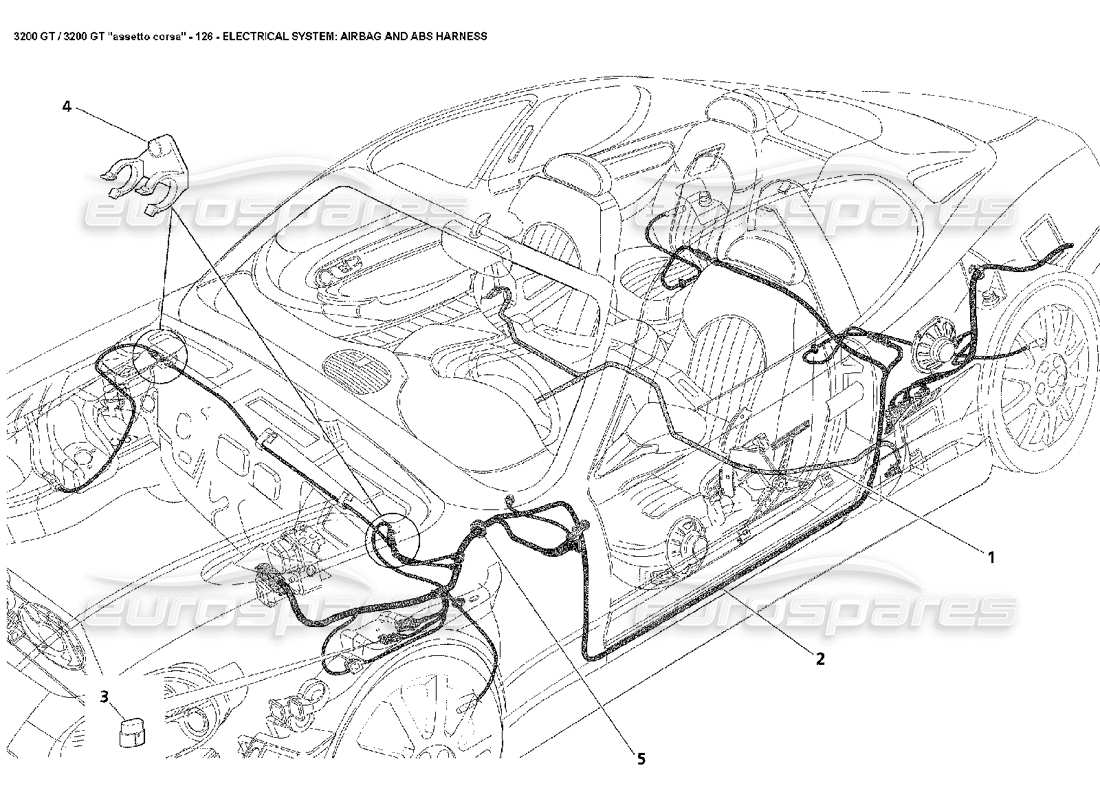

Maserati 3200 GT/GTA/Assetto Corsa Electrical: Airbag & ABS Harness Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 383000158
        AIR BAG WIRING
        -Only GS-
        from £100.98
        from £100.98
        AIRBAG WIRING Genuine Maserati Part - New (to order)
        # 001
        MPN: 383010158
        AIR BAG WIRING
        -Only GD-
        from £61.19
        from £61.19
        INSIEME CAVI AIR BAG GDX Genuine Maserati Part - New (to order)
        INSIEME CAVI AIR BAG GDX Genuine Maserati Part - Used In stock
        # 002
        MPN: 383800106
        ABS-ASR WIRING
        -Valid only for GS - Pre-modification: Up to Assy 1833-
        from £133.52
        from £133.52
        WIRING Genuine Maserati Part - New (to order)
        # 002
        MPN: 383800110
        ABS-ASR WIRING
        -Post-modification: From Assy 1834 to Assy 3809 for GS - Post-modification: From Assy 1834 to Assy 4115 for GD-
        from £71.34
        from £71.34
        WIRING Genuine Maserati Part - New In stock
        WIRING Genuine Maserati Part - Used In stock
        # 002
        MPN: 383800120
        ABS-ASR WIRING
        -Valid from Ass. Nr.3810 for GS - Valid from Ass. Nr.4116 for GD-
        from £72.58
        from £72.58
        ABS WIR. HARNESS Genuine Maserati Part - New In stock
        ABS WIR. HARNESS Genuine Maserati Part - Used In stock
        # 003
        MPN: 980000983
        DIAGNOSTIC SOCKET CAP
        from £2.40
        from £2.40
        DIAGNOSTICS SOCKET CAP Genuine Maserati Part - New (to order)
        # 004
        MPN: 323850305
        CLIP
        from £1.13
        from £1.13
        MOLLETTA Genuine Maserati Part - New In stock
        # 005
        MPN: 319220361
        CABLE GROMMET RUBBER
        from £2.40
        from £2.40
        RUBBER WASHER Genuine Maserati Part - New In stock
