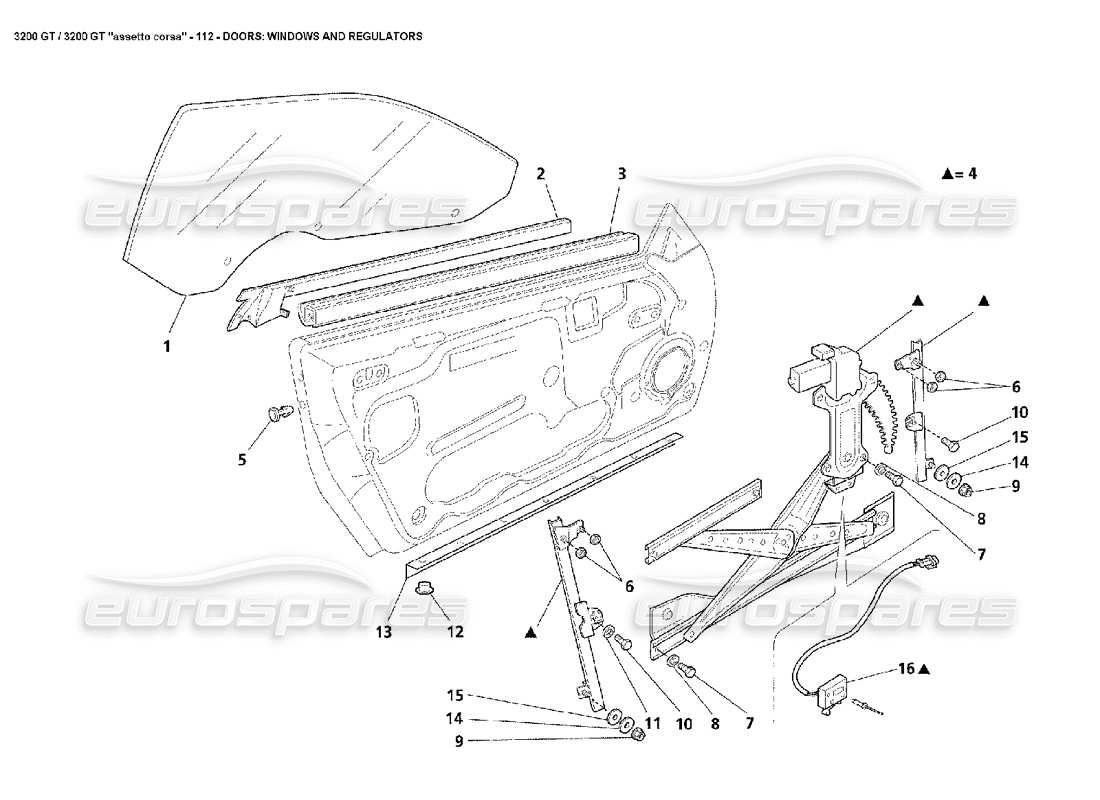

Maserati 3200 GT/GTA/Assetto Corsa Doors: Windows & Regulators Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 387700305
LH DOOR WINDABLE WINDOW
from £30.98
from £30.98
# 001
MPN: 387700306
RH DOOR WINDABLE WINDOW
from £30.98
from £30.98
# 002
MPN: 67820200
FRONT RH DOOR EXT. WINDOW SCRAPER GASKET
from £251.24
from £251.24
This part replaces part number 387700324
# 002
MPN: 67820300
FRONT LH EXT WINDOW SCRAPER GASKET
from £138.18
from £138.18
This part replaces part number 387700323 - and 1 more. Click to view details
# 003
MPN: 387700352
INT. WINDOW SCRAPER GASKET
from £8.12
from £8.12
# 004
MPN: 387700050
RH WINDOW MECHANISM
from £872.42
from £872.42
This part replaces part number 387700040
# 004
MPN: 387700051
LH WINDOW MECHANISM
from £809.93
from £809.93
This part replaces part number 387700041
# 005
MPN: 388300805
BUTTON FOR EXT. WINDOW SCRAPER GASKET.
from £0.85
from £0.85
# 006
MPN: 14040611
SELF LOCKING NUT
from £0.53
from £0.53
# 007
MPN: 16132324
SCREW
from £0.50
from £0.50
# 008
MPN: 12647624
BLANK WASHER
from £0.50
from £0.50
This part replaces part number 12647601
# 009
MPN: 14040711
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 14576780
# 010
MPN: 13271617
SCREW
from £0.53
from £0.53
# 011
MPN: 14496207
WASHER
Supersession
Supersession
# 012
MPN: 384500442
RIVET
from £1.08
from £1.08
# 013
MPN: 384500441
SILL GASKET
from £14.32
from £14.32
# 014
MPN: 136110110
WASHER
from £2.16
from £2.16
# 015
MPN: 312520511
GASKET
from £1.70
from £1.70
# 016
MPN: 980001800
SWITCH
from £120.86
from £120.86
