maserati 3200 gt/gta/assetto corsa doors: inner controls parts diagram

111 - Doors: Inner Controls

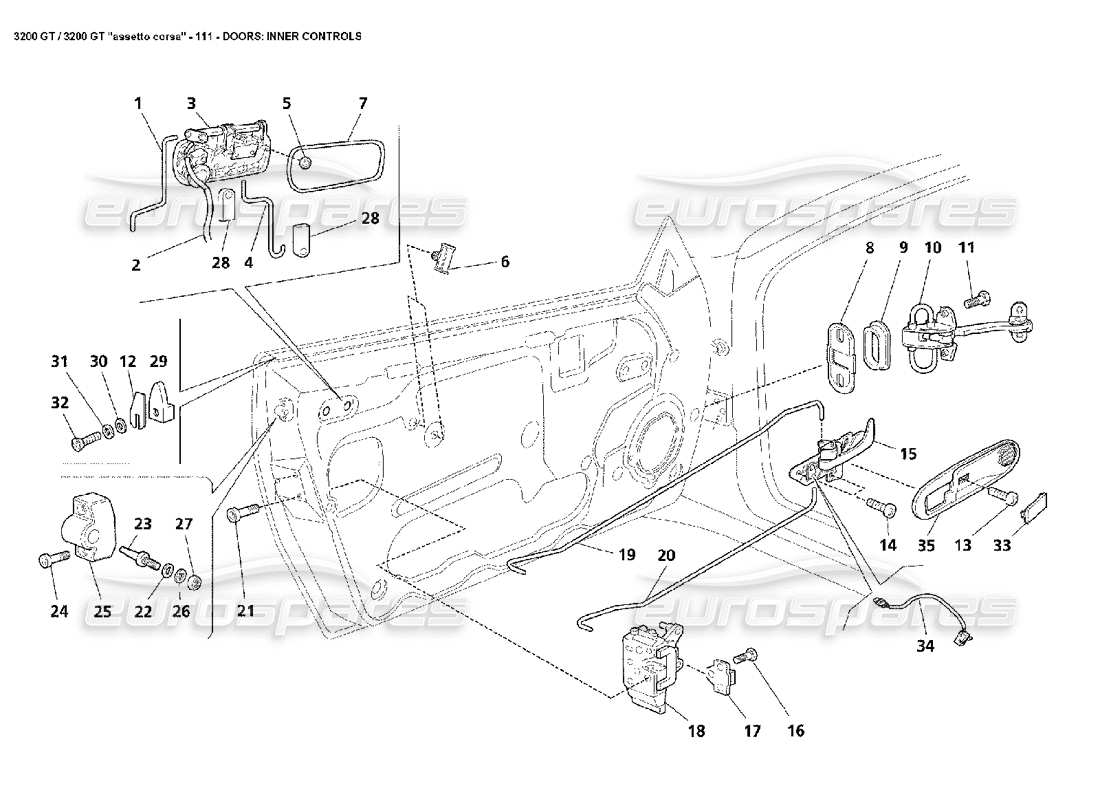

Maserati 3200 GT/GTA/Assetto Corsa Doors: Inner Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 384500395
                                                                        LH DOOR HANDLE LOCK TIE-ROD
                                                                        from £3.06
                                                                        from £3.06
                                                                        # 001
                                                                        MPN: 384500396
                                                                        RH DOOR HANDLE LOCK. TIE ROD
                                                                        from £5.71
                                                                        from £5.71
                                                                        # 002
                                                                        MPN: 980000963
                                                                        MICROSWITCH LH HANDLE WIRING
                                                                        from £83.15
                                                                        from £83.15
                                                                        # 002
                                                                        MPN: 980000964
                                                                        MICROSWITCH RH HANDLE WIRING
                                                                        from £112.13
                                                                        from £112.13
                                                                        # 003
                                                                        MPN: 980000917
                                                                        LH DOOR OUTSIDE HANDLE
                                                                        from £122.51
                                                                        from £122.51
                                                                        This part replaces part number 384500015 - and 1 more. Click to view details
                                                                        # 003
                                                                        MPN: 980000918
                                                                        RH DOOR OUTSIDE HANDLE
                                                                        from £122.51
                                                                        from £122.51
                                                                        This part replaces part number 384500016 - and 1 more. Click to view details
                                                                        # 004
                                                                        MPN: 384500390
                                                                        INT.RH LOCK PAWL CONN TIE ROD
                                                                        from £3.88
                                                                        from £3.88
                                                                        # 005
                                                                        MPN: 14059111
                                                                        NUT WITH FLANGE
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 006
                                                                        MPN: 60626849
                                                                        Retaining Clip
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 007
                                                                        MPN: 980000965
                                                                        LH DOOR OUTSIDE HANDLE GASKET
                                                                        from £37.71
                                                                        from £37.71
                                                                        # 007
                                                                        MPN: 980000966
                                                                        RH DOOR OUTSIDE HANDLE GASKET
                                                                        from £29.06
                                                                        from £29.06
                                                                        # 008
                                                                        MPN: 60624899
                                                                        COVER
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 009
                                                                        MPN: 60624898
                                                                        LH DOOR STOP TIE-ROD GASKET.
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 010
                                                                        MPN: 60624357
                                                                        DOORS STOP TIE-ROD
                                                                        from £111.12
                                                                        from £111.12
                                                                        This part replaces part number 46420413
                                                                        # 011
                                                                        MPN: 11620021
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 012
                                                                        MPN: 387700406
                                                                        THICKNESS
                                                                        from £12.90
                                                                        from £12.90
                                                                        # 013
                                                                        MPN: 15689807
                                                                        SCREW
                                                                        from £1.08
                                                                        from £1.08
                                                                        This part replaces part number 15689675
                                                                        # 014
                                                                        MPN: 15689907
                                                                        SCREW
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 015
                                                                        MPN: 388300274
                                                                        RH DOOR INSIDE HANDLE.
                                                                        from £33.28
                                                                        from £33.28
                                                                        This part replaces part number 388300202 - and 1 more. Click to view details
                                                                        # 015
                                                                        MPN: 388300275
                                                                        SX DOOR INSIDE HANDLE.
                                                                        from £33.28
                                                                        from £33.28
                                                                        This part replaces part number 388300201 - and 1 more. Click to view details
                                                                        # 016
                                                                        MPN: 7789185
                                                                        SPECIAL SCREW
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 017
                                                                        MPN: 82487460
                                                                        STRIKER FOR DOOR LOCK
                                                                        from £3.75
                                                                        from £3.75
                                                                        # 018
                                                                        MPN: 67294800
                                                                        RH DOOR LOCK
                                                                        from £93.54
                                                                        from £93.54
                                                                        This part replaces part number 82487456
                                                                        # 018
                                                                        MPN: 67294900
                                                                        LH DOOR LOCK
                                                                        from £93.54
                                                                        from £93.54
                                                                        This part replaces part number 82487457
                                                                        # 019
                                                                        MPN: 384500391
                                                                        LH DOOR INSIDE RELEASE TIE-ROD
                                                                        from £10.92
                                                                        from £10.92
                                                                        # 019
                                                                        MPN: 384500392
                                                                        RH DOOR INSIDE RELEASE TIE-ROD
                                                                        from £6.01
                                                                        from £6.01
                                                                        # 020
                                                                        MPN: 384500393
                                                                        LH DOOR SAFETY TIE ROD
                                                                        from £10.92
                                                                        from £10.92
                                                                        # 020
                                                                        MPN: 384500394
                                                                        RH DOOR SAFETY TIE-ROD
                                                                        from £10.92
                                                                        from £10.92
                                                                        # 021
                                                                        MPN: 46401658
                                                                        SCREW WITH INCORPORATED WASHER
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 022
                                                                        MPN: 12646707
                                                                        WASHER
                                                                        from £0.84
                                                                        from £0.84
                                                                        # 023
                                                                        MPN: 60593447
                                                                        CENTRING PIN
                                                                        from £20.10
                                                                        from £20.10
                                                                        # 024
                                                                        MPN: 13301717
                                                                        FLANGED SCREW
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 025
                                                                        MPN: 60594692
                                                                        FLEXIBLE BLOCK
                                                                        from £10.16
                                                                        from £10.16
                                                                        # 026
                                                                        MPN: 12647004
                                                                        WASHER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 027
                                                                        MPN: 60623675
                                                                        THREADED BUSH
                                                                        from £2.85
                                                                        from £2.85
                                                                        # 028
                                                                        MPN: 53451352
                                                                        ELASTIC CONNECTION
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 029
                                                                        MPN: 387700404
                                                                        RH INSERT
                                                                        from £5.10
                                                                        from £5.10
                                                                        # 029
                                                                        MPN: 387700405
                                                                        LH INSERT
                                                                        from £5.95
                                                                        from £5.95
                                                                        # 030
                                                                        MPN: 12642807
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 031
                                                                        MPN: 138410040
                                                                        SPRING WASHER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 032
                                                                        MPN: 13271617
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 033
                                                                        MPN: 388300603
                                                                        CAP
                                                                        from £45.21
                                                                        from £45.21
                                                                        This part replaces part number 388300556
                                                                        # 034
                                                                        MPN: 388300615
                                                                        MICROSWITCH
                                                                        from £40.34
                                                                        from £40.34
                                                                        # 035
                                                                        MPN: 388300613
                                                                        LH INSIDE HANDLE PLATE
                                                                        from £27.26
                                                                        from £27.26
                                                                        This part replaces part number 388300383
                                                                        # 035
                                                                        MPN: 388300614
                                                                        RH INSIDE HANDLE PLATE
                                                                        from £24.71
                                                                        from £24.71
                                                                        This part replaces part number 388300384
