069 - Brake Servo Air Tube

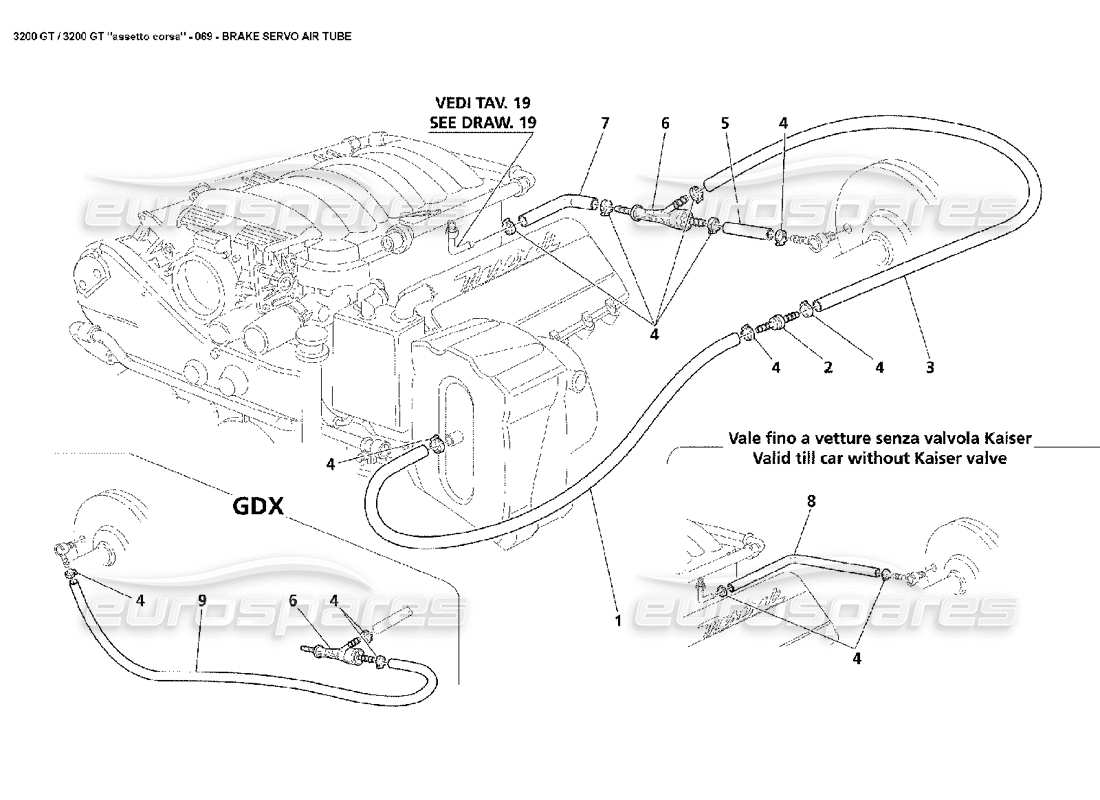

Maserati 3200 GT/GTA/Assetto Corsa Brake Servo Air Tube Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 387400313
          TUBE FROM NO-RETURN VALVE TO FILTER BOX
          from £13.67
          from £13.67
          # 002
          MPN: 377490107
          NO-RETURN VALVE
          from £6.20
          from £6.20
          # 003
          MPN: 387400314
          TUBE FROM AMPLIFIER TO NO-RETURN VALVE
          from £10.89
          from £10.89
          # 004
          MPN: 13000390
          CLAMP
          from £0.47
          from £0.47
          This part replaces part number 13121170 - and 1 more. Click to view details
          # 005
          MPN: 387400316
          TUBE FROM AMPLIFIER TO BRAKE SERVO
          -Valid from car with Kaiser valve-
          from £2.11
          from £2.11
          # 006
          MPN: 377493347
          KAYSER VACUUM AMPLIFIER
          -Valid from car with Kaiser valve-
          from £163.47
          from £163.47
          # 007
          MPN: 387400315
          TUBE FROM MANIFOLD TO AMPLIFIER
          -Valid from car with Kaiser valve-
          from £12.47
          from £12.47
          # 008
          MPN: 387400313
          TUBE FROM MANIFOLD TO BRAKE SERVO
          -Only LH drive - Valid till car without Kaiser valve-
          from £13.67
          from £13.67
          # 008
          MPN: 387401315
          TUBE FROM MANIFOLD TO BRAKE SERVO
          -Only RH drive - Valid till car without Kaiser valve-
          from £10.99
          from £10.99
          # 009
          MPN: 387410316
          TUBE FROM AMPLIFIER TO BRAKE SERVO
          -Only RH drive - Valid from car with Kaiser valve-
          from £14.72
          from £14.72
