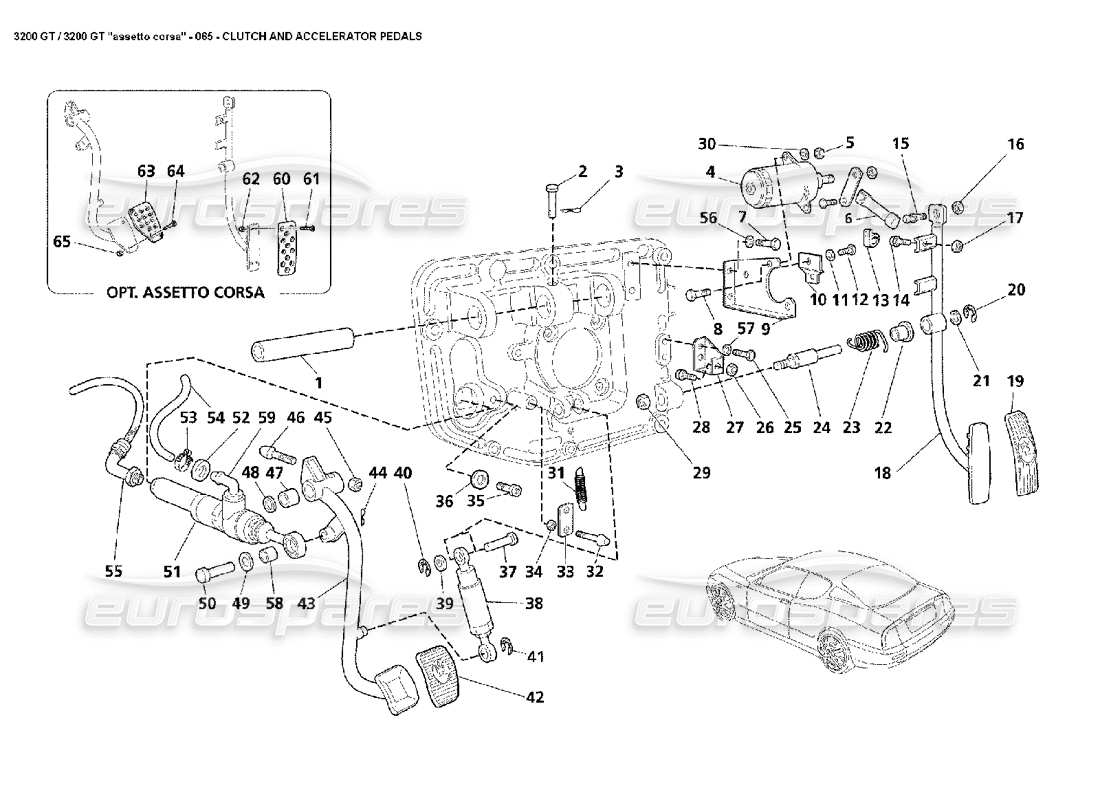

Maserati 3200 GT/GTA/Assetto Corsa Clutch & Throttle Pedals Parts Diagram

065 - Clutch & Throttle Pedals

Maserati 3200 GT/GTA/Assetto Corsa Clutch & Throttle Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 001
                                                          MPN: 378496329
                                                          PEDAL SUPPORT PIN
                                                          -Only GD-
                                                          from £50.65
                                                          from £50.65
                                                          PERNO PER SOSTEGNO PEDALI G. Genuine Maserati Part - New (to order)
                                                          # 001
                                                          MPN: 388400329
                                                          PEDAL SUPPORT PIN
                                                          -Only GS-
                                                          from £39.25
                                                          from £39.25
                                                          PERNO SOSTEGNO PEDALI Genuine Maserati Part - New (to order)
                                                          PERNO SOSTEGNO PEDALI Genuine Maserati Part - Used In stock
                                                          # 002
                                                          MPN: 378419377
                                                          PIN
                                                          -Only GS-
                                                          from £11.63
                                                          from £11.63
                                                          PIN Genuine Maserati Part - New (to order)
                                                          # 002
                                                          MPN: 378496377
                                                          PIN
                                                          -Only GD-
                                                          from £18.40
                                                          from £18.40
                                                          PIN Genuine Maserati Part - New In stock
                                                          # 003
                                                          MPN: 58841309
                                                          SAFETY CLIP
                                                          from £2.06
                                                          from £2.06
                                                          This part replaces part number 670000498 - and 2 more. Click to view details
                                                          MOLLETTA SICUREZZA Genuine Maserati Part - New In stock
                                                          MOLLETTA SICUREZZA Genuine Maserati Part - Used In stock
                                                          MOLLETTA SICUREZZA Genuine Maserati Part - New (other) In stock
                                                          CLIP
                                                          # 004
                                                          MPN: 383700115
                                                          ACCELERATOR POTENTIOMETER
                                                          from £711.75
                                                          from £711.75
                                                          This part replaces part number 383700102
                                                          POTENZ.PEDALE ACC. 028075202 Genuine Maserati Part - New In stock
                                                          # 005
                                                          MPN: 12574211
                                                          NUT
                                                          from £0.71
                                                          from £0.71
                                                          This part replaces part number 128300060
                                                          Genuine Ferrari Part (no longer available to order)
                                                          NYLON STOP HEX. NUT M6X7.8 Genuine Maserati Part - New In stock
                                                          # 006
                                                          MPN: 82476740
                                                          TIE ROD
                                                          from £34.83
                                                          from £34.83
                                                          TIRANTE PEDALE ACCELERATORE Genuine Maserati Part - New (to order)
                                                          TIRANTE PEDALE ACCELERATORE Genuine Maserati Part - Used In stock
                                                          # 007
                                                          MPN: 14141410
                                                          SCREW
                                                          from £0.47
                                                          from £0.47
                                                          LOWER PIN GTB (14141410) Genuine Ferrari Part - New In stock
                                                          VITE SDPR M 6X20 Genuine Maserati Part - New (to order)
                                                          # 008
                                                          MPN: 14305121
                                                          SCREW
                                                          from £0.47
                                                          from £0.47
                                                          Genuine Ferrari Part (no longer available to order)
                                                          SOCKET HEAD SCREW M 6X 12 Genuine Maserati Part - New In stock
                                                          # 009
                                                          MPN: 388400338
                                                          POTENTIOMETER SUPPORT
                                                          -Only GS-
                                                          from £35.73
                                                          from £35.73
                                                          SUPPORT Genuine Maserati Part - New (to order)
                                                          # 009
                                                          MPN: 388410338
                                                          POTENTIOMETER SUPPORT
                                                          -Only GD-
                                                          from £44.15
                                                          from £44.15
                                                          SUPPORT Genuine Maserati Part - New (to order)
                                                          # 010
                                                          MPN: 383000315
                                                          PLATE
                                                          from £4.70
                                                          from £4.70
                                                          Piastrina Genuine Maserati Part - New (to order)
                                                          # 011
                                                          MPN: 12601274
                                                          LOCK WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12601270
                                                          WASHER (12601274) Genuine Ferrari Part - New In stock
                                                          WASHER Genuine Maserati Part - New In stock
                                                          # 013
                                                          MPN: 383000318
                                                          Retaining Clip
                                                          from £1.11
                                                          from £1.11
                                                          MOLLETTA RITEGNO Genuine Maserati Part - New In stock
                                                          # 014
                                                          MPN: 388400114
                                                          BUFFER
                                                          from £27.45
                                                          from £27.45
                                                          END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
                                                          # 015
                                                          MPN: 318420305
                                                          BALL PIN
                                                          Supersession
                                                          Supersession
                                                          Genuine Maserati Part (no longer available to order)
                                                          # 016
                                                          MPN: 14075611
                                                          NUT
                                                          from £1.36
                                                          from £1.36
                                                          NUT FOR FUEL DOOR STRIKER Genuine Maserati Part - New (to order)
                                                          # 017
                                                          MPN: 16100821
                                                          NUT
                                                          from £0.71
                                                          from £0.71
                                                          Genuine Ferrari Part (no longer available to order)
                                                          HEX.NUT M8X6.5 Genuine Maserati Part - New (to order)
                                                          # 018
                                                          MPN: 388400113
                                                          Accelerator Pedal
                                                          -Only GS-
                                                          from £50.40
                                                          from £50.40
                                                          PEDAL Genuine Maserati Part - New In stock
                                                          # 018
                                                          MPN: 388410113
                                                          Accelerator Pedal
                                                          -Only GD-
                                                          from £311.33
                                                          from £311.33
                                                          PEDAL Genuine Maserati Part - New (to order)
                                                          # 019
                                                          MPN: 318420301
                                                          PEDAL COVER
                                                          from £1.55
                                                          from £1.55
                                                          COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - New (to order)
                                                          COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - Used In stock
                                                          # 020
                                                          MPN: 11088076
                                                          RETAINING RING
                                                          from £0.47
                                                          from £0.47
                                                          CIRCLIP (11088076) Genuine Ferrari Part - New (to order)
                                                          3-POINT CIRCLIP D.9 Genuine Maserati Part - New (to order)
                                                          # 021
                                                          MPN: 388400346
                                                          WASHER
                                                          from £3.26
                                                          from £3.26
                                                          RONDELLA X PEDALE ACCELER. Genuine Maserati Part - New In stock
                                                          # 022
                                                          MPN: 388400407
                                                          ACCELERATOR PEDAL BUSH
                                                          from £26.90
                                                          from £26.90
                                                          BOCCOLA PEDALE ACCELERATORE Genuine Maserati Part - New In stock
                                                          BOCCOLA PEDALE ACCELERATORE Genuine Maserati Part - Used In stock
                                                          # 024
                                                          MPN: 388400341
                                                          PIN
                                                          from £54.39
                                                          from £54.39
                                                          ACCELERATOR PEDAL MOUNTING PIN Genuine Maserati Part - New (to order)
                                                          # 026
                                                          MPN: 16100821
                                                          NUT
                                                          from £0.71
                                                          from £0.71
                                                          Genuine Ferrari Part (no longer available to order)
                                                          HEX.NUT M8X6.5 Genuine Maserati Part - New (to order)
                                                          # 027
                                                          MPN: 388400333
                                                          ACCELERATOR PEDAL STOP
                                                          -Only GS-
                                                          from £29.55
                                                          from £29.55
                                                          ARRESTO PEDALE ACCELERATORE Genuine Maserati Part - New (to order)
                                                          # 028
                                                          MPN: 16043621
                                                          SCREW
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £1.11
                                                          from £1.11
                                                          Genuine Ferrari Part (no longer available to order)
                                                          SCREW FOR VALVE ASSEMBLY Genuine Maserati Part - New (to order)
                                                          # 029
                                                          MPN: 12574211
                                                          NUT
                                                          from £0.71
                                                          from £0.71
                                                          This part replaces part number 128300060
                                                          Genuine Ferrari Part (no longer available to order)
                                                          NYLON STOP HEX. NUT M6X7.8 Genuine Maserati Part - New In stock
                                                          # 030
                                                          MPN: 13550214
                                                          FLAT WASHER
                                                          Supersession
                                                          Supersession
                                                          Genuine Maserati Part (no longer available to order)
                                                          # 031
                                                          MPN: 388400307

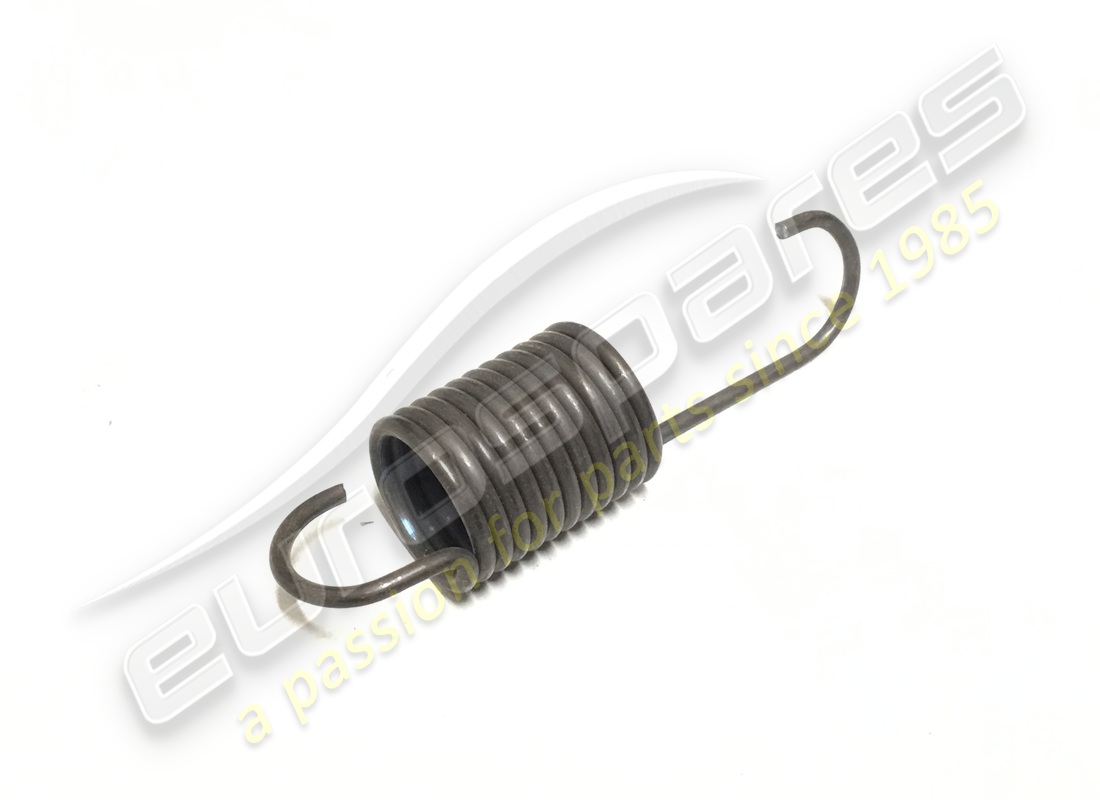

                                                          SPRING
                                                          -Valid for Manual Transmission-
                                                          from £43.28
                                                          from £43.28
                                                          SPRING Genuine Maserati Part - New In stock
                                                          # 032
                                                          MPN: 318420114
                                                          BUFFER
                                                          -Valid for Manual Transmission-
                                                          from £1.97
                                                          from £1.97
                                                          END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
                                                          # 033
                                                          MPN: 388400306
                                                          PLATE
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £18.24
                                                          from £18.24
                                                          PLATE Genuine Maserati Part - New (to order)
                                                          # 033
                                                          MPN: 388410306
                                                          PLATE
                                                          -Valid for Manual Transmission - Only GD-
                                                          from £9.48
                                                          from £9.48
                                                          PLATE Genuine Maserati Part - New (to order)
                                                          # 034
                                                          MPN: 15896221
                                                          NUT
                                                          -Valid for Manual Transmission-
                                                          from £0.71
                                                          from £0.71
                                                          Genuine Ferrari Part (no longer available to order)
                                                          NUT Genuine Maserati Part - New (to order)
                                                          # 035
                                                          MPN: 14433121
                                                          SCREW
                                                          -Valid for Manual Transmission-
                                                          from £1.24
                                                          from £1.24
                                                          Genuine Ferrari Part (no longer available to order)
                                                          PAN SCREWS Genuine Maserati Part - New In stock
                                                          # 036
                                                          MPN: 378419378
                                                          BUSH
                                                          -Valid for Manual Transmission-
                                                          from £4.78
                                                          from £4.78
                                                          BOCCOLA PER FISS.POMPA FRIZI Genuine Maserati Part - New (to order)
                                                          # 037
                                                          MPN: 367402327
                                                          PIN
                                                          -Valid for Manual Transmission-
                                                          from £10.12
                                                          from £10.12
                                                          SMALL LEVER FASTENING PIN Genuine Maserati Part - New (to order)
                                                          # 038
                                                          MPN: 378400854
                                                          CLUTCH SERVO CONTROL
                                                          -Valid for Manual Transmission-
                                                          from £42.46
                                                          from £42.46
                                                          SERVOFRIZIONE CON SNODI SFER Genuine Maserati Part - New (to order)
                                                          # 039
                                                          MPN: 14496501
                                                          WASHER
                                                          -Valid for Manual Transmission-
                                                          from £0.87
                                                          from £0.87
                                                          WASHER (14496501) Genuine Ferrari Part - New (to order)
                                                          WASHER FOR CONV. TOP HING Genuine Maserati Part - New In stock
                                                          # 040
                                                          MPN: 11087970
                                                          RETAINING RING
                                                          -Valid for Manual Transmission-
                                                          from £0.71
                                                          from £0.71
                                                          3-POINT CIRCLIP D.8 Genuine Maserati Part - New In stock
                                                          # 041
                                                          MPN: 11088076
                                                          RETAINING RING
                                                          -Valid for Manual Transmission-
                                                          from £0.47
                                                          from £0.47
                                                          CIRCLIP (11088076) Genuine Ferrari Part - New (to order)
                                                          3-POINT CIRCLIP D.9 Genuine Maserati Part - New (to order)
                                                          # 042
                                                          MPN: 378430300
                                                          PEDAL COVER
                                                          -Valid for Manual Transmission-
                                                          from £72.35
                                                          from £72.35
                                                          This part replaces part number 191496
                                                          PART Genuine Maserati Part - New (to order)
                                                          # 043
                                                          MPN: 388400122
                                                          CLUTCH PEDAL
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £271.38
                                                          from £271.38
                                                          PEDALE FRIZIONE COMPLETO Genuine Maserati Part - New (to order)
                                                          # 043
                                                          MPN: 388410122
                                                          CLUTCH PEDAL
                                                          -Valid for Manual Transmission - Only GD-
                                                          from £271.38
                                                          from £271.38
                                                          PEDALE FRIZIONE M338AB CM GD Genuine Maserati Part - New (to order)
                                                          # 044
                                                          MPN: 10802801
                                                          SPLIT PIN
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £4.30
                                                          from £4.30
                                                          SPLIT PIN D. 2.5X25 Genuine Maserati Part - New (to order)
                                                          # 045
                                                          MPN: 15896221
                                                          NUT
                                                          -Valid for Manual Transmission-
                                                          from £0.71
                                                          from £0.71
                                                          Genuine Ferrari Part (no longer available to order)
                                                          NUT Genuine Maserati Part - New (to order)
                                                          # 046
                                                          MPN: 318420114
                                                          BUFFER
                                                          -Valid for Manual Transmission-
                                                          from £1.97
                                                          from £1.97
                                                          END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
                                                          # 047
                                                          MPN: 318420320
                                                          FLEXIBLE BUSH
                                                          -Valid for Manual Transmission-
                                                          from £9.95
                                                          from £9.95
                                                          RUBBER BUSHING ON BRAKE PIN Genuine Maserati Part - New (to order)
                                                          # 048
                                                          MPN: 368402321
                                                          SHIM WASHER
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £1.11
                                                          from £1.11
                                                          RONDELLA DI RASAMENTO Genuine Maserati Part - New In stock
                                                          # 049
                                                          MPN: 12638501
                                                          WASHER
                                                          -Valid for Manual Transmission-
                                                          from £0.53
                                                          from £0.53
                                                          Genuine Ferrari Part (no longer available to order)
                                                          SPLIT WASHER D.2 8.15-15X 1, Genuine Maserati Part - New (to order)
                                                          # 050
                                                          MPN: 378400358
                                                          PIN
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £15.22
                                                          from £15.22
                                                          CLUTCH PUMP CONNECT.PIN BEND Genuine Maserati Part - New (to order)
                                                          # 050
                                                          MPN: 378419358
                                                          PIN
                                                          -Valid for Manual Transmission - Only GD-
                                                          from £21.98
                                                          from £21.98
                                                          PIN Genuine Maserati Part - New (to order)
                                                          # 051
                                                          MPN: 388200101

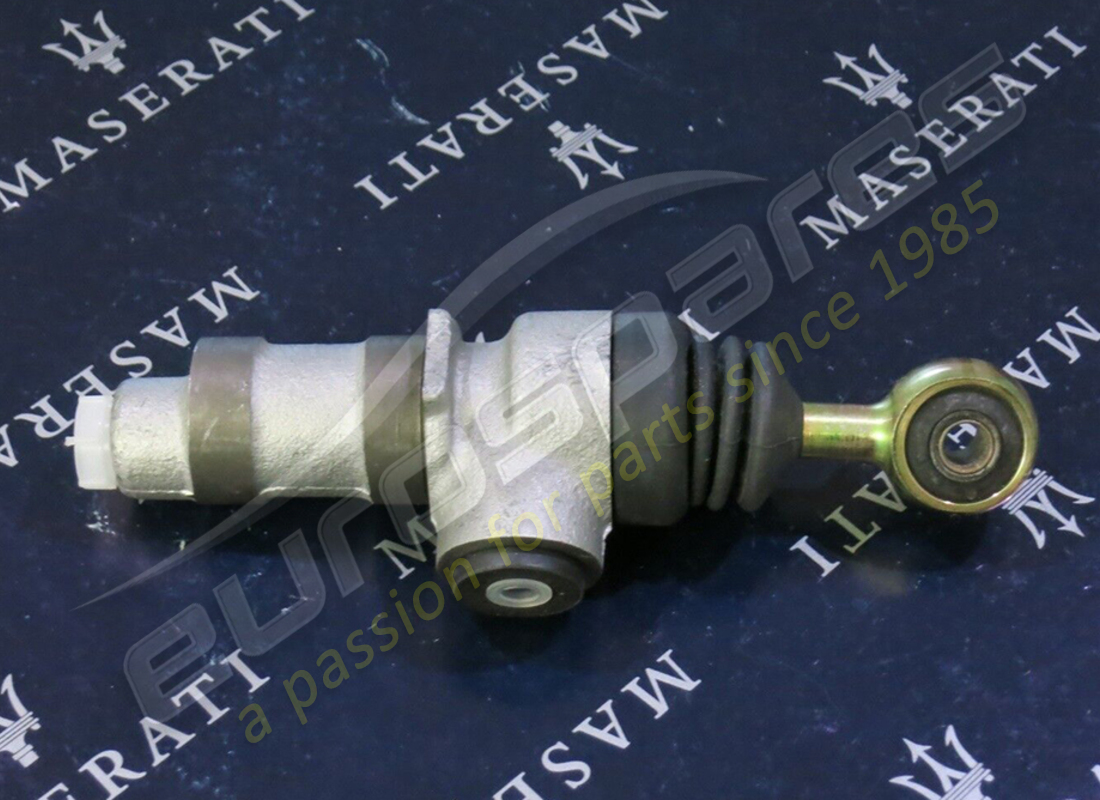

                                                          Clutch Pump
                                                          -Valid for Manual Transmission-
                                                          Supersession
                                                          Supersession
                                                          Genuine Maserati Part (no longer available to order)
                                                          # 051
                                                          MPN: 388200110
                                                          Clutch Pump
                                                          from £295.00
                                                          from £295.00
                                                          This part replaces part number 388200101
                                                          CLUTCH MASTER CYLINDER (388200110) Eurospares Approved Part - New In stock
                                                          CLUTCH MASTER CYLINDER Genuine Maserati Part - New (to order)
                                                          # 052
                                                          MPN: 378490379
                                                          CLUTCH SERVO CYLINDER GASKET.
                                                          -Valid for Manual Transmission-
                                                          from £27.81
                                                          from £27.81
                                                          CLUTCH SERVO UNION GASKET Genuine Maserati Part - New (to order)
                                                          # 053
                                                          MPN: 13119770
                                                          COLLAR
                                                          -Valid for Manual Transmission-
                                                          from £1.11
                                                          from £1.11
                                                          COLLARE A NASTRO FISS.MANIC. Genuine Maserati Part - New (to order)
                                                          # 054
                                                          MPN: 19073389
                                                          FLEXIBLE HOSE
                                                          -Valid for Manual Transmission - Only GD-
                                                          from £2.69
                                                          from £2.69
                                                          BRAKE FLUID PIPE 7.5X3.5X260 Genuine Maserati Part - New In stock
                                                          # 054
                                                          MPN: 19077789
                                                          FLEXIBLE HOSE
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £1.67
                                                          from £1.67
                                                          TUBO 7X2,5X240 TAB.17309 Genuine Maserati Part - New (to order)
                                                          # 055
                                                          MPN: 378200112
                                                          FLEXIBLE HOSE
                                                          -Valid for Manual Transmission - Only GS-
                                                          from £50.25
                                                          from £50.25
                                                          Connecting Hose Manual LHD Genuine Maserati Part - New (to order)
                                                          # 055
                                                          MPN: 388210112
                                                          FLEXIBLE HOSE
                                                          -Valid for Manual Transmission - Only GD-
                                                          from £56.99
                                                          from £56.99
                                                          PIPE Genuine Maserati Part - New (to order)
                                                          PIPE Genuine Maserati Part - Used In stock
                                                          # 056
                                                          MPN: 12601274
                                                          LOCK WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12601270
                                                          WASHER (12601274) Genuine Ferrari Part - New In stock
                                                          WASHER Genuine Maserati Part - New In stock
                                                          # 057
                                                          MPN: 12601274
                                                          LOCK WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12601270
                                                          WASHER (12601274) Genuine Ferrari Part - New In stock
                                                          WASHER Genuine Maserati Part - New In stock
                                                          # 058
                                                          MPN: 9532
                                                          BUSHING
                                                          from £2.39
                                                          from £2.39
                                                          BOCCOLA POMPA FRIZIONE 14246 Genuine Maserati Part - New In stock
                                                          # 059
                                                          MPN: 378200340
                                                          UNION
                                                          from £5.44
                                                          from £5.44
                                                          UNION Genuine Maserati Part - New In stock
                                                          # 060
                                                          MPN: 188876

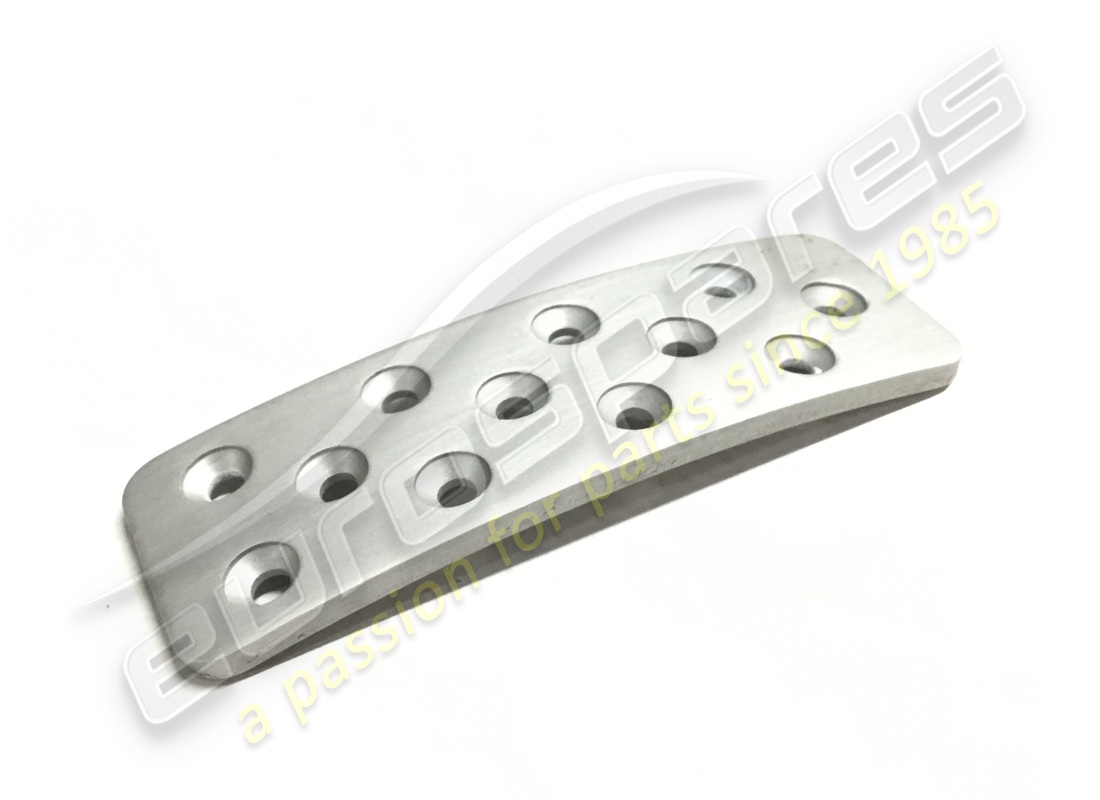

                                                          ACCELERATOR PEDAL PLATE
                                                          -Optional - Racing trim-
                                                          from £149.10
                                                          from £149.10
                                                          Maserati PART 188876 Genuine Maserati Part - New In stock
                                                          # 061
                                                          MPN: 14440734
                                                          SCREW
                                                          -Optional - Racing trim-
                                                          from £1.60
                                                          from £1.60
                                                          SCREW (14440734) Genuine Ferrari Part - New In stock
                                                          COUNTERSUNK HEX.HEAD SCREW M Genuine Maserati Part - New (to order)
                                                          # 062
                                                          MPN: 14058311
                                                          NUT
                                                          -Optional - Racing trim-
                                                          from £0.47
                                                          from £0.47
                                                          NUT (14058311) Genuine Ferrari Part - New In stock
                                                          S-LOCK.HEX. NUT M5X5 Genuine Maserati Part - New (to order)
                                                          # 063
                                                          MPN: 188875

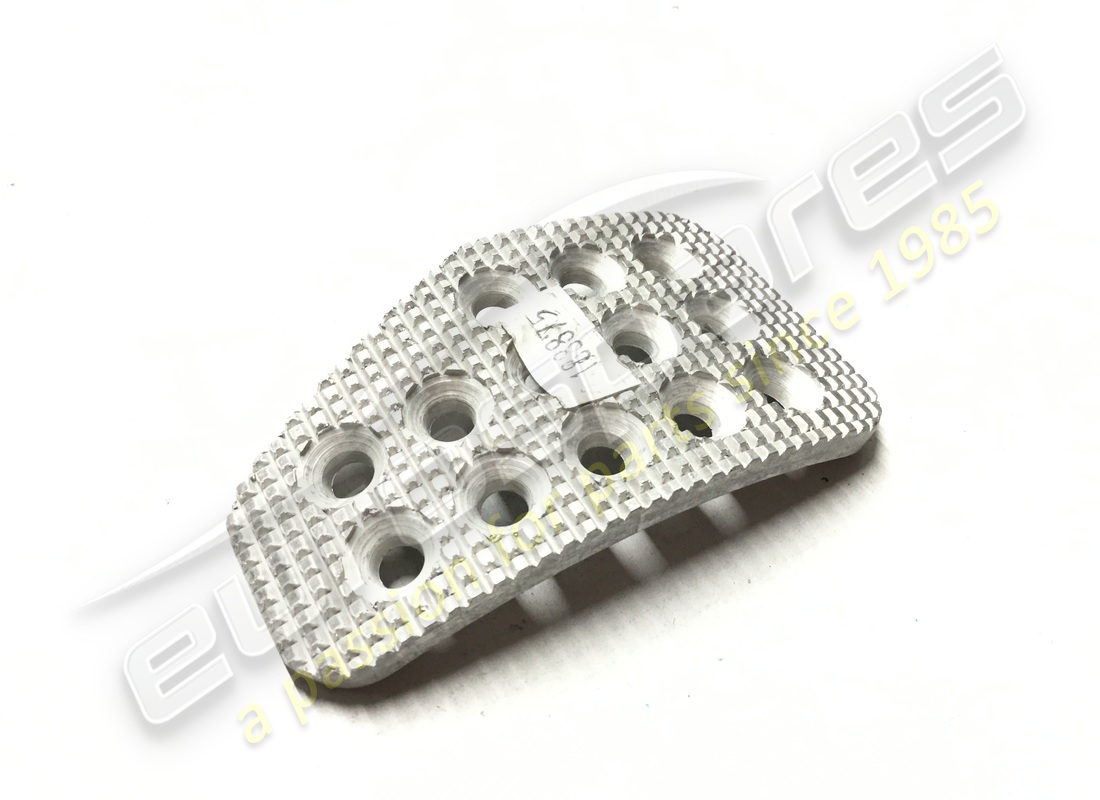

                                                          CLUTCH PEDAL PLATE
                                                          -Optional - Racing trim - Valid for Manual Transmission-
                                                          from £117.60
                                                          from £117.60
                                                          Maserati PART 188875 Genuine Maserati Part - New In stock
                                                          # 064
                                                          MPN: 14441324
                                                          SCREW
                                                          -Optional - Racing trim - Valid for Manual Transmission-
                                                          from £0.47
                                                          from £0.47
                                                          SCREW (14441324) Genuine Ferrari Part - New In stock
                                                          SCREW Genuine Maserati Part - New (to order)
                                                          # 065
                                                          MPN: 14058411
                                                          NUT
                                                          -Optional - Racing trim - Valid for Manual Transmission-
                                                          from £0.47
                                                          from £0.47
                                                          NUT (14058411) Genuine Ferrari Part - New In stock
                                                          NUT Genuine Maserati Part - New In stock
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
