maserati 3200 gt/gta/assetto corsa rear shock absorber parts diagram

061 - REAR SHOCK ABSORBER

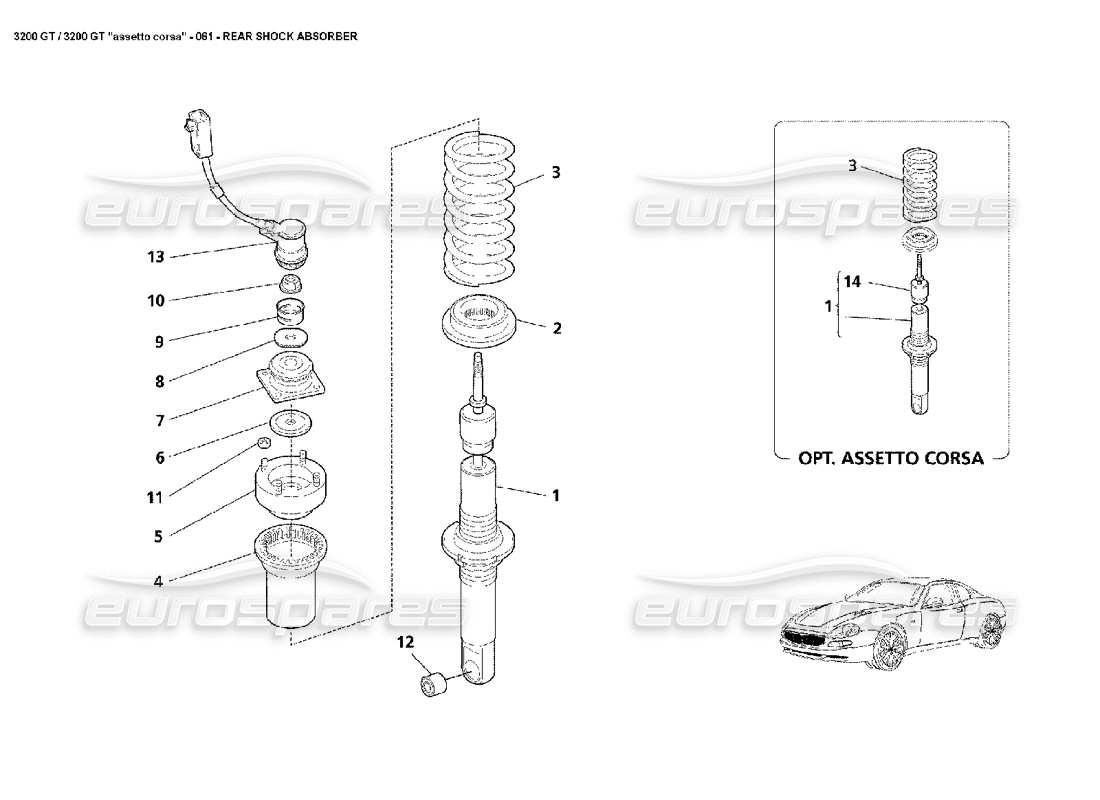

Maserati 3200 GT/GTA/Assetto Corsa Rear Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 387000010
                    VARIABLE SETTING SHOCK ABSORBER OPTIONAL
                    -Pre-modification: Up to Assy 2116-
                    from £632.96
                    from £632.96
                    This part replaces part number 387000110
                    # 001
                    MPN: 387000011
                    SHOCK ABSORBER
                    -Valid till Ass. Nr. 4680-
                    from £314.05
                    from £314.05
                    # 001
                    MPN: 387000012
                    SHOCK ABSORBER (NON ACTIVE)
                    -Valid from Ass. Nr. 4681- SOLD IN PAIRS (PRICE FOR ONE)
                    from £247.88
                    from £247.88
                    # 001
                    MPN: 387001010
                    VARIABLE SETTING SHOCK (OPTIONAL)
                    -Post-modification: From assy 2117-
                    from £674.66
                    from £674.66
                    # 002
                    MPN: 113581
                    REAR SUSPENSION LOWER SPRING GUIDE
                    from £6.23
                    from £6.23
                    # 003
                    MPN: 163653
                    REAR SUSPENSION SPRING.
                    -Standard-
                    from £243.78
                    from £243.78
                    This part replaces part number 387000336
                    # 003
                    MPN: 183776
                    REAR SUSPENSION SPRING.
                    -Optional - Racing trim-
                    from £29.40
                    from £29.40
                    # 004
                    MPN: 156978
                    REAR SUSPENSION UPPER SPRING GUIDE
                    from £16.11
                    from £16.11
                    # 005
                    MPN: 387000116
                    BODY SH.AS. UPPER SPRING PLATE ASSY
                    -Valid till Ass. Nr.3795-
                    from £247.67
                    from £247.67
                    # 005
                    MPN: 387001116
                    BODY SH.AS. UPPER SPRING PLATE ASSY
                    -Valid from Ass. Nr.3796-
                    from £40.16
                    from £40.16
                    # 006
                    MPN: 137825
                    HIPERBLOK WASHER
                    from £0.41
                    from £0.41
                    # 009
                    MPN: 137824
                    SHOCK ABSORBER MOTOR BOWL
                    from £7.51
                    from £7.51
                    # 010
                    MPN: 137826
                    SHOCK ABSORBER SECURING NUT
                    from £1.74
                    from £1.74
                    # 011
                    MPN: 14059311
                    NUT
                    from £0.28
                    from £0.28
                    # 012
                    MPN: 163918
                    LOWER SHOCK ABSORBER BUSH
                    from £75.40
                    from £75.40
                    This part replaces part number 387000375
                    # 013
                    MPN: 158732
                    ACTUATOR
                    also fits F355/F456/550M/F50
                    from £808.44
                    from £808.44
                    This part replaces part number 383900120
                    # 014
                    MPN: 163599
                    SHOCK ABSORBER PAD
                    -Optional - Racing trim-
                    from £29.99
                    from £29.99
