058 - Rear Under-Chassis & Differential Fastening

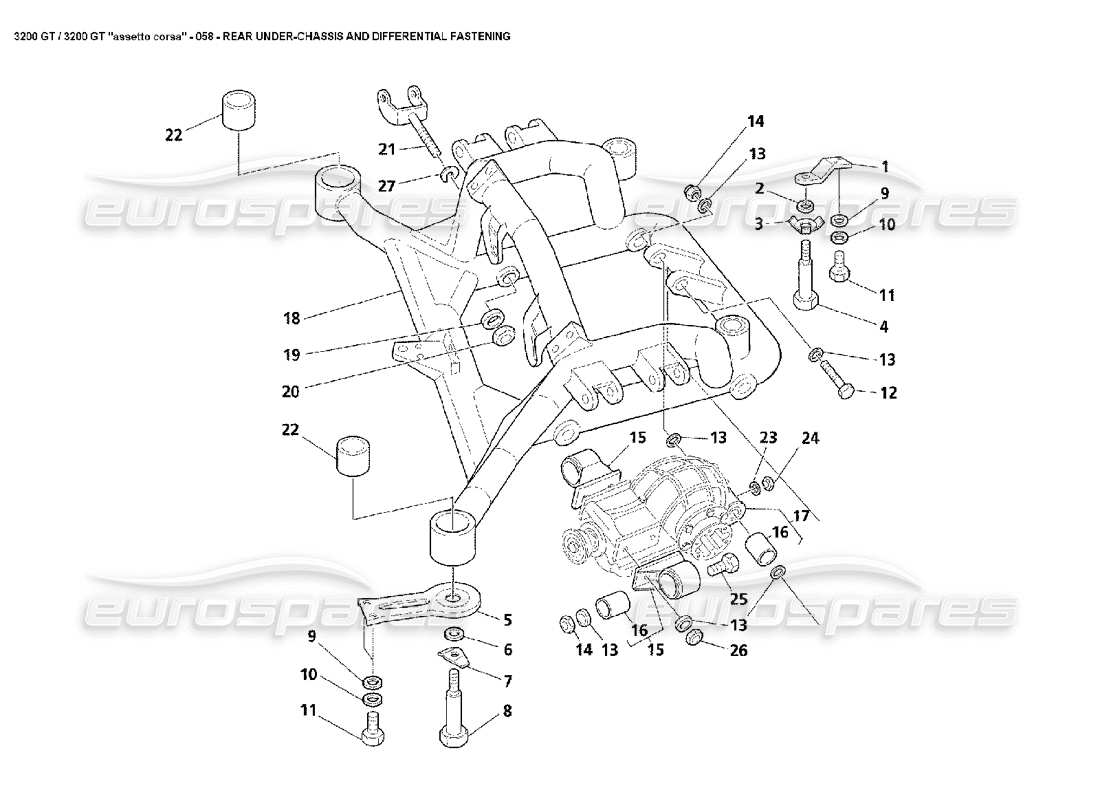

Maserati 3200 GT/GTA/Assetto Corsa Rear Under-Chassis & Differential Fastening Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 382700338
SIDE TIE ROD
from £5.68
from £5.68
# 002
MPN: 326656320
WASHER
from £11.44
from £11.44
# 003
MPN: 382700358
PLATE
from £2.00
from £2.00
# 004
MPN: 382700354
SCREW
from £41.99
from £41.99
# 005
MPN: 382700336
SIDE TIE ROD
from £31.30
from £31.30
# 006
MPN: 12644921
WASHER
from £0.88
from £0.88
# 007
MPN: 382700357
PLATE
from £2.00
from £2.00
# 008
MPN: 382700355
SCREW
from £24.48
from £24.48
# 009
MPN: 12646724
BLANK WASHER
from £0.47
from £0.47
# 010
MPN: 12604479
LOCK WASHER
Supersession
Supersession
# 011
MPN: 16043221
SCREW
from £0.47
from £0.47
# 012
MPN: 15216821
SCREW
from £0.84
from £0.84
# 013
MPN: 376200599
WASHER
from £11.68
from £11.68
# 014
MPN: 12577511
NUT
from £1.36
from £1.36
This part replaces part number 127900120
# 015
MPN: 386200165

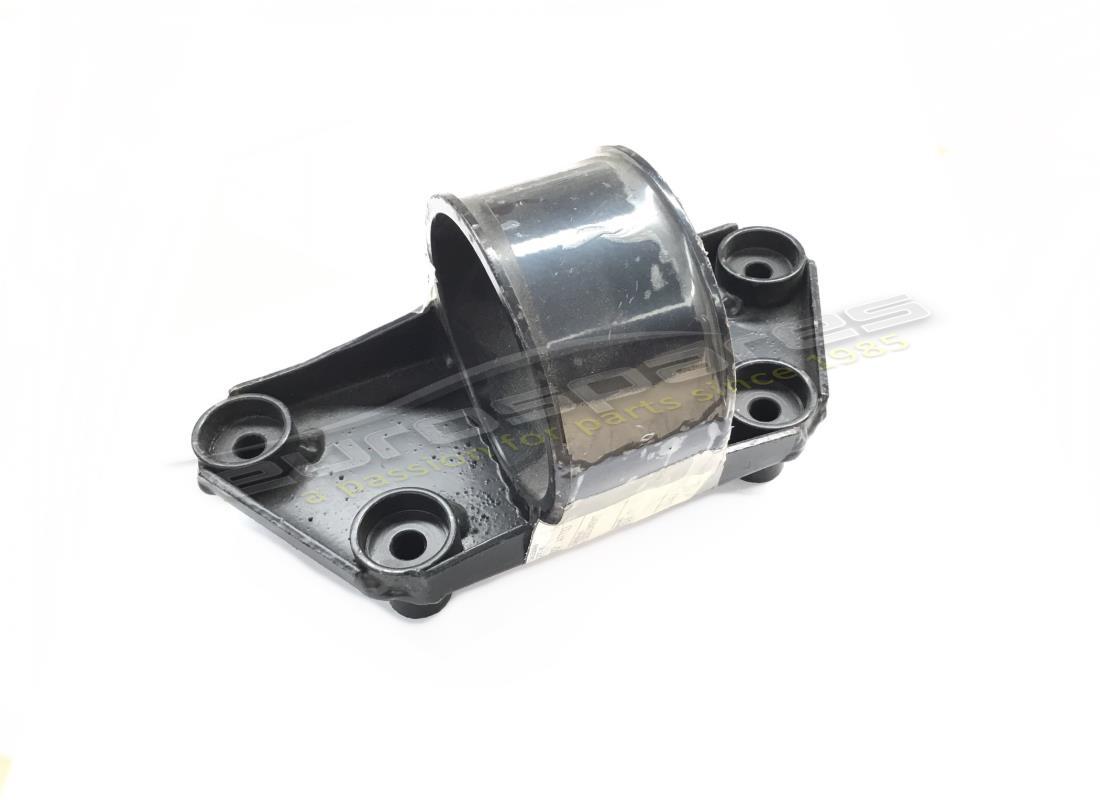

DIFFERENTIAL SIDE SUPPORT
from £82.12
from £82.12
# 016
MPN: 97771

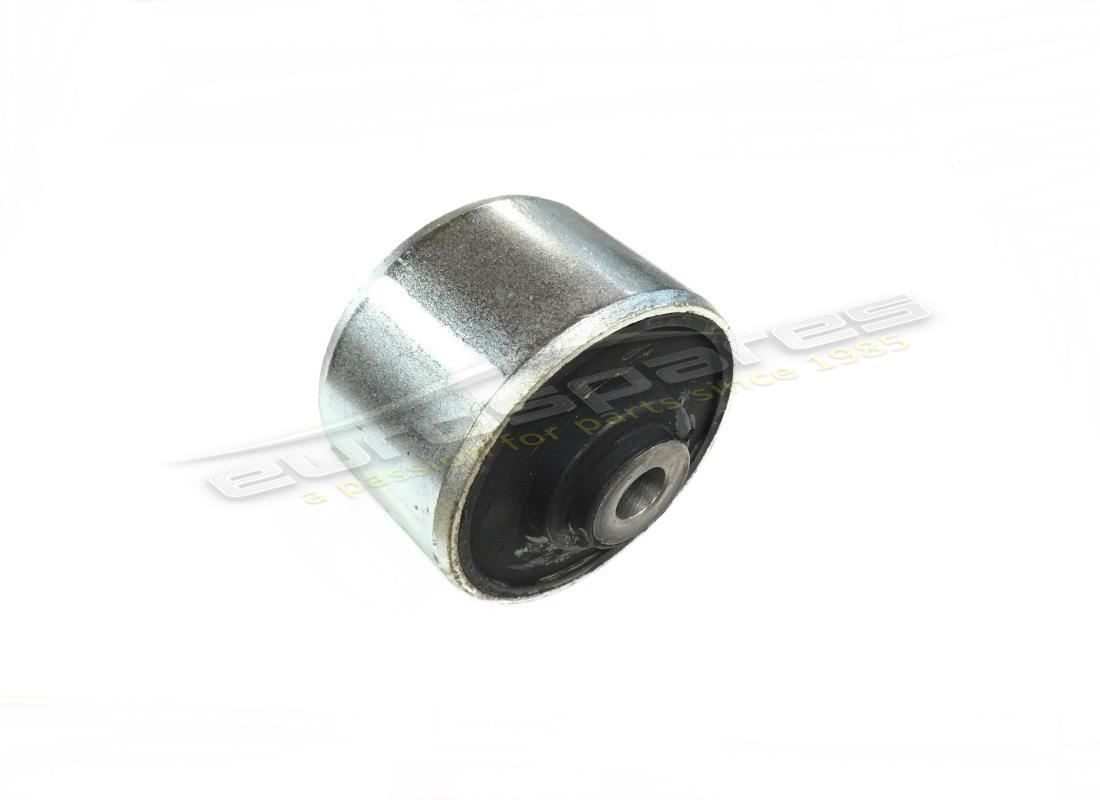

SILENT BLOCK
from £40.72
from £40.72
# 017
MPN: 386200169
DIFFERENTIAL REAR SUPPORT
from £1,260.28
from £1,260.28
# 018
MPN: 382700011

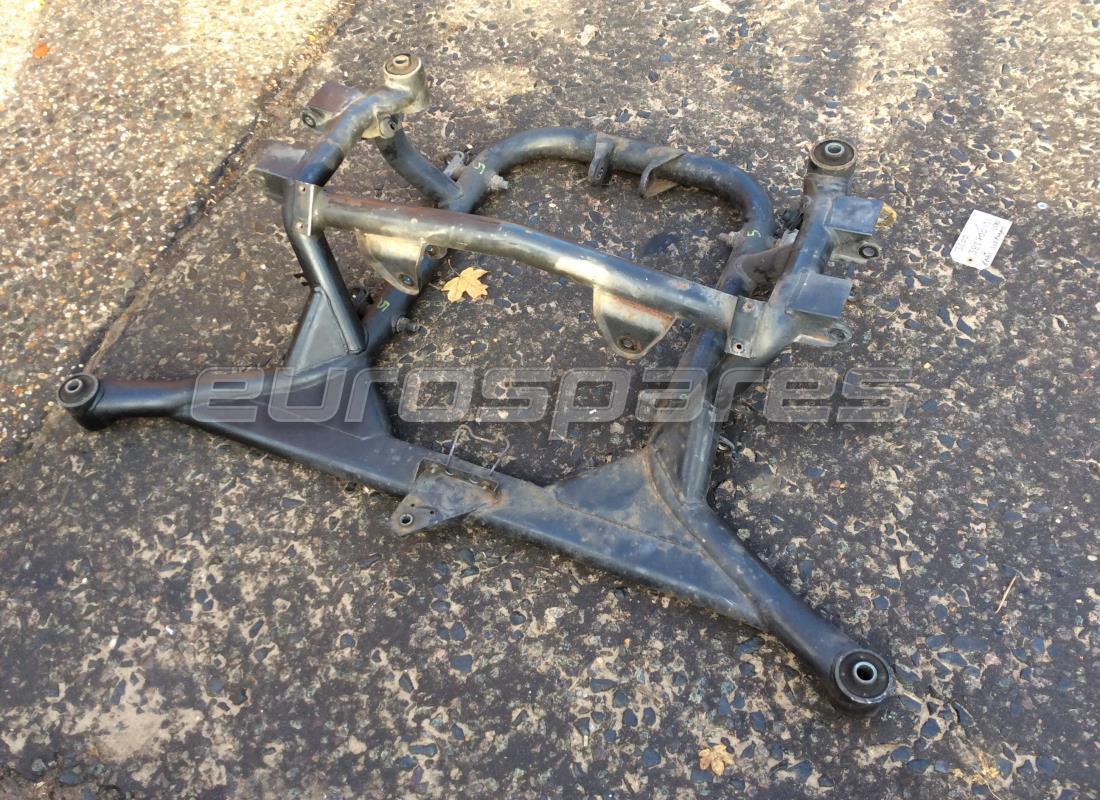

Rear Frame
See also 382700131
from £2,632.99
from £2,632.99
This part replaces part number 382700131 which we have in stock - and 1 more. Click to view details
# 018
MPN: 382700131
Rear Frame
from £472.50
from £472.50
# 019
MPN: 10520125
WASHER
from £1.91
from £1.91
# 020
MPN: 14048925
NUT
from £1.68
from £1.68
# 021
MPN: 387000306
LOWER LEVER TO SUBFRAME FORK.
from £16.80
from £16.80
# 022
MPN: 382700121
FLEXIBLE BLOCK
from £27.92
from £27.92
# 023
MPN: 4425717
WASHER
from £1.13
from £1.13
# 024
MPN: 16104111
NUT
from £1.13
from £1.13
# 025
MPN: 15216521
SCREW
from £5.68
from £5.68
# 026
MPN: 12577221
SELF LOCKING NUT
from £1.44
from £1.44
# 027
MPN: 377030378
THICKNESS TH.0,50
from £3.28
from £3.28
# 027
MPN: 377030379
THICKNESS TH.0,75
from £4.00
from £4.00
# 027
MPN: 377030380
THICKNESS TH.1,00
from £17.83
from £17.83
# 027
MPN: 377030381
THICKNESS
from £4.00
from £4.00
# 027
MPN: 377030382
THICKNESS TH.3,00
from £4.72
from £4.72
