046 - Auto Gearbox - Internals

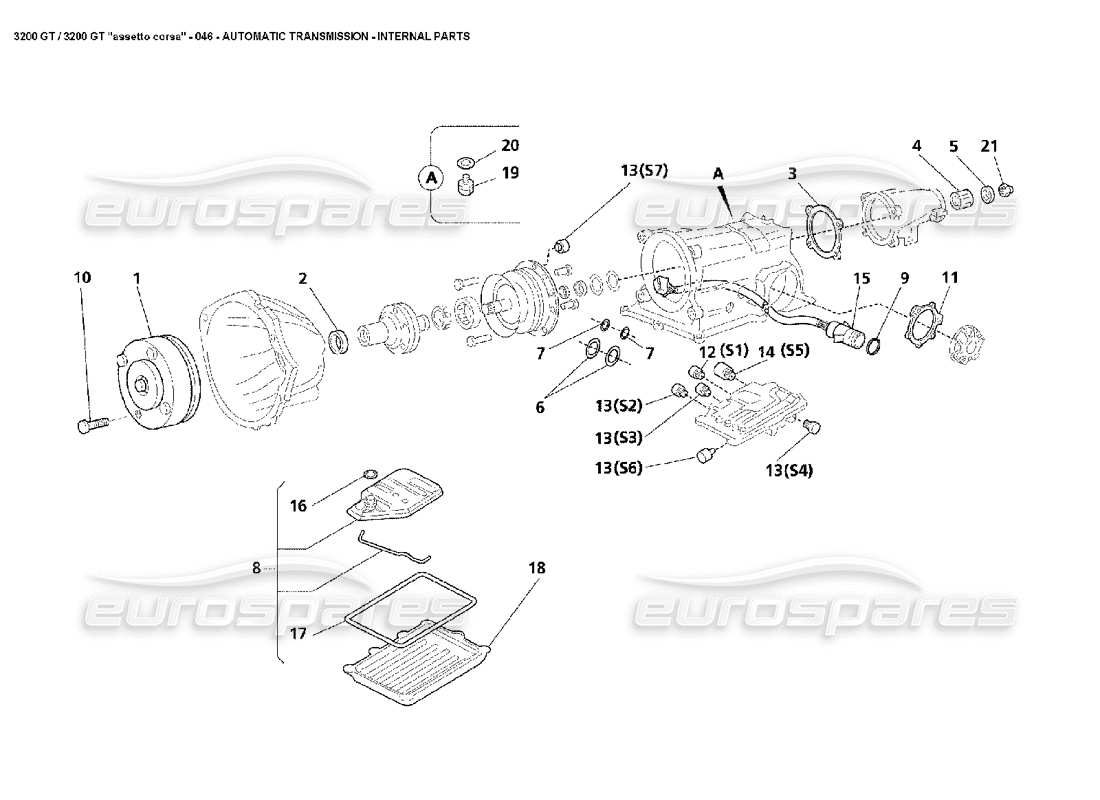

Maserati 3200 GT/GTA/Assetto Corsa Auto Gearbox - Internals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980000989
CONVERTER
from £539.81
from £539.81
# 002
MPN: 374831331
PUMP SEAL
from £7.40
from £7.40
# 003
MPN: 374831333
FLANGE GASKET
from £15.89
from £15.89
# 004
MPN: 374831110
REAR BEARING
from £33.74
from £33.74
# 005
MPN: 374831408
REAR SEAL
from £23.22
from £23.22
# 006
MPN: 374831336
FR. SERVO OR. COVER
from £7.80
from £7.80
# 007
MPN: 374831332
MANUAL SHAFT SEAL
from £183.77
from £183.77
# 008
MPN: 374831020
FILTER SERVICE KIT
from £57.41
from £57.41
# 009
MPN: 372931312
O-RING
from £2.34
from £2.34
# 010
MPN: 15970521
SCREW
from £0.47
from £0.47
# 011
MPN: 374831330
REAR SERVO COVER GASKET
(minimum order quantity = 2)
from £7.80
from £7.80
# 012
MPN: 980000992
SOLENOID (S1)
from £186.88
from £186.88
# 013
MPN: 372931210
SOLENOID (S2-S3-S4-S6-S7)
from £51.82
from £51.82
# 014
MPN: 980000993
SOLENOID (S5)
from £154.00
from £154.00
# 015
MPN: 980000994
VALVES WIRING
from £70.89
from £70.89
# 016
MPN: 374831320
INTERNAL O-RING FILTER
from £3.56
from £3.56
# 017
MPN: 374831309
OIL SUMP GASKET
from £11.92
from £11.92
# 018
MPN: 374831102
oil sump
from £50.82
from £50.82
# 019
MPN: 374831322
OIL LEVEL PLUG
from £16.44
from £16.44
# 020
MPN: 374831323
O-RING
from £1.95
from £1.95
# 021
MPN: 374831500
FLANGE NUT
from £60.94
from £60.94
