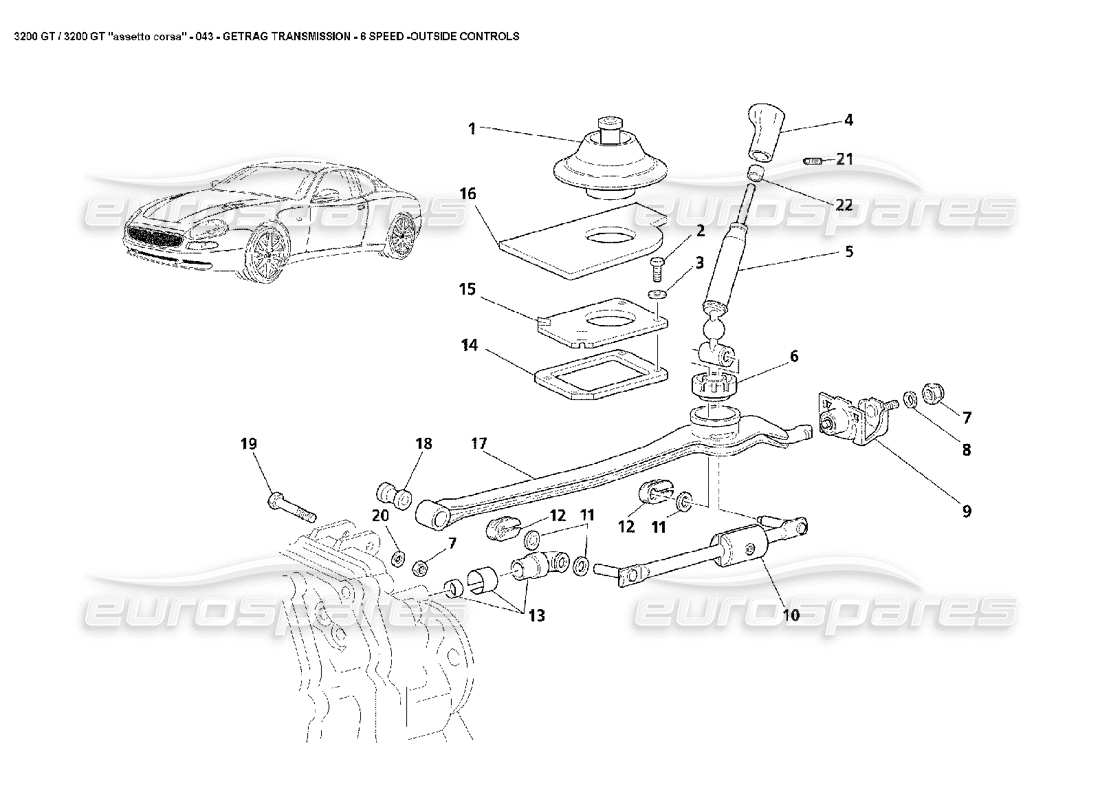

Maserati 3200 GT/GTA/Assetto Corsa Manual Gearbox: Externals Parts Diagram

043 - Manual Gearbox: Externals

Maserati 3200 GT/GTA/Assetto Corsa Manual Gearbox: Externals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 325253300
                                          RUBBER BELLOWS
                                          from £20.89
                                          from £20.89
                                          # 002
                                          MPN: 167200625
                                          SCREW
                                          from £2.49
                                          from £2.49
                                          # 003
                                          MPN: 14498801
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          # 004
                                          MPN: 385201101
                                          M.GEARSHIFT LEVER KNOB LEATHER/BRIERWOOD
                                          -Optional-
                                          from £237.06
                                          from £237.06
                                          # 004
                                          MPN: 385201102
                                          MAN.GEARSHIFT LEVER KNOB LEATHER
                                          -Standard black-
                                          from £120.30
                                          from £120.30
                                          This part replaces part number 385200102
                                          # 004
                                          MPN: 385201103
                                          MAN.GEARSHIFT KNOB LEATHER/CARBON
                                          -Optional-
                                          from £281.62
                                          from £281.62
                                          # 004
                                          MPN: 980001010
                                          MAN.GEARSHIFT LEVER KNOB LEATHER
                                          -Optional - Coloured leather - In the order, specify car number-
                                          from £89.82
                                          from £89.82
                                          # 005
                                          MPN: 385200185
                                          CONTROL LEVER
                                          from £56.27
                                          from £56.27
                                          # 006
                                          MPN: 325253569
                                          BUSH
                                          from £11.92
                                          from £11.92
                                          # 007
                                          MPN: 12574211
                                          NYLON STOP NUT
                                          from £0.49
                                          from £0.49
                                          This part replaces part number 128300060
                                          # 008
                                          MPN: 12646624
                                          BLANK WASHER
                                          from £0.47
                                          from £0.47
                                          # 009
                                          MPN: 325253180
                                          U-BOLT
                                          from £13.25
                                          from £13.25
                                          # 010
                                          MPN: 385200150
                                          GEARSHIFT CONTROL ROD
                                          -Valid till Ass. Nr.3180-
                                          from £19.48
                                          from £19.48
                                          # 010
                                          MPN: 385201150
                                          GEARSHIFT CONTROL ROD
                                          -Valid from Ass. Nr.3181-
                                          from £44.37
                                          from £44.37
                                          # 011
                                          MPN: 325253564
                                          SPACER
                                          from £1.48
                                          from £1.48
                                          # 012
                                          MPN: 325253572
                                          STOP RING
                                          from £1.09
                                          from £1.09
                                          # 013
                                          MPN: 325253176
                                          GEARBOX CONTROL JOINT
                                          from £427.24
                                          from £427.24
                                          # 014
                                          MPN: 315232407
                                          GASKET
                                          from £1.95
                                          from £1.95
                                          # 015
                                          MPN: 395250301
                                          PLATE
                                          from £10.22
                                          from £10.22
                                          # 016
                                          MPN: 325253302
                                          GASKET
                                          from £4.67
                                          from £4.67
                                          # 017
                                          MPN: 385200567
                                          GEARSHIFT LEVER SUPPORT
                                          from £686.56
                                          from £686.56
                                          # 018
                                          MPN: 325253568
                                          BUSH
                                          from £9.74
                                          from £9.74
                                          # 019
                                          MPN: 385200178
                                          PIN
                                          from £17.39
                                          from £17.39
                                          # 020
                                          MPN: 14496421
                                          WASHER
                                          Supersession
                                          Supersession
                                          This part replaces part number 84154
                                          # 021
                                          MPN: 980000937
                                          DOWEL
                                          from £1.09
                                          from £1.09
                                          # 022
                                          MPN: 385200577
                                          BUSH
                                          from £2.34
                                          from £2.34
