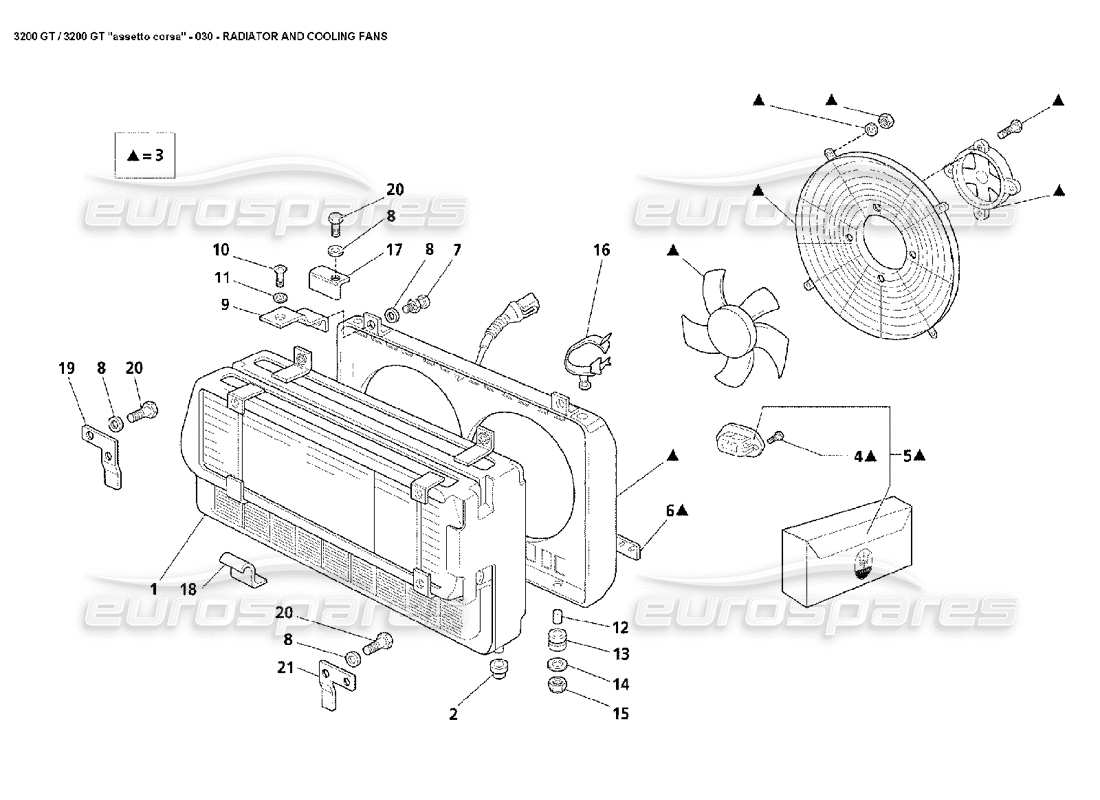

030 - Radiator & Cooling Fans

Maserati 3200 GT/GTA/Assetto Corsa Radiator & Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 384000101
                                            WATER RADIATOR
                                            from £1,592.64
                                            from £1,592.64
                                            This part replaces part number 384000100
                                            # 002
                                            MPN: 189453
                                            BUSH
                                            from £1.07
                                            from £1.07
                                            This part replaces part number 374030312
                                            # 002
                                            MPN: 189453
                                            BUSH
                                            from £1.07
                                            from £1.07
                                            This part replaces part number 374030312
                                            # 003
                                            MPN: 383300023
                                            AIR DEFLECTOR ASSY
                                            from £336.38
                                            from £336.38
                                            This part replaces part number 383305023 - and 1 more. Click to view details
                                            # 003
                                            MPN: 383305023
                                            ELECTRIC FAN ASSEMBLY
                                            Supersession
                                            Supersession
                                            # 004
                                            MPN: 15958807
                                            SCREW
                                            from £1.07
                                            from £1.07
                                            This part replaces part number 15958701
                                            # 005
                                            MPN: 980000960
                                            COOLING FANS RESISTOR
                                            from £64.18
                                            from £64.18
                                            This part replaces part number 373330176 - and 1 more. Click to view details
                                            # 006
                                            MPN: 373330320
                                            RUBBER BAND
                                            from £3.86
                                            from £3.86
                                            # 007
                                            MPN: 10902224
                                            SCREW
                                            from £0.53
                                            from £0.53
                                            # 008
                                            MPN: 12647624
                                            BLANK WASHER
                                            from £0.50
                                            from £0.50
                                            This part replaces part number 12647601
                                            # 009
                                            MPN: 371390773
                                            PLATE
                                            from £5.54
                                            from £5.54
                                            # 010
                                            MPN: 327720338
                                            SCREW
                                            from £1.54
                                            from £1.54
                                            # 011
                                            MPN: 14498801
                                            RETAINING WASHER
                                            from £0.47
                                            from £0.47
                                            # 012
                                            MPN: 315520376
                                            BUSH
                                            from £3.61
                                            from £3.61
                                            # 013
                                            MPN: 315520375
                                            VIBRATION DAMPER SUPPORT
                                            Supersession
                                            Supersession
                                            # 014
                                            MPN: 12646601
                                            BLANK WASHER
                                            from £0.71
                                            from £0.71
                                            # 015
                                            MPN: 14048111
                                            NUT
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 14048115
                                            # 016
                                            MPN: 373001331
                                            CLAMP
                                            Supersession
                                            Supersession
                                            This part replaces part number 7601962
                                            # 017
                                            MPN: 384000386
                                            UPPER PLUG
                                            from £6.30
                                            from £6.30
                                            # 018
                                            MPN: 384000385
                                            WATER RADIATOR GASKET
                                            from £5.93
                                            from £5.93
                                            # 019
                                            MPN: 384000144
                                            RH BRACKET
                                            from £20.62
                                            from £20.62
                                            # 020
                                            MPN: 10902224
                                            SCREW
                                            from £0.51
                                            from £0.51
                                            # 021
                                            MPN: 384000143
                                            LH BRACKET
                                            from £7.70
                                            from £7.70
