029 - Engine Cooling Pipes & Thermostat

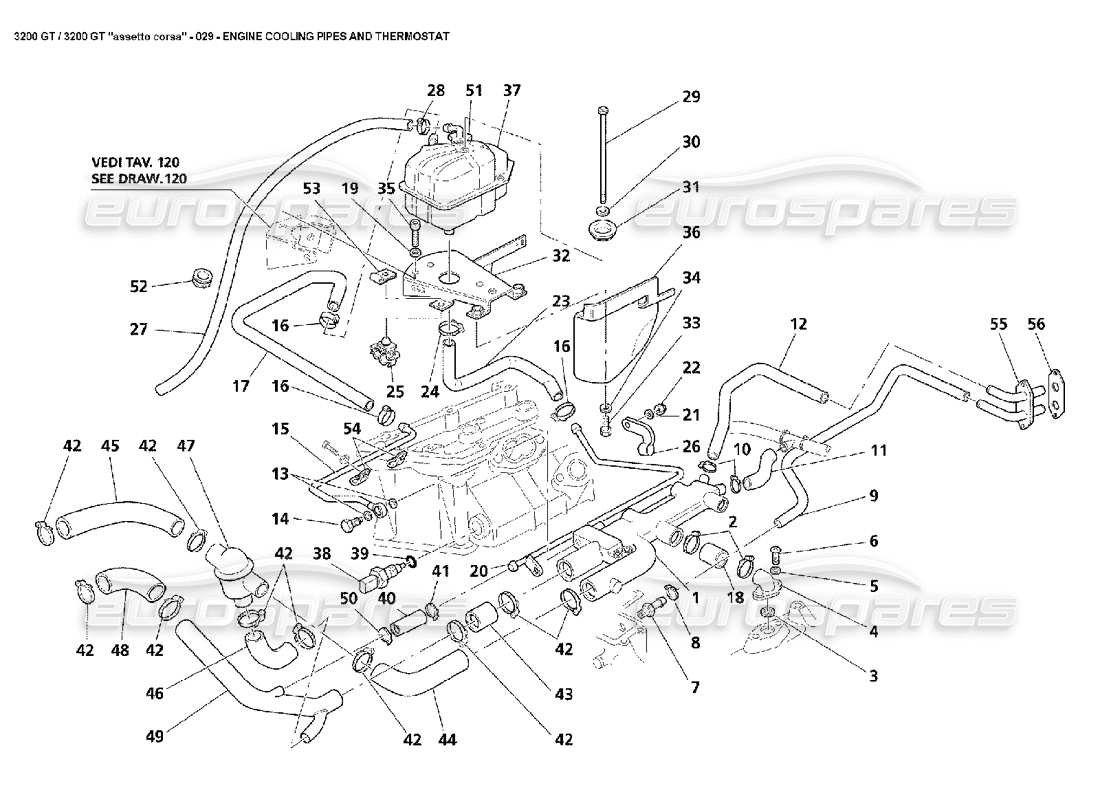

Maserati 3200 GT/GTA/Assetto Corsa Engine Cooling Pipes & Thermostat Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 585048000
WATER MANIFOLD FROM HEAD TO PUMP
from £65.26
from £65.26
# 002
MPN: 13097390

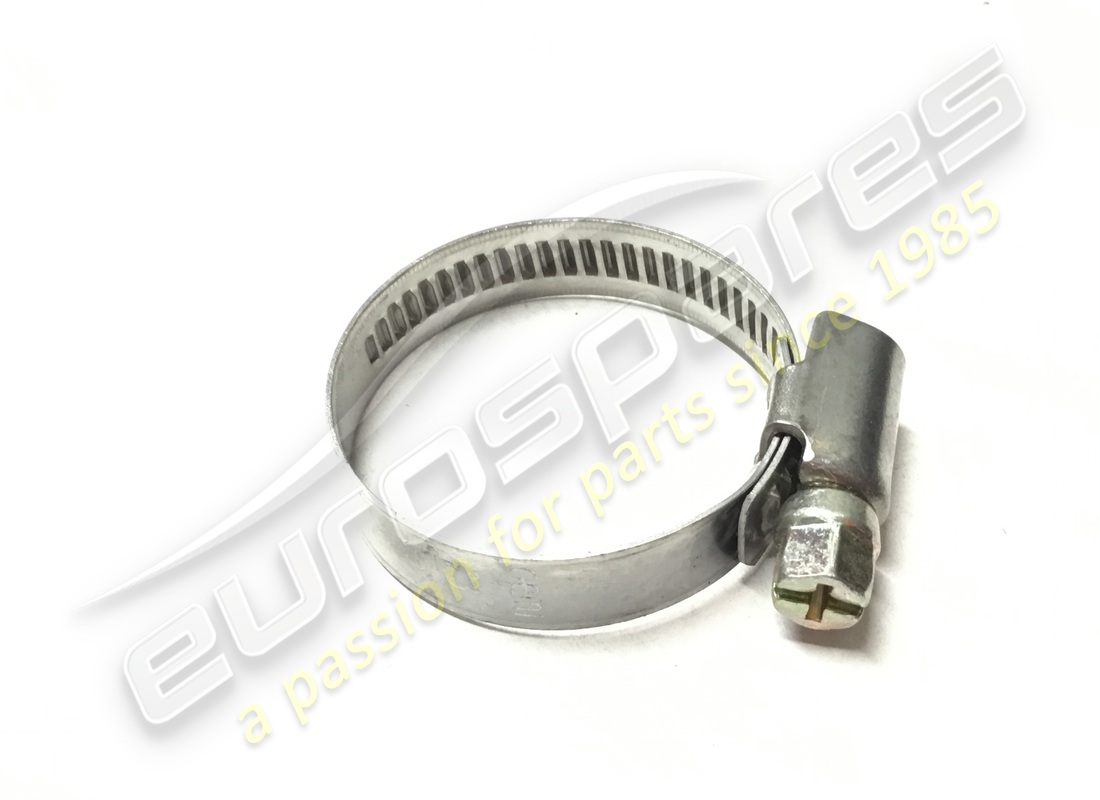

CLAMP
from £2.39
from £2.39
# 003
MPN: 14454380
RUBBER GASKET
from £0.47
from £0.47
This part replaces part number 192415131
# 004
MPN: 479009902
UNION
from £17.75
from £17.75
# 005
MPN: 84154
WASHER
Supersession
Supersession
# 006
MPN: 14305221
SCREW
from £0.47
from £0.47
This part replaces part number 311053394
# 007
MPN: 183013
UNION
from £10.09
from £10.09
This part replaces part number 585018400
# 008
MPN: 312020410
CLAMP
from £2.22
from £2.22
# 009
MPN: 585042500
SLEEVE
-Only GS - Valid till Ass. Nr. 4855-
from £79.15
from £79.15
# 009
MPN: 585042501
SLEEVE
-Only GS - Valid from Ass. Nr. 4856-
from £18.53
from £18.53
# 009
MPN: 585042560
SLEEVE
-Only GD-
from £21.49
from £21.49
# 010
MPN: 374091382
CLAMP
from £0.71
from £0.71
This part replaces part number 374090382
# 011
MPN: 578369600
RUBBER HOSE
from £88.30
from £88.30
# 012
MPN: 585042200
WATER DELIVERY LINE
- Only GS -Valid till Ass. Nr. 4855-
from £140.73
from £140.73
# 012
MPN: 585042201
WATER DELIVERY LINE
-Only GS - Valid from Ass. Nr. 4856-
from £14.30
from £14.30
# 012
MPN: 585042260
WATER DELIVERY LINE
-Only GD-
from £12.34
from £12.34
# 013
MPN: 319220424
WASHER
from £0.71
from £0.71
# 014
MPN: 312020510
SCREW
from £2.76
from £2.76
This part replaces part number 193520 - and 1 more. Click to view details
# 015
MPN: 585041800
WATER VAPOURS VENT
from £49.37
from £49.37
# 016
MPN: 13125370
STRIP COLLAR
from £1.11
from £1.11
# 017
MPN: 384000511
SLEEVE
from £59.66
from £59.66
# 018
MPN: 585042600
SLEEVE
from £10.66
from £10.66
This part replaces part number 479042602 - and 1 more. Click to view details
# 019
MPN: 12646601
WASHER
from £0.71
from £0.71
# 020
MPN: 585047000
HOSE
from £41.46
from £41.46
# 021
MPN: 14496421
WASHER
Supersession
Supersession
This part replaces part number 84154
# 022
MPN: 12575421
NUT
Supersession
Supersession
This part replaces part number 12575411
# 023
MPN: 384000318
RUBBER HOSE
from £150.92
from £150.92
# 024
MPN: 98108
CLAMP
from £1.60
from £1.60
# 025
MPN: 98088
CLIP
from £1.60
from £1.60
# 026
MPN: 585049600
BRACKET
from £3.75
from £3.75
# 027
MPN: 384000316
PIPES
from £8.72
from £8.72
# 028
MPN: 10461987
INSULATING RING
from £1.60
from £1.60
# 029
MPN: 60607472
SCREW
from £5.02
from £5.02
# 030
MPN: 12601274
LOCK WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 031
MPN: 82404496
CUP
from £1.89
from £1.89
# 032
MPN: 384000136
NOURICE SUPPORTING SHELF
from £7.71
from £7.71
# 033
MPN: 10902124
SCREW
from £0.47
from £0.47
# 034
MPN: 12646601
WASHER
from £0.71
from £0.71
# 035
MPN: 14305521
SCREW
from £0.47
from £0.47
# 036
MPN: 384001370

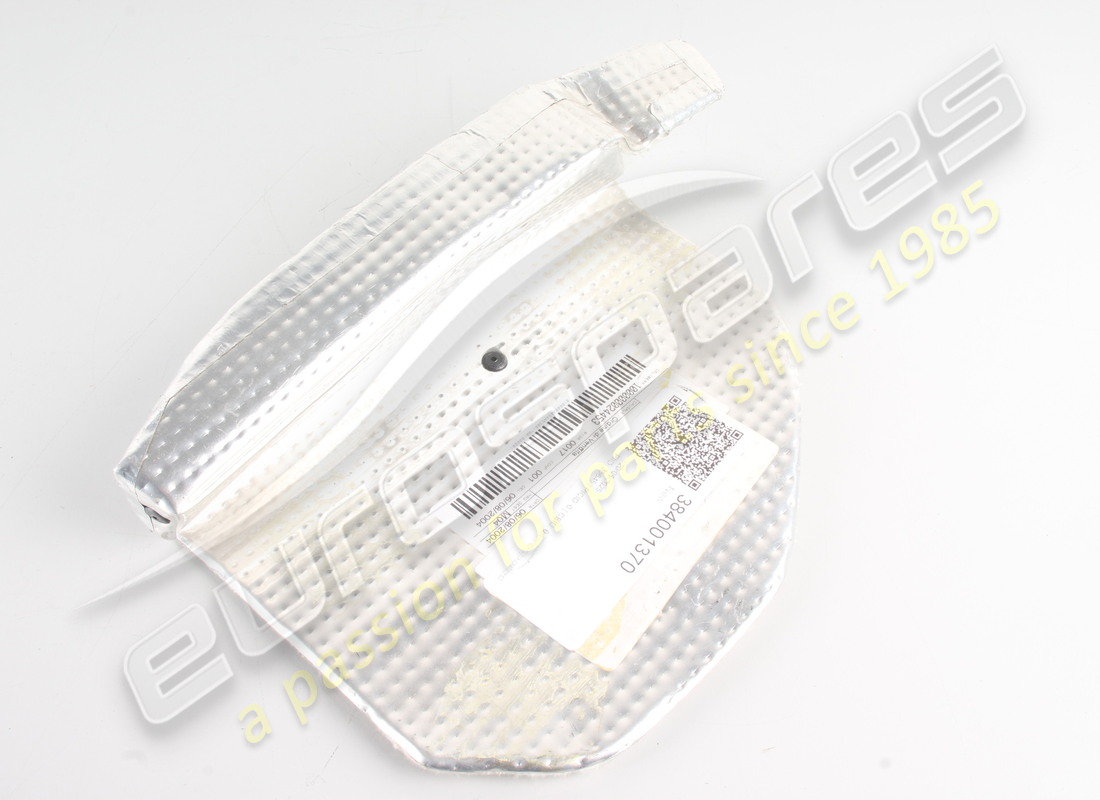

NOURICE PROTECTION PLATE
-Only GS-
from £182.62
from £182.62
# 036
MPN: 384010370
NOURICE PROTECTION PLATE
-Only GD-
from £45.03
from £45.03
# 037
MPN: 384000102
EXPANSION TANK
-Valid till Ass. Nr.2758-
from £51.87
from £51.87
This part replaces part number 60597447 - and 1 more. Click to view details
# 037
MPN: 384000102
EXPANSION TANK
WITH CAP
from £51.87
from £51.87
This part replaces part number 60597447 - and 1 more. Click to view details
# 038
MPN: 585079801
WATER TEMPERATURE SENSOR
from £19.92
from £19.92
# 039
MPN: 10261560
COPPER WASHER
from £0.47
from £0.47
# 040
MPN: 384000319
SLEEVE 0=USE 384000324
Supersession
Supersession
# 040
MPN: 384000324
SLEEVE
from £35.22
from £35.22
This part replaces part number 384000319
# 041
MPN: 13001690
SCREW COLLAR
from £0.74
from £0.74
# 042
MPN: 13000690
SCREW COLLAR
from £0.47
from £0.47
# 043
MPN: 384000320
SLEEVE
from £71.79
from £71.79
# 044
MPN: 384001320
SLEEVE
from £60.05
from £60.05
# 045
MPN: 384001339
SLEEVE
from £111.75
from £111.75
# 046
MPN: 384000340
SLEEVE
from £23.73
from £23.73
# 047
MPN: 585045600

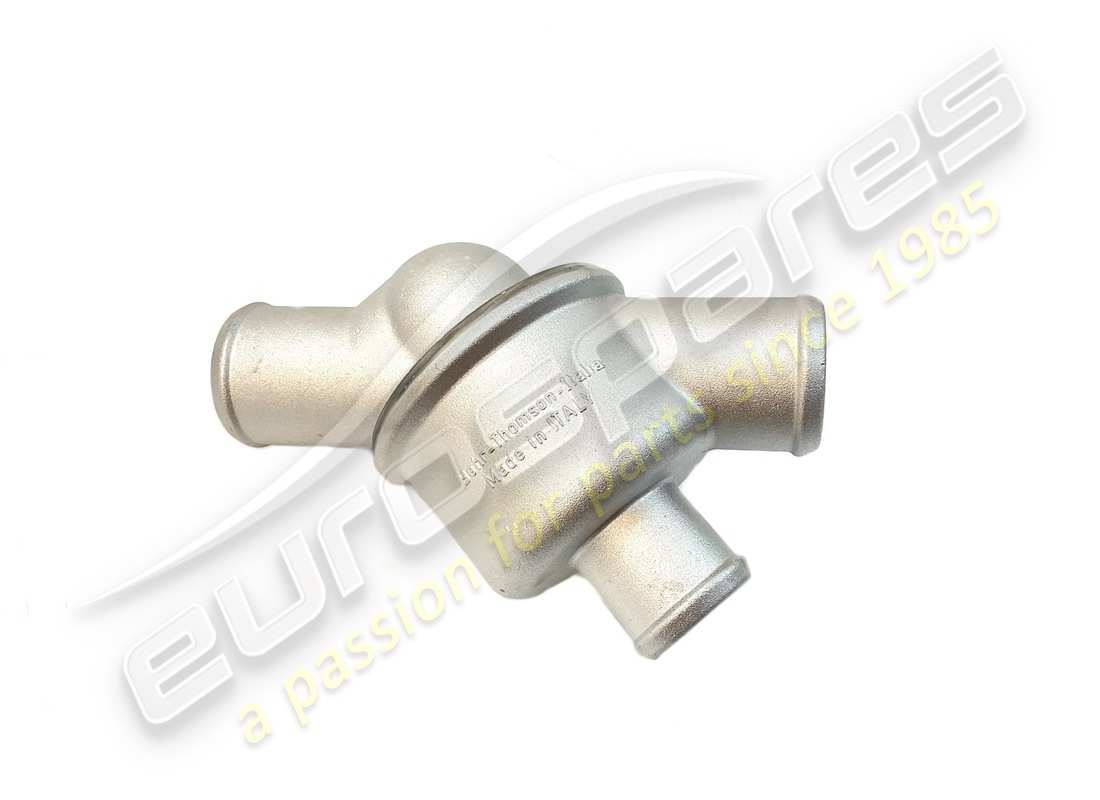

WATER THERMOSTAT
from £69.75
from £69.75
This part replaces part number 585045601 - and 1 more. Click to view details
# 048
MPN: 384000323
SLEEVE
from £31.50
from £31.50
This part replaces part number 384000329 - and 1 more. Click to view details
# 049
MPN: 384000337
PIPE
from £66.66
from £66.66
# 050
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 051
MPN: 980145477
PLUG
from £12.59
from £12.59
This part replaces part number 46556738
# 052
MPN: 10461987
FAIRLEAD
from £1.60
from £1.60
# 053
MPN: 312020433
CLAMP
from £1.79
from £1.79
# 054
MPN: 363200327
CLAMP
from £2.95
from £2.95
# 055
MPN: 385501200
RIGID PIPE
-Only GS-
from £67.54
from £67.54
# 055
MPN: 385510200
RIGID PIPE
-Only GD-
from £36.26
from £36.26
# 056
MPN: 385500371
GASKET
from £1.11
from £1.11
