Maserati 3200 GT/GTA/Assetto Corsa Boost Control System Parts Diagram

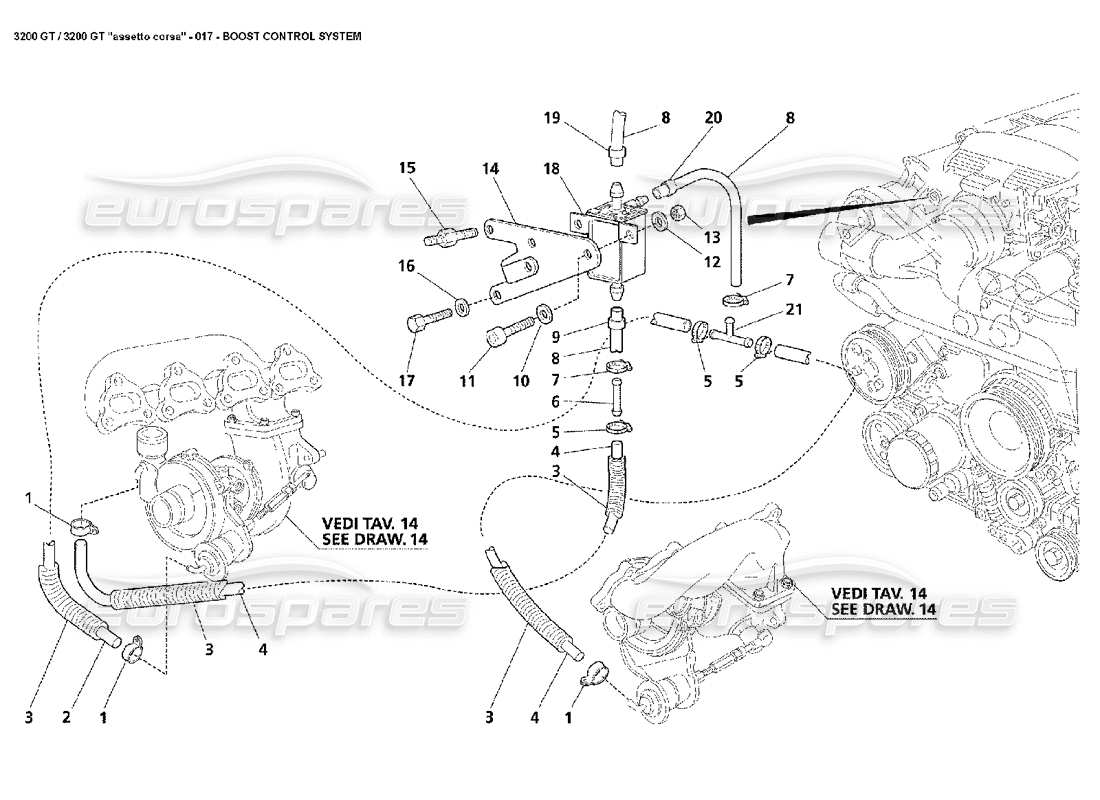

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 79383

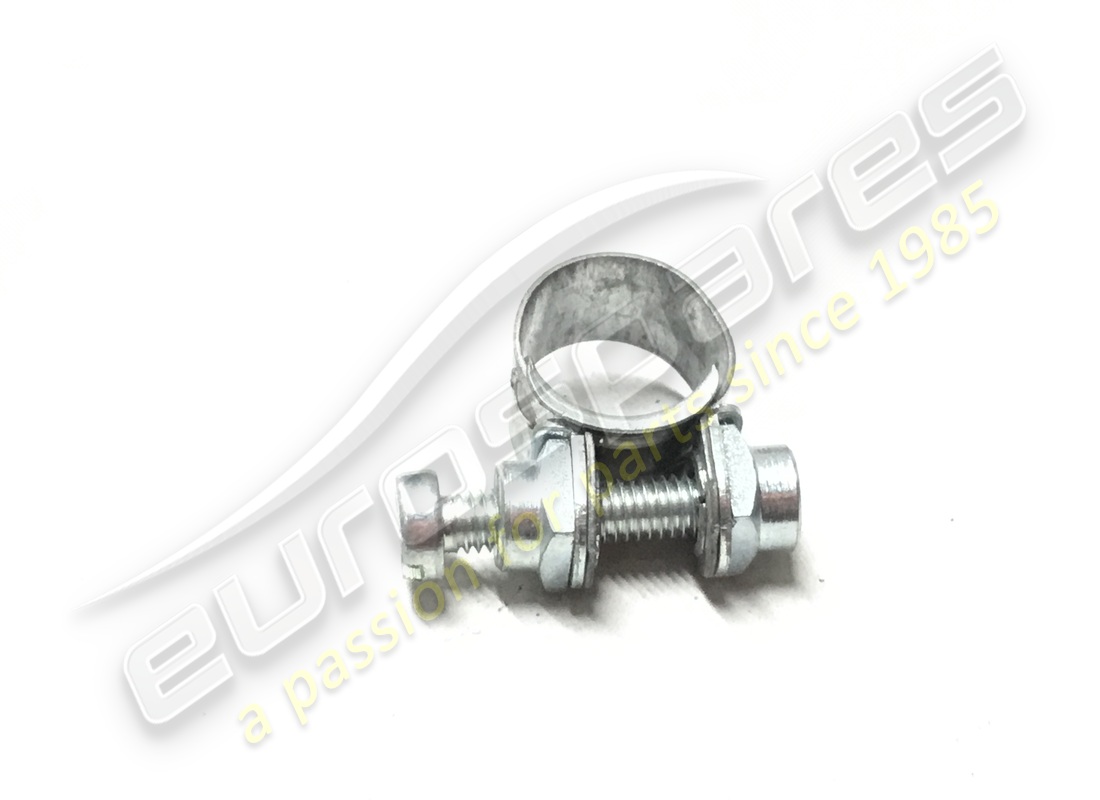

                                    CLAMP
                                    from £2.31
                                    from £2.31
                                    # 002
                                    MPN: 19058089
                                    TUBE
                                    -Section im meters: order minimum amount of 1 m or multiples-
                                    from £9.61
                                    from £9.61
                                    This part replaces part number 379200379 - and 2 more. Click to view details
                                    # 003
                                    MPN: 98140
                                    TRIM
                                    -Section im meters: order minimum amount of 1 m or multiples-
                                    from £13.61
                                    from £13.61
                                    # 004
                                    MPN: 19058089
                                    TUBE
                                    -Section im meters: order minimum amount of 1 m or multiples-
                                    from £9.61
                                    from £9.61
                                    This part replaces part number 379200379 - and 2 more. Click to view details
                                    # 005
                                    MPN: 13119570
                                    CLAMP
                                    from £1.07
                                    from £1.07
                                    # 006
                                    MPN: 585410500
                                    STRAIGHT 2-WAY UNION
                                    from £30.38
                                    from £30.38
                                    # 007
                                    MPN: 312050310
                                    CLAMP
                                    from £1.07
                                    from £1.07
                                    # 008
                                    MPN: 300100803
                                    TUBE
                                    -Section im meters: order minimum amount of 1 m or multiples-
                                    from £54.71
                                    from £54.71
                                    This part replaces part number 318720329
                                    # 009
                                    MPN: 312020396
                                    “C” CLAMP
                                    from £0.68
                                    from £0.68
                                    # 010
                                    MPN: 585000300
                                    WIRE INLET RING
                                    from £1.54
                                    from £1.54
                                    # 011
                                    MPN: 14304224
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    # 012
                                    MPN: 14496301
                                    BLANK WASHER
                                    from £0.92
                                    from £0.92
                                    This part replaces part number 13506724
                                    # 013
                                    MPN: 128200050
                                    NYLON STOP NUT
                                    from £1.07
                                    from £1.07
                                    This part replaces part number 128300050
                                    # 014
                                    MPN: 585084801
                                    PIRBURG VALVE SUPPORT
                                    from £2.87
                                    from £2.87
                                    # 015
                                    MPN: 585410200
                                    HEAD AND NOUR PIPE FASTENING COLUMN
                                    from £17.08
                                    from £17.08
                                    # 016
                                    MPN: 84154
                                    FLAT WASHER
                                    Supersession
                                    Supersession
                                    # 017
                                    MPN: 14306421
                                    SCREW
                                    Supersession
                                    Supersession
                                    # 018
                                    MPN: 585089800
                                    PIERBURG VALVE
                                    from £29.18
                                    from £29.18
                                    # 019
                                    MPN: 312020395
                                    “R” CLAMP
                                    from £0.68
                                    from £0.68
                                    # 020
                                    MPN: 312020397
                                    “W” CLAMP
                                    from £0.68
                                    from £0.68
                                    # 021
                                    MPN: 585369900
                                    3-WAY UNION
                                    from £11.92
                                    from £11.92
                                    This part replaces part number 389220490 which we have in stock
