Maserati 3200 GT/GTA/Assetto Corsa Crank Conrods Pistons Flywheel Parts Diagram

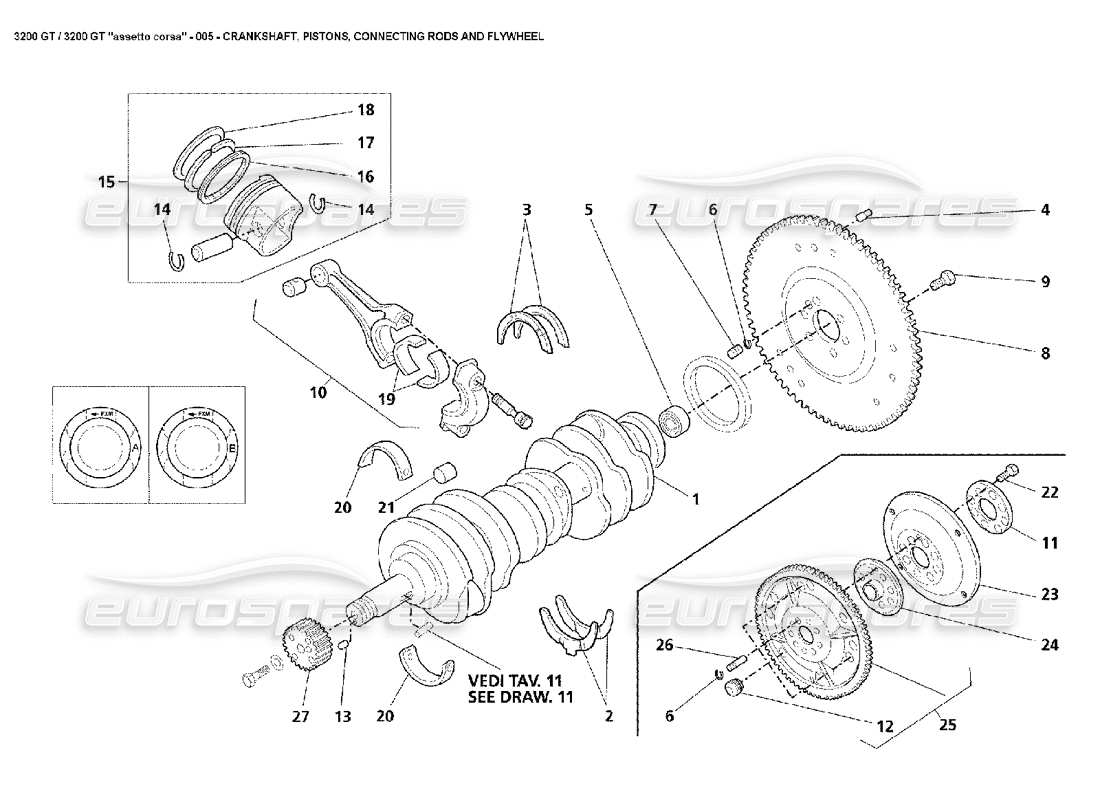

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 585020001
                      crankshaft
                      -Valid for Manual Transmission-
                      from £4,948.85
                      from £4,948.85
                      This part replaces part number 585020000 - and 1 more. Click to view details
                      # 001
                      MPN: 585988010
                      crankshaft
                      -Valid for Automatic Transmission-
                      Supersession
                      Supersession
                      This part replaces part number 578988000
                      # 002
                      MPN: 479021702
                      LOWER SHIM HALF
                      -Thrust bearing- Class A-
                      from £10.77
                      from £10.77
                      This part replaces part number 310820305 - and 2 more. Click to view details
                      # 002
                      MPN: 479021802
                      LOWER SHIM HALF
                      -Thrust bearing- Class B-
                      from £38.48
                      from £38.48
                      # 002
                      MPN: 479021900
                      LOWER SHIM WASHER
                      -Thrust bearing- Class C-
                      from £36.16
                      from £36.16
                      # 003
                      MPN: 479021302
                      SHIM HALF
                      -Thrust bearing- Class A-
                      from £10.77
                      from £10.77
                      This part replaces part number 310820310 - and 1 more. Click to view details
                      # 003
                      MPN: 479021402
                      SHIM HALF
                      -Thrust bearing -Class B-
                      from £37.24
                      from £37.24
                      # 003
                      MPN: 479021500
                      UPPER SHIM WASHER
                      -Thrust bearing- Class C-
                      from £16.30
                      from £16.30
                      # 004
                      MPN: 311453303

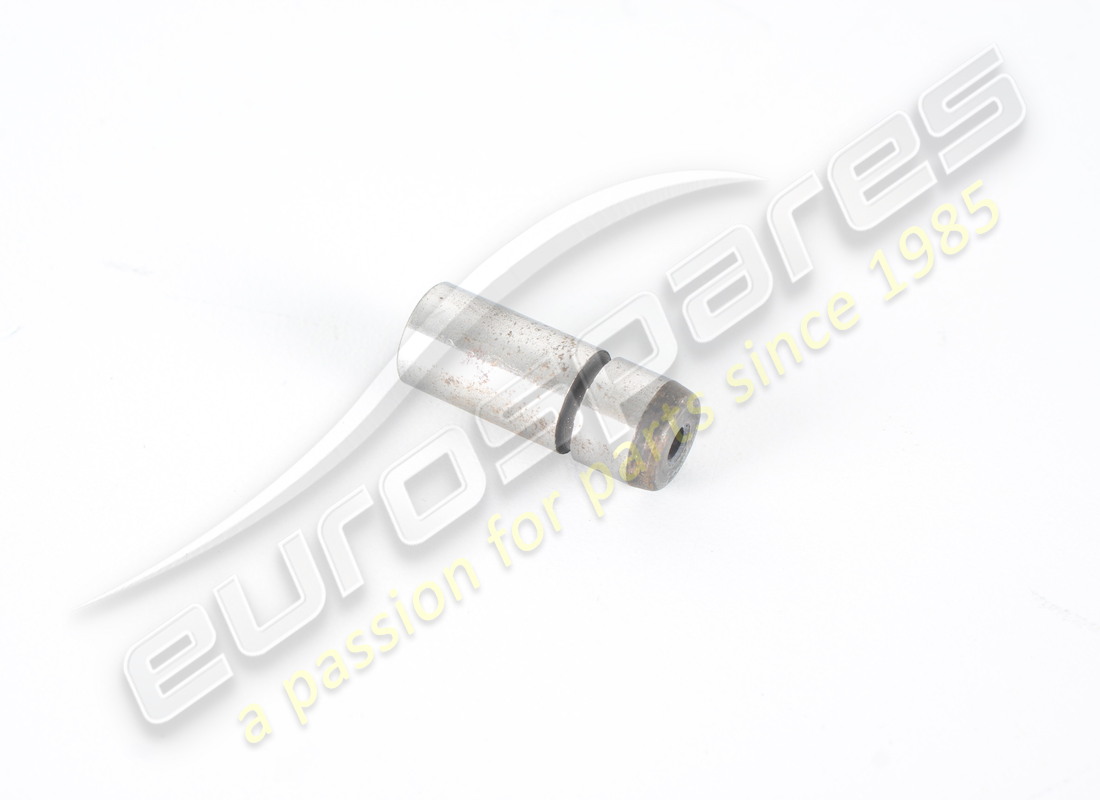

                      DOWEL
                      -Valid for Manual Transmission-
                      from £9.66
                      from £9.66
                      # 005
                      MPN: 178003015
                      BEARING
                      -Valid for Manual Transmission-
                      from £15.50
                      from £15.50
                      # 006
                      MPN: 310820302
                      RETAINING RING
                      from £1.08
                      from £1.08
                      # 007
                      MPN: 310820301
                      DOWEL
                      -Valid for Manual Transmission-
                      from £2.85
                      from £2.85
                      # 008
                      MPN: 585022800
                      ENGINE FLYWHEEL ASSY
                      -Valid for Manual Transmission-
                      from £981.24
                      from £981.24
                      # 009
                      MPN: 15973930
                      BOLT
                      from £4.17
                      from £4.17
                      This part replaces part number 311420300
                      # 010
                      MPN: 578023301

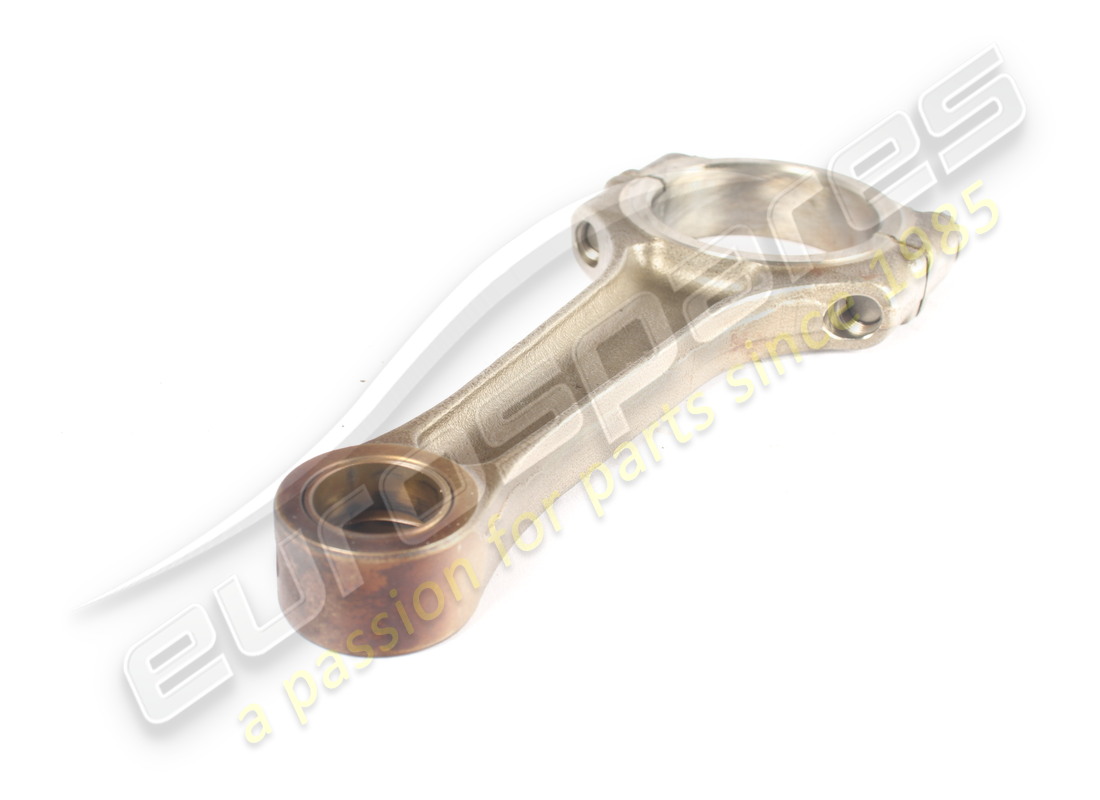

                      CON ROD ASSY
                      from £96.43
                      from £96.43
                      # 010
                      MPN: 585023300
                      CONNECTING ROD AND CAP
                      -In the order, specify the colour of the sticker-
                      from £175.33
                      from £175.33
                      This part replaces part number 578023301 which we have in stock
                      # 011
                      MPN: 374631303
                      FLANGE
                      -Valid for Automatic Transmission-
                      from £1.27
                      from £1.27
                      # 012
                      MPN: 374631334
                      DAMPER PART
                      -Valid for Automatic Transmission-
                      from £7.13
                      from £7.13
                      # 013
                      MPN: 470023100
                      DOWEL
                      from £1.55
                      from £1.55
                      This part replaces part number 311020324 which we have in stock
                      # 014
                      MPN: 479022300
                      RETAINING RING
                      Supersession
                      Supersession
                      # 015
                      MPN: 585025301
                      PISTON ASSY
                      -Class A - In the order, specify class A or B-
                      from £268.66
                      from £268.66
                      # 015
                      MPN: 585025301
                      PISTON ASSY
                      -Class B - In the order, specify Class A or B-
                      from £268.66
                      from £268.66
                      # 016
                      MPN: 479022603
                      OIL SCRAPER
                      from £147.42
                      from £147.42
                      This part replaces part number 391250102
                      # 017
                      MPN: 479022502
                      LOWER PISTON RING
                      from £148.70
                      from £148.70
                      This part replaces part number 391250323
                      # 018
                      MPN: 479022402
                      UPPER PISTON RING
                      from £70.47
                      from £70.47
                      # 019
                      MPN: 479020900
                      CONNECTING ROD BUSHING
                      - Valid for 00 version
                      from £82.75
                      from £82.75
                      # 020
                      MPN: 479020201
                      MAIN BEARING STANDARD
                      from £230.76
                      from £230.76
                      This part replaces part number 479020301
                      # 021
                      MPN: 14328300
                      PLUG
                      from £1.55
                      from £1.55
                      # 022
                      MPN: 11363030
                      BOLT
                      -Valid for Automatic Transmission - Valid till engine Nr.564-
                      from £1.93
                      from £1.93
                      # 022
                      MPN: 96811
                      BOLT
                      -Valid for Automatic Transmission - Valid from engine Nr.565-
                      Supersession
                      Supersession
                      This part replaces part number 314655301
                      # 023
                      MPN: 578100200
                      CONVERTER DRIVING DISK
                      -Valid for Automatic Transmission-
                      from £85.12
                      from £85.12
                      # 024
                      MPN: 578100600
                      CONVERTER CENTRING FLANGE
                      -Valid for Automatic Transmission-
                      from £181.21
                      from £181.21
                      # 025
                      MPN: 574100500
                      CROWN GEAR
                      -Valid for Automatic Transmission-
                      from £172.33
                      from £172.33
                      # 026
                      MPN: 374631302
                      PIN
                      -Valid for Automatic Transmission-
                      from £5.10
                      from £5.10
                      # 027
                      MPN: 479024901
                      CRANKSHAFT FRONT PULLEY
                      from £55.94
                      from £55.94
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
