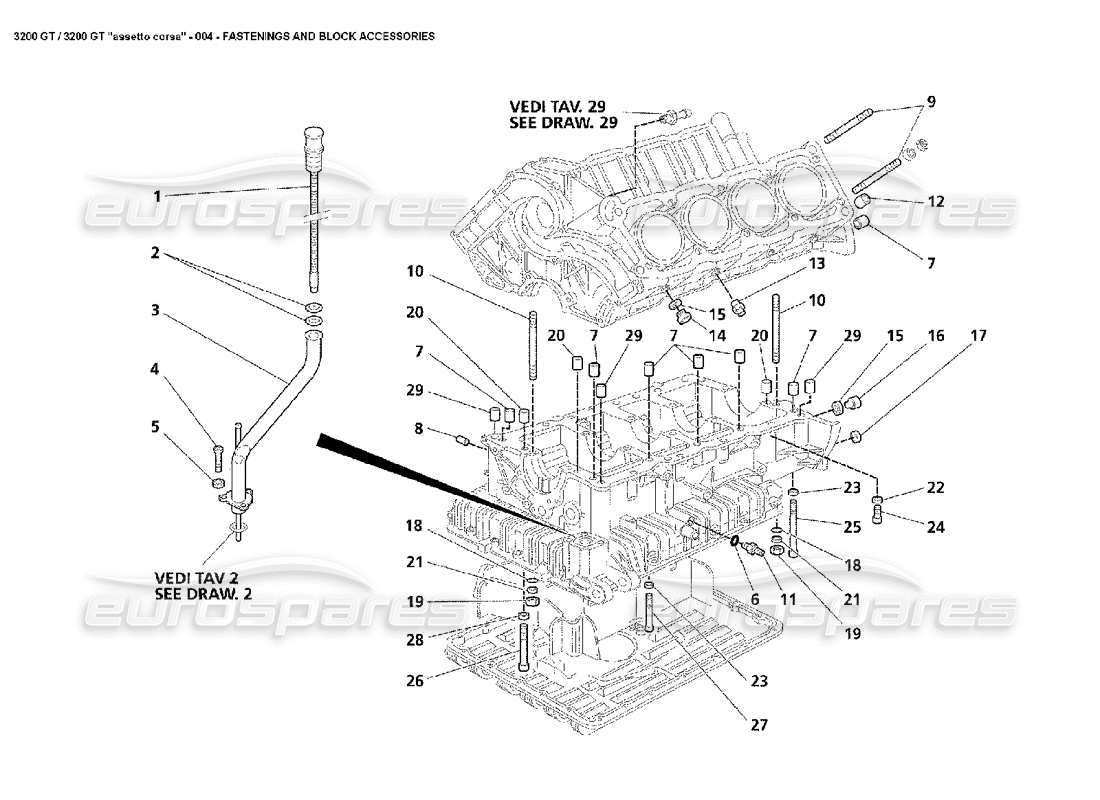

Maserati 3200 GT/GTA/Assetto Corsa Fastening & Block Acc Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 578044000
                                                            OIL DIP STICK
                                                            from £15.85
                                                            from £15.85
                                                            # 002
                                                            MPN: 14462980
                                                            RUBBER GASKET
                                                            from £0.70
                                                            from £0.70
                                                            # 004
                                                            MPN: 14305721
                                                            SCREW
                                                            from £1.43
                                                            from £1.43
                                                            # 005
                                                            MPN: 12604279
                                                            FLAT WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 006
                                                            MPN: 10298360
                                                            GASKET
                                                            from £0.53
                                                            from £0.53
                                                            # 007
                                                            MPN: 310420311
                                                            DOWEL
                                                            from £9.66
                                                            from £9.66
                                                            # 008
                                                            MPN: 600009700
                                                            DOWEL
                                                            from £1.08
                                                            from £1.08
                                                            # 009
                                                            MPN: 585010800
                                                            STUD BOLT
                                                            from £13.13
                                                            from £13.13
                                                            # 010
                                                            MPN: 479010600
                                                            STUD BOLT
                                                            from £38.48
                                                            from £38.48
                                                            # 011
                                                            MPN: 585412600
                                                            UNION
                                                            from £2.85
                                                            from £2.85
                                                            # 012
                                                            MPN: 310420330
                                                            DOWEL
                                                            from £2.85
                                                            from £2.85
                                                            # 013
                                                            MPN: 479018500
                                                            UNION
                                                            from £6.69
                                                            from £6.69
                                                            This part replaces part number 390450340
                                                            # 014
                                                            MPN: 97079
                                                            PLUG
                                                            from £2.31
                                                            from £2.31
                                                            # 015
                                                            MPN: 10257460
                                                            GASKET
                                                            from £0.47
                                                            from £0.47
                                                            # 016
                                                            MPN: 10304911
                                                            PLUG
                                                            from £1.90
                                                            from £1.90
                                                            # 017
                                                            MPN: 390450339
                                                            PLUG
                                                            from £1.48
                                                            from £1.48
                                                            # 018
                                                            MPN: 310620372
                                                            WASHER
                                                            from £1.31
                                                            from £1.31
                                                            This part replaces part number 67801
                                                            # 019
                                                            MPN: 97774
                                                            NUT
                                                            from £10.43
                                                            from £10.43
                                                            This part replaces part number 390450346
                                                            # 020
                                                            MPN: 97328
                                                            DOWEL
                                                            from £1.18
                                                            from £1.18
                                                            # 021
                                                            MPN: 12601579
                                                            LOCK WASHER
                                                            from £14.76
                                                            from £14.76
                                                            This part replaces part number 138420120
                                                            # 022
                                                            MPN: 13507001
                                                            FLAT WASHER
                                                            from £0.87
                                                            from £0.87
                                                            # 023
                                                            MPN: 12638521
                                                            FLAT WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 024
                                                            MPN: 14306520
                                                            SCREW
                                                            from £1.31
                                                            from £1.31
                                                            # 025
                                                            MPN: 97331
                                                            SCREW
                                                            from £2.47
                                                            from £2.47
                                                            # 026
                                                            MPN: 14302120
                                                            SCREW
                                                            from £1.55
                                                            from £1.55
                                                            This part replaces part number 108008110
                                                            # 027
                                                            MPN: 14359570
                                                            SCREW
                                                            from £1.55
                                                            from £1.55
                                                            # 028
                                                            MPN: 12638520
                                                            WASHER
                                                            from £1.85
                                                            from £1.85
                                                            # 029
                                                            MPN: 479019000
                                                            DOWEL
                                                            from £124.02
                                                            from £124.02
