Maserati 3200 GT/GTA/Assetto Corsa Engine Block & Oil Sump Parts Diagram

003 - engine block & oil sump

Maserati 3200 GT/GTA/Assetto Corsa Engine Block & Oil Sump Parts Diagram

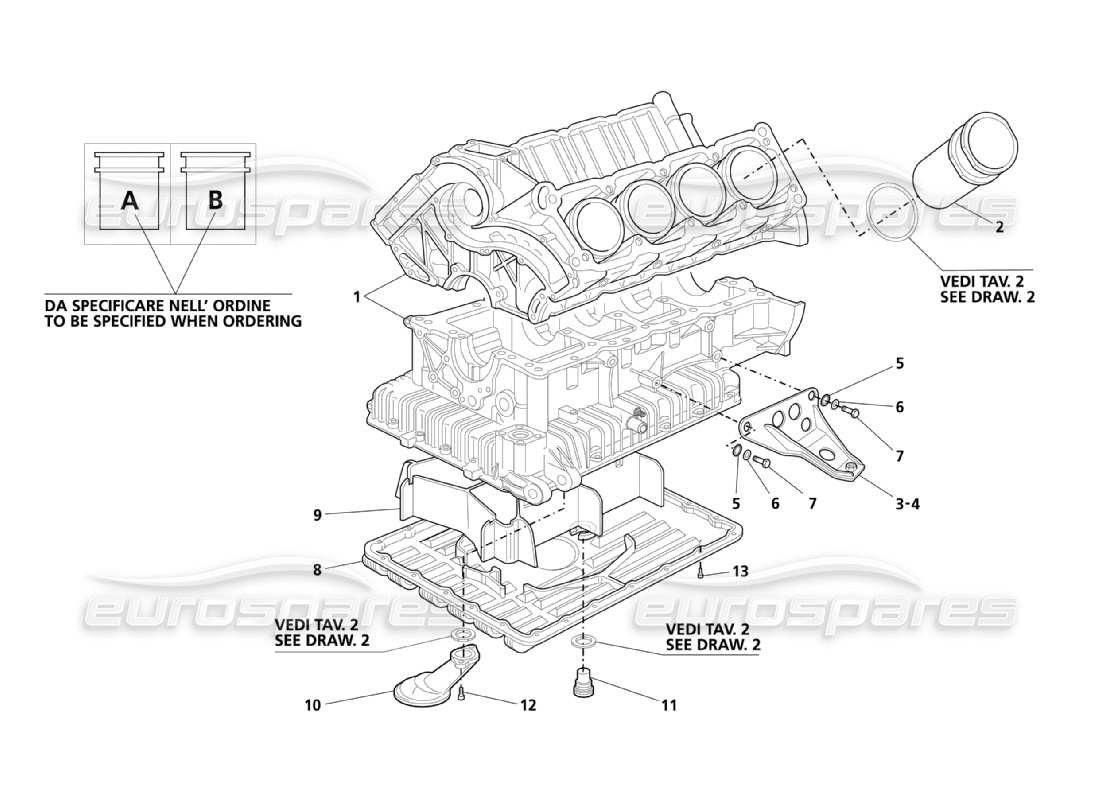

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 000
                          MPN: 387100148
                          COMPLETE ENGINE
                          from £4,500.00
                          from £4,500.00
                          3200 GT ENGINE Genuine Maserati Part - New (to order)
                          3200 GT ENGINE Genuine Maserati Part - Used In stock
                          # 001
                          MPN: 585942200
                          COMPLETE CRANKCASE
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 002
                          MPN: 479010100
                          CYLINDER LINER
                          -Class A - In the order, specify class A or B-
                          from £219.74
                          from £219.74
                          CANNA CILINDRI CL. A D=80 X Genuine Maserati Part - New (to order)
                          # 002
                          MPN: 479010102
                          CYLINDER LINER
                          -Class B - In the order, specify Class A or B-
                          from £123.12
                          from £123.12
                          CYLINDER LINER Genuine Maserati Part - New (to order)
                          CYLINDER LINER Genuine Maserati Part - Used In stock
                          # 003
                          MPN: 384200103
                          LH ENGINE ELEMENT
                          from £54.76
                          from £54.76

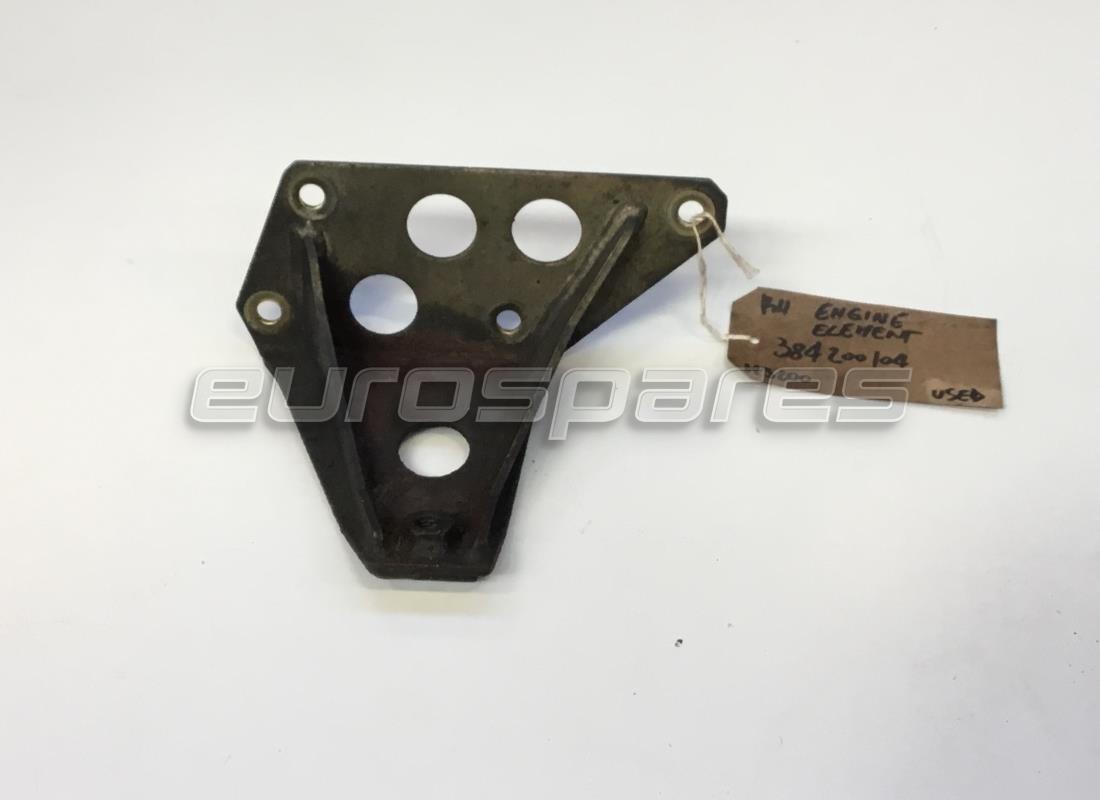

                          ENGINE MOUNT LH BRACKET Genuine Maserati Part - New In stock
                          ENGINE MOUNT LH BRACKET Genuine Maserati Part - Used In stock
                          # 004
                          MPN: 384200104
                          RH ENGINE ELEMENT
                          from £54.76
                          from £54.76
                          STAFFA DX SUPPORTO MOTORE CO Genuine Maserati Part - New In stock
                          STAFFA DX SUPPORTO MOTORE CO Genuine Maserati Part - Used In stock
                          # 005
                          MPN: 134700105
                          WASHER
                          from £1.11
                          from £1.11
                          WASHER Genuine Maserati Part - New In stock
                          # 006
                          MPN: 14496601
                          BLANK WASHER
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          Genuine Maserati Part (no longer available to order)
                          # 007
                          MPN: 11106224
                          SCREW
                          from £1.60
                          from £1.60
                          HEX HEAD SCREW M 10X25 Genuine Maserati Part - New In stock
                          # 008
                          MPN: 479010900
                          engine oil sump
                          from £75.47
                          from £75.47
                          COPPA OLIO MOTORE Genuine Maserati Part - New (to order)
                          COPPA OLIO MOTORE Genuine Maserati Part - Used In stock
                          # 009
                          MPN: 585011000
                          SUMP OIL SPLASH BAFFLE
                          from £13.06
                          from £13.06
                          OIL SUMP BAFFLE GUARD Genuine Maserati Part - New (to order)
                          OIL SUMP BAFFLE GUARD Genuine Maserati Part - Used In stock
                          # 010
                          MPN: 479013401
                          OIL SUCTION PUMP
                          from £10.47
                          from £10.47
                          This part replaces part number 391850110 - and 1 more. Click to view details
                          PESCANTE OLIO COMPLETO Genuine Maserati Part - New (to order)
                          PESCANTE OLIO COMPLETO Genuine Maserati Part - Used In stock
                          # 011
                          MPN: 310420303
                          PLUG
                          from £2.40
                          from £2.40
                          OIL SUMP PLUG D.30X1.5 Genuine Maserati Part - New (to order)
                          # 012
                          MPN: 14433121
                          SCREW
                          from £1.21
                          from £1.21
                          Genuine Ferrari Part (no longer available to order)
                          PAN SCREWS Genuine Maserati Part - New In stock
                          # 013
                          MPN: 14432271
                          SCREW
                          -Valid till Ass.Nr.1844-
                          from £1.11
                          from £1.11
                          CAM COVER BOLT Genuine Maserati Part - New (to order)
                          # 013
                          MPN: 14432274
                          SCREW
                          -Valid from Ass.Nr.1845-
                          from £1.11
                          from £1.11
                          CAM COVER BOLT Genuine Maserati Part - New (to order)
