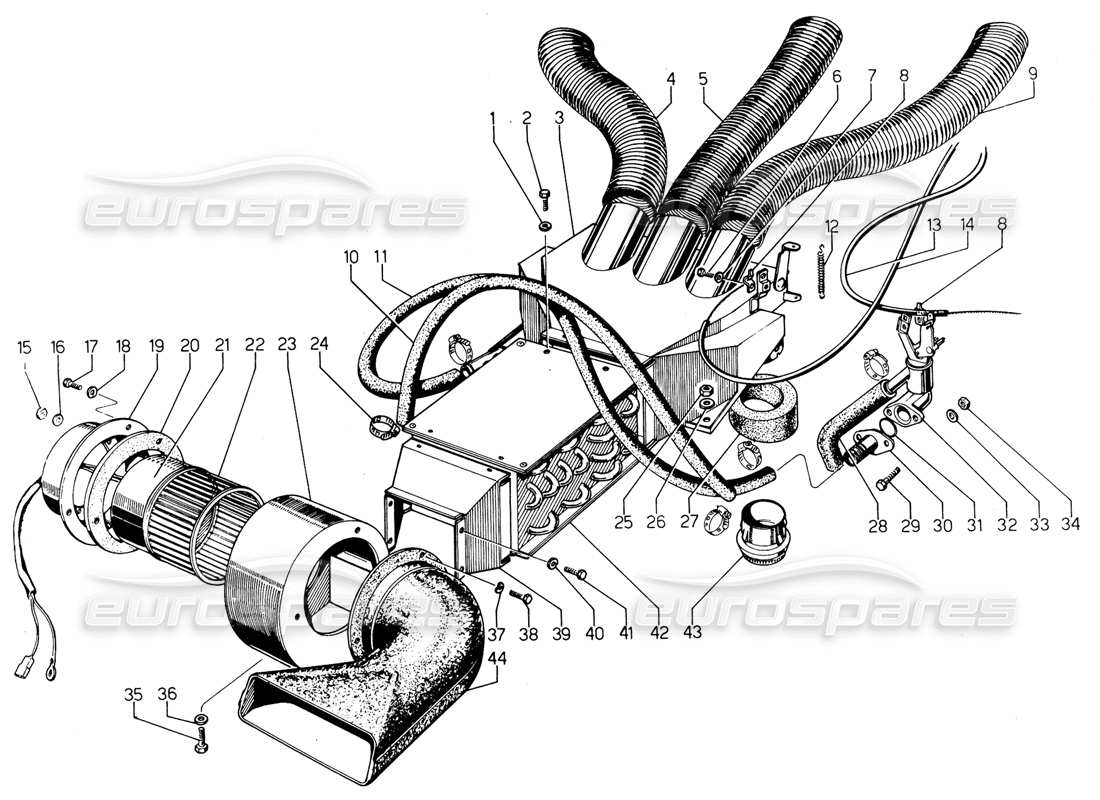

![lamborghini urraco p300 heater parts diagram](/img/CxEAAMTaOW5_nwwMu2W59F1JEZQhGoUGmc7HufTjIlc0HgU8FRtbAw%3D%3D/lamborghini-urraco-p300-part-diagram-028.webp)
028 - HEATER
Lamborghini Urraco P300 Heater Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
008410502
WASHER
Supersession
Supersession
#
002
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
003
MPN:
004708855
CONVEYOR DELIVERY AIR TO THE CABIN
#
004
MPN:
004708862
RIGHT NOZZLE HOSE
#
005
MPN:
004709424
HOSE TO CENTRAL PORT
#
006
MPN:
008100401
BOLT
from
£0.53
from
£0.53
#
007
MPN:
008410403
WASHER
from
£4.11
from
£4.11
#
008
MPN:
006753080
PIASTRINO FERMAGUAINA
from
£1.55
from
£1.55
#
009
MPN:
004708863
LEFT NOZZLE HOSE
#
010
MPN:
004708860
PIPE / TUBE / HOSE
#
011
MPN:
004708861
PIPE / TUBE / HOSE
#
012
MPN:
004708856
SPRING
from
£22.68
from
£22.68
#
013
MPN:
001708599
Water tap control cable
#
014
MPN:
004708859
CONVEYOR DOOR CONTROL CABLE
from
£31.95
from
£31.95
#
015
MPN:
008200501
NUT
Supersession
Supersession
#
016
MPN:
008410502
WASHER
Supersession
Supersession
#
017
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
018
MPN:
008410502
WASHER
Supersession
Supersession
#
019
MPN:
004708838
SUPPORT
#
020
MPN:
004708842
GASKET
from
£15.95
from
£15.95
This part replaces part number 001708842
#
021
MPN:
004708839
IMPELLER MOTOR
from
£396.33
from
£396.33
#
022
MPN:
004708840
HEATER IMPELLER
from
£159.96
from
£159.96
#
023
MPN:
004708837
HEATER NUT
from
£210.00
from
£210.00
#
024
MPN:
008830206
JUBILEE CLIP
from
£12.56
from
£12.56
#
025
MPN:
008200606
NUT
Supersession
Supersession
#
026
MPN:
008400606
WASHER
Supersession
Supersession
#
027
MPN:
004708857
SPACER
#
028
MPN:
004709604
SLEEVE
from
£79.76
from
£79.76
#
029
MPN:
008100629
BOLT
from
£0.53
from
£0.53
#
030
MPN:
001707752
FLANGE WITH TUBE
from
£15.80
from
£15.80
#
031
MPN:
008601201
SEALING RING
from
£0.54
from
£0.54
#
032
MPN:
004707762
WATER REGULATION TAP
#
033
MPN:
008400606
WASHER
Supersession
Supersession
#
034
MPN:
008200606
NUT
Supersession
Supersession
#
035
MPN:
008100622
BOLT
from
£3.65
from
£3.65
#
036
MPN:
008400606
WASHER
Supersession
Supersession
#
037
MPN:
008410503
WASHER
Supersession
Supersession
#
038
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
039
MPN:
004708846
AIR CONVEYOR TO THE RADIANT PACK
from
£159.96
from
£159.96
#
040
MPN:
008410502
WASHER
Supersession
Supersession
#
041
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
042
MPN:
004708847
PACCO RADIANTE
from
£1,642.83
from
£1,642.83
#
043
MPN:
004708858
AIR OUTLET VENT LOWER PART
#
044
MPN:
004708845
AIR CONVEYOR TO THE SNAIL
