011 - DIFFERENTIAL

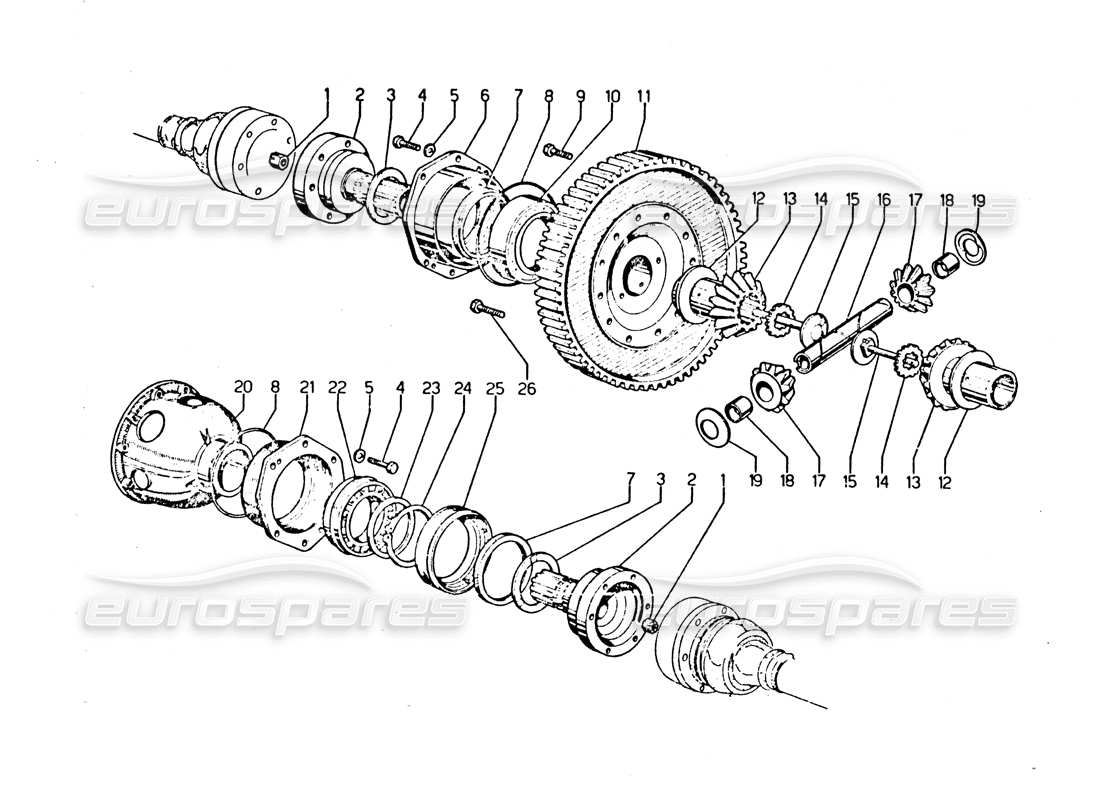

Lamborghini Urraco P250 / P250S Differential Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008201002
NUT
from £6.43
from £6.43
# 002
MPN: 002308238
FLANGIA ATTACCO SEMIASSI
from £150.07
from £150.07
# 003
MPN: 002306406
RING
from £45.36
from £45.36
# 004
MPN: 008100830
BOLT
from £0.50
from £0.50
# 005
MPN: 008410806
WASHER
Supersession
Supersession
# 006
MPN: 002306412
ROLLER BEARING SUPPORT FLANGE
from £208.94
from £208.94
# 007
MPN: 008617003
RING
from £7.71
from £7.71
# 008
MPN: 008609801
SEALING RING
from £2.22
from £2.22
# 009
MPN: 008100820
BOLT
from £6.43
from £6.43
# 010
MPN: 008525502
CUSCINETTO A RULLI
from £144.27
from £144.27
# 011
MPN: 002306398
DIFFERENTIAL CROWN
from £477.57
from £477.57
# 012
MPN: 002304785
RING
from £56.89
from £56.89
# 013
MPN: 002306400
INGRANAGGIO PLANETARIO
from £717.66
from £717.66
# 014
MPN: 002306448
WASHER
from £12.44
from £12.44
# 015
MPN: 002306441
PIVOT
from £26.37
from £26.37
# 016
MPN: 002306396
PIVOT
from £81.68
from £81.68
# 017
MPN: 002302026
INGRANAGGIO SATELLITE
from £1,249.41
from £1,249.41
# 018
MPN: 002302132
BOCCOIA
# 019
MPN: 002302134
RING
from £24.21
from £24.21
# 020
MPN: 002306389
SCATOLA DIFFERENZIALE (INTERNA)
from £224.69
from £224.69
# 021
MPN: 002306411
BALL BEARING SUPPORT FLANGE
from £275.27
from £275.27
# 022
MPN: 008505503
CUSCINETTO A SFERE
from £63.35
from £63.35
# 023
MPN: 002306433
RING
from £7.30
from £7.30
# 024
MPN: 008585501
SEEGER RING
from £3.70
from £3.70
# 025
MPN: 002306432
RING
from £28.76
from £28.76
# 026
MPN: 008100819
BOLT
from £3.57
from £3.57
