412.01.00 - Jacking System

Lamborghini Murcielago LP670 Jacking System Parts Diagram

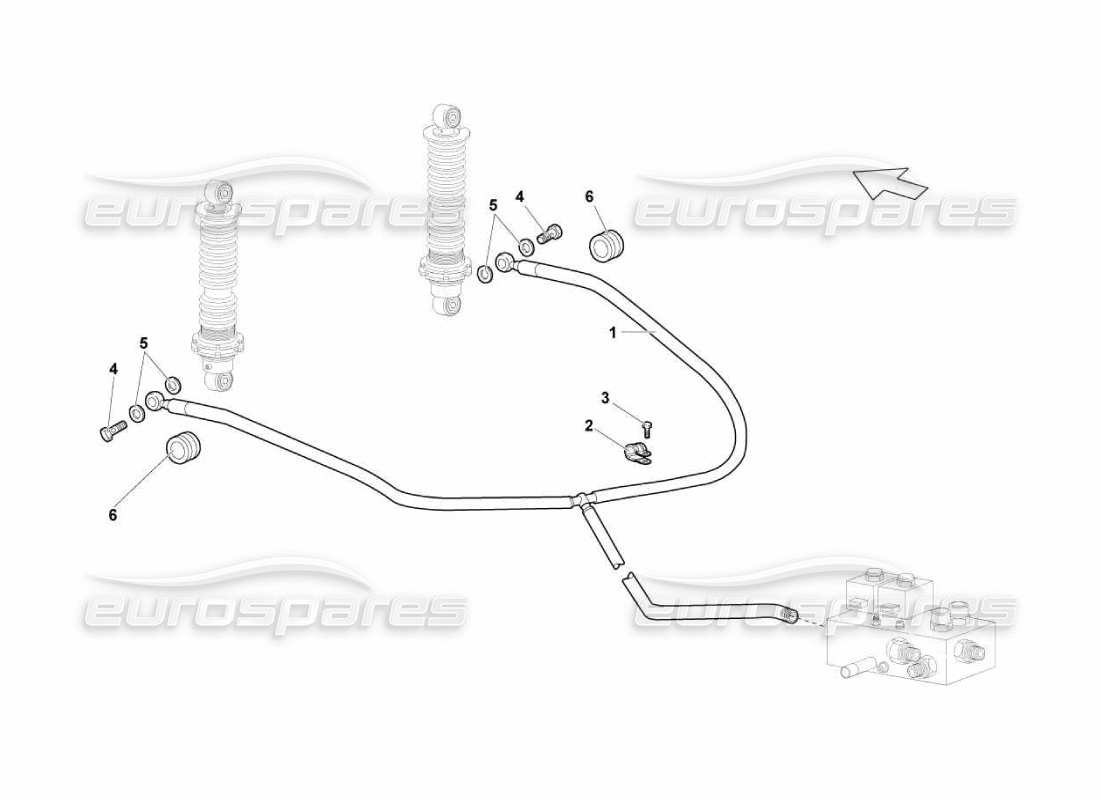

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 410616733B
              PIPE
              from £540.40
              from £540.40
              # 003
              MPN: N10546402
              SCREW M6X16
              from £0.47
              from £0.47
              This part replaces part number 008700614
              # 004
              MPN: WHT003303
              SCREW WITH HOLE
              from £7.78
              from £7.78
              This part replaces part number WHT000861
              # 005

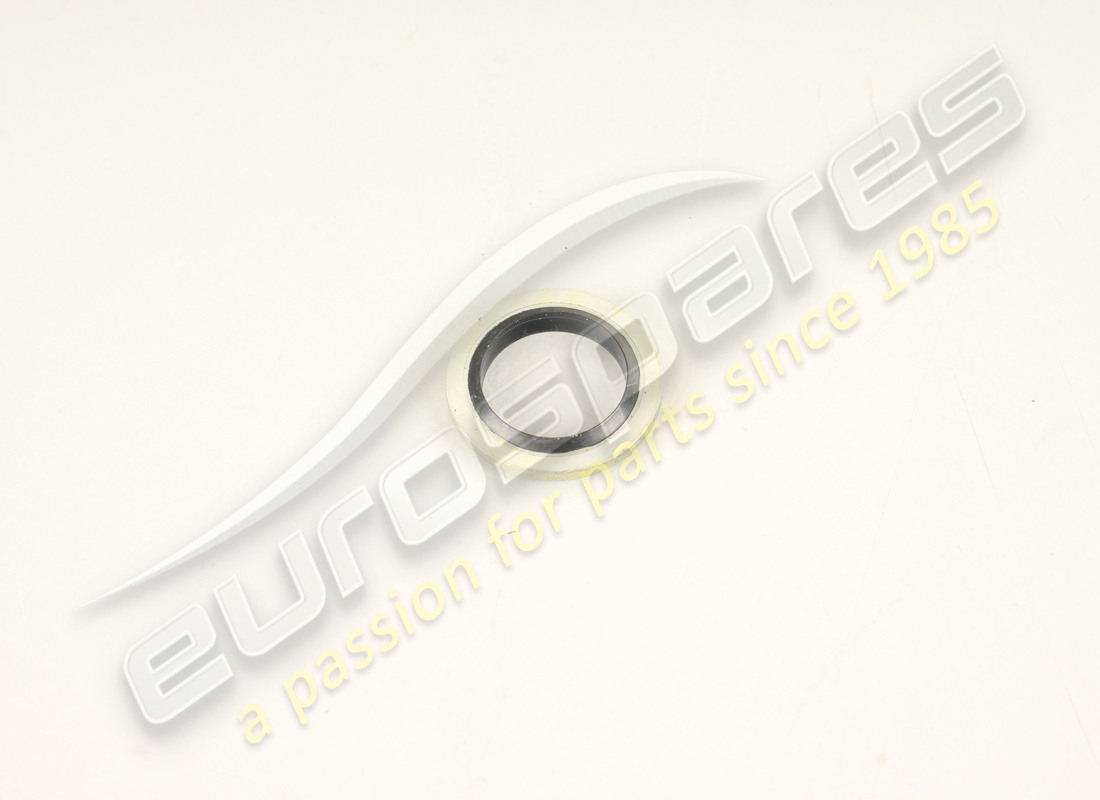

              MPN: 400616817A
              WASHER
              from £1.82
              from £1.82
              # 006
              MPN: 400820287
              FAIRLEAD
              from £5.85
              from £5.85
