lamborghini lm002 (1988) clutch parts diagram

014 - clutch

Lamborghini LM002 (1988) Clutch Parts Diagram

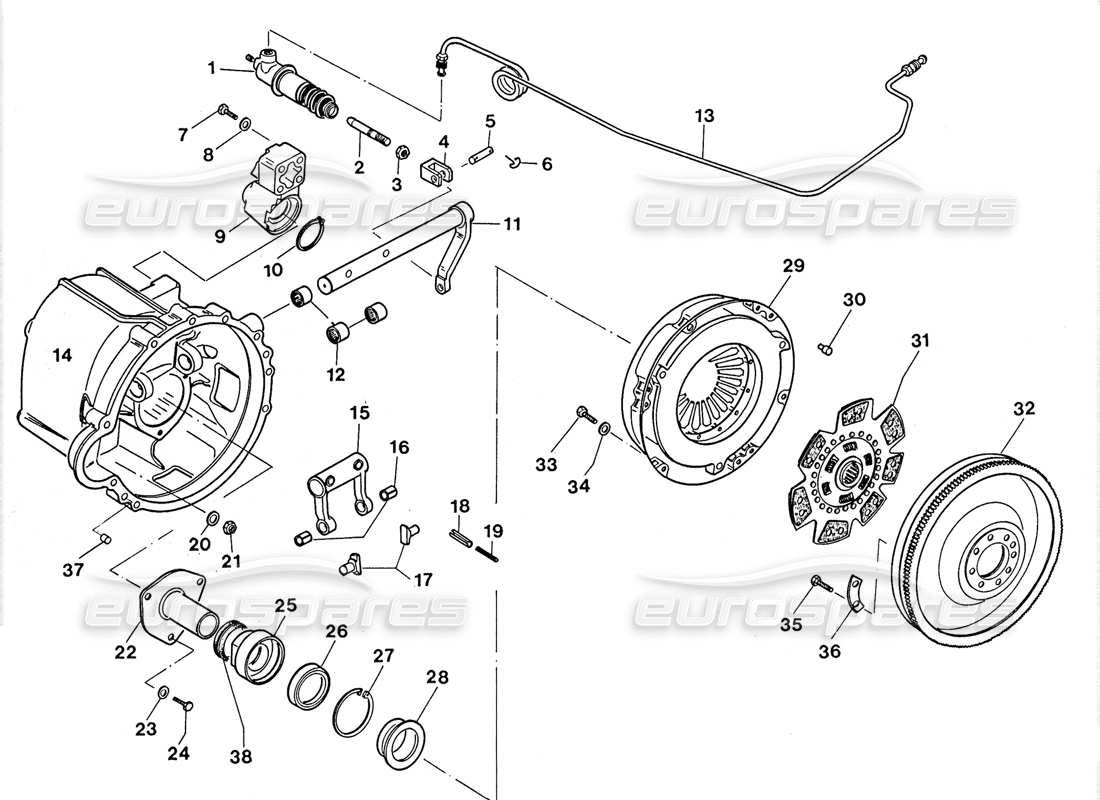

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 002136948
    PUMP CYLINDER
    CILINDRETTO FRIZIONE 01-140691
    from £52.95
    from £52.95
    This part replaces part number 002121674
    CLUTCH CYLINDER Genuine Lamborghini - New In stock
    CLUTCH CYLINDER (002136948) Original Equipment - New In stock
    # 002
    MPN: 002121772
    CL.ROO
    PUNTALINO X CILINDR. FRIZ.
    from £25.83
    from £25.83
    CLUTCH CYLINDER ROD Genuine Lamborghini - New (to order)
    # 003
    MPN: 008201011
    NUT
    DADO M10 UNI 5589-65/6G
    from £11.53
    from £11.53
    M10 UNI 5589-65/8G NUT Genuine Lamborghini - New (to order)
    # 004
    MPN: 002121771
    FORK
    FORCELLA X COMANDO CILINDR. FRI
    from £48.43
    from £48.43
    CYLINDER CONTROL FORK Genuine Lamborghini - New (to order)
    # 005
    MPN: 002121773
    FIXING PIN
    PERNO FISS.LEVA A FORC.COM.PUN
    from £10.95
    from £10.95
    ROD FORK FASTENING PIN Genuine Lamborghini - New (to order)
    # 006
    MPN: 004207085
    LOCK RING
    Fermo perno pompa freno/friz.
    from £48.26
    from £48.26
    BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
    # 007
    MPN: 008100854
    BOLT
    BULL.M8X50 UNI 5737 1 0K
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 008
    MPN: WHT001514
    LOCK WASHER
    ROS. EL. 8, 4X17X0, 8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 009
    MPN: 002121785
    MOUNTING
    SUPP.X CILINDR. COM. FRIZ.
    from £143.03
    from £143.03
    CLUTCH CYLINDER BRACKET Genuine Lamborghini - New (to order)
    # 010
    MPN: 008583701
    CIRCLIP
    SEEGER
    from £0.54
    from £0.54
    O-RING E 37 UNI 7435-75 Genuine Lamborghini - New In stock
    # 011
    MPN: 002121777
    LEVER+PIN
    COMPL.LEVA E PERNO COMANDO FRI
    from £108.62
    from £108.62
    CLUTCH LEVER & PIN ASSEMBLY Genuine Lamborghini - New (to order)
    # 012
    MPN: 008522506
    BEARING
    CUSCINETTO
    from £28.78
    from £28.78
    BEARING Genuine Lamborghini - New (to order)
    # 013
    MPN: 002124765
    PIPE
    TUBO DA POMPA FRIZ.AL CILIN.SU
    from £255.36
    from £255.36
    PIPE FROM CLUTCH CYLINDER TO C YLINDER Genuine Lamborghini - New (to order)
    # 014
    MPN: 002126635
    CLUTCH CASE
    CAMPANA FRIZIONE
    CLUTCH CASE Genuine Lamborghini - New (to order)
    # 015
    MPN: 002121778
    FORK
    FORCELLA COMANDO FRIZIONE
    from £186.15
    from £186.15
    CLUTCH CONTROL FORK Genuine Lamborghini - New (to order)
    # 016
    MPN: 008801210
    BUSH
    BOCCOLA
    from £22.68
    from £22.68
    BUSHING 12X14X15 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002121770
    FORK PIN
    PERNO X FORCELLA COM. FRIZIONE
    from £46.60
    from £46.60
    CLUTCH CONTROL FORK PIN Genuine Lamborghini - New (to order)
    # 018
    MPN: 008900802
    PIN
    SPINA ELASTICA 5.1,5X36
    from £4.73
    from £4.73
    PIN DIN 1481 8X36X1.5 Genuine Lamborghini - New (to order)
    # 019
    MPN: 008900503
    PIN
    Spina elastica S. 1X36
    from £0.72
    from £0.72
    ELASTIC PIN 5X36 DIN1481 Genuine Lamborghini - New In stock
    # 020
    MPN: 006411302
    LOCK WASHER
    RONDEL. 13X24X1 , 2
    LOCK WASHER Genuine Lamborghini - New (to order)
    # 021
    MPN: 008201210
    NUT
    from £8.84
    from £8.84
    M12X1.5X12 UNI 5587/8G/Z N UT Genuine Lamborghini - New (to order)
    # 022
    MPN: 002121775
    SLEEVE
    MANICOTTO X REGGISP . COM . FRIZ .
    from £185.46
    from £185.46
    FORK THRUST SLEEVE Genuine Lamborghini - New (to order)
    # 023
    MPN: 006410806
    LOCK WASHER
    ROND.EL.A8,4 UNI 1751
    LOCK WASHER Genuine Lamborghini - New (to order)
    # 024
    MPN: 008100830
    BOLT
    BULL.M8X20 UNI 5739/8G
    from £0.53
    from £0.53
    SCREW M8X20 UNI 5739/8G/Z Genuine Lamborghini - New In stock
    # 025
    MPN: 002128042
    THRUST BEAR
    MANICOTTO REGGISP. FRIZ.
    from £715.06
    from £715.06
    CLUTCH THRUST SLEEVE Genuine Lamborghini - New (to order)
    # 026
    MPN: 008505002
    BALL BEARIN
    BEARING 6010 2RSR EX10L50
    from £19.15
    from £19.15
    BEARING Genuine Lamborghini - New In stock
    # 027
    MPN: 008578001
    CIRCLIP
    SEEGER 0.80 I UNI 3654
    from £3.72
    from £3.72
    O-RING I 80 UNI 3654 Genuine Lamborghini - New In stock
    # 028
    MPN: 002121780
    FLANGE
    FLANGIA SUL CSN REGGISP . FRIZ .
    from £702.09
    from £702.09
    FLANGE Genuine Lamborghini - New (to order)
    # 029
    MPN: 002124587
    PRESS. PLATE
    SPINGIDISCO MECCANISMO CP 2789
    from £1,746.59
    from £1,746.59
    CP 2789 THRUST PLATE Genuine Lamborghini - New (to order)
    # 030
    MPN: 002121786
    DOWEL
    PERNO DI RIF.X VOLANO MOT . E FR
    from £18.62
    from £18.62
    REFERENCE PIN FOR ENGINE & CLU TCH FLYWH Genuine Lamborghini - New (to order)
    # 031
    MPN: 002127409
    CLUTCH DISC
    DISCO FRIZ. VS. RIF. CP 2790
    from £772.13
    from £772.13
    CLUTCH PLATE Genuine Lamborghini - New (to order)
    # 032
    MPN: 002125561
    F. WHEEL ASS
    COMPL. CORONA DENT.E VOLANO
    from £1,729.29
    from £1,729.29
    CROWN GEAR & FLYWHEEL ASSEMBLY Genuine Lamborghini - New (to order)
    # 033
    MPN: 008101014
    BOLT
    Bull. M10X20 UNI 5739/8G
    from £7.61
    from £7.61
    SCREW M10X20 UNI 5739/8G Genuine Lamborghini - New In stock
    # 034
    MPN: 008411005
    WASHER
    RONDEL. A10, 5 UNI 1751
    from £0.52
    from £0.52
    WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
    # 035
    MPN: 008100838
    BOLT
    BULL .8X1 , 25X25 1 OK
    from £15.00
    from £15.00
    This part replaces part number BN-00368
    SPECIAL SCREW M8X25 Genuine Lamborghini - New In stock
    # 036
    MPN: 006410811
    LOCK WASHER
    PIAST. BULL. VOLANO
    LOCK WASHER Genuine Lamborghini - New (to order)
    # 037
    MPN: 008850806
    DOWEL
    GRAND 8X16 C40
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 038
    MPN: 008614205
    V RING
    RASCHIAOLIO
    from £11.95
    from £11.95
    OIL SCRAPER Genuine Lamborghini - New (to order)
