lamborghini lm002 (1988) crankcase parts diagram

012 - crankcase

Lamborghini LM002 (1988) Crankcase Parts Diagram

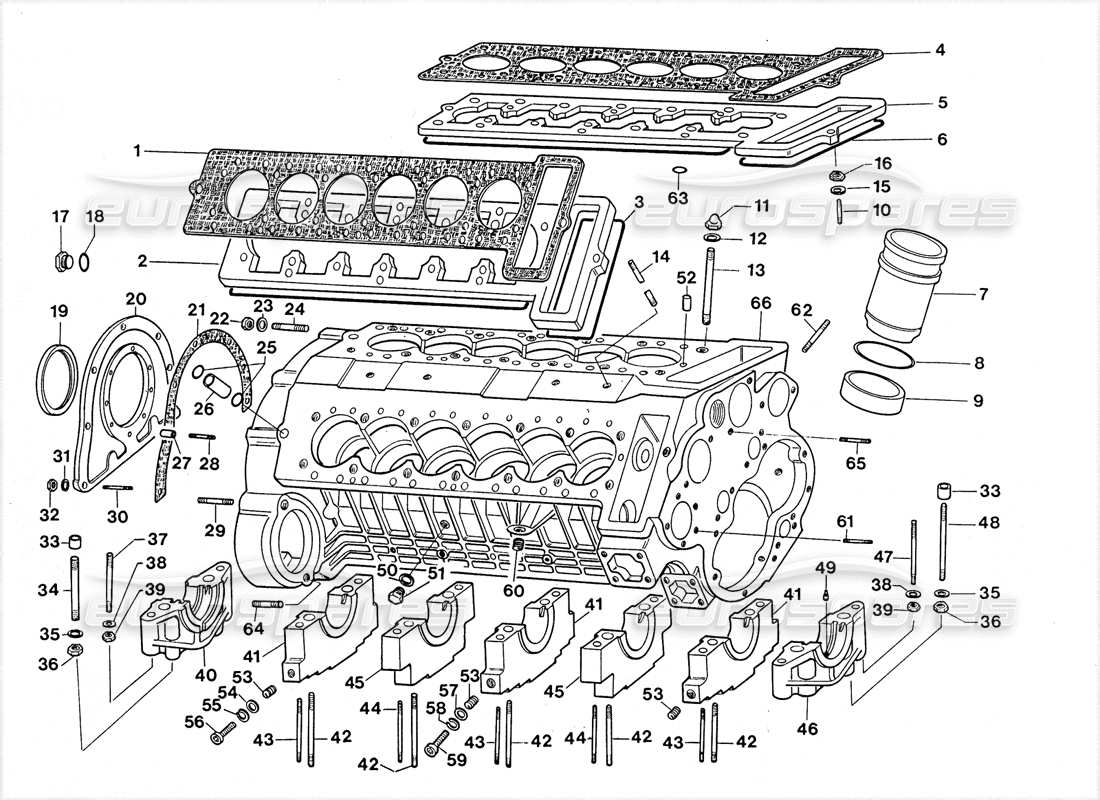

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: 001526497

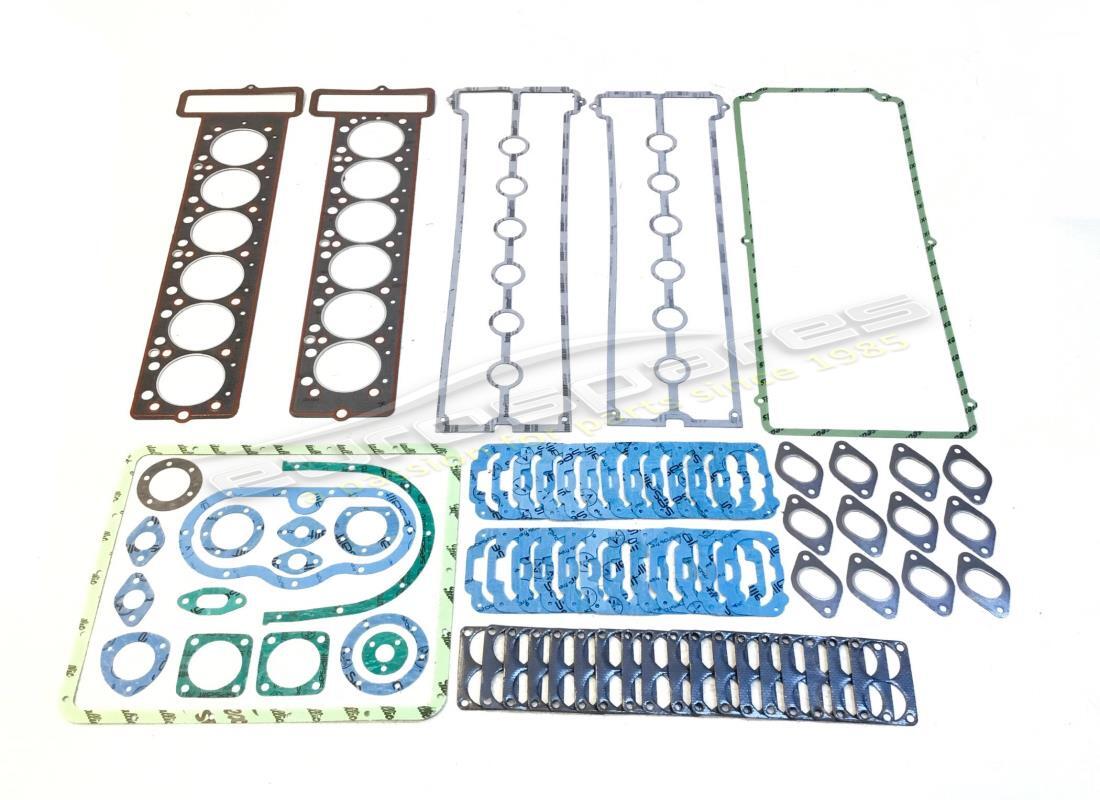

    GASKET SET
    Complete engine gasket set / No oil seals
    from £894.92
    from £894.92
    engine gasket kit Genuine Lamborghini - New (to order)
    engine gasket kit Eurospares Approved Part - New In stock
    # 001
    MPN: 001120594
    HEAD GASKET
    GUARN. X TESTA DES. CURTY
    from £251.70
    from £251.70
    RH HEAD GASKET Genuine Lamborghini - New (to order)
    RH HEAD GASKET Eurospares Approved Part - New In stock
    # 002
    MPN: 001821070
    SPACER
    DIST.TRA BASAM.E TESTA CIL.DES
    from £2,386.42
    from £2,386.42
    CRANKCASE & RH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
    # 003
    MPN: 001622507
    RUBB.SEAL
    CORDINO 01 TESTA OX X TEN.H20
    RUBB.SEAL Genuine Lamborghini - New (to order)
    # 004
    MPN: 001120593
    GASKET
    GUARN. X TESTA SIN. CURTY
    from £251.70
    from £251.70
    LH HEAD GASKET Genuine Lamborghini - New In stock
    LH HEAD GASKET Eurospares Approved Part - New (to order)
    # 005
    MPN: 001821071
    SPACER
    OIST.TRA BASAM.E TESTA GIL. SIN
    from £2,576.64
    from £2,576.64
    CRANKCASE & LH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
    # 005
    MPN: 001822508
    RUBB.SEAL
    CORDINO SULLA TESTA SX X TENUT
    from £16.77
    from £16.77
    LH HEAD SEAL CORD Genuine Lamborghini - New (to order)
    # 007
    MPN: 001820907
    CYLIND LINE
    CANNA CILINDRI
    from £916.53
    from £916.53
    CYLINDER LINER Genuine Lamborghini - New In stock
    # 008
    MPN: WHT003085
    O RING
    PARAGRAPH FOR CYLINDER BARREL 78X1,
    from £2.68
    from £2.68
    CYLINDER LINER RUBBER WASHER M M 78X1 Genuine Lamborghini - New In stock
    # 009
    MPN: 001620903
    SPACER
    DISTANZIALE PER CANNA CILINDRI
    SPACER Genuine Lamborghini - New (to order)
    # 009
    MPN: 001820909
    SPACER
    DISTANZIALE PER CANNA CILINDRI
    from £179.93
    from £179.93
    CYLINDER LINER SHIM Genuine Lamborghini - New (to order)
    # 010
    MPN: 008300807
    THREADED STUD
    M8x50 UNI 5911-66A 8G
    from £10.08
    from £10.08
    STUD M8X50 UNI 5911 8G Z Genuine Lamborghini - New (to order)
    # 011
    MPN: 001120924
    NUT
    DADO CIECO PRIGIONIERO FISSAGG
    from £22.93
    from £22.93
    STUD NUT Genuine Lamborghini - New (to order)
    # 012
    MPN: 008401230
    WASHER
    RONDELLA
    from £32.72
    from £32.72
    WASHER Genuine Lamborghini - New In stock
    # 013
    MPN: 001821459
    STUD ON B
    PRIG.SU BASAM.X FISS. TESTA CIL
    from £56.21
    from £56.21
    CYLINDER HEAD STUD ON CRANKCAS E. Genuine Lamborghini - New (to order)
    # 014
    MPN: 008300870
    STUD
    PHIGIONIERO
    from £11.95
    from £11.95
    SPECIAL STUD M8X158 Genuine Lamborghini - New (to order)
    # 015
    MPN: 008410605
    LOCK WASHER
    ROS. EL. 8, 4X17X0, 8
    from £1.67
    from £1.67
    CORRUGATED WASHER D 6 Genuine Lamborghini - New (to order)
    # 016
    MPN: 008200816
    NUT
    DADO NCM 70 108M 8G
    from £2.90
    from £2.90
    SPECIAL NUT Genuine Lamborghini - New In stock
    # 017
    MPN: 008932207
    CAP
    TAPPO
    from £22.68
    from £22.68
    PLUG Genuine Lamborghini - New (to order)
    # 018
    MPN: 008602002
    O RING
    ANELLO OR 128
    from £14.31
    from £14.31
    RING 21 MM OR Genuine Lamborghini - New In stock
    # 019
    MPN: 001829009
    OIL SEAL
    PARAOLIO 100X120X12 RSS SILIC
    from £38.69
    from £38.69
    This part replaces part number 008609902 - and 1 more. Click to view details
    REAR MAIN OIL SEAL 100X120X12 Genuine Lamborghini - New In stock
    # 020
    MPN: 001821462
    COVER
    REAR SHAFT COVER MO
    from £354.86
    from £354.86
    CRANKSHAFT REAR COVER Genuine Lamborghini - New (to order)
    # 021
    MPN: 001800294
    GASKET
    GUARN . COP . POST . BASAM .
    from £14.93
    from £14.93
    CRANKCASE REAR COVERSEAL Genuine Lamborghini - New In stock
    # 022
    MPN: 008200808
    NUT
    DADO M8 UNI 5587-65/80
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 023
    MPN: WHT001514
    LOCK WASHER
    ROB. EL. 8, 4X17X0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 023
    MPN: WHT003057
    O RING
    ANELLO OR 2031
    from £0.87
    from £0.87
    This part replaces part number WHT003507 which we have in stock
    O-RING Genuine Lamborghini - New In stock
    # 024
    MPN: 008300875
    STUD BOLT
    PRIG.
    STUD BOLT Genuine Lamborghini - New (to order)
    # 026
    MPN: 001820995
    DOWEL
    GRAND SUL BASAM.X CENTR.TESTE
    from £112.76
    from £112.76
    CRANKCASE CENTRING DOWEL Genuine Lamborghini - New (to order)
    # 027
    MPN: 008850605
    DOWEL
    BOCC.C. 6, 25X8X10 C40
    Lamborghini PART 008850605 Genuine Lamborghini - New (to order)
    # 028
    MPN: 008300609
    STUD
    PRIG. 6X1X25 8G
    from £8.84
    from £8.84
    STUD M6X25 UNI 5911 8G/ZD Genuine Lamborghini - New (to order)
    # 029
    MPN: 008301244
    STUD
    PRIG.
    STUD Genuine Lamborghini - New (to order)
    # 030
    MPN: 008300608
    STUD
    PRIG. 6X1X20 8G
    from £0.66
    from £0.66
    STUD M6X20 UNI 5911 8G/ZD Genuine Lamborghini - New (to order)
    # 031
    MPN: WHT001197
    LOCK WASHER
    RONDELLA DI FERMO DIN 137/B
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 032
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.52
    from £0.52
    This part replaces part number 008200604
    HEX.NUT Genuine Lamborghini - New In stock
    # 033
    MPN: 008851501
    DOWEL
    GRAND D. 15X12,5X14
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 034
    MPN: 008301213
    STUD
    PRIG. 12X1 ,75X98 38NCD4
    from £37.40
    from £37.40
    SPECIAL STUD M12X98 Genuine Lamborghini - New In stock
    # 035
    MPN: 008411302
    LOCK WASHER
    RONDEL. 13X24X1 ,2
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 036
    MPN: 008201221
    NUT
    DADO 12X1,5X12
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 037
    MPN: 008300878
    STUD
    PHIGIONIERO
    from £8.87
    from £8.87
    SPECIAL STUD M8X77 Genuine Lamborghini - New (to order)
    # 038
    MPN: WHT001514
    LOCK WASHER
    ROS .EL .8,4X17X0, 8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 039
    MPN: 008200805
    NUT
    from £0.49
    from £0.49
    M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
    # 040
    MPN: 001819472
    REAR SUPP.
    SUPP. POST. ALBERO MOTORE
    SUPPORT C. Genuine Lamborghini - New (to order)
    # 041
    MPN: 001821837
    INTERM.SUPP
    Supp. int. albero motore
    SUPPORT Genuine Lamborghini - New (to order)
    # 042
    MPN: 008301235
    STUD
    PRIGIONIERO
    from £37.11
    from £37.11
    SPECIAL STUD M12X103 Genuine Lamborghini - New (to order)
    # 043
    MPN: 008300877
    STUD
    PRIGIONIERO
    from £21.81
    from £21.81
    SPECIAL STUD M8X95 Genuine Lamborghini - New (to order)
    # 044
    MPN: 008300817
    STUD
    Prig. 8X1X60 38NCD4
    from £10.53
    from £10.53
    STUD M8X1X60 UNI 5919 10K Genuine Lamborghini - New (to order)
    # 045
    MPN: 001822399
    INTERM. SUPP
    Supp. interm. albero motore
    SUPPORT Genuine Lamborghini - New (to order)
    # 046
    MPN: 001819470
    FRONT SUPP.
    SUPP. ANT . ALBERO MOTORE
    SUPPORT C. Genuine Lamborghini - New (to order)
    # 047
    MPN: 008300879
    STUD
    PR1BIONIERO
    from £8.87
    from £8.87
    SPECIAL STUD M8X73 Genuine Lamborghini - New (to order)
    # 048
    MPN: 008301214
    STUD
    PRIG. 12X1 ,5X94 10K
    from £21.81
    from £21.81
    SPECIAL STUD M12X94 Genuine Lamborghini - New In stock
    # 049
    MPN: 006650613
    DOWEL BOLT
    GRAND SUPP. ALBERO MOTORE
    DOWEL BOLT Genuine Lamborghini - New (to order)
    # 050
    MPN: 008401502
    WASHER
    ROND.RAME 15X28X2
    from £10.41
    from £10.41
    COPPER WASHER 15X28X2 Genuine Lamborghini - New (to order)
    # 051
    MPN: 008931403
    PLUG
    TAPPO BRONZO
    from £31.55
    from £31.55
    BRONZE PLUG Genuine Lamborghini - New (to order)
    # 052
    MPN: 008850817
    DOWEL
    GRAND
    from £6.43
    from £6.43
    REFERENCE PIN 8X28 C40 Genuine Lamborghini - New (to order)
    # 053
    MPN: 008841002
    HELI-COIL
    HEIL COIL
    from £0.98
    from £0.98
    HELI-COIL M10X1.25X10 Genuine Lamborghini - New (to order)
    # 054
    MPN: 008401014
    WASHER
    ROND.D. 10,5X17X1 ,5 5S
    from £2.33
    from £2.33
    WASHER D.10.5X17X1.55S Genuine Lamborghini - New In stock
    # 055
    MPN: 008411005
    WASHER
    RONDEL. A10, 5 UNI 1751
    from £0.54
    from £0.54
    WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
    # 056
    MPN: 008701012
    SCREW
    VITE
    from £4.73
    from £4.73
    SCREW M10X25 UNI 5931/8G/B Genuine Lamborghini - New (to order)
    # 057
    MPN: 008401006
    WASHER
    ROND.A10.5 UNI 1734
    from £0.52
    from £0.52
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
    # 058
    MPN: 008411005
    WASHER
    RONDEL. A10, 5 UNI 1751
    from £0.52
    from £0.52
    WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
    # 059
    MPN: 008701013
    SCREW
    VITE
    from £0.65
    from £0.65
    SCREW M10X40 UNI 5931/8G/B Genuine Lamborghini - New (to order)
    # 060
    MPN: 008841401
    HELI COIL
    HELI-COIL 14X2X21
    from £3.70
    from £3.70
    HELI-COIL M14X21 Genuine Lamborghini - New (to order)
    # 061
    MPN: 008300608
    STUD
    PRIG. 6X1X20 8G
    from £0.66
    from £0.66
    STUD M6X20 UNI 5911 8G/ZD Genuine Lamborghini - New (to order)
    # 062
    MPN: 008300822
    STUD
    PRIG. 8X1 ,25X18 8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 063
    MPN: 008601201
    O RING
    ANELLO OR 2050
    from £0.52
    from £0.52
    RING 13 MM OR Genuine Lamborghini - New In stock
    # 064
    MPN: 008301234
    STUD
    PRIG. 12X1 ,75X136,5 8G
    from £14.98
    from £14.98
    STARTER MOTOR SPECIAL STUD Genuine Lamborghini - New (to order)
    # 065
    MPN: 008300615
    STUD
    PRIG. 6X1X22 8G
    from £12.69
    from £12.69
    STUD 6X22 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
    # 066
    MPN: 001824239
    crankcase
    BABAMENTO MOTORE
    crankcase Genuine Lamborghini - New (to order)
    # 067
    MPN: 001526477
    OIL SEALS
    Complete engine oil seal kit
    from £868.97
    from £868.97
    GROMMET & OIL SEALS SET Genuine Lamborghini - New (to order)
