lamborghini lm002 (1988) air filters parts diagram

005 - Air Filters

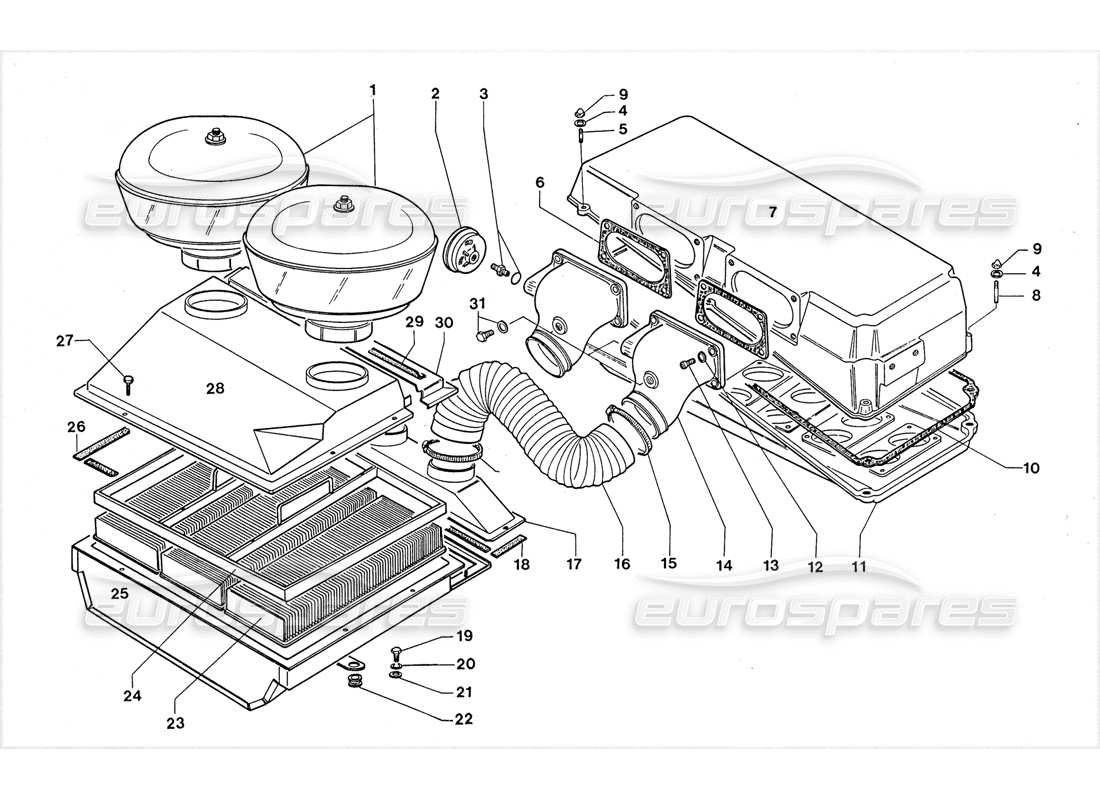

Lamborghini LM002 (1988) Air Filters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001325519
CYCLON FILT
PREFILTRI CICLONE 187505
# 002
MPN: 001324477
INDICATOR
FILTER CLOGGING SIGNAL
from £91.20
from £91.20
# 003
MPN: 001324479
REDUCER
HIDUZ.SUL COLLETT.X SEGNAL . INT
from £6.43
from £6.43
# 004
MPN: WHT001514
LOCK WASHER
ROS. EL . 8, 4X17X0, 8
from £15.09
from £15.09
This part replaces part number 008410805
# 005
MPN: WHT003028
STUD
PRIG.M8X25 UNI 5911-66A 8G
from £12.54
from £12.54
# 006
MPN: 001324481
GASKET
GUARNIZ.TRA COLLETT.E PRESA AR
from £0.87
from £0.87
# 007
MPN: 001324740
CONVEYOR
PARTE SUP.PHESA ARIA SUI CARBU
# 008
MPN: 008300833
STUD
PRIG. 8X1 , 25X55,5 8G
from £3.82
from £3.82
# 009
MPN: 008200804
NUT
OAOO N/70/108M
from £0.73
from £0.73
# 010
MPN: 001323352
GASKET
GUARN.TRA PARTE SUP . E INF.PRES
from £35.19
from £35.19
# 011
MPN: 001323278
CONVEYOR
PARTE INF. PRESA ARIA SUI CARBU
from £928.60
from £928.60
# 012
MPN: WHT001514
LOCK WASHER
ROS. EL. 8, 4X17X0, 8
from £15.09
from £15.09
This part replaces part number 008410805
# 013
MPN: 008700811
SCREW
VITI 8X1,25 UNI 5931
from £0.51
from £0.51
# 014
MPN: 001326961
CONVEYOR
COLLETT. PRESA ARIA CARS.
# 015
MPN: 008830212
CLAMP
FASCETTA
from £4.64
from £4.64
# 016
MPN: 001327177
PIPE
TUBO FILTRI/PRESE ARIA CARS.
from £68.16
from £68.16
# 017
MPN: 001325523
COVER
COLETTORE
# 018
MPN: 001325527
GASKET
Guarnizione
# 019
MPN: 008100629
BOLT
BULL.M6X22 UNI 5739/8G
from £0.53
from £0.53
# 020
MPN: 008410603
LOCK WASHER
HOND.A6,4 UNI 1751 C72
Supersession
Supersession
# 021
MPN: 008400606
WASHER
ROND.6,4 UNI 1734
Supersession
Supersession
# 022
MPN: 008610701
OIL SEAL
Gommino 0.7X13X10
from £18.62
from £18.62
# 023
MPN: 001325520
FILTER BOX
AIR FILTER BOX
# 023
MPN: 07M133843
AIR FILTER
from £17.12
from £17.12
This part replaces part number 001321435
# 024
MPN: 001325524
FILTER FRAM
TELAIO X ELEMENTI FILTRANTI
# 026
MPN: 001325525
GASKET
Guarnizione
from £110.68
from £110.68
# 027
MPN: 008100508
B.OLT
BULL.M5X10 UNI 5739 65/A5S
from £3.65
from £3.65
# 028
MPN: 001325521
COVER
COP.SUP.CICLONI
# 029
MPN: 001325526
GASKET
Guarnizione
from £39.17
from £39.17
# 030
MPN: 001325522
COVER
COPERCHIO
# 031
MPN: 001324480
CAP
CAP ON THE AIR INTAKE MANIFOLD
from £6.89
from £6.89
