004 - CARBURETTORS

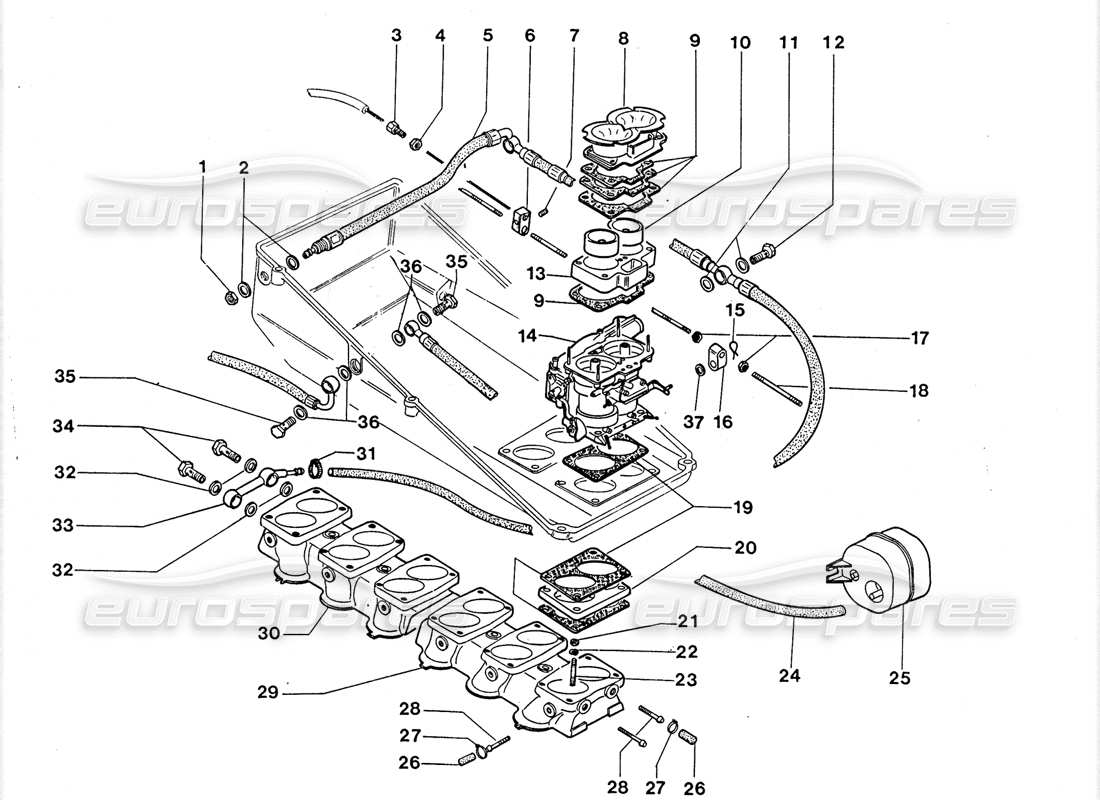

Lamborghini LM002 (1988) Carburettors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 001325876

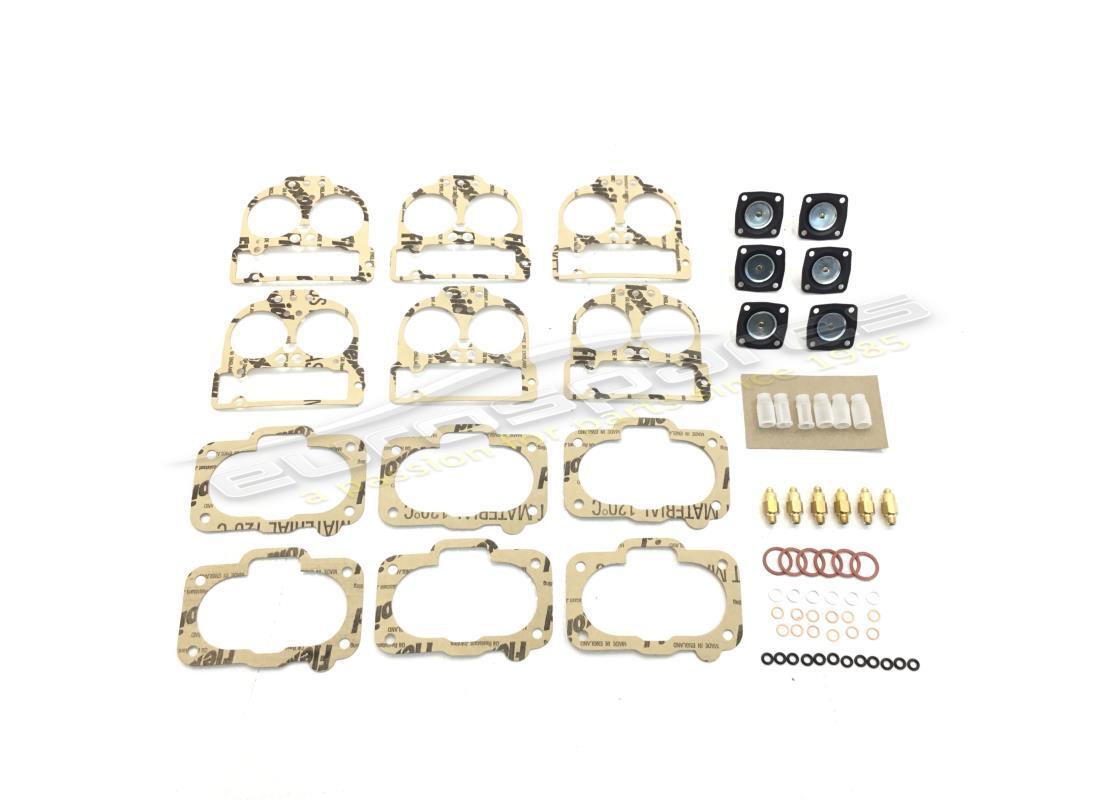

CARBURETTOR REPAIR KIT
(44 DCNF)
from £519.75
from £519.75
# 001
MPN: 008201607
NUT
DADO M16X1,5 UNI 5589/5S
from £1.08
from £1.08
# 002
MPN: 008401623
WASHER
RONDELLA
from £10.87
from £10.87
# 003
MPN: 001323363
SCREW
VITE REG.X CAVO ACC . PARTE INF.
# 004
MPN: 008200808
NUT
DADO MB UNI 5587-65/6G
Supersession
Supersession
# 005
MPN: 001326879
PIPE
ASS. TUBAZ.BENZ. CARS.
from £186.77
from £186.77
# 006
MPN: 001326791
ACCEL.CONTR
COMPL. ASSIEME ASTA COM . GARB .
# 007
MPN: 008700527
SCREW
VITE
from £1.71
from £1.71
# 008
MPN: 001321663
AIR HORN
TROMBETTA SUI CARBURATORI
from £182.83
from £182.83
# 009
MPN: 001322482
GASKET
GUARNIZ.FRA CARB . E CONV.ARIA
from £5.06
from £5.06
# 010
MPN: 001324661
CONVEYOR
CONVOGL.TRA CARBURAT . E TROMBE
from £109.45
from £109.45
# 011
MPN: WHT003544
WASHER
Rond. 12,25X18X1 ,5 rame
from £0.50
from £0.50
This part replaces part number 008401201
# 012
MPN: 001321137
PIPE UNION
BOCCHETTONE X RACC . ORIENT.
from £18.12
from £18.12
# 013
MPN: 001324525
SPACER
DISTANZIALE TRA CARBURAT. E TR
from £230.49
from £230.49
# 014
MPN: 001325475
Carburettor
CARBURATORI 44 DCNF COMPLETI 0
from £504.10
from £504.10
# 015
MPN: 008820101
SPLIT PIN
COPP.B 1 ,5X12 UNI 1336
from £1.62
from £1.62
# 016
MPN: 001320957
PALLET
NOTTOLINO X ASSIEME ASTA COM . C
from £152.61
from £152.61
# 017
MPN: N01100632
NUT
DADO M6 UNI 5588 5S
from £1.06
from £1.06
# 018
MPN: 001322036
CARB. SHAFT
ASTA COMANDO CARBURATORI
from £27.57
from £27.57
# 019
MPN: 001320673
GASKET
GASKET BETWEEN CARBURETTOR AND
from £13.85
from £13.85
# 020
MPN: 001320672
SPACER
DISTANZIALE TRA CARBURATORE E
from £120.62
from £120.62
# 021
MPN: 006200811
NUT
DADO MB UNI 55B9-65/BG
# 022
MPN: WHT001514
LOCK WASHER
ROS. EL. 8, 4X17X0, 8
from £15.09
from £15.09
This part replaces part number 008410805
# 023
MPN: 008300826
STUD
PRIG.M8X40 UNI 5911-8G
Supersession
Supersession
# 024
MPN: 001324911
PIPE
TUBO DEPRESS. SUI CARBURAT . AL S
# 025
MPN: 001323406
Tank
SERBATOIO PER VUOTO ORIG.APE 1
from £42.98
from £42.98
# 026
MPN: 001322045
RUBBER
CAPS IN COMMA X Tubi ON CO
from £3.48
from £3.48
# 027
MPN: 008830130
CLAMP
CLAMPS FA 1 1
from £0.50
from £0.50
# 028
MPN: 001323026
PIPE
TUBO SUL COLETT .ASP. ANT. POST.
from £27.28
from £27.28
# 029
MPN: 001321015
MANIFOLD
COLLETTORE DI ALIMENT AZ . ANTER .
from £3,631.51
from £3,631.51
# 030
MPN: 001322149
INT .MANIFOL
COLLETTORE DI ALIMENTAZ . POSTER
from £1,206.35
from £1,206.35
# 031
MPN: 008830122
CLAMP RING
Fascetta F A9
from £0.54
from £0.54
# 032
MPN: 008401621
WASHER
RONDELLA RAME RIC . D . 22X1 6 , 1 X1 ,
Supersession
Supersession
# 033
MPN: 001324711
UNION
RACC.SU COLLETT. ASP. POST. X PRE
from £60.62
from £60.62
# 034
MPN: 001322759
UNION
BULLONE X RACCORDQ
from £22.68
from £22.68
# 035
MPN: 002021390
PIPE
BOCCHETTONE X RACC . ORIENT . AD A
from £16.50
from £16.50
# 037
MPN: WHT001187
WASHER
ROND. 5, 3 UNI 1734 5S
from £0.52
from £0.52
This part replaces part number 008400502
