030A - Exhuast Pipes (Valid for USA - May 1985)

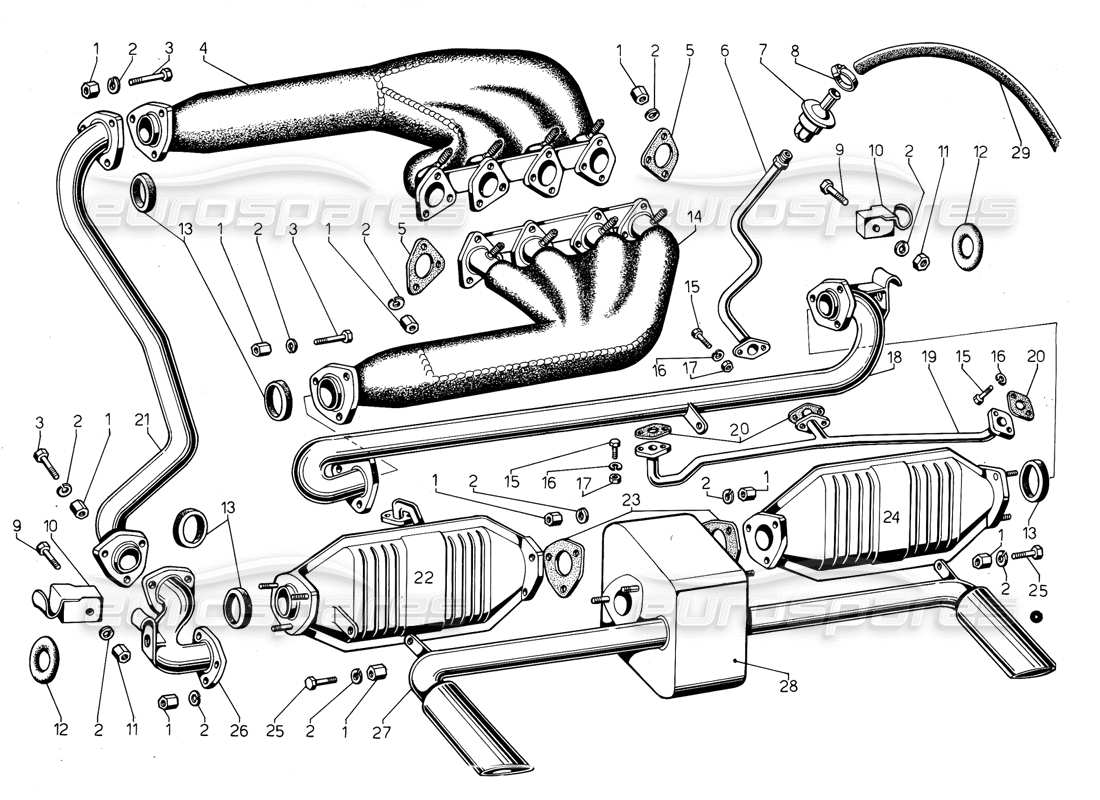

Lamborghini Jalpa 3.5 (1984) Exhuast Pipes (Valid for USA - May 1985) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200807
NUT
(Valid for U.S.A - May 1985) Dado ottone 8 MA
from £14.38
from £14.38
# 002
MPN: 008410806
LOCK WASHER
(Valid for U.S.A - May 1985) Rond. el. A8,4 UNI 1751
Supersession
Supersession
# 003
MPN: 008100842
BOLT
(Valid for U.S.A - May 1985) Bull. M8x45 UNI 5737/8G
from £0.97
from £0.97
# 004
MPN: 004421156
FR MAN INS
(Valid for U.S.A - May 1985) Collettore ant. vs. LB 2131
from £8,336.70
from £8,336.70
# 005
MPN: 004405807
GASKET
(Valid for U.S.A - May 1985) Guam, collett. scarico /U
from £14.35
from £14.35
# 006
MPN: 004422647
PIPE
(Valid for U.S.A - May 1985) Tubo dal 3 vie alia valvola non ritorno
# 007
MPN: 004607187
VALVE CER
(Valid for U.S.A - May 1985) Cek valve vs. 1/5354987
from £140.55
from £140.55
# 008
MPN: 008830206
CLAMP RING
(Valid for U.S.A - May 1985) Fasc. royal 00/12 18/30
from £12.56
from £12.56
# 009
MPN: 008100842
BOLT
(Valid for U.S.A - May 1985) Bull. M8x45 UNI 5737/8G
from £1.05
from £1.05
# 010
MPN: 004122443
CONNECTION
(Valid for U.S.A - May 1985) Attacco al telaio x supp. marmitta
# 011
MPN: 008200806
NUT
(Valid for U.S.A - May 1985) Dado M8 UNI 5588-65/8G
Supersession
Supersession
# 012
MPN: 004409122
MUFLER RING
(Valid for U.S.A - May 1985) Anello supp. marmitte
from £54.04
from £54.04
# 013
MPN: 004410168
GASKET
(Valid for U.S.A - May 1985) Guam, collett/marmitte
from £52.41
from £52.41
# 014
MPN: 004421157
B MAN INS
(Valid for U.S.A - May 1985) Collettore post. vs. LB 2121
from £2,421.00
from £2,421.00
# 016
MPN: 008410603
LOCK WASHER
(Valid for U.S.A - May 1985) Bond. A6,4 UNI 1751 C72
Supersession
Supersession
# 017
MPN: N01100637
NUT
(Valid for U.S.A - May 1985) Dado M6 UNI 5588-65/8G
from £0.52
from £0.52
This part replaces part number 003303099 - and 1 more. Click to view details
# 018
MPN: 004422648
PIPE
(Valid for U.S.A - May 1985) Tubo dal catalizz. al coll. scarico testa dx
# 019
MPN: 004422646
TUNION FOR INJECT
(Valid for U.S.A - May 1985) 3 vie x iniezione aria ai catalizzatori
# 020
MPN: 004422645
GASKET
(Valid for U.S.A - May 1985) (Valid for U.S.A - May 1985) Guarnizione
from £2.16
from £2.16
# 021
MPN: 004421158
INTER PIPE
(Valid for U.S.A - May 1985) Tubo intermedio vs. LB 2124
from £138.88
from £138.88
# 022
MPN: 004422774
CATALYST ASSEMBLY
(Valid for U.S.A - May 1985) Complessivo catalizzatore sinistro
# 023
MPN: 004422340
GASKET
(Valid for U.S.A - May 1985) Guarniz. in diring sulle flange
from £6.47
from £6.47
# 024
MPN: 004422773
CATALYST ASSEMBLY
(Valid for U.S.A - May 1985) Complessivo catalizzatore destro
# 025
MPN: 008100830
BOLT
(Valid for U.S.A - May 1985) Bull. M8x20 UNI 5739/8G
from £0.53
from £0.53
# 026
MPN: 004422649
PIPE
(Valid for U.S.A - May 1985) Tubo dal catalizz. al tubo testa sinistra
# 027
MPN: 004422643
SILENCER
(Valid for U.S.A - May 1985) Silenziatore
# 028
MPN: 004422642
SILENCER ASSEMBLY
(Valid for U.S.A - May 1985) Assieme marmitta
# 029
MPN: 004622772
PIPE
(Valid for U.S.A - May 1985) Tubo dalla valvola non ritorno alia marmitta
