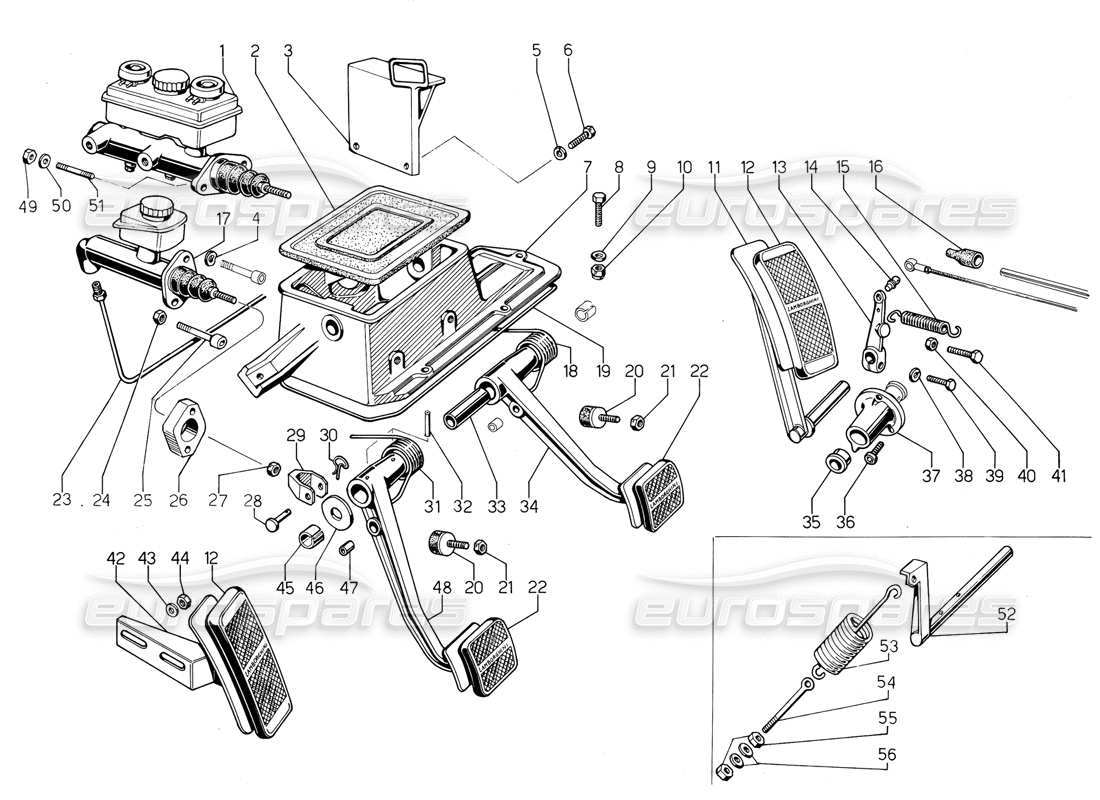

Lamborghini Jalpa 3.5 (1984) Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 004219032

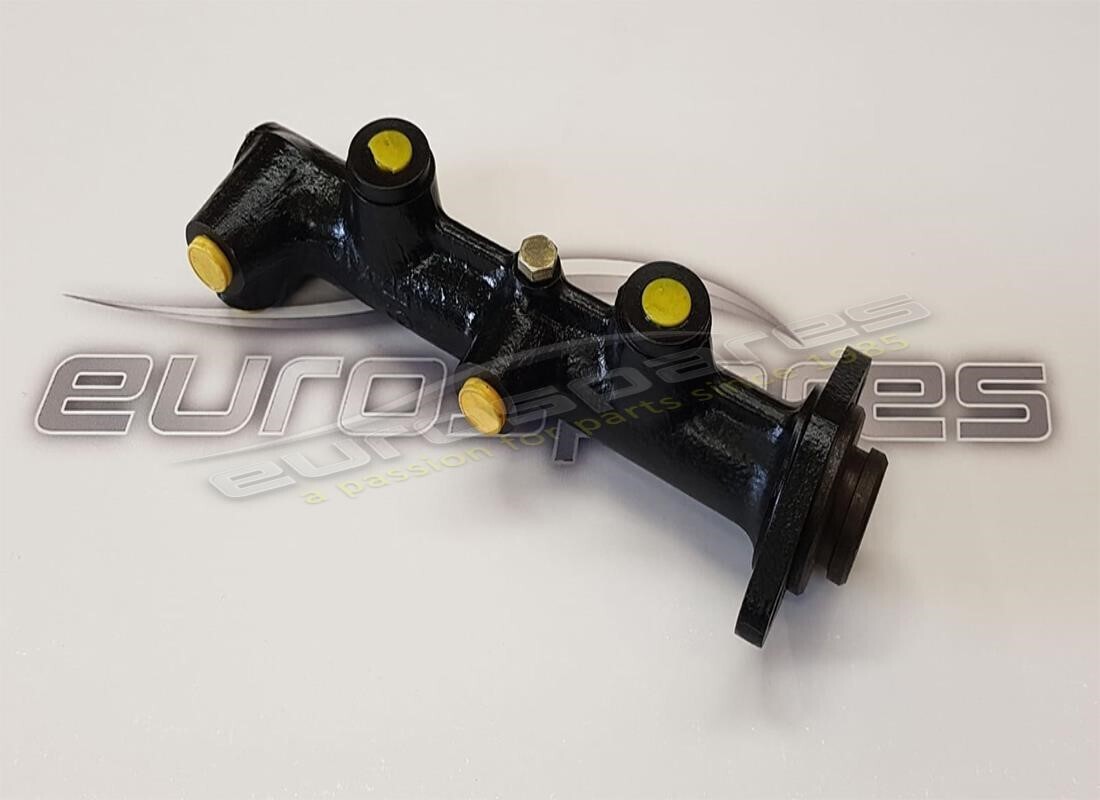

    BRAKE PUMP
    Brake pump 1409461
    from £512.82
    from £512.82
    This part replaces part number 004211242
    # 002
    MPN: 004206783
    COVER
    Cop. supp. pedaliera/U
    from £7.35
    from £7.35
    # 003
    MPN: 004113503
    WHEEL SUPP.
    Spare wheel holder fixed to the support. pedal board
    from £56.63
    from £56.63
    # 004
    MPN: WHT001514
    LOCK WASHER
    Ros. Fl. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    # 005
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    # 006
    MPN: 008100830
    BOLT
    Bull. M8x20 UNI 5739/8G
    from £0.53
    from £0.53
    # 007
    MPN: 004220467
    PEDAL SUPP
    Brake and clutch pedal support
    from £235.47
    from £235.47
    # 008
    MPN: 008100827
    BOLT
    Bull M8x25 UNI 5739/8G
    Supersession
    Supersession
    # 009
    MPN: 008400801
    WASHER
    Rond. 8,4 UNI 1734 8G
    Supersession
    Supersession
    # 010
    MPN: 008200809
    NUT
    Dado BO)0/208M
    Supersession
    Supersession
    # 011
    MPN: 004208705
    THROTT PEDA
    Pedale acceleratore/U
    from £126.00
    from £126.00
    # 012
    MPN: 004203128
    PEDAL COVER
    Copert. pedale acceleratore
    from £45.00
    from £45.00
    # 013
    MPN: 004208709
    LEVER
    Leva com. cavo accel. Urraco
    from £21.15
    from £21.15
    # 014
    MPN: 001300803
    PIN
    Testina sferica leva
    from £20.78
    from £20.78
    # 015
    MPN: 002104216
    CLUTCH SPRI
    Molla rit. leva frizione
    from £27.58
    from £27.58
    # 016
    MPN: 003307535
    GUARD, RUBBE
    Protez. cavo FM U/C
    from £18.62
    from £18.62
    # 017
    MPN: 004220939
    Clutch Pump
    Clutch control pump
    from £118.89
    from £118.89
    # 018
    MPN: 004208710
    SPRING
    Molla rit. pedale freno/U
    from £18.86
    from £18.86
    # 019
    MPN: 004206788
    GASKET
    Guam. supp. pedali/U
    # 020
    MPN: 008922501
    MUFLER SUPP.
    Supp. 781063 scar. post.
    from £4.36
    from £4.36
    # 021
    MPN: N01100637
    NUT
    DADO M6 UNI 5580-65/8G
    from £0.53
    from £0.53
    This part replaces part number 003303099 - and 1 more. Click to view details
    # 022
    MPN: 004201212
    BRAKE PEDAL COVER
    from £30.00
    from £30.00
    # 023
    MPN: 002111422
    CLUTCH PIPE
    Tubo pompa friz./fless./U
    # 024
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    # 025
    MPN: 008700802
    SCREW
    Allen screw x fix. pump to the support
    Supersession
    Supersession
    # 026
    MPN: 004220464
    SPACER
    Spacer between clutch master cylinder and support
    from £41.09
    from £41.09
    # 027
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    # 028
    MPN: 004208714
    PIN
    PERNO POMPA FRENO/FRIZ./U
    from £242.10
    from £242.10
    # 029
    MPN: 004208713
    FORK
    Forcella x pedale friz. Urraco
    from £25.25
    from £25.25
    # 030
    MPN: 004207085
    LEVER
    Fermo perno pompa freno/friz.
    from £48.26
    from £48.26
    # 031
    MPN: 004208711
    SPRING
    Molla rit. pedale friz./U
    from £45.36
    from £45.36
    # 032
    MPN: 008900403
    PIN
    Spina elast. D 4x30
    from £1.67
    from £1.67
    # 033
    MPN: 008801401
    BUSH
    Boccola 14x18x57,5 delrin
    from £11.69
    from £11.69
    # 034
    MPN: 004208703
    BRAKE PEDAL
    Pedale freno Urraco
    from £227.19
    from £227.19
    # 035
    MPN: 008801204
    BUSH
    Bocc. 12F7/16/18X10-2
    from £5.85
    from £5.85
    # 036
    MPN: 008700611
    SCREW
    Vite brugola 6x1x15
    from £0.53
    from £0.53
    # 037
    MPN: 004209247
    SUPPOR
    Supporto pedale acceleratore/U
    from £43.12
    from £43.12
    # 038
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    # 039
    MPN: 008100618
    BOLT
    Bull M6x20 UNI 5739 8G
    Supersession
    Supersession
    # 040
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.54
    from £0.54
    This part replaces part number 003303099 - and 1 more. Click to view details
    # 041
    MPN: 008100632
    BOLT
    Bull. M6x30 UNI 5739-65A 5S
    from £1.71
    from £1.71
    # 042
    MPN: 004210467
    RESO PEDAL
    Pedale riposo Urraco
    from £109.04
    from £109.04
    # 043
    MPN: 008400607
    WASHER
    Rond. 6,5x18x1,5
    Supersession
    Supersession
    # 044
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    # 045
    MPN: 008801402
    BUSH
    Boccola M8 14-15 DU
    from £10.87
    from £10.87
    # 046
    MPN: 008401411
    WASHER
    Rond. 14x35x1-1,5-2
    from £6.53
    from £6.53
    # 047
    MPN: 008800803
    BUSH
    Glissa bush 8F7/1 2x8
    from £3.98
    from £3.98
    # 048
    MPN: 004210768
    CLUTCH PEDA
    Pedale frizione Urraco
    from £227.19
    from £227.19
    # 049
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    # 050
    MPN: 008410806
    LOCK WASHER
    Rond el. A8,4 UNI 1751
    Supersession
    Supersession
    # 051
    MPN: 008300825
    BOLT
    Prig. 8x1,25x22 8G
    from £8.61
    from £8.61
    # 052
    MPN: 004210769
    PEADL PIN
    Perno pedali freno/friz./U
    from £111.94
    from £111.94
    # 053
    MPN: 004211182
    SPRING
    Molla serv. pedale friz./U
    from £18.86
    from £18.86
    # 054
    MPN: 004210776
    CLUTCH SPRI
    Tirante molla serv. friz./U
    from £34.37
    from £34.37
    # 055
    MPN: 008200811
    NUT
    DADO M8 UNI 5589-65/8G
    from £3.65
    from £3.65
    # 056
    MPN: 008400806
    WASHER
    Rond. 8,4x16
    from £0.53
    from £0.53
