lamborghini jalpa 3.5 (1984) water pump and system parts diagram

009 - water pump and system

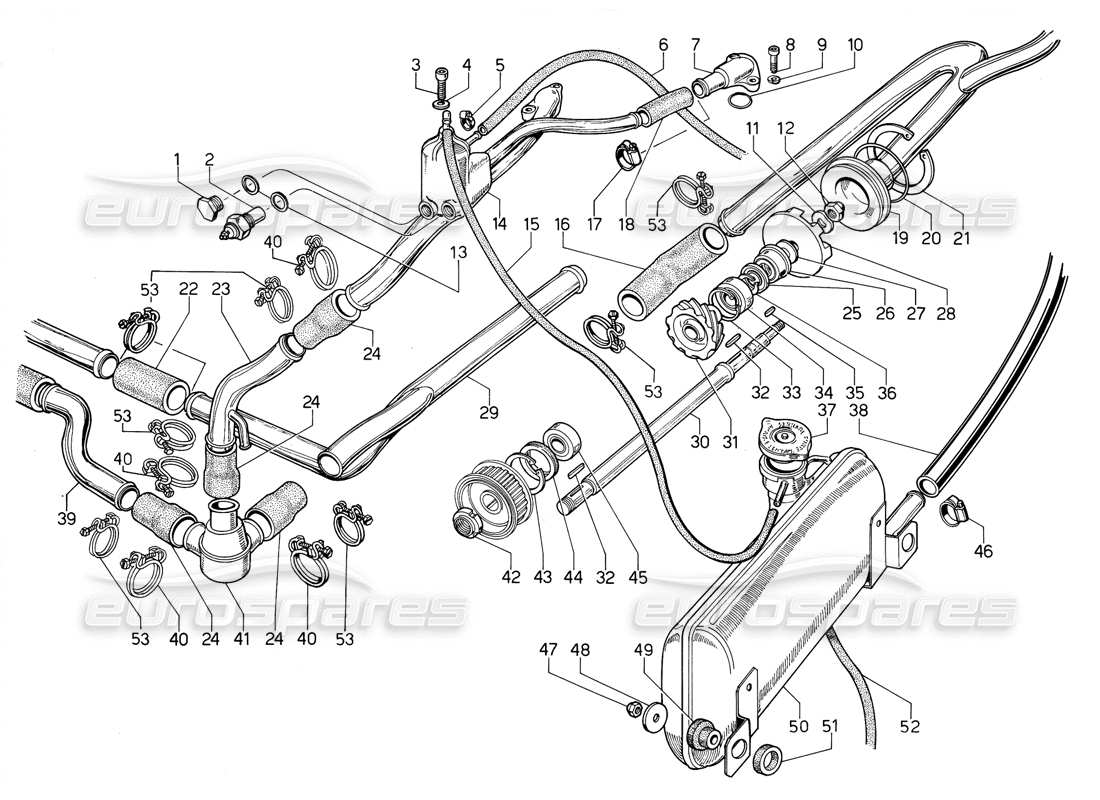

Lamborghini Jalpa 3.5 (1984) Water Pump and System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 008931602
            PLUG
            Tappo collett. asp. D/S
            from £3.03
            from £3.03
            # 002
            MPN: 001801333
            TERMOS SEND
            Termocop. temp, olio
            from £126.99
            from £126.99
            # 003
            MPN: 008700811
            SCREW
            Vite TCEI M8X22 UNI 5931 8G
            from £0.54
            from £0.54
            # 004
            MPN: WHT001514
            LOCK WASHER
            Ros. el. 8,4x17x0,8
            from £15.09
            from £15.09
            This part replaces part number 008410805
            # 005
            MPN: 008830204
            CLAMP RING
            Fasc. Royal 0000 8/5 7/11
            from £5.43
            from £5.43
            # 006
            MPN: 001710942
            COOLAN PIPE
            Tubo race. /cop. centr./U
            from £22.23
            from £22.23
            # 007
            MPN: 001710910
            PIPE UNION
            Race, uscita testa des./J
            from £25.75
            from £25.75
            # 008
            MPN: 008700612
            SCREW
            VITE 8,6x1x25 UNI 2383
            Supersession
            Supersession
            # 009
            MPN: 008410602
            LOOK WASHER
            Ros. el. 6,4x12x0,5
            from £28.28
            from £28.28
            # 010
            MPN: 008602303
            SEAL RING
            ANELLO OR 132
            from £0.53
            from £0.53
            This part replaces part number GN-01236
            # 011
            MPN: WHT000768
            LOCK WASHER
            from £1.31
            from £1.31
            This part replaces part number 008410806 - and 1 more. Click to view details
            # 012
            MPN: 008201005
            NUT
            DADO M10 UNI 5721 -65/OTT
            from £7.66
            from £7.66
            # 013
            MPN: 008401610
            WASHER
            Rond. 22x15,5x0,5 rame
            from £6.32
            from £6.32
            # 014
            MPN: 001710912
            PIPE
            Compl. uscita acqua teste
            from £132.30
            from £132.30
            # 015
            MPN: 001710943
            COOLAN PIPE
            Tubo race. teste/nourice/U
            from £16.04
            from £16.04
            # 016
            MPN: 001708588
            PIPE
            Rad-pump water hose
            from £90.79
            from £90.79
            # 017
            MPN: 008830205
            CLAMP RING
            FASC. ROYAL 000/9 14/24
            from £4.27
            from £4.27
            # 018
            MPN: 001710911
            PIPE
            Tubo uscita testa D/racc.
            from £9.00
            from £9.00
            # 019
            MPN: 001711132
            COOLAN PIPE
            Tubo entr. pompa/U
            from £698.63
            from £698.63
            # 020
            MPN: 008607101
            SEAL RING
            ANELLO OR 174
            from £0.53
            from £0.53
            # 021
            MPN: 008578201
            LOCK RING
            Seeger 82 I cusc. ruota
            from £2.34
            from £2.34
            # 022
            MPN: 001708589
            COOLAN PIPE
            Tubo colleg. circ. acqua/U
            from £19.91
            from £19.91
            # 023
            MPN: 001711129
            COOLAN PIPE
            Tubo race. teste/termost./U
            from £1,102.43
            from £1,102.43
            # 024
            MPN: 001711131
            TERMOS PIPE
            Tubo colleg. termost./U
            from £100.31
            from £100.31
            # 025
            MPN: 008611705
            SEAL RING
            Paraolio SM 1732/7
            from £11.33
            from £11.33
            # 026
            MPN: 008611601
            SEAL RING
            Guam, angus WPF 062
            from £38.31
            from £38.31
            # 027
            MPN: 001705854
            WASHER
            Rond. ras. paraolio Urraco
            from £126.86
            from £126.86
            # 028
            MPN: 001705860
            ROTOR
            Girante pompa acqua/U
            from £774.72
            from £774.72
            # 029
            MPN: 001711130
            PIPE
            Tubo dal centr/pompa/U
            from £416.22
            from £416.22
            # 030
            MPN: 001706751
            PUMP, SHAFT
            Alberino com. pompa acqua
            from £515.33
            from £515.33
            # 031
            MPN: 001706754
            PUMP GEAR
            Ingr. pompa acqua/U
            from £1,148.32
            from £1,148.32
            # 032
            MPN: 008860402
            Key
            LINGUETTA 4x4x20 UNIM 92
            from £1.71
            from £1.71
            # 033
            MPN: 07M109381
            LOCK RING
            Seeger 35 !
            from £1.16
            from £1.16
            This part replaces part number 008573501 - and 1 more. Click to view details
            # 034
            MPN: 008501701
            BALL BEARIN
            Cusc. Riv.-6003
            from £19.41
            from £19.41
            # 035
            MPN: 008860401
            Key
            Linguetta 4x4x12
            from £17.77
            from £17.77
            # 036
            MPN: 008581501
            LOCK RING
            Seeger 17 E
            from £0.54
            from £0.54
            # 037
            MPN: 001704296
            TANK CAP 1,0 BAR
            from £87.32
            from £87.32
            # 038
            MPN: 001708603
            COOLAN PIPE
            Tubo nourice/pompa acqua
            from £29.87
            from £29.87
            # 039
            MPN: 001711128
            COOLAN PIPE
            Tubo termost./entr. rad./U
            from £37.19
            from £37.19
            # 040
            MPN: 008834101
            CLAMP
            Clamp from 0 41 to 0 46
            from £2.41
            from £2.41
            # 041
            MPN: 001719309
            THERMOSTAT
            from £166.80
            from £166.80
            # 042
            MPN: 008251701
            LOCK NUT
            Supersession
            Supersession
            # 043
            MPN: 008574301
            LOCK RING
            Seeger 40 I
            from £1.70
            from £1.70
            # 044
            MPN: 008611601
            SEAL RING
            Guam, angus WPF 062
            from £38.31
            from £38.31
            # 045
            MPN: 008521701
            BEARING
            Cusc. Riv.-NU 203
            from £64.52
            from £64.52
            # 046
            MPN: 008830205
            CLAMP RING
            FASC. ROYAL 000/9 14/24
            from £4.27
            from £4.27
            # 047
            MPN: 008200804
            NUT
            DADO N/70/108M
            from £0.73
            from £0.73
            # 048
            MPN: WHT001942
            WASHER
            Rond. D. 8,5x32x2,5
            from £2.18
            from £2.18
            # 049
            MPN: 001701592
            SPACER
            Distan. comm. radiatore
            from £11.72
            from £11.72
            # 050
            MPN: 001707688
            COOLAN TANK
            Serb, suppl. acqua compl./U
            from £623.42
            from £623.42
            # 051
            MPN: WHT001189
            RUBBER RING
            from £2.38
            from £2.38
            This part replaces part number 001707163
            # 052
            MPN: 001708596
            PIPE
            Tubo scar. nourice/U
            from £19.53
            from £19.53
            # 053
            MPN: 008833502
            CLAMP
            Clamp from 0 35 to 0 41
            from £8.39
            from £8.39
