lamborghini jalpa 3.5 (1984) fuel system (valid for usa - may 1985) parts diagram

005B - fuel system (valid for usa - may 1985)

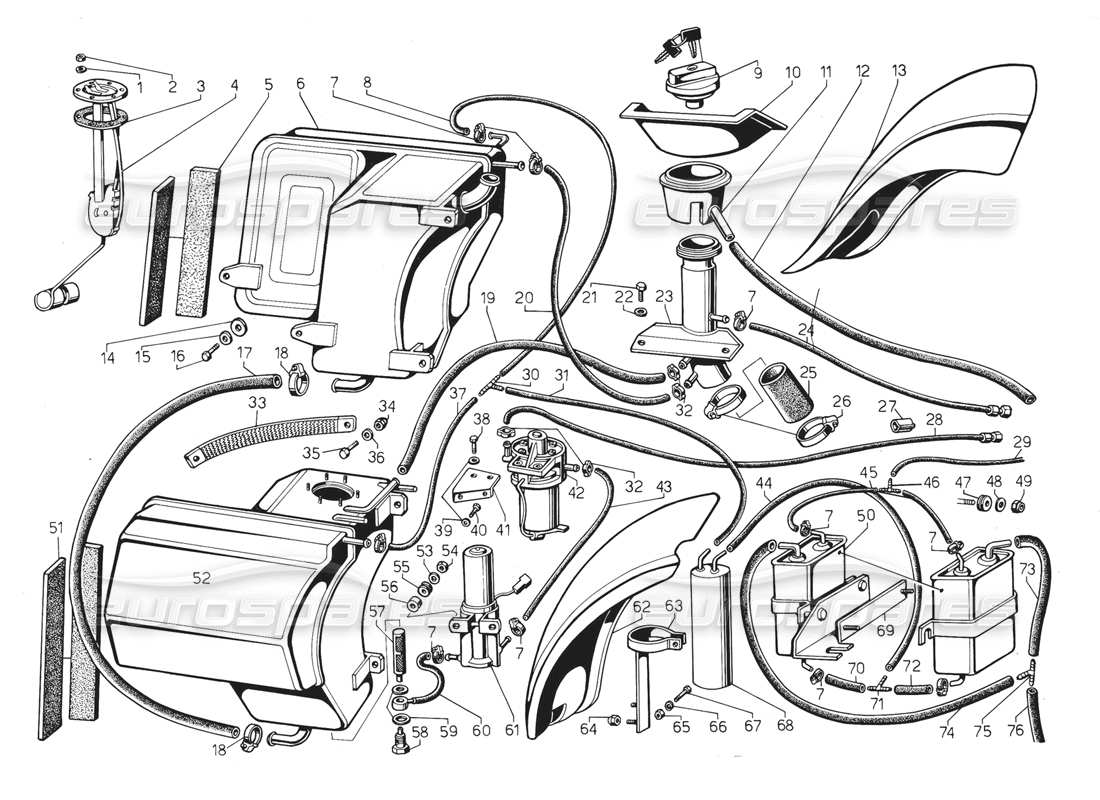

Lamborghini Jalpa 3.5 (1984) Fuel System (Valid for USA - May 1985) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008410404
LOCK WASHER
(Valid for U.S.A - May 1985) Rond. el. 4 UNI 3704
from £0.52
from £0.52
# 002
MPN: N01100412
NUT
(Valid for U.S.A - May 1985) Dado M4 UNI 5587-65/5S
from £0.47
from £0.47
# 003
MPN: 006205360
GASKET
(Valid for U.S.A - May 1985) Guam, reost. gall. 39094601
from £34.62
from £34.62
# 004
MPN: 006205411
FUE SENDER
(Valid for U.S.A - May 1985) Reostato gallegg. benz./U
from £96.84
from £96.84
This part replaces part number 006203181
# 005
MPN: 006220834
TANK GUARD
(Valid for U.S.A - May 1985) Protezione interna x serbatoio benz.
# 006
MPN: 006220221
FUEL TANK
(Valid for U.S.A - May 1985) Serbatoio benzina des.
from £1,255.46
from £1,255.46
# 007
MPN: 008830901
CLAMP RING
(Valid for U.S.A - May 1985) Fasc. royal 0000/9
from £4.07
from £4.07
# 008
MPN: 006222653
PIPE
(Valid for U.S.A - May 1985) Tubo coll. serb. dx al 3 vie
# 009
MPN: 006220985
FUEL CAP
(Valid for U.S.A - May 1985) Tappo serb. benzina con chiave vs. 062184
from £32.96
from £32.96
# 010
MPN: 006220327
FUEL FILLER
(Valid for U.S.A - May 1985) Vaschetta bocchettone benzina
from £37.11
from £37.11
# 011
MPN: 006208726
BOOT
(Valid for U.S.A - May 1985) Cuffia bocch. serb. benz./U
from £18.62
from £18.62
# 012
MPN: 006209751
PIPE
(Valid for U.S.A - May 1985) Tubo scar, cuffia bocch./U
# 013
MPN: 006220275
BULKHEAD
(Valid for U.S.A - May 1985) Paratia copri serbatoio dx
from £107.37
from £107.37
# 014
MPN: 008400801
WASHER
(Valid for U.S.A - May 1985) Rond. 8,4 UN! 1734 8G
Supersession
Supersession
# 015
MPN: WHT001514
LOCK WASHER
(Valid for U.S.A - May 1985) Ros. el. 8,4x17x0,8
from £15.09
from £15.09
This part replaces part number 008410805
# 016
MPN: 008100809
BOLT
(Valid for U.S.A - May 1985) Bull. M8x22 UNI 5739/8G
from £0.52
from £0.52
# 017
MPN: 006208730
PIPE
(Valid for U.S.A - May 1985) Tubo colleg. serb./U
from £192.82
from £192.82
# 018
MPN: 008833501
CLAMP RING
(Valid for U.S.A - May 1985) Fasc. n. schellen S35/15SKZ
from £6.43
from £6.43
# 019
MPN: 006208729
PIPE
(Valid for U.S.A - May 1985) Tubo sfiato serb. dx/U
from £14.09
from £14.09
# 020
MPN: 006208728
PIPE
(Valid for U.S.A - May 1985) Tubo sfiato serb. sx/U
from £3.24
from £3.24
# 021
MPN: 008100506
BOLT
(Valid for U.S.A - May 1985) Bull. M5x14 UNI 5739-65/A8G
from £6.43
from £6.43
# 022
MPN: 008400607
WASHER
(Valid for U.S.A - May 1985) Rond. 6,5x18x1,5
Supersession
Supersession
# 023
MPN: 006223252
PIPE
(Valid for U.S.A - May 1985) Compl. tubo riempimento serbatoi
from £561.31
from £561.31
# 024
MPN: 006220772
PIPE
(Valid for U.S.A - May 1985) Compl. tubo ricircolo benz. nel serbatoio
from £17.28
from £17.28
# 025
MPN: 006220218
SLEEVE
(Valid for U.S.A - May 1985) Manicotto coll. tubo riemp. serb. benz.
from £181.17
from £181.17
# 026
MPN: 008835004
CLAMP RING
(Valid for U.S.A - May 1985) Fascetta royal A/1 2 32/52
from £6.14
from £6.14
This part replaces part number 008830201
# 027
MPN: 006208736
SHIELD
(Valid for U.S.A - May 1985) Protez. tubo filtro/mot./U
from £7.22
from £7.22
# 028
MPN: 006210975
PIPE
(Valid for U.S.A - May 1985) Tubo
# 029
MPN: 006222664
PIPE
(Valid for U.S.A - May 1985) Tubo coll. 3 vie all'8 vie x depressione
# 030
MPN: 006220752
T UNIONE PIPE
(Valid for U.S.A - May 1985) 3 vie x coll. serbatoi dx e sx
from £3.70
from £3.70
# 031
MPN: 006222655
PIPE
(Valid for U.S.A - May 1985) Tubo coll. 3 vie a corpo sfiato benzina
# 032
MPN: 008830903
CLAMP
(Valid for U.S.A - May 1985) Fascetta
from £7.55
from £7.55
# 033
MPN: 001304420
CABLE
(Valid for U.S.A - May 1985) Cavo massa pompa benzina
from £2.05
from £2.05
# 034
MPN: 008200804
NUT
(Valid for U.S.A - May 1985) DadoN/70/108M
from £0.71
from £0.71
# 035
MPN: 008100827
BOLT
(Valid for U.S.A - May 1985) Bull. M8x25 UNI 5739/8G
Supersession
Supersession
# 036
MPN: WHT001942
WASHER
(Valid for U.S.A - May 1985) Rond. D. 8,5x32x2,5
from £2.06
from £2.06
# 037
MPN: 006220232
PIPE
(Valid for U.S.A - May 1985) Tubo x sfiato benzina
# 038
MPN: 008100630
BOLT
(Valid for U.S.A - May 1985) Bull. M6x14 UNI 5739-65/A8G
from £0.53
from £0.53
# 039
MPN: WHT001197
LOCK WASHER
(Valid for U.S.A - May 1985) Ros. el 6,4x12x0,5
Supersession
Supersession
# 040
MPN: 008100613
BOLT
(Valid for U.S.A - May 1985) Bullone M 6x10 UNI 5739 5S
from £0.51
from £0.51
# 041
MPN: 006210989
SUPPOR
(Valid for U.S.A - May 1985) Supp. filtro benz./U
from £33.87
from £33.87
# 042
MPN: 006220011
FUEL FILTER
Complete filter with Bowl.
from £169.96
from £169.96
# 043
MPN: 006223251
PIPE
(Valid for U.S.A - May 1985) Ass. tubo da pompa benzina a filtro
# 044
MPN: 006222656
PIPE
(Valid for U.S.A - May 1985) Tubo coll. corpo sfiato benz. al 3 vie
# 045
MPN: 006222663
PIPE
(Valid for U.S.A - May 1985) Tubo coll. filtri carbone a 3 vie
from £1.95
from £1.95
# 046
MPN: 006213782
T UNION
(Valid for U.S.A - May 1985) Tre vie
# 047
MPN: 008610801
RUBBER GROMMET
(Valid for U.S.A - May 1985) Gomm. x cavo contakm.
# 048
MPN: 008400801
WASHER
(Valid for U.S.A - May 1985) Bond. 8,4 UNI 1734 8G
Supersession
Supersession
# 049
MPN: 008200809
NUT
(Valid for U.S.A - May 1985) Dado B/70/208M
Supersession
Supersession
# 050
MPN: 006221563
FILTER
(Valid for U.S.A - May 1985) Filtri a carbone attivo
from £466.80
from £466.80
# 051
MPN: 006220834
TANK GUARD
(Valid for U.S.A - May 1985) Protezione interna x serb. benz.
# 052
MPN: 006220222
FUEL TANK
(Valid for U.S.A - May 1985) Serbatoio benzina sx
from £1,255.46
from £1,255.46
# 053
MPN: 008400607
WASHER
(Valid for U.S.A - May 1985) Rond. 6,5x18x1,5
Supersession
Supersession
# 054
MPN: N01100637
NUT
(Valid for U.S.A - May 1985) Dado M6 UNI 5588-65/8G
from £0.53
from £0.53
This part replaces part number 003303099 - and 1 more. Click to view details
# 055
MPN: 008610801
RUBBER GROMMET
(Valid for U.S.A - May 1985) Gomm. x cavo contakm.
# 056
MPN: 006223247
SPACER
(Valid for U.S.A - May 1985) Distanziale
from £6.84
from £6.84
# 057
MPN: 001303074
PUMP FILTER
(Valid for U.S.A - May 1985) Filtro race, aspir.
from £395.00
from £395.00
# 058
MPN: 001303057
BOLT
(Valid for U.S.A - May 1985) Bull. race. asp. benzina
from £214.33
from £214.33
# 059
MPN: 008401804
WASHER
(Valid for U.S.A - May 1985) Rond. rame 18,2x30x1
from £2.53
from £2.53
# 060
MPN: 006223248
FLEX PIPE
(Valid for U.S.A - May 1985) Tubo flessibile
from £18.95
from £18.95
# 061
MPN: 001320370
PUMP
(Valid for U.S.A - May 1985) Pompa alimentaz. elettrica VS.DCD 8200
from £403.78
from £403.78
# 062
MPN: 006220276
BULKHEAD
(Valid for U.S.A - May 1985) Paratia copriserbatoio sx
from £107.37
from £107.37
# 063
MPN: 006222673
FUEL BREATHER SUPP.
(Valid for U.S.A - May 1985) Supporto corpo sfiato benzina
from £37.11
from £37.11
# 064
MPN: 008200606
NUT
(Valid for U.S.A - May 1985) Dado N/70/1 06M
Supersession
Supersession
# 065
MPN: 008200501
NUT
(Valid for U.S.A - May 1985) Dado M5 UNI 5588-65 8G
Supersession
Supersession
# 066
MPN: 008410502
LOCK WASHER
(Valid for U.S.A - May 1985) Rond. A5,3 UNI 1751 C72
Supersession
Supersession
# 067
MPN: 008100505
BOLT
(Valid for U.S.A - May 1985) Bull. M5x20 UNI 5739/5S
from £0.54
from £0.54
# 068
MPN: 006221564
FUEL BREATHER
(Valid for U.S.A - May 1985) Corpo sfiato benzina
from £500.78
from £500.78
# 069
MPN: 006222674
FILTER SUPP.
(Valid for U.S.A - May 1985) Supporto filtri carbone attivo
from £76.04
from £76.04
# 070
MPN: 006222658
PIPE
(Valid for U.S.A - May 1985) Tubo da 3 vie a filtro carb. ant.
# 071
MPN: 006220752
3 WAYS UNION
(Valid for U.S.A - May 1985) Race, a 3 vie in plast. x coll. pompa benz.
from £3.70
from £3.70
# 072
MPN: 006222657
PIPE
(Valid for U.S.A - May 1985) Tubo da 3 vie a filtro carb. post.
# 073
MPN: 006222659
PIPE
(Valid for U.S.A - May 1985) Tubo da filtro carb. post, a 3 vie
# 074
MPN: 006222660
PIPE
(Valid for U.S.A - May 1985) Tubo da filtro carb. ant. a 3 vie
# 075
MPN: 006222661
T UNION
(Valid for U.S.A - May 1985) Tre vie x detti Tubi
from £2.66
from £2.66
# 076
MPN: 006222662
PIPE
(Valid for U.S.A - May 1985) Tubo x sfiato da 3 vie a terra
