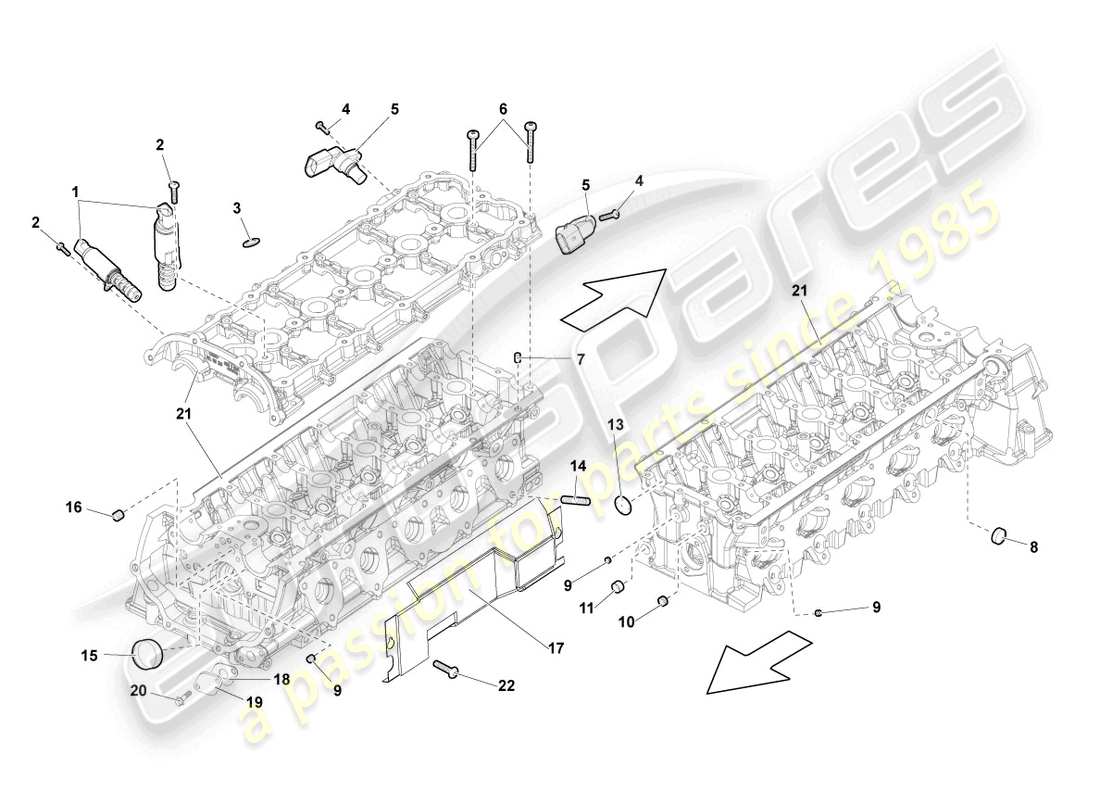

Lamborghini LP550-2 Coupe (2011) IMPULSE SENDER Parts Diagram

103.08.00 - IMPULSE SENDER

Lamborghini LP550-2 Coupe (2011) IMPULSE SENDER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
  • View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
  • Switch between other part diagrams using theandbuttons, or use the diagram images below
    We recommend viewing this page in landscape orientation for the best experience
    Part Key
    ST
    Part in stock
    PS
    Available in a part set
    SS
    Part supersession in stock
    PS
    Available in a part set to order (subject to availability)
    SO
    Part available to order (subject to availability)
    PK
    Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                PN: 07L109257
                CONTROL VALVE
                from $105.42
                from $105.42
                # 002
                PN: N91068201
                HEXAGON SOCKET FLAT HEAD BOLT
                M4X10
                from $0.61
                from $0.61
                # 003
                PN: 06D103377
                WASHER
                from $4.31
                from $4.31
                # 004
                PN: N10196103
                OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                M6X18
                from $0.93
                from $0.93
                # 005
                PN: 07L905163B
                IMPULSE SENDER
                from $25.37
                from $25.37
                # 006
                PN: N91127602
                HEXAGON SOCKET FLAT HEAD BOLT
                M6X35X16
                from $1.17
                from $1.17
                # 007
                -
                DOWEL PIN
                # 008
                -
                END CAP
                # 009
                PN: 07L109291
                BUNGS
                from $8.04
                from $8.04
                # 010
                -
                HEXAGON BOLT
                # 011
                -
                END CAP
                # 013
                PN: 06B103113C
                END CAP
                26
                from $5.42
                from $5.42
                # 014
                PN: N0145555
                THREADED PIN
                M8X44
                from $2.32
                from $2.32
                # 015
                PN: 026103113
                END CAP
                from $2.45
                from $2.45
                # 016
                PN: 06E103175C
                NON-RETURN VALVE
                from $30.17
                from $30.17
                # 017
                PN: 420199456
                GUARD PLATE
                RIGHT
                from $36.20
                from $36.20
                # 018
                -
                SEAL
                # 019
                -
                DUMMY COVER
                # 020
                -
                HEX COLLARED BOLT
                # 021
                -
                COMPLETE CYLINDER HEAD
                # 022
                PN: N90780901
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X16
                from $0.61
                from $0.61
