Lamborghini Espada Rear Suspension & Hub Series II Parts Diagram

027.1 - Rear Suspension & Hub Series II

Lamborghini Espada Rear Suspension & Hub Series II Parts Diagram

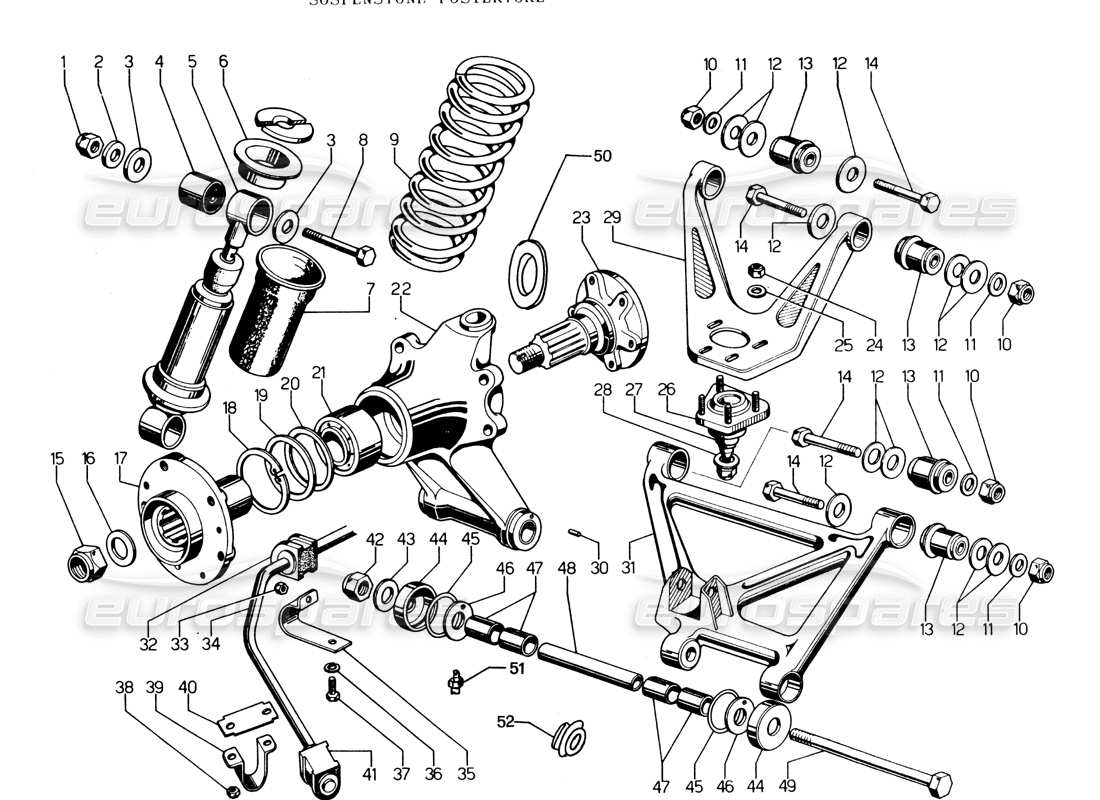

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001

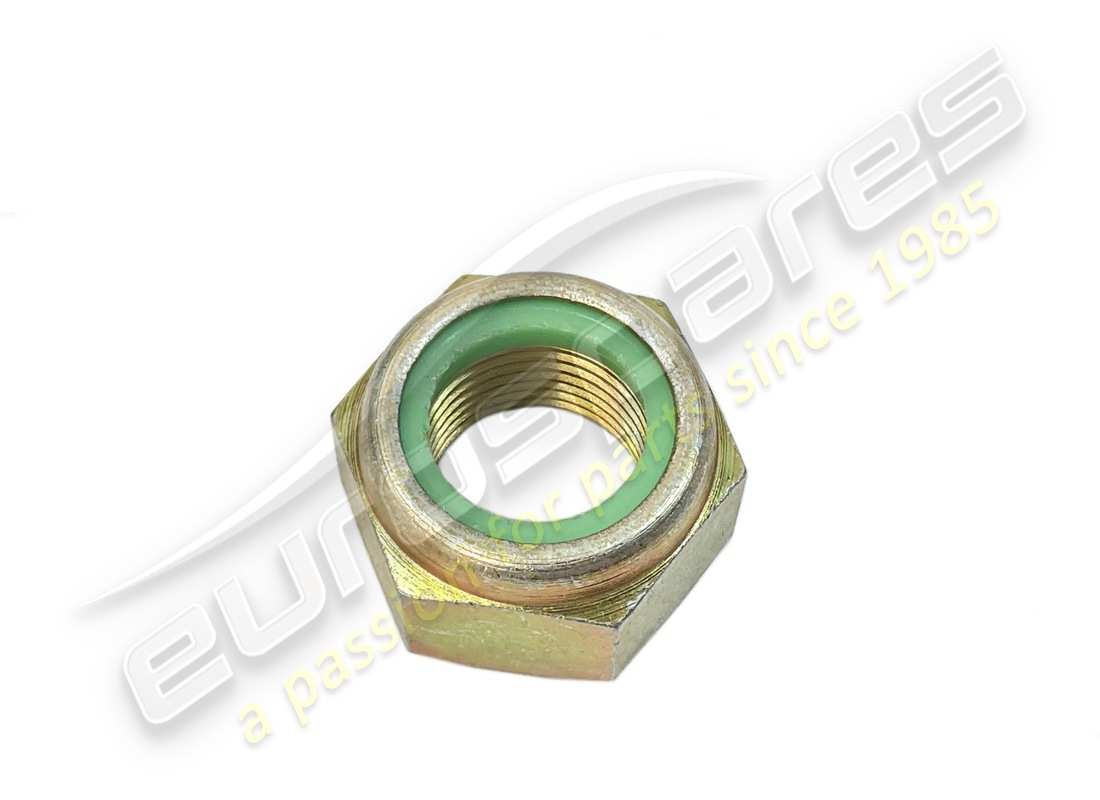

                                                                                                    MPN: 008201603
                                                                                                    NUT
                                                                                                    from £2.25
                                                                                                    from £2.25
                                                                                                    # 002

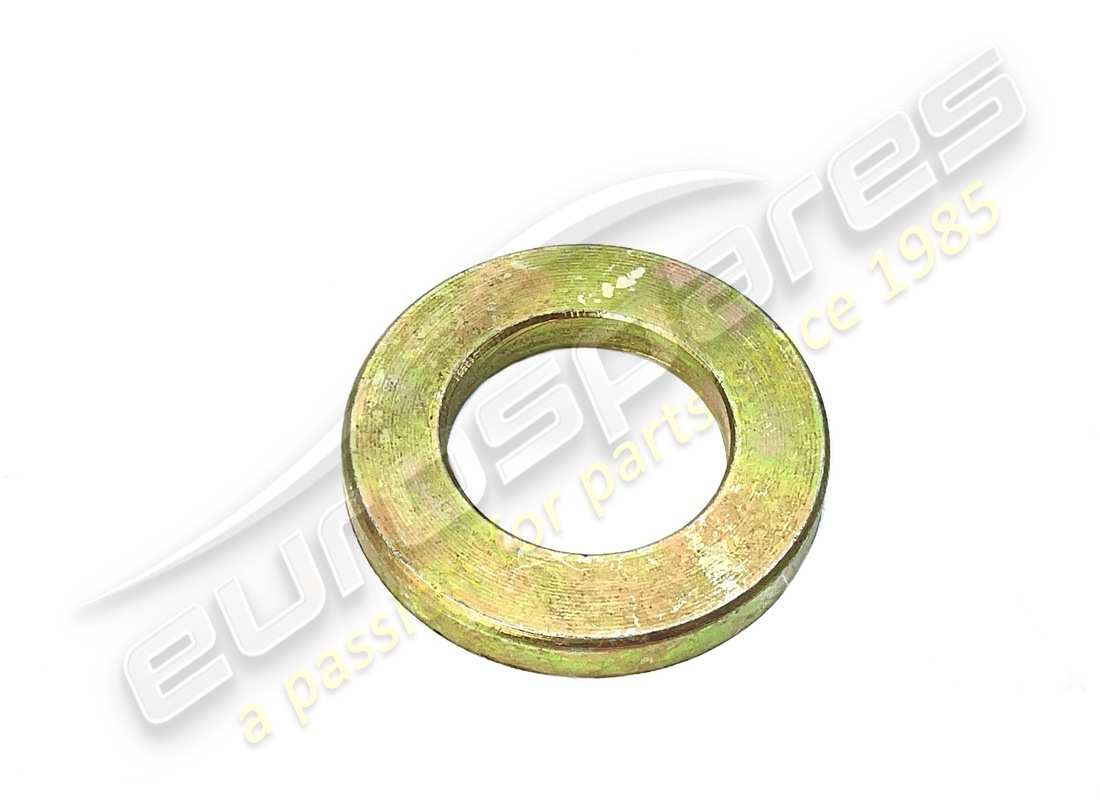

                                                                                                    MPN: 008401611
                                                                                                    WASHER
                                                                                                    from £8.84
                                                                                                    from £8.84

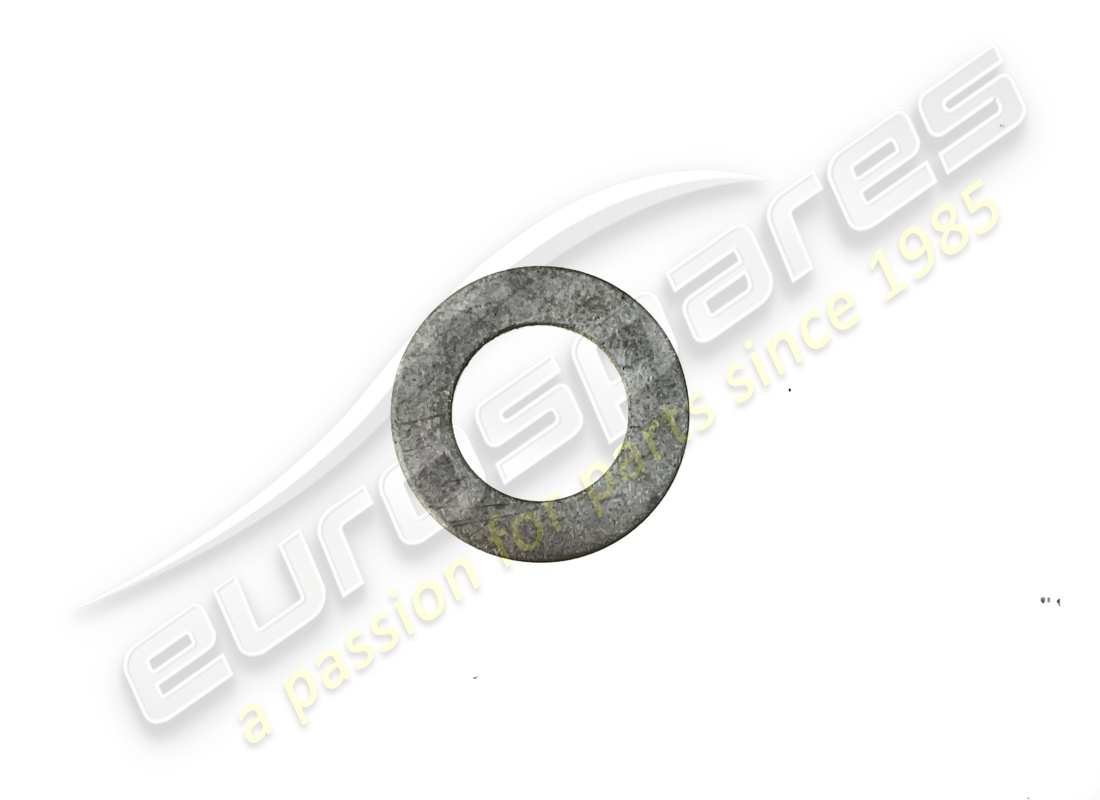

                                                                                                    # 003
                                                                                                    MPN: 008401612
                                                                                                    WASHER
                                                                                                    from £6.43
                                                                                                    from £6.43

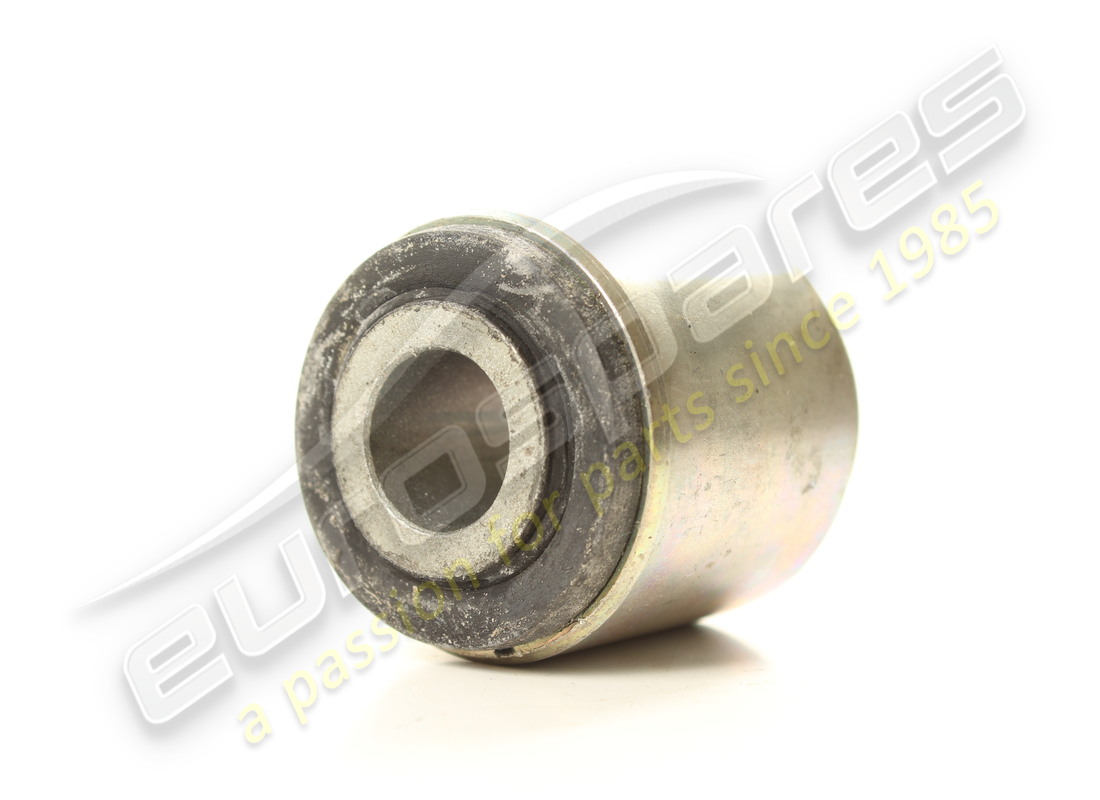

                                                                                                    # 004

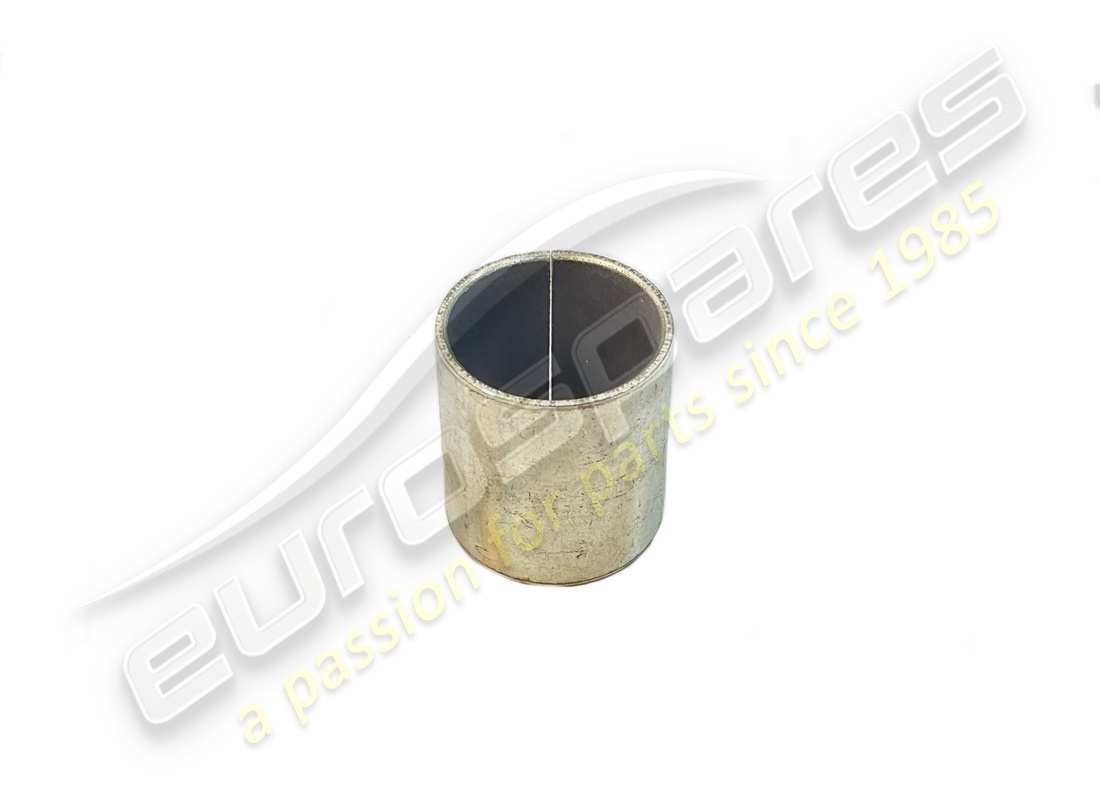

                                                                                                    MPN: 008921601
                                                                                                    BUSH
                                                                                                    from £45.94
                                                                                                    from £45.94
                                                                                                    # 005

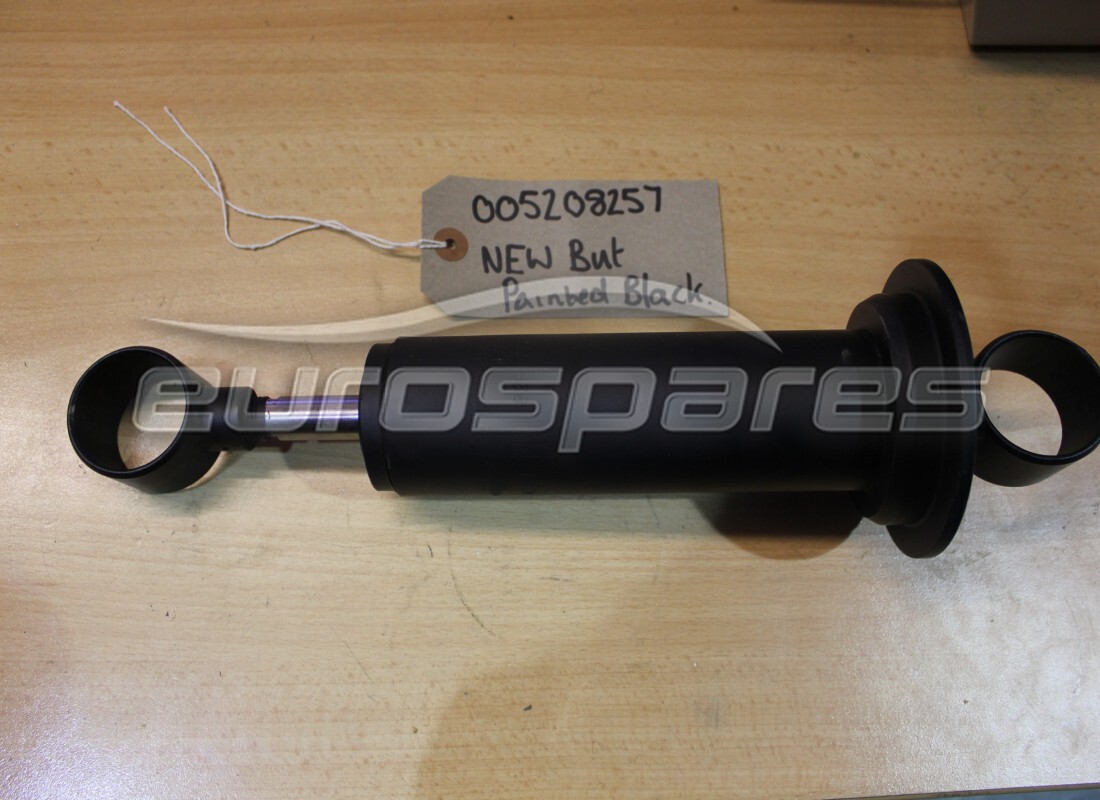

                                                                                                    MPN: 005208257
                                                                                                    AMMORTIZZATORE
                                                                                                    from £236.21
                                                                                                    from £236.21
                                                                                                    # 006
                                                                                                    MPN: 005208251
                                                                                                    PIATTELLO PER MOLLA
                                                                                                    from £75.00
                                                                                                    from £75.00
                                                                                                    # 007
                                                                                                    MPN: 005208252
                                                                                                    PARATIA
                                                                                                    from £22.00
                                                                                                    from £22.00
                                                                                                    # 008
                                                                                                    MPN: 008101609
                                                                                                    BOLT
                                                                                                    from £105.81
                                                                                                    from £105.81
                                                                                                    # 009
                                                                                                    MPN: 005208249
                                                                                                    SPRING
                                                                                                    from £259.66
                                                                                                    from £259.66
                                                                                                    # 010
                                                                                                    MPN: 008201406
                                                                                                    NUT
                                                                                                    from £0.55
                                                                                                    from £0.55

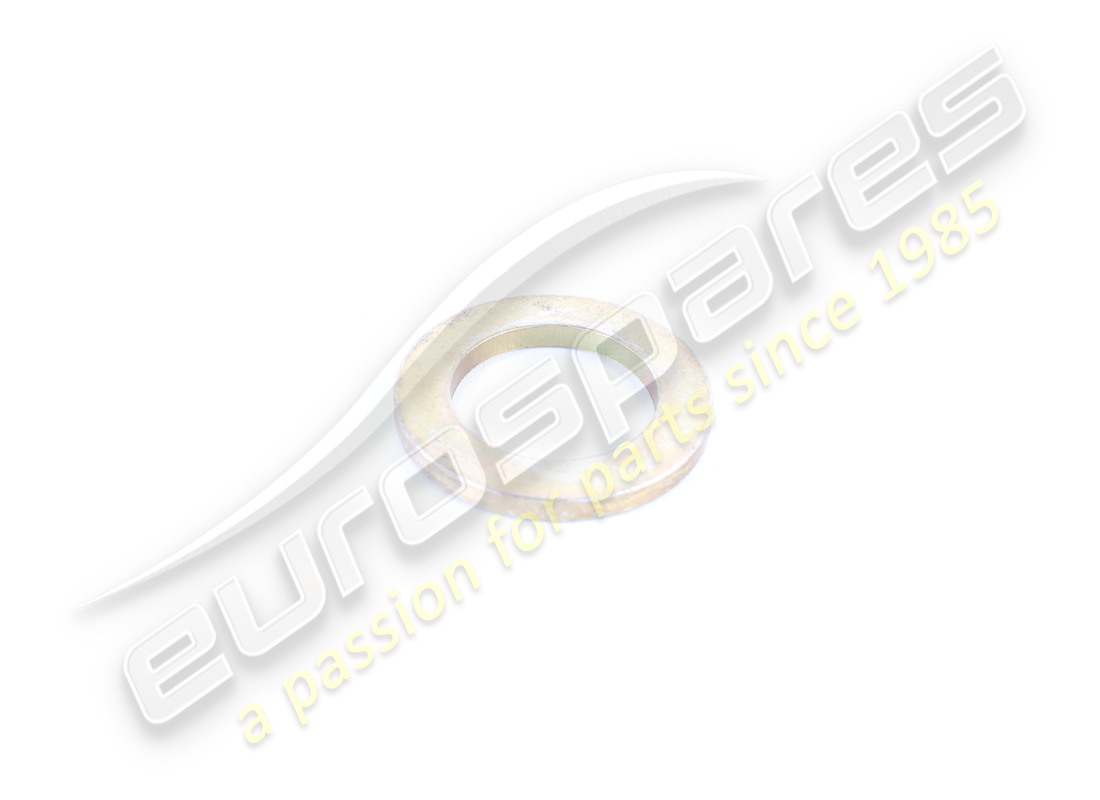

                                                                                                    # 011
                                                                                                    MPN: 008401413
                                                                                                    WASHER
                                                                                                    from £0.58
                                                                                                    from £0.58
                                                                                                    # 012
                                                                                                    MPN: 008401411
                                                                                                    WASHER
                                                                                                    from £6.53
                                                                                                    from £6.53
                                                                                                    # 013
                                                                                                    MPN: 008921411
                                                                                                    FLAMBLOC
                                                                                                    163039
                                                                                                    from £103.76
                                                                                                    from £103.76
                                                                                                    # 014
                                                                                                    MPN: 008101408
                                                                                                    BOLT
                                                                                                    from £18.58
                                                                                                    from £18.58
                                                                                                    # 015
                                                                                                    MPN: 008202502
                                                                                                    NUT
                                                                                                    from £52.05
                                                                                                    from £52.05
                                                                                                    # 016
                                                                                                    MPN: 008402502
                                                                                                    WASHER
                                                                                                    from £1.45
                                                                                                    from £1.45
                                                                                                    # 017
                                                                                                    MPN: 005206929
                                                                                                    FLANGIA
                                                                                                    from £190.16
                                                                                                    from £190.16
                                                                                                    # 018
                                                                                                    MPN: 008578201
                                                                                                    SEEGER RING
                                                                                                    from £2.28
                                                                                                    from £2.28
                                                                                                    # 019
                                                                                                    MPN: 008407502
                                                                                                    WASHER
                                                                                                    from £10.87
                                                                                                    from £10.87
                                                                                                    # 020
                                                                                                    MPN: 008407501
                                                                                                    WASHER
                                                                                                    from £3.70
                                                                                                    from £3.70
                                                                                                    # 021
                                                                                                    MPN: 008504502
                                                                                                    BEARING
                                                                                                    from £847.35
                                                                                                    from £847.35
                                                                                                    # 022
                                                                                                    MPN: 005207597
                                                                                                    MOZZO DESTRO
                                                                                                    from £309.75
                                                                                                    from £309.75
                                                                                                    # 022
                                                                                                    MPN: 005208232
                                                                                                    MOZZO SINISTRO
                                                                                                    from £309.75
                                                                                                    from £309.75
                                                                                                    # 023
                                                                                                    MPN: 005207536
                                                                                                    FLANGIA
                                                                                                    from £119.48
                                                                                                    from £119.48
                                                                                                    # 024
                                                                                                    MPN: 008200804
                                                                                                    NUT
                                                                                                    from £0.67
                                                                                                    from £0.67
                                                                                                    # 025
                                                                                                    MPN: 008400801
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 026
                                                                                                    MPN: 005100961
                                                                                                    UPPER BALL JOINT
                                                                                                    from £74.66
                                                                                                    from £74.66
                                                                                                    # 027
                                                                                                    MPN: 005100961
                                                                                                    UPPER BALL JOINT
                                                                                                    from £74.66
                                                                                                    from £74.66
                                                                                                    # 028
                                                                                                    MPN: 008401306
                                                                                                    WASHER
                                                                                                    from £1.58
                                                                                                    from £1.58
                                                                                                    # 029
                                                                                                    MPN: 005209255
                                                                                                    BRACCIO SUPERIORE DESTRO
                                                                                                    from £126.50
                                                                                                    from £126.50
                                                                                                    # 029
                                                                                                    MPN: 005209256
                                                                                                    BRACCIO SUPERIORE SINISTRO
                                                                                                    from £126.50
                                                                                                    from £126.50
                                                                                                    # 030
                                                                                                    MPN: 008850402
                                                                                                    DOWEL
                                                                                                    from £3.70
                                                                                                    from £3.70
                                                                                                    # 031
                                                                                                    MPN: 005207636
                                                                                                    BRACCIO INFERIORE DESTRO
                                                                                                    from £267.27
                                                                                                    from £267.27
                                                                                                    # 031
                                                                                                    MPN: 005207637
                                                                                                    BRACCIO INFERIORE SINISTRO
                                                                                                    from £273.45
                                                                                                    from £273.45
                                                                                                    # 032

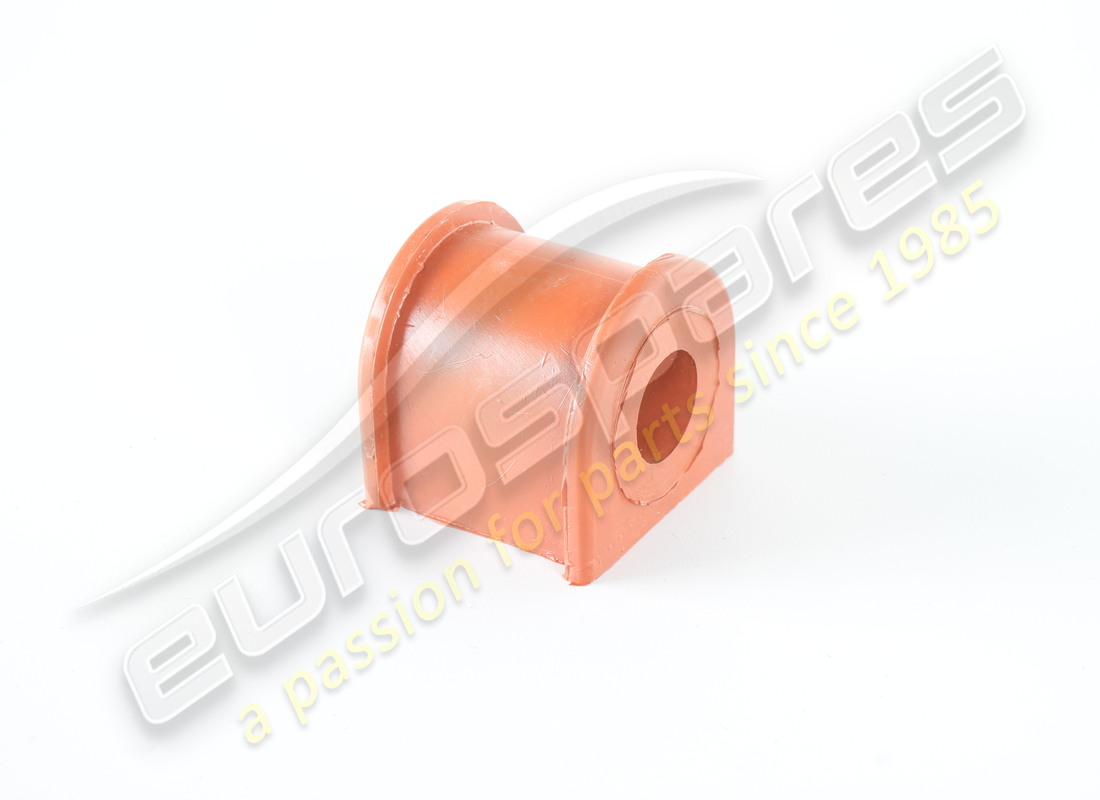

                                                                                                    MPN: 008921801
                                                                                                    ANTI ROLL BAR BUSH
                                                                                                    18 mm diameter
                                                                                                    from £23.87
                                                                                                    from £23.87
                                                                                                    # 033
                                                                                                    MPN: 008201006
                                                                                                    NUT
                                                                                                    from £4.73
                                                                                                    from £4.73
                                                                                                    # 034
                                                                                                    MPN: 005204568
                                                                                                    BARRA DI TORSIONE
                                                                                                    # 035
                                                                                                    MPN: 005204572
                                                                                                    JUBILEE CLIP
                                                                                                    from £85.86
                                                                                                    from £85.86
                                                                                                    # 036
                                                                                                    MPN: 008411005
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 037
                                                                                                    MPN: 008101014
                                                                                                    BOLT
                                                                                                    from £7.61
                                                                                                    from £7.61
                                                                                                    # 038
                                                                                                    MPN: 008201007
                                                                                                    NUT
                                                                                                    from £4.73
                                                                                                    from £4.73
                                                                                                    # 039
                                                                                                    MPN: 005101047
                                                                                                    JUBILEE CLIP
                                                                                                    from £68.41
                                                                                                    from £68.41
                                                                                                    # 040
                                                                                                    MPN: 005204575
                                                                                                    PLATE
                                                                                                    from £61.31
                                                                                                    from £61.31

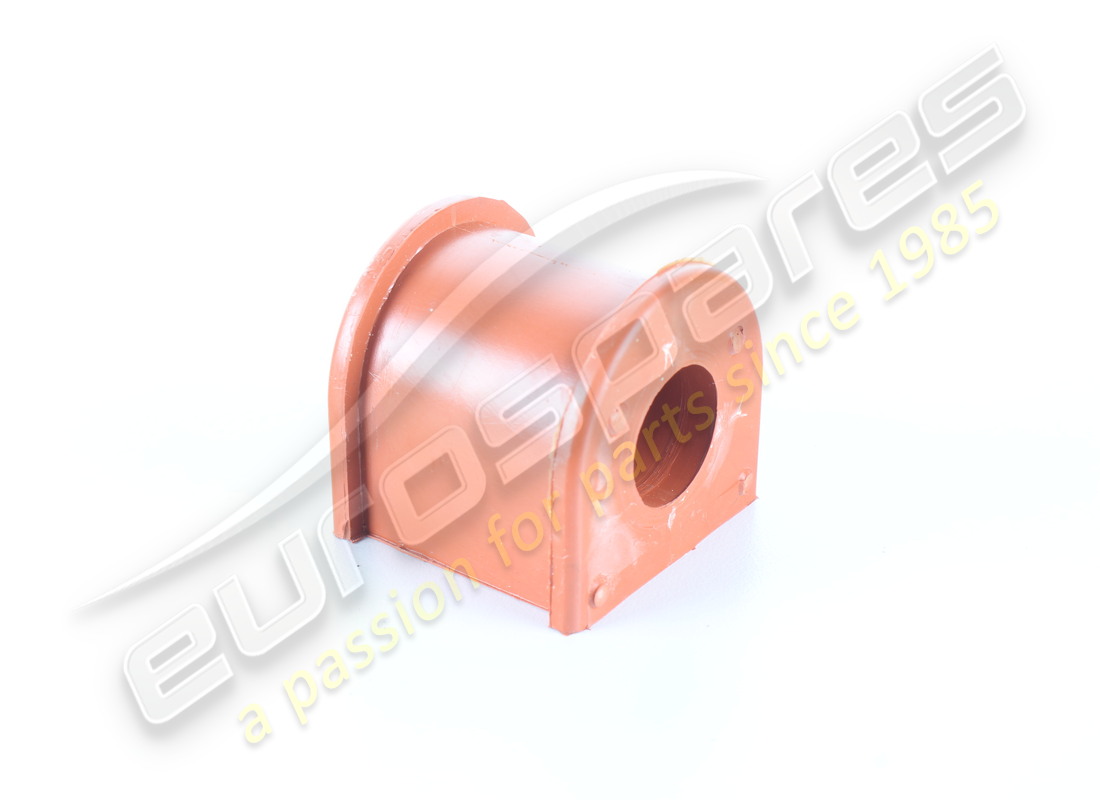

                                                                                                    # 041
                                                                                                    MPN: 008922002
                                                                                                    ANTI ROLL BAR BUSH
                                                                                                    20 mm diameter
                                                                                                    from £36.02
                                                                                                    from £36.02
                                                                                                    # 042
                                                                                                    MPN: 008201804
                                                                                                    NUT
                                                                                                    from £9.66
                                                                                                    from £9.66
                                                                                                    # 043
                                                                                                    MPN: 008401803
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 044
                                                                                                    MPN: 005210752
                                                                                                    CONTENITORE OR„
                                                                                                    from £79.73
                                                                                                    from £79.73
                                                                                                    # 045
                                                                                                    MPN: 008604801
                                                                                                    GOMMINO PARAPOLVERE
                                                                                                    from £0.58
                                                                                                    from £0.58
                                                                                                    # 046
                                                                                                    MPN: 008402801
                                                                                                    RALLA
                                                                                                    from £13.15
                                                                                                    from £13.15
                                                                                                    # 047
                                                                                                    MPN: 008802401
                                                                                                    BUSH
                                                                                                    from £5.66
                                                                                                    from £5.66
                                                                                                    # 048
                                                                                                    MPN: 005208155
                                                                                                    SPACER
                                                                                                    from £101.12
                                                                                                    from £101.12
                                                                                                    # 049
                                                                                                    MPN: 008101801
                                                                                                    BOLT
                                                                                                    from £34.76
                                                                                                    from £34.76
                                                                                                    # 050
                                                                                                    MPN: 005112242
                                                                                                    PROTEZIONE
                                                                                                    from £145.26
                                                                                                    from £145.26
                                                                                                    # 051
                                                                                                    MPN: 008880601
                                                                                                    INGRDSSATORE
                                                                                                    from £0.95
                                                                                                    from £0.95

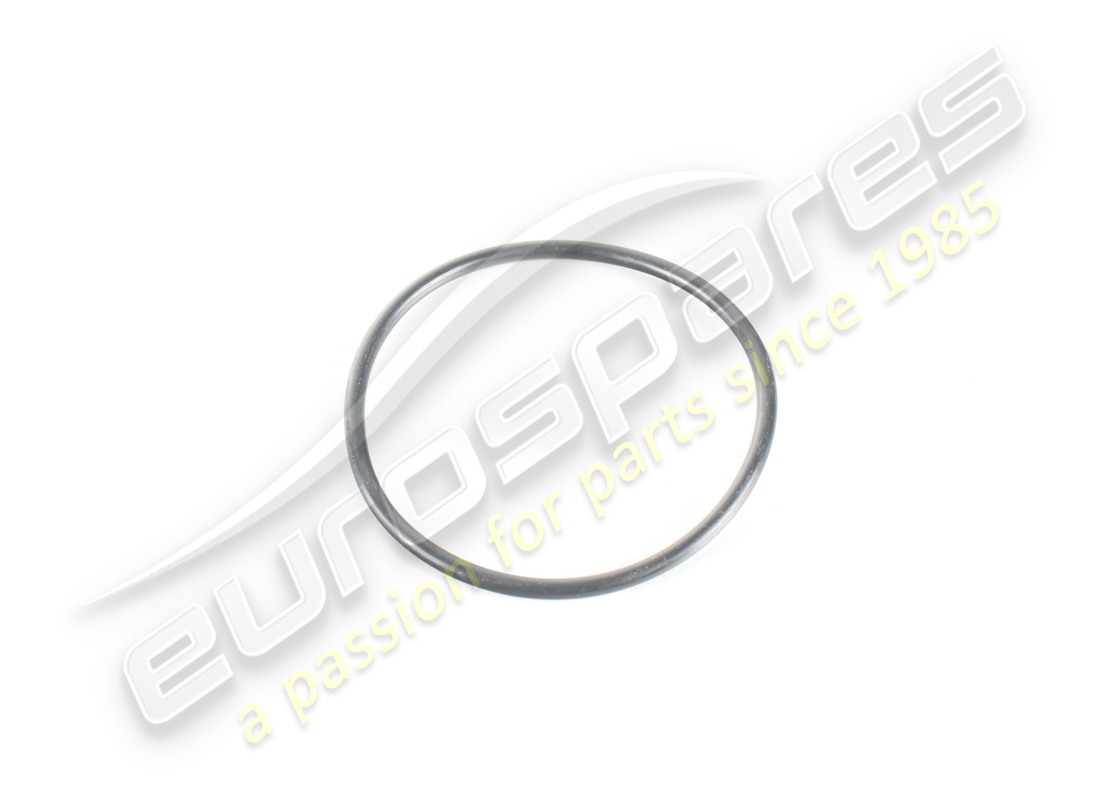

                                                                                                    # 052
                                                                                                    MPN: 005210753
                                                                                                    RING
                                                                                                    from £11.32
                                                                                                    from £11.32
