lamborghini diablo vt (1994) electrical system (valid for rh d. version - april 1994) parts diagram

107 - Electrical System (Valid for RH D. Version - April 1994)

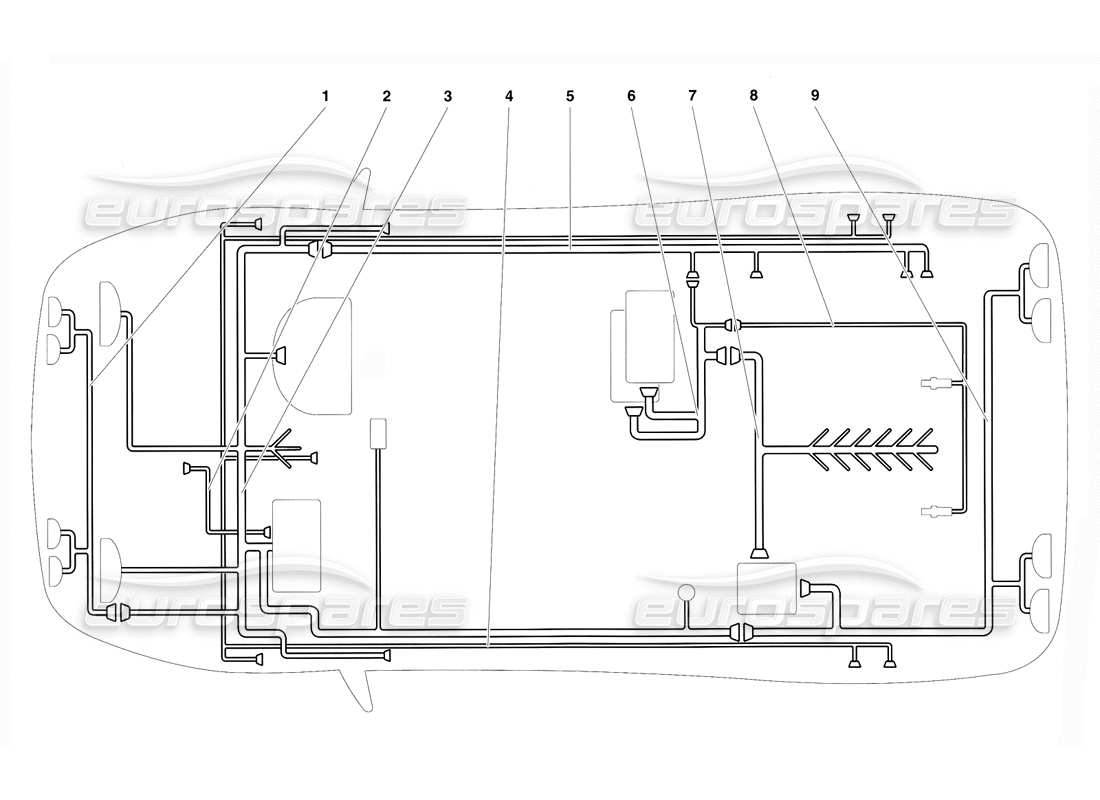

Lamborghini Diablo VT (1994) Electrical System (Valid for R.H.D. Version - April 1994) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006132499
harness
(Valid for RH D. version – April 1994) CABLAGGIO PARAURTI ANT.
from £1,954.09
from £1,954.09
# 002
MPN: 006132719
DIM-DIP HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO DIM-DIP
from £51.54
from £51.54
# 003
MPN: 006134639
MAIN HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO CENTRALE
# 004
MPN: 006134645
(KONI) HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO (KONI)
from £2,840.35
from £2,840.35
# 005
MPN: 006134640
CATALYST HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO CATALYST
# 006
MPN: 006132581
E.C.U. HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO CENTRALINE
# 007
MPN: 006134652
ENGINE HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO MOTORE
# 008
MPN: 006131363
OXIGEN SENS. HARN.
(Valid for RH D. version – April 1994) CABLAGGIO SONDE LAMBDA
from £106.95
from £106.95
# 009
MPN: 006134641
REAR HARNESS
(Valid for RH D. version – April 1994) CABLAGGIO POST.
