lamborghini diablo vt (1994) lights parts diagram

074 - Lights

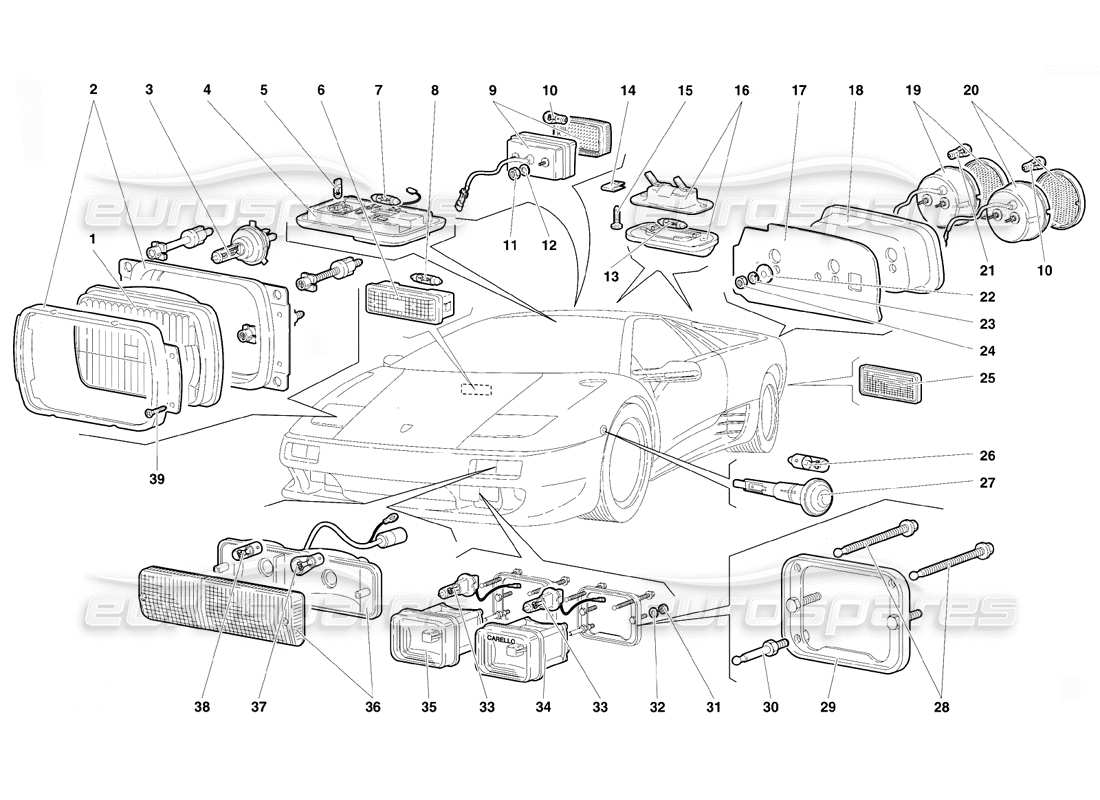

Lamborghini Diablo VT (1994) Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006331753
headlamp
PROIETTORE
from £119.32
from £119.32
# 002
MPN: 006331631
Frame
CORNICE
from £62.27
from £62.27
# 003
MPN: 006329694
BULB
LAMPADA
from £34.45
from £34.45
# 004
MPN: 006334454
CEILING LAMP
PLAFONIERA
from £1,335.88
from £1,335.88
# 005
MPN: 006617092
BULB
LAMPADA
Supersession
Supersession
# 006
MPN: 006329700
CEILING LAMP
PLAFONIERA BAULE
# 007
MPN: 006617095
BULB
LAMPADA
from £5.97
from £5.97
# 008
MPN: 006329698
BULB
LAMPADA
from £4.90
from £4.90
# 009
MPN: 0063001281
REVERSE LAMP (R.)
FANALE RETROMARCIA (DX)
from £49.03
from £49.03
# 009
MPN: 0063001282
REAR FOG LIGHT (L.)
RETRONEBBIA (SX)
from £53.39
from £53.39
This part replaces part number 006337097
# 010
MPN: 006617094
BULB
LAMPADA
from £5.35
from £5.35
# 011
MPN: N0211963
NUT
DADO
from £0.51
from £0.51
# 012
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 013
MPN: 006617095
BULB
LAMPADA
from £5.97
from £5.97
# 014
MPN: WHT003424
CLIP
MOLLETTA
from £0.60
from £0.60
# 015
MPN: 008700445
SCREW
VITE
from £0.53
from £0.53
# 016
MPN: 006328344
LICENCE PLATE LAMP
FANALE TARGA
from £28.65
from £28.65
# 017
MPN: 009411300
RIGHT LINING
ISOLAMENTO DX
from £119.02
from £119.02
# 017
MPN: 009411301
LEFT LINING
ISOLAMENTO SX
from £216.40
from £216.40
# 018
MPN: 009444002
RIGHT FRAME
CORNICE DX
# 018
MPN: 009444003
LEFT FRAME
CORNICE SX
# 019
MPN: 006329828
TAIL LAMP / BRAKE L.
FANALE POST. (POSIZIONE E STOP)
from £54.64
from £54.64
# 020
MPN: 006329829
TURNING LIGHT
INDICATORE Dl DIREZIONE
from £48.43
from £48.43
# 021
MPN: 006617091
BULB
LAMPADA
from £7.30
from £7.30
# 022
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 023
MPN: 008410611
WASHER
RONDELLA
from £0.51
from £0.51
# 024
MPN: N01100632
NUT
DADO
from £1.06
from £1.06
# 025
MPN: 006319022
REFLEX/REFLECTOR
CATADIOTTRO
from £140.73
from £140.73
# 026
MPN: 006329897
BULB
LAMPADA
from £1.73
from £1.73
# 027
MPN: 006329832
TURNING LIGHT
use (0R1050004 - sets of 2 pieces)
from £13.28
from £13.28
# 028
MPN: 009444202
ADJ/SCREW
VITE REGISTRO
from £7.26
from £7.26
# 029
MPN: 009444152
Frame
CORNICE
from £76.95
from £76.95
# 030
MPN: 009444201
ADJ/SCREW
VITE REGISTRO
from £6.97
from £6.97
# 031
MPN: 008200606
NUT
Supersession
Supersession
# 032
MPN: N01152427
WASHER
RONDELLA
from £0.47
from £0.47
This part replaces part number 008400606
# 033
MPN: 006329695
BULB
LAMPADA
from £10.45
from £10.45
# 034
MPN: 006329688
FOG LAMP
FOG LAMP (clear version)
from £301.80
from £301.80
# 034A
MPN: 006329688/A

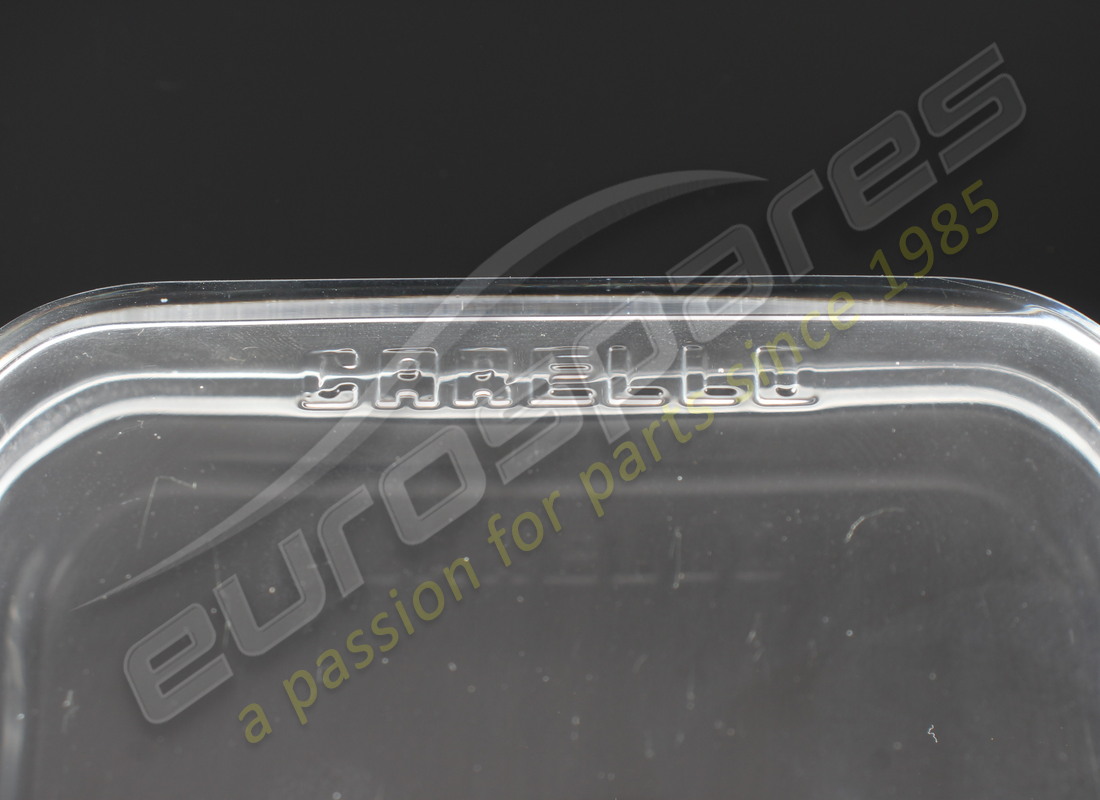

CARELLO FOG LAMP LENS
from £204.75
from £204.75
# 035
MPN: 006329689
FLASH LIGHT
FLASH DIURNO
from £290.20
from £290.20
# 035A
MPN: 006329689/A
CARELLO FOG LAMP LENS
# 036

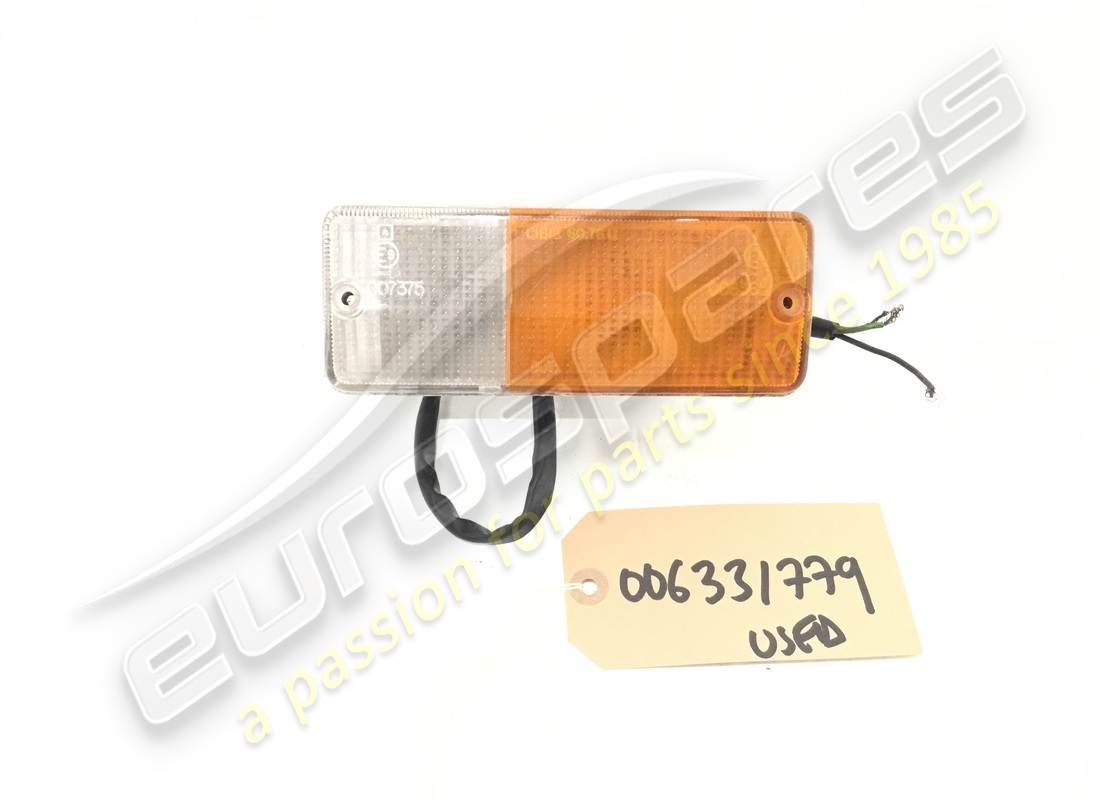

MPN: 006331779

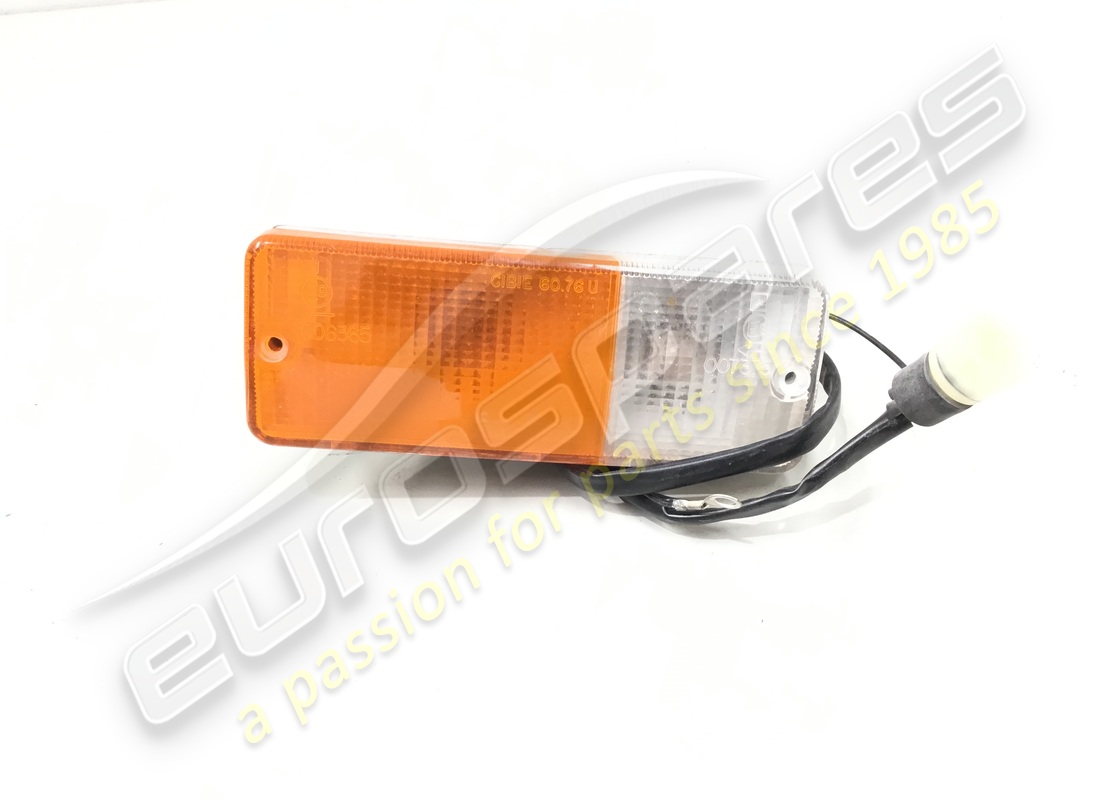

LEFT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. SX
from £186.24
from £186.24
# 036
MPN: 006331780
RIGHT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. DX
from £186.24
from £186.24
# 037
MPN: 006617094
BULB
LAMPADA
from £5.35
from £5.35
# 038
MPN: 006329696
BULB
LAMPADA
from £1.29
from £1.29
# 039
MPN: 008700304
SCREW
VITE
from £0.51
from £0.51
