070 - fuel system

Lamborghini Diablo VT (1994) Fuel System Parts Diagram

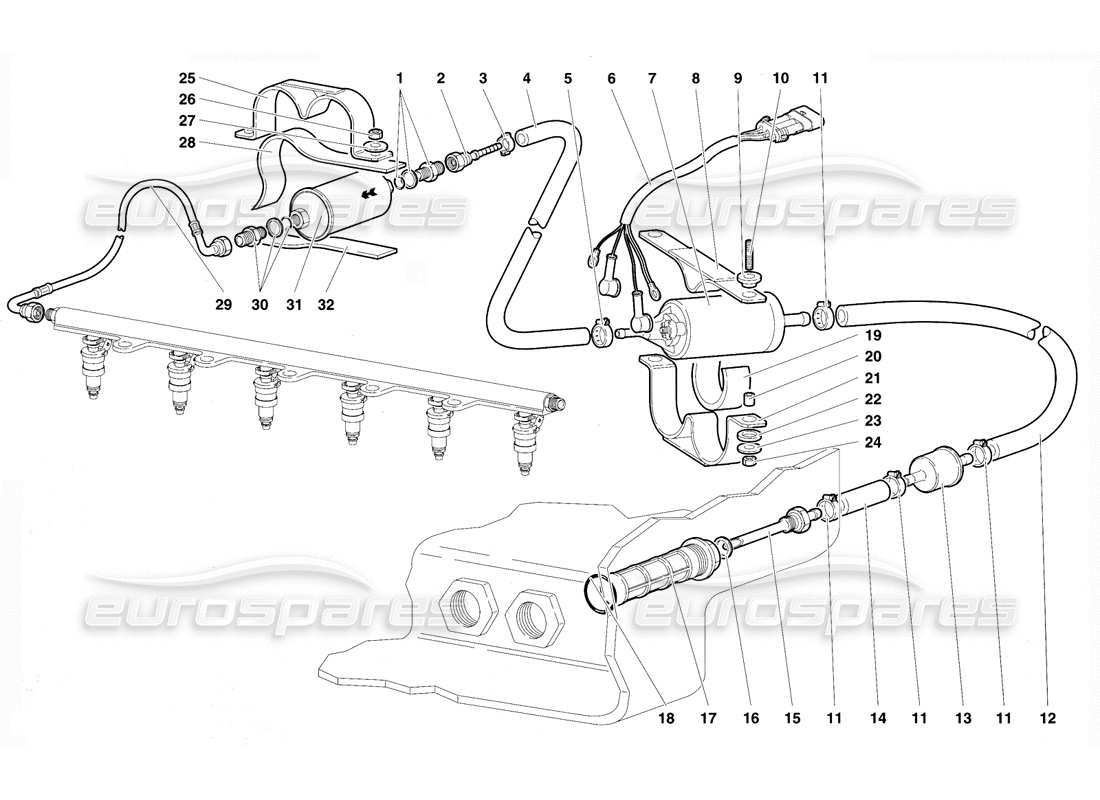

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 005122740
        CONNECTION
        RACCORDO
        from £55.23
        from £55.23
        # 002
        MPN: 006227630
        CONNECTION
        RACCORDO
        from £8.43
        from £8.43
        # 003
        MPN: 008830902
        STRAP
        FASCETTA
        from £3.28
        from £3.28
        # 004
        MPN: 006230218
        PIPE
        Tubo
        from £31.52
        from £31.52
        # 005
        MPN: 008831117
        STRAP
        FASCETTA
        Supersession
        Supersession
        # 006
        MPN: 006130194
        ELECT CABLE
        CABLAGGIO POMPE BENZIMA
        from £26.29
        from £26.29
        # 007
        MPN: 002024398

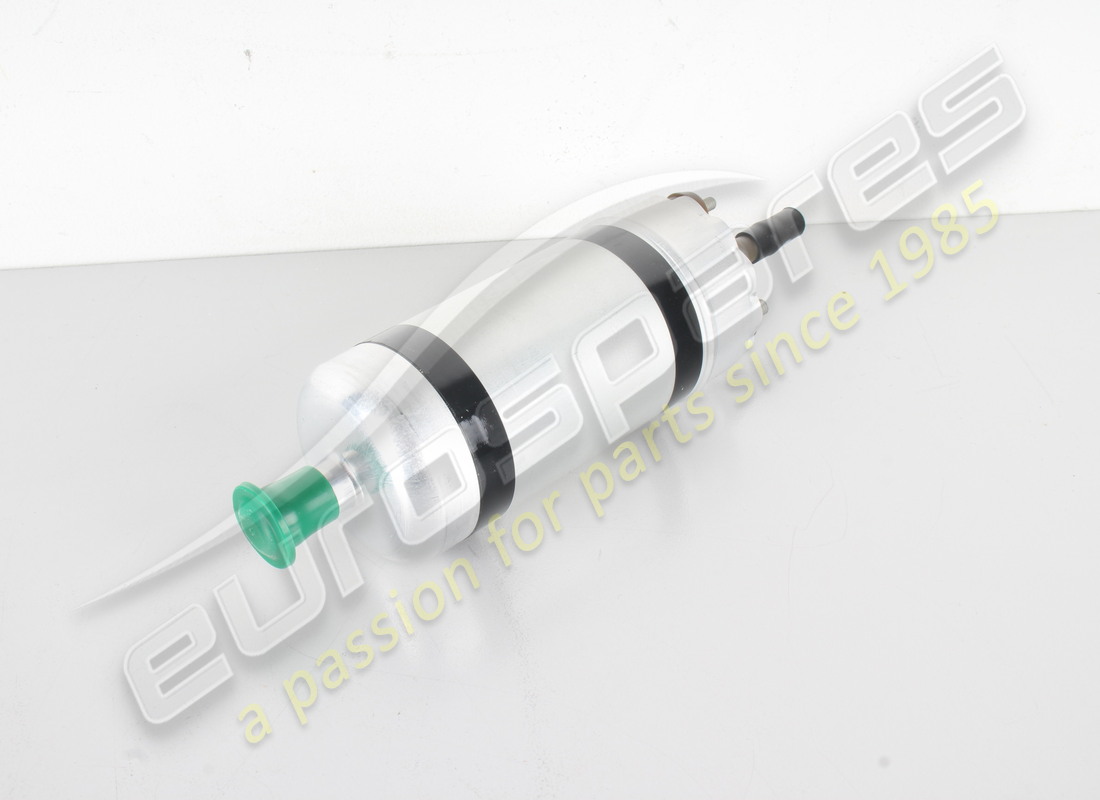

        fuel pump
        POMPA ALIMENTAZIONE
        from £429.73
        from £429.73
        # 008
        MPN: 006229533
        PLATE
        PIASTRA
        from £38.35
        from £38.35
        # 009
        MPN: 001701495
        RUBBER RING
        ANELLO GOMMA
        from £32.99
        from £32.99
        # 010
        MPN: 008300803
        STUD
        PRIGIONIERO
        from £7.78
        from £7.78
        # 011
        MPN: 008831320
        STRAP
        FASCETTA
        from £2.06
        from £2.06
        # 012
        MPN: 006230225
        PIPE
        Tubo
        from £12.62
        from £12.62
        # 013
        MPN: 006229221
        FILTER
        FILTRO
        from £45.69
        from £45.69
        # 014
        MPN: 006230226
        PIPE
        Tubo
        from £29.23
        from £29.23
        # 015
        MPN: 006230175
        PIPE
        TUBO PESCANTE
        from £232.15
        from £232.15
        # 016
        MPN: 008402007
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        # 017
        MPN: 006229580
        NET
        PREFILTRO
        from £677.38
        from £677.38
        # 018
        MPN: 008603703
        SEAL
        ANELLO TENUTA
        from £13.11
        from £13.11
        # 019
        MPN: 006226900
        GASKET
        Guarnizione
        from £15.05
        from £15.05
        # 020
        MPN: 001701592
        DOWEL
        GRAND
        from £11.72
        from £11.72
        # 021
        MPN: 006229532
        STRAP
        FASCETTA
        from £29.10
        from £29.10
        # 022
        MPN: WHT001189
        RUBBER RING
        from £2.38
        from £2.38
        This part replaces part number 001707163
        # 023
        MPN: WHT001942
        WASHER
        RONDELLA
        from £2.18
        from £2.18
        # 024
        MPN: 008200804
        NUT
        DADO
        from £0.73
        from £0.73
        # 025
        MPN: 006230214
        STRAP
        FASCETTA
        # 026
        MPN: 008200606
        NUT
        Supersession
        Supersession
        # 027
        MPN: 008400607
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 028
        MPN: 410201349
        GASKET
        Guarnizione
        from £19.89
        from £19.89
        # 029
        MPN: 006231552
        PIPE
        TUBO PER BANCATA 1-6
        from £145.26
        from £145.26
        # 029
        MPN: 006231554
        PIPE
        TUBO PER BANCATA 7-12
        from £85.26
        from £85.26
        # 030
        MPN: 006230564
        CONNECTION
        RACCORDO
        Supersession
        Supersession
        # 031
        MPN: 400201511A

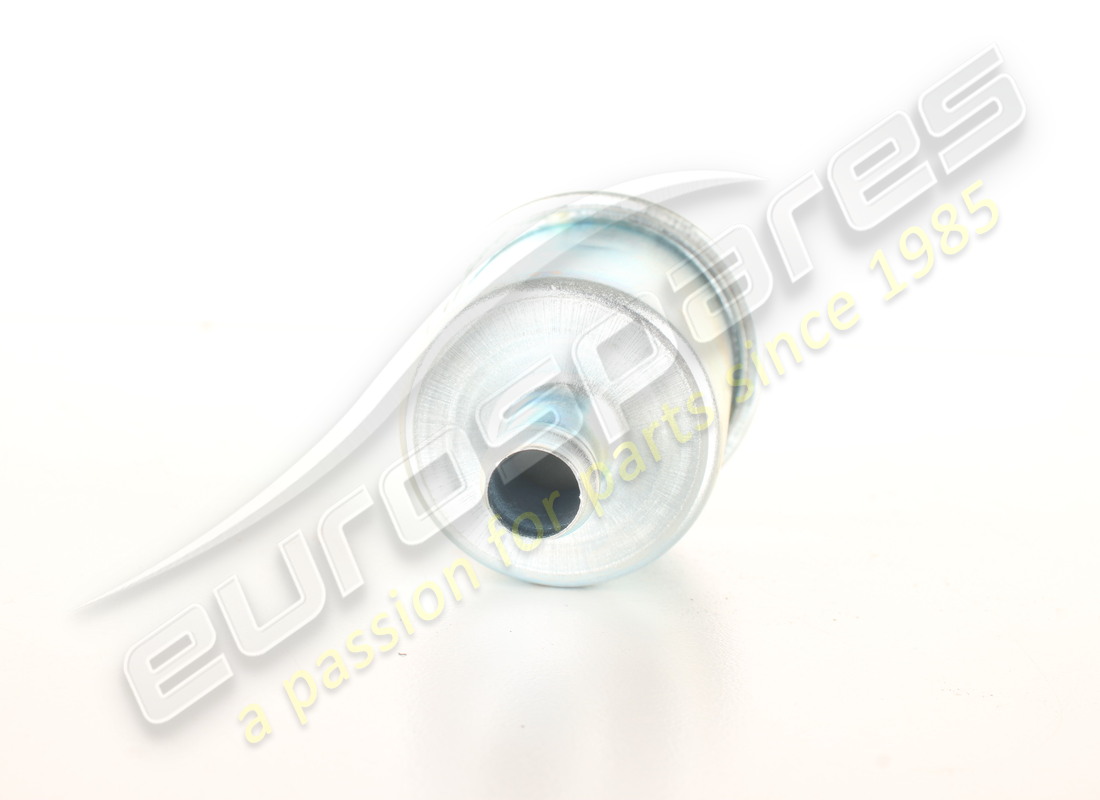

        FUEL FILTER
        from £32.95
        from £32.95
        This part replaces part number 002030563 - and 1 more. Click to view details
        # 032
        MPN: 410201196
        GASKET
        Guarnizione
        from £3.03
        from £3.03
