lamborghini diablo sv (1999) external rear view mirrors parts diagram

97.01.00 - EXTERNAL REAR VIEW MIRRORS

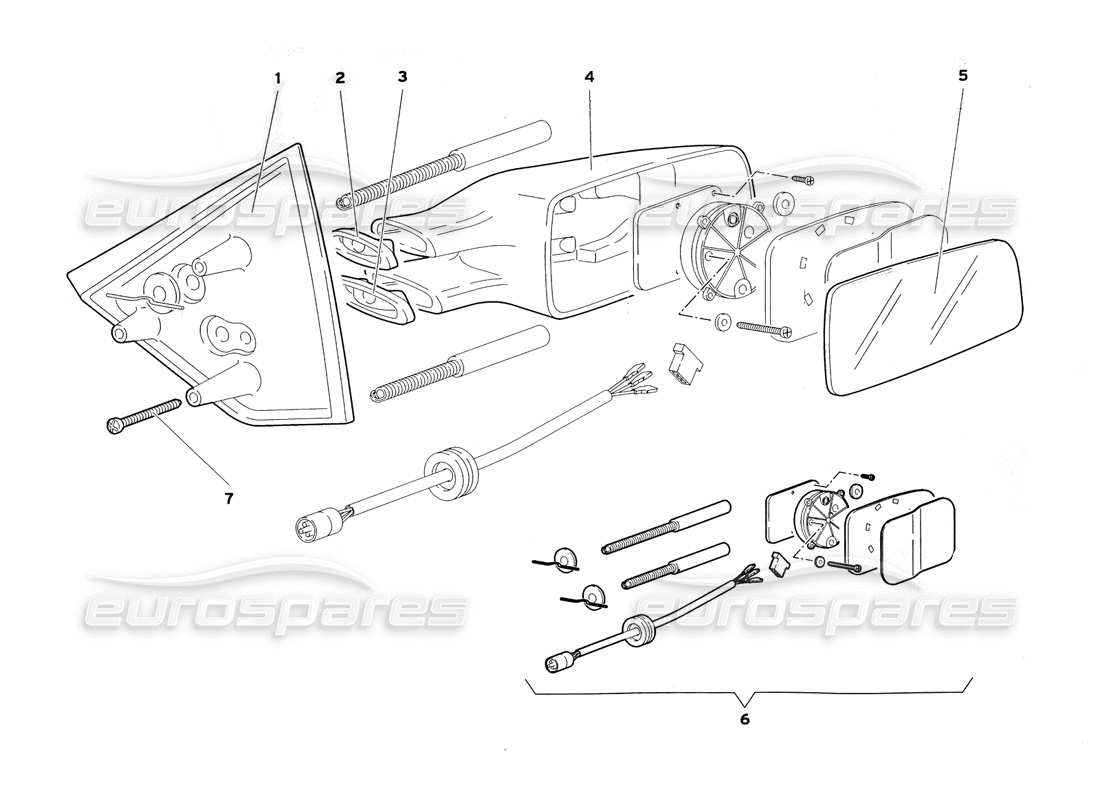

Lamborghini Diablo SV (1999) External Rear View Mirrors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009990400
R.EXTE. MIRROR BASE
BASE SPECCHIO RETR. DX
from £177.84
from £177.84
# 001
MPN: 009990401
EXTE. MIRROR BASE
BASE SPECCHIO RETR. SX
from £185.46
from £185.46
# 001
MPN: 009990406
R. VIEW MIRROR BASE
(Valid for GB - July 1999) BASE RETROVISORE DX
from £177.84
from £177.84
# 001
MPN: 009990406
R. VIEW MIRROR BASE
(Valid for AUSTRALIA - July 1999) BASE RETROVISORE DX
from £177.84
from £177.84
# 001
MPN: 009990407
L. VIEW MIRROR BASE
(Valid for GB - July 1999) BASE RETROVISORE SX
from £177.84
from £177.84
# 001
MPN: 009990407
L. VIEW MIRROR BASE
(Valid for AUSTRALIA - July 1999) BASE RETROVISORE SX
from £177.84
from £177.84
# 002
MPN: 009490426
RIGHT UPPER GASKET
UPPER RIGHT SEAL
from £62.26
from £62.26
# 002
MPN: 009490428
LEFT UPPER GASKET
GUARNIZIONE SUPERIORE SX
from £62.26
from £62.26
# 003
MPN: 009490427
R. LOWER GASKET
LOWER RIGHT SEAL
from £105.30
from £105.30
# 003
MPN: 009490429
L. LOWER GASKET
GUARNIZIONE INFERIORE SX
from £62.26
from £62.26
# 004
MPN: 009490471
RIGHT MIRROR BODY
RIGHT MIRROR BODY
from £612.17
from £612.17
# 004
MPN: 009490472
LEFT MIRROR BODY
CORPO SPECCHIO SX
from £194.13
from £194.13
# 004
MPN: 009490473
RIGHT MIRROR BODY
(Valid for GB - July 1999) CORPO SPECCHIO DX
from £580.17
from £580.17
# 004
MPN: 009490473
RIGHT MIRROR BODY
(Valid for AUSTRALIA - July 1999) CORPO SPECCHIO DX
from £580.17
from £580.17
# 004
MPN: 009490474
'SLEFT MIRROR BODY
(Valid for GB - July 1999) CORPO SPECCHIO SX
from £580.17
from £580.17
# 004
MPN: 009490474
LEFT MIRROR BODY
(Valid for AUSTRALIA - July 1999) CORPO SPECCHIO SX
from £580.17
from £580.17
# 005
MPN: 009490410
RIGHT MIRROR
(Valid for USA - July 1999) SPECCHIO DX
from £21.18
from £21.18
# 005
MPN: 009490410
LEFT MIRROR
(Valid for CANADA - July 1999) SPECCHIO SX
from £21.18
from £21.18
# 005
MPN: 009490411
LEFT MIRROR
(Valid for USA - July 1999) SPECCHIO SX
from £108.09
from £108.09
# 005
MPN: 009490411
RIGHT MIRROR
(Valid for CANADA - July 1999) SPECCHIO DX
from £108.09
from £108.09
# 005
MPN: 009490412
RIGHT MIRROR GLASS
from £108.09
from £108.09
# 005
MPN: 009490413
L. REAR VIEW MIRROR
SPECCHIO SX
from £44.78
from £44.78
# 006
MPN: 600949005
L. VIEW MIRRORKIT
KIT SPECCH. RETR. SX
from £2,727.95
from £2,727.95
# 006
MPN: 600949006
RIGHT R.VIEW MIR. KIT
KIT SPECCH. RETR. DX
from £2,727.95
from £2,727.95
# 007
MPN: 008700329
SCREW
VITE
from £0.52
from £0.52
