lamborghini diablo sv (1999) engine oil filter and thermostat (valid for usa and canada - july 1999) parts diagram

71.96.15.03.00 - Engine Oil Filter and Thermostat (Valid for USA and Canada - July 1999)

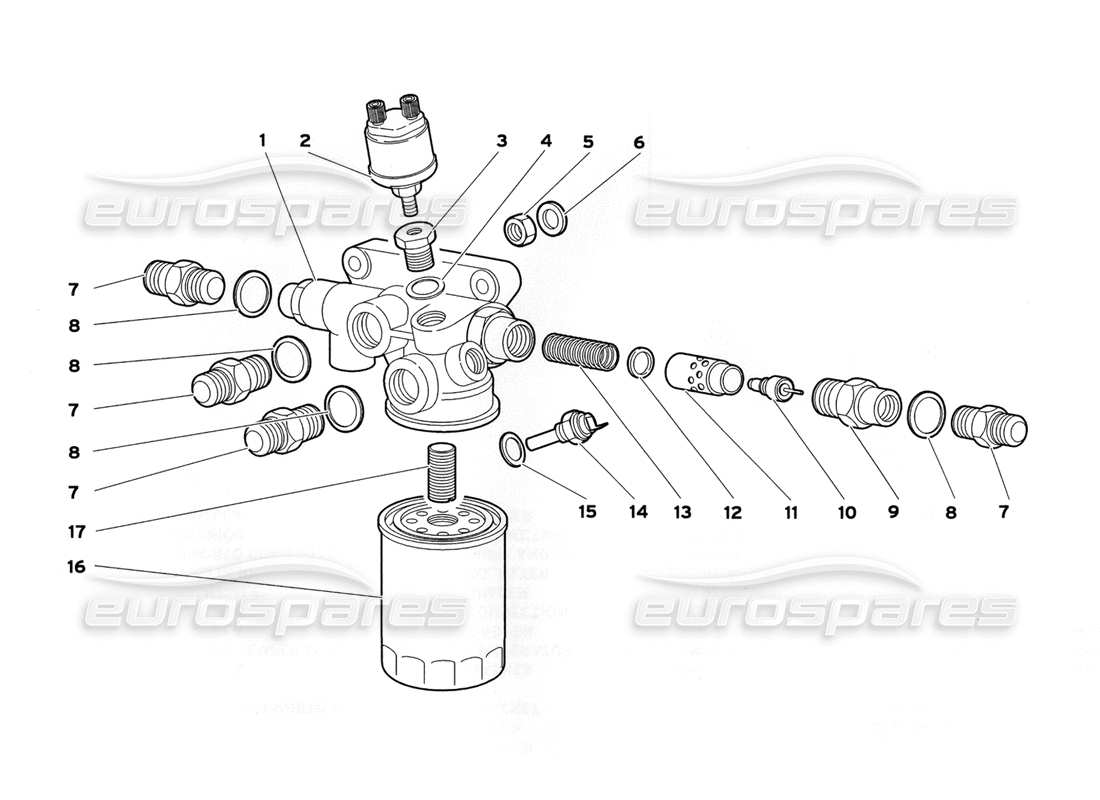

Lamborghini Diablo SV (1999) Engine Oil Filter and Thermostat (Valid for USA and Canada - July 1999) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001529644
VALVE HOUSING
(Valid for USA and CANADA - July 1999) CORPO VALVOLA TERMOSTATICA
from £286.04
from £286.04
# 002
MPN: 001530303
OIL PRESSURE SENS.
(Valid for USA and CANADA - July 1999) SENSORE PRESSIONE OLIO
from £237.96
from £237.96
# 003
MPN: 001530309
CONNECTION
(Valid for USA and CANADA - July 1999) RIDUZIONE
from £24.00
from £24.00
# 004
MPN: 008402202
WASHER
(Valid for USA and CANADA - July 1999) RONDELLA
from £2.69
from £2.69
# 005
MPN: 008200804
NUT
(Valid for USA and CANADA - July 1999) DADO
from £0.72
from £0.72
# 006
MPN: 008400801
WASHER
(Valid for USA and CANADA - July 1999) RONDELLA
Supersession
Supersession
# 007
MPN: 001529610
CONNECTION
(Valid for USA and CANADA - July 1999) RACCORDO
from £32.39
from £32.39
# 008
MPN: 008403007
WASHER
(Valid for USA and CANADA - July 1999) RONDELLA
from £0.73
from £0.73
# 009
MPN: 001530040
CONNECTION
(Valid for USA and CANADA - July 1999) RACCORDO
from £101.16
from £101.16
# 010
MPN: 001536755
TEMPERATURE SENS.
(Valid for USA and CANADA - July 1999) SENSORE TEMPERATURA
from £294.34
from £294.34
# 011
MPN: 001530037
THERMOSTATIC VALVE
(Valid for USA and CANADA - July 1999) VALVOLA TERMOSTATICA
from £151.32
from £151.32
# 012
MPN: 001530761
WASHER
(Valid for USA and CANADA - July 1999) RONDELLA
from £20.49
from £20.49
# 013
MPN: 001530038
SPRING
(Valid for USA and CANADA - July 1999) MOLLA VALVOLA TERMOSTATICA
from £12.40
from £12.40
# 014
MPN: 001530301
TEMPERATURE SENS.
(Valid for USA and CANADA - July 1999) SENSORE TEMPERATURA OLIO
from £54.89
from £54.89
# 015
MPN: 008401425
WASHER
(Valid for USA and CANADA - July 1999) RONDELLA
Supersession
Supersession
# 017
MPN: 001523587
THREADED BUSHING
(Valid for USA and CANADA - July 1999) BOCCOLA FILETTATA
from £20.23
from £20.23
