63.01.00 - Lights (When Ordering State Whether Car Has Carbon Protection)

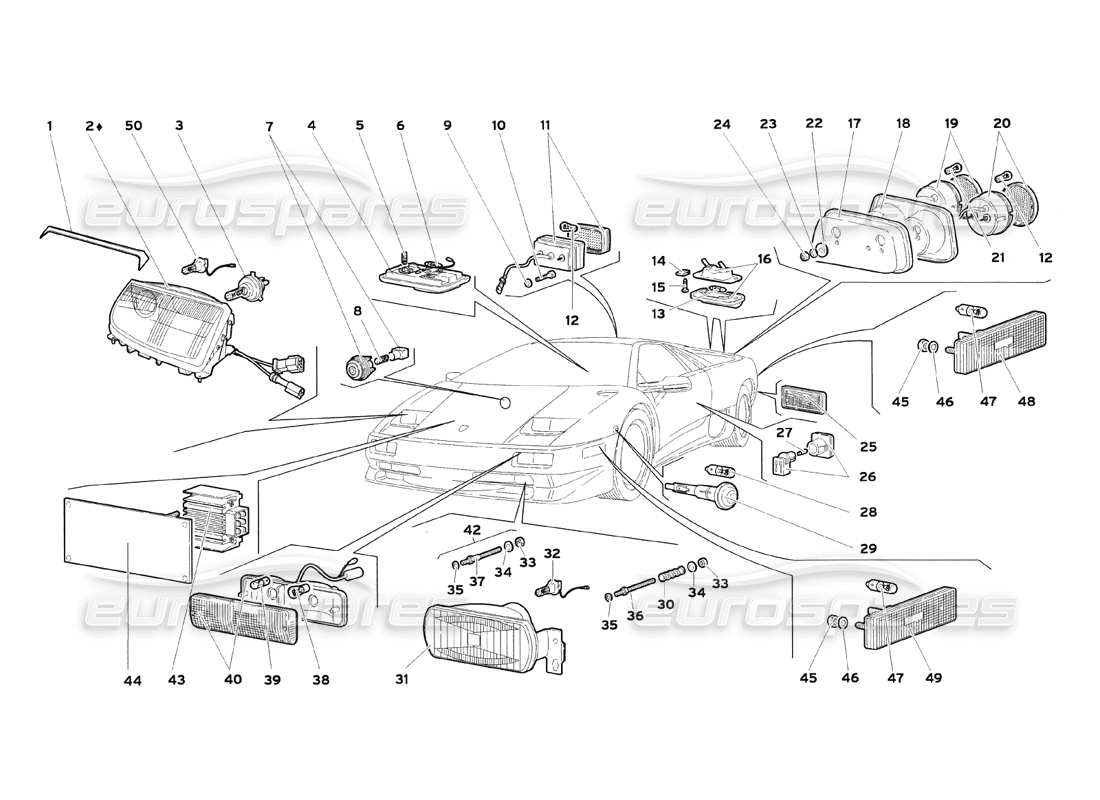

Lamborghini Diablo SV (1999) Lights (When Ordering State Whether Car Has Carbon Protection) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0063004609
CARBON GUARDS
(Valid for USA - July 1999) COPERTURA IN CARBONIC DX
# 001
MPN: 0063004609
CARBON GUARDS
(Valid for CANADA - July 1999) COPERTURA IN CARBONIC OX
# 001
MPN: 0063004610
CARBON GUARDS
(Valid for USA - July 1999) COPERTURA IN CARBONIC SX
# 001
MPN: 0063004610
CARBON GUARDS
(Valid for CANADA - July 1999) COPERTURA IN CARBONIC SX
# 001
MPN: 0063004625
CARBON GUARDS
COPERTURA IN CARBONIC OX
# 001
MPN: 0063004626
CARBON GUARDS
COPERTURA IN CARBONIC SX

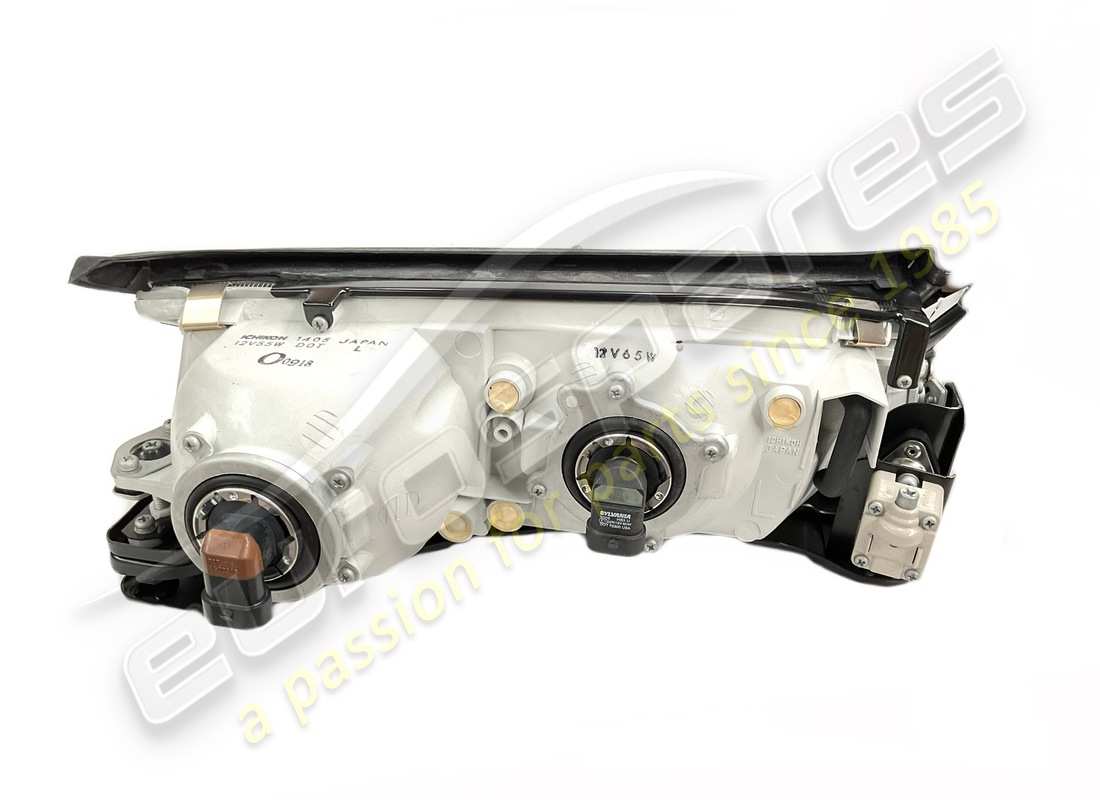

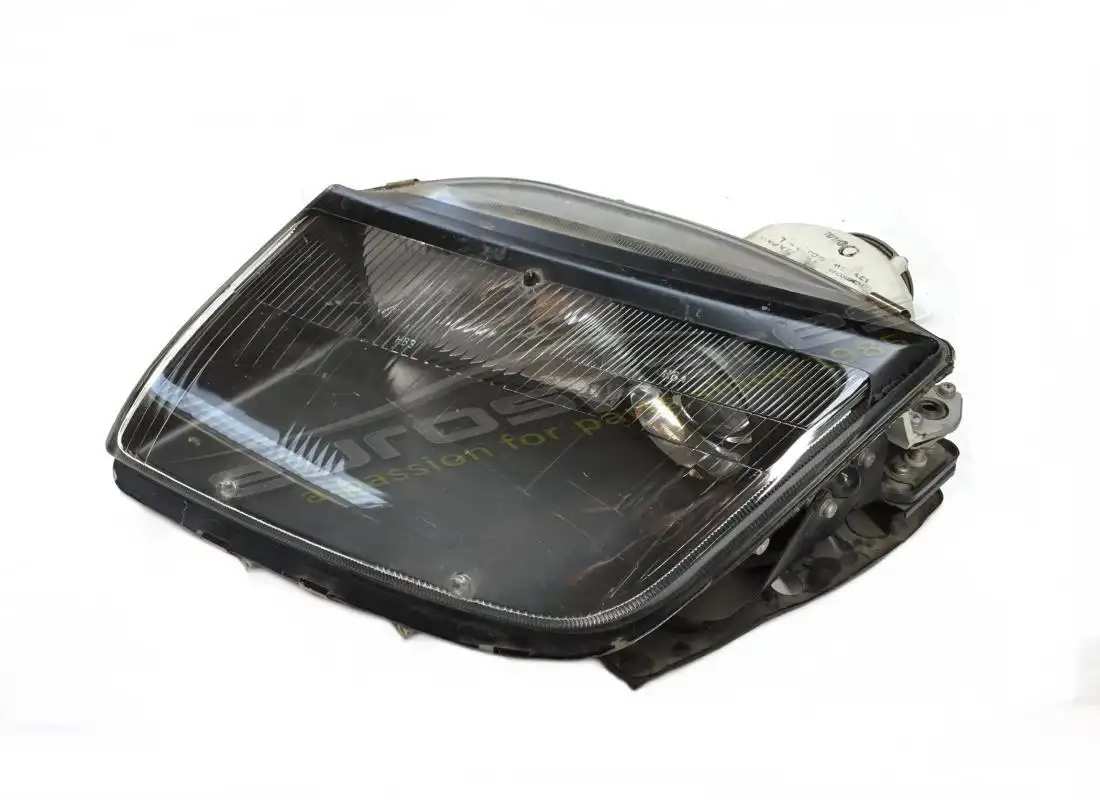

# 002
MPN: 0063002150
headlamp
(Valid for GB - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE DX
# 002
MPN: 0063002150
headlamp
(Valid for AUSTRALIA - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE DX
# 002
MPN: 0063002150
headlamp
(Valid for JAPAN - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE DX
# 002
MPN: 0063002151
headlamp
(Valid for GB - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE SX
from £650.86
from £650.86
# 002
MPN: 0063002151
headlamp
(Valid for AUSTRALIA - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE SX
from £650.86
from £650.86
# 002
MPN: 0063002151
headlamp
(Valid for JAPAN - July 1999) (When ordering, state whether the car has carbon protection or not) PROIETTORE SX
from £650.86
from £650.86
# 002
MPN: 0063002160
headlamp
(Valid for USA - July 1999) PROIETTORE DX
from £1,044.68
from £1,044.68
# 002
MPN: 0063002160
headlamp
(Valid for CANADA - July 1999) PROIETTORE DX
from £1,044.68
from £1,044.68
# 002
MPN: 0063002162
headlamp
(Valid for USA - July 1999) PROIETTORE SX
from £1,044.68
from £1,044.68
# 002
MPN: 0063002162
headlamp
(Valid for CANADA - July 1999) PROIETTORE SX
from £1,044.68
from £1,044.68
# 002
MPN: 0063004644
headlamp
RIGHT PROJECTOR
from £626.86
from £626.86
# 002
MPN: 0063004645
headlamp
PROIETTORE SX
from £210.00
from £210.00
# 003
MPN: 006329450
BULB
LAMPADA
from £17.54
from £17.54
# 004
MPN: 006337294
CEILING LAMP
PLAFONIERA
from £44.95
from £44.95
# 005
MPN: 006329698
BULB
LAMPADA
from £4.90
from £4.90
# 006
MPN: 006617095
BULB
LAMPADA
from £5.97
from £5.97
# 007
MPN: 006337066
CEILING LAMP
PLAFONIERA
from £10.71
from £10.71
# 008
MPN: 006617092
BULB
LAMPADA
Supersession
Supersession
# 009
MPN: WHT001187
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400502
# 010
MPN: 008700502
SCREW
VITE
from £0.53
from £0.53
# 011
MPN: 0063001281
REVERSE LAMP
REVERSE LIGHT
from £49.03
from £49.03
# 011
MPN: 0063001282
REAR FOG LIGHT
RETRONEBBIA
from £53.39
from £53.39
This part replaces part number 006337097
# 012
MPN: 006617094
BULB
LAMPADA
from £5.35
from £5.35
# 013
MPN: 006617095
BULB
LAMPADA
from £5.97
from £5.97
# 014
MPN: WHT003424
CLIP
MOLLETTA
from £0.60
from £0.60
# 015
MPN: 008700445
SCREW
VITE
from £0.53
from £0.53
# 016
MPN: 006328344
LICENCE PLATE LAMP
FANALE TARGA
from £28.65
from £28.65
# 016
MPN: 006331461
LICENCE PLATE LAMP
(Valid for USA - July 1999) FANALE TARGA
from £39.95
from £39.95
# 016
MPN: 006331461
LICENCE PLATE LAMP
(Valid for CANADA - July 1999) FANALE TARGA
from £39.95
from £39.95
# 017
MPN: 009911300
RIGHT PANEL
PANNELLO DX
from £633.44
from £633.44
# 017
MPN: 009911301
LEFT PANEL
PANNELLO SX
from £633.44
from £633.44
# 018
MPN: 009444005
RIGHT FRAME
CORNICE DX
from £156.08
from £156.08
# 018
MPN: 009444006
LEFT FRAME
CORNICE SX
from £149.66
from £149.66
# 019
MPN: 006329828
TAIL LAMP/BRAKE L.
FANALE POST. (POSIZIONE E STOP)
from £54.64
from £54.64
# 020
MPN: 006329829
TURNING LIGHT
INDICATORE Dl DIREZIONE
from £48.43
from £48.43
# 021
MPN: 006617091
BULB
LAMPADA
from £7.30
from £7.30
# 022
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 023
MPN: 008410611
WASHER
RONDELLA
from £0.51
from £0.51
# 024
MPN: N01100632
NUT
DADO
from £1.06
from £1.06
# 025
MPN: 006319022
REFLEX/REFLECTOR
CATADIOTTRO
from £140.73
from £140.73
# 026
MPN: 410947413
CEILING LAMP
PLAFONIERA PORTA
from £52.40
from £52.40
# 027
MPN: 006338123
BULB
LAMPADA
from £1.85
from £1.85
# 028
MPN: 006329897
BULB
LAMPADA
from £1.73
from £1.73
# 029
MPN: 006329832
TURNING LIGHT
use (0R1050004 - sets of 2 pieces)
from £13.28
from £13.28
# 030
MPN: 002403369
SPRING
MOLLA
from £20.81
from £20.81
# 031
MPN: 006336821
RIGHT FLASH LIGHT
FLASH DIURNO DX
from £248.16
from £248.16
# 031
MPN: 006336822
LEFT FLASH LIGHT
FLASH DIURNO SX
from £248.16
from £248.16
# 032
MPN: 006329695
BULB
LAMPADA
from £10.45
from £10.45
# 033
MPN: N0211963
NUT
DADO
from £0.50
from £0.50
# 034
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 035
MPN: 008100508
WASHER
RONDELLA
from £3.65
from £3.65
# 036
MPN: 006337296
STUD
COLONNETTA
from £10.24
from £10.24
# 037
MPN: 006337297
STUD
COLONNETTA
from £10.24
from £10.24
# 038
MPN: 006617094
BULB
LAMPADA
from £5.35
from £5.35
# 039
MPN: 006329696
BULB
LAMPADA
from £1.29
from £1.29
# 040
MPN: 006331779
LEFT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. SX
from £186.24
from £186.24
# 040
MPN: 006331780
RIGHT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. DX
from £186.24
from £186.24
# 041
MPN: 008700304
SCREW
VITE
from £0.51
from £0.51
# 042
MPN: 006336823
SCREW KIT
KIT VITI REG. FARI PROFONDITA
from £59.75
from £59.75
# 043
MPN: 001627472
DIM-DIP E.C.U.
(Valid for GB - July 1999) CENTRALINA DIM-DIP
from £84.98
from £84.98
# 043
MPN: 001627472
DIM-DIP E.C.U.
(Valid for AUSTRALIA - July 1999) CENTRALINA DIM-DIP
from £84.98
from £84.98
# 044
MPN: 006132696
SUPPORT
(Valid for GB - July 1999) SUPPORTO
from £21.07
from £21.07
# 044
MPN: 006132696
SUPPORT
(Valid for AUSTRALIA - July 1999) SUPPORTO
from £21.07
from £21.07
# 045
MPN: N0211963
NUT
(Valid for CANADA - July 1999) DADO
from £0.48
from £0.48
# 045
MPN: N0211963
NUT
(Valid for USA - July 1999) DADO
from £0.48
from £0.48
# 046
MPN: 008400501
WASHER
(Valid for USA - July 1999) RONDELLA
from £0.51
from £0.51
# 046
MPN: 008400501
WASHER
(Valid for CANADA - July 1999) RONDELLA
from £0.51
from £0.51
# 047
MPN: 006617092
BULB
(Valid for USA - July 1999) LAMPADA
Supersession
Supersession
# 047
MPN: 006617092
BULB
(Valid for CANADA - July 1999) LAMPADA
Supersession
Supersession

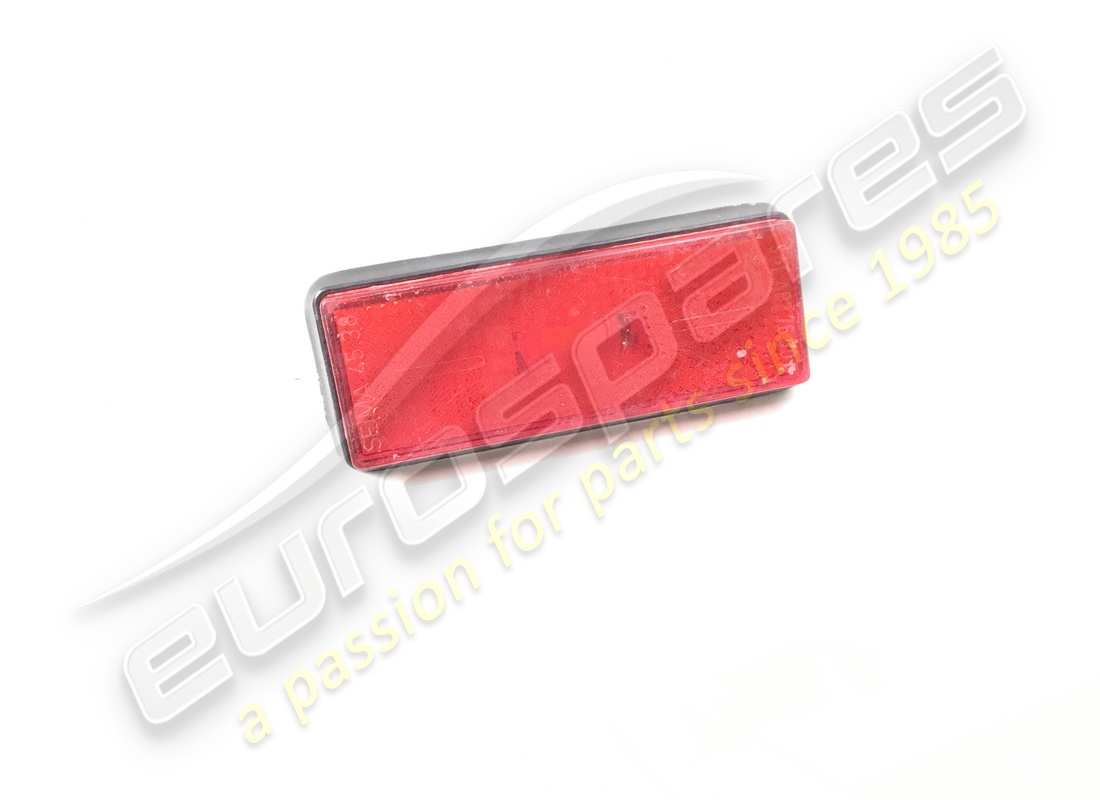

# 048
MPN: 006331782
SIDE MARKER IN RED
(Valid for USA - July 1999) SIDEMARKER POST. (ROSSO)
from £23.90
from £23.90
This part replaces part number 006320487 - and 1 more. Click to view details
# 048
MPN: 006331782
SIDE MARKER IN RED
(Valid for CANADA - July 1999) SIDEMARKER POST. (ROSSO)
from £23.90
from £23.90
This part replaces part number 006320487 - and 1 more. Click to view details

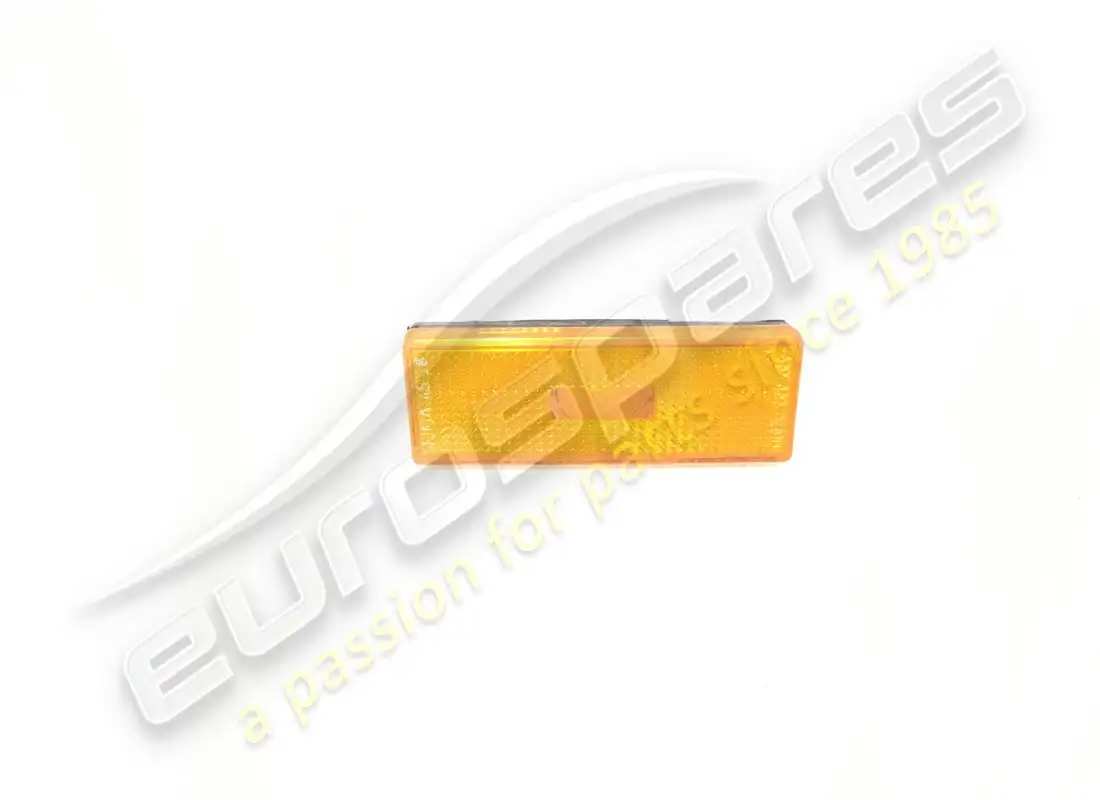

# 049
MPN: 006331781
F. SIDEMAR.
(Valid for USA - July 1999) SIDEMARKER ANT. (ARANCIO)
from £21.69
from £21.69
This part replaces part number 006320486 - and 1 more. Click to view details
# 049
MPN: 006331781
F. SIDEMAR.
(Valid for CANADA - July 1999) SIDEMARKER ANT. (ARANCIO)
from £21.69
from £21.69
This part replaces part number 006320486 - and 1 more. Click to view details
