62.02.00 - Fuel System (for Tank Cod.0062001156 See Table 62.04.00)

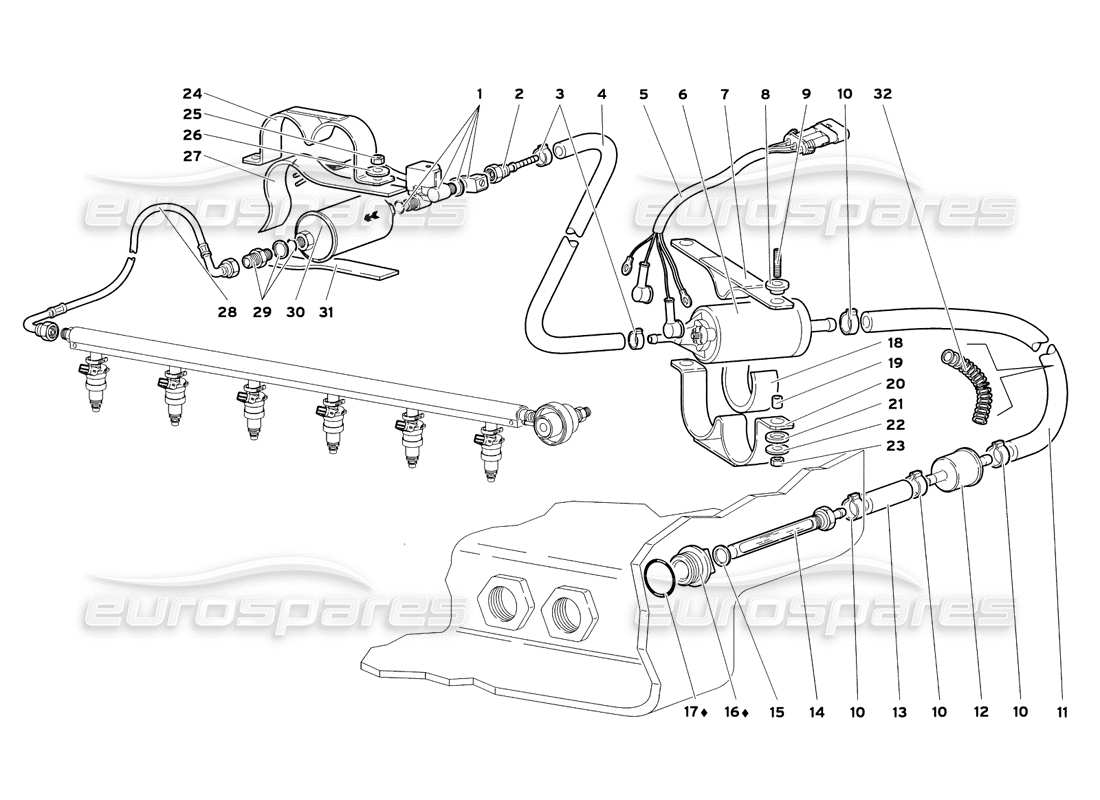

Lamborghini Diablo SV (1999) Fuel System (for Tank Cod.0062001156 See Table 62.04.00) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006138349
ELECTRO-VALVE KIT
SOLENOID VALVE KIT
Supersession
Supersession
# 002
MPN: 006227630
CONNECTION
RACCORDO
from £8.43
from £8.43
# 003
MPN: 008831528
STRAP
FASCETTA
Supersession
Supersession
# 004
MPN: 006230218
PIPE
Tubo
from £31.52
from £31.52
# 005
MPN: 006130194
ELECT CABLE
CABLAGGIO POMPE BENZINA
from £26.29
from £26.29
# 006
MPN: 002024398
fuel pump
POMPA ALIMENTAZIONE
from £429.73
from £429.73
# 007
MPN: 006229533
PLATE
PIASTRA
from £38.35
from £38.35
# 008
MPN: 001701495
RUBBER RING
ANELLO COMMA
from £32.99
from £32.99
# 009
MPN: 008300803
STUD
PRIGIONIERO
from £7.78
from £7.78
# 010
MPN: 400251189B
STRAP
from £6.53
from £6.53
# 011
MPN: 006230225
PIPE
Tubo
from £12.62
from £12.62
# 012
MPN: 006229221
FILTER
FILTRO
from £45.69
from £45.69
# 013
MPN: 006230226
PIPE
Tubo
from £43.85
from £43.85
# 014
MPN: 0062001649
PIPE
TUBO PESCANTE
from £377.24
from £377.24
# 015
MPN: WHT003048
WASHER
RONDELLA
from £2.13
from £2.13
# 016
MPN: 0062001647
ADAPTER
(For Tank CODE 0062001156 - See Table 62_04_00) ADATTATORE
from £230.00
from £230.00
# 017
MPN: 008603703
SEAL
(For Tank CODE 0062001156 - See Table 62_04_00) ANELLO TENUTA
from £13.11
from £13.11
# 018
MPN: 006226900
GASKET
Guarnizione
from £15.05
from £15.05

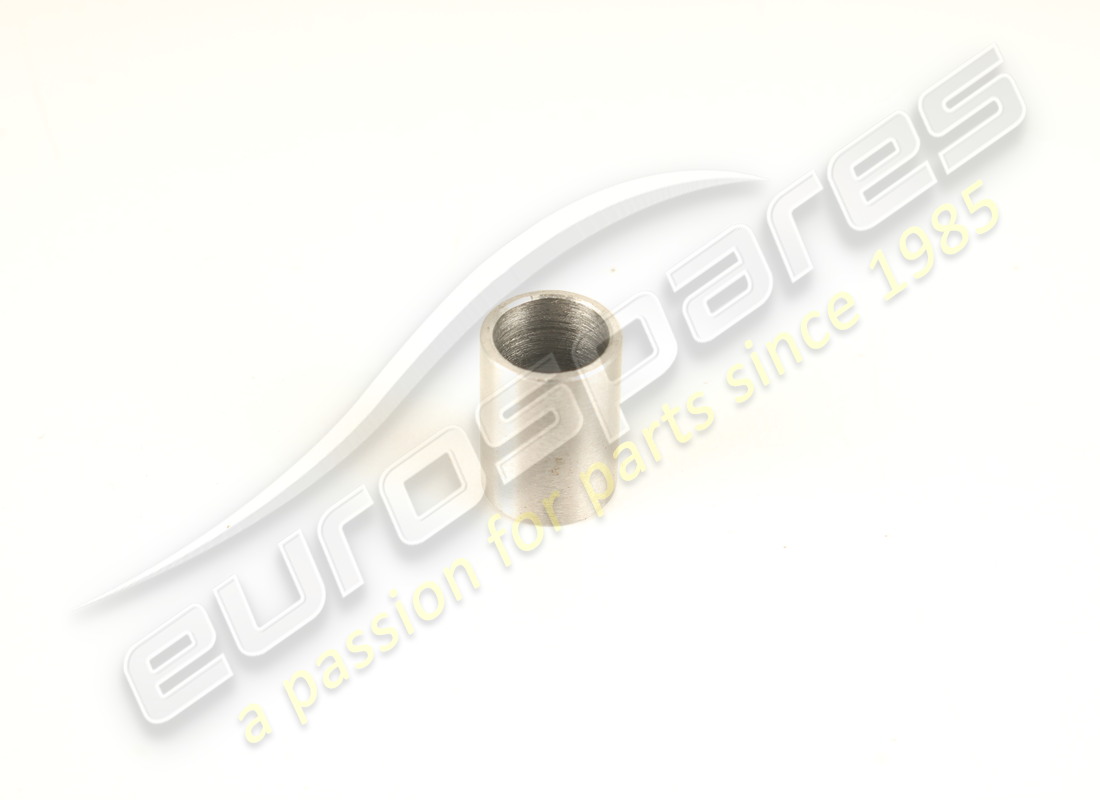

# 019
MPN: 001701592
SPACER
DISTANZIALE
from £11.72
from £11.72
# 020
MPN: 006229532
STRAP
FASCETTA
from £29.10
from £29.10
# 021
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 022
MPN: WHT001942
WASHER
RONDELLA
from £2.18
from £2.18
# 023
MPN: 008200804
NUT
DADO
from £0.73
from £0.73
# 024
MPN: 006230214
STRAP
FASCETTA
# 025
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 026
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 027
MPN: 410201349
GASKET
Guarnizione
from £19.89
from £19.89
# 028
MPN: 006231552
PIPE
TUBO PER BANCATA 1-6
from £145.26
from £145.26
# 028
MPN: 006231554
PIPE
TUBO PER BANCATA 7-12
from £85.26
from £85.26
# 029
MPN: 006230564
CONNECTION
RACCORDO
Supersession
Supersession
# 030
MPN: 400201511A
FUEL FILTER
from £32.95
from £32.95
This part replaces part number 002030563 - and 1 more. Click to view details
# 031
MPN: 410201196
GASKET
Guarnizione
from £3.03
from £3.03
# 032
MPN: 0062002430
SPRING
MOLLA
Supersession
Supersession
