lamborghini diablo sv (1999) electrical system parts diagram

61.03.00 - electrical system

Lamborghini Diablo SV (1999) Electrical System Parts Diagram

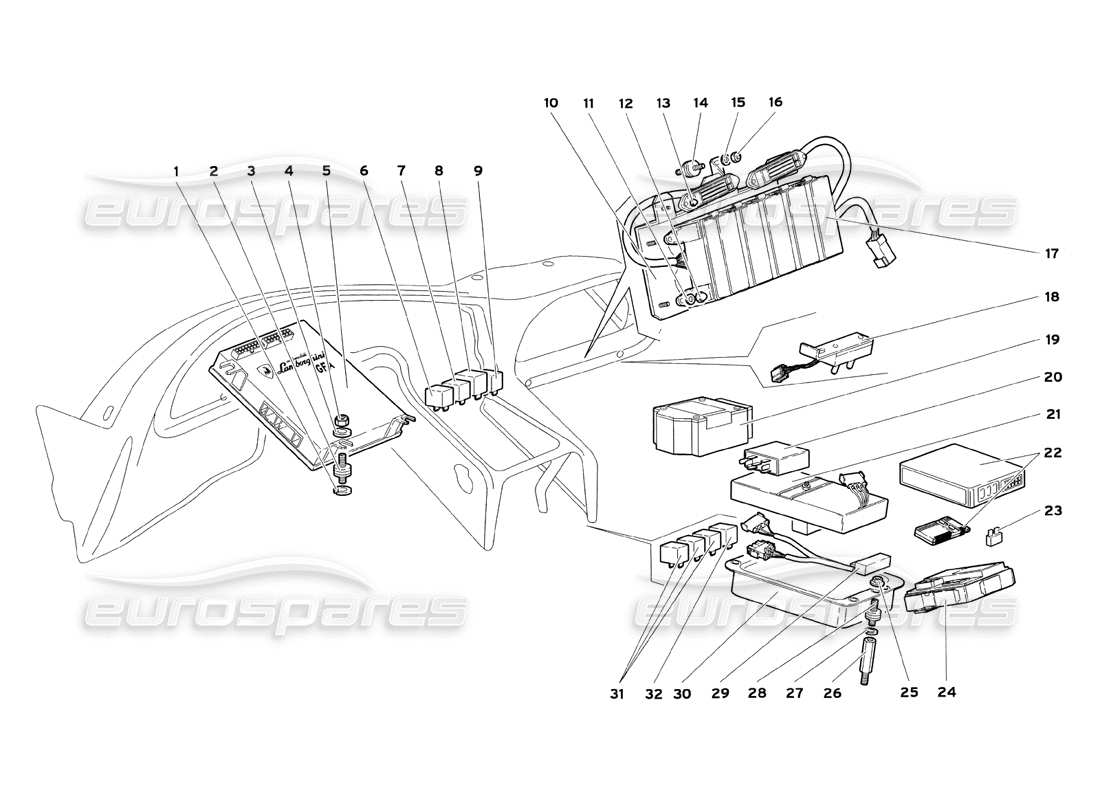

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 002
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 003
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 005
MPN: 0020002640
E.C.U. GFA
CENTRALINA GFA
from £3,838.78
from £3,838.78
# 005
MPN: 0020002641
E.C.U. GFA
(Valid for ARABIA - July 1999) CENTRALINA GFA
from £4,634.49
from £4,634.49
# 005
MPN: 0020002641
E.C.U. GFA
(Valid for DUBAI - July 1999) CENTRALINA GFA
from £4,634.49
from £4,634.49
# 005
MPN: 0020002642
E.C.U. GFA
(Valid for USA - July 1999) CENTRALINA GFA
# 005
MPN: 0020002642
E.C.U. GFA
(Valid for CANADA - July 1999) CENTRALINA GFA
# 006
MPN: 006311155
RELAY
RELE ALIMENT. HAZARD
from £36.37
from £36.37
# 007
MPN: 006036297
RELAY
RELE ALIMENT. +15/30 HAZARD
from £37.83
from £37.83
# 008
MPN: 006030676
RELAY
RELEINTERMITTENZA
from £148.62
from £148.62
# 009
MPN: 006036296
RELAY
RELE CLACSON
from £19.97
from £19.97
# 010
MPN: 0061003075
SUPPORT
SUPPORTO
from £126.44
from £126.44
# 011
MPN: 008400620
WASHER
RONDELLA
from £0.95
from £0.95
# 012
MPN: 008200605
NUT
DADO
from £1.74
from £1.74
# 013
MPN: WHT002959
NUT
DADO
from £0.55
from £0.55
# 014
MPN: 008920603
ELASTIC SUPPORT
SUPPORTO ELASTICO
# 015
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 016
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 017
MPN: 006137052
CASE
SCATOLA RELE/FUSIBILI
from £573.75
from £573.75
# 017
MPN: 006137443
CASE
(Valid for GB - July 1999) SCATOLA RELE/FUSIBILI
from £720.50
from £720.50
# 017
MPN: 006137443
CASE
(Valid for AUSTRALIA - July 1999) SCATOLA RELE/FUSIBILI
from £720.50
from £720.50
# 017
MPN: 006138342
CASE
(Valid for USA - July 1999) SCATOLA RELE/FUSIBILI
from £753.66
from £753.66
# 017
MPN: 006138342
CASE
(Valid for CANADA - July 1999) SCATOLA RELE/FUSIBILI
from £753.66
from £753.66
# 018
MPN: 006136981
KONI - SWITCH
INTERRUTTORE- KONI
from £148.83
from £148.83
# 019
MPN: 006037932
E.C.U. AIR BAG
CENTRALINA AIR BAG
from £467.77
from £467.77
# 020
MPN: 005938137
LOCKING E.C.U.
CENTR. CHIUSURA CENTR.
from £432.80
from £432.80
# 021
MPN: 006036175
LOW TIRE E.C.U.
CENTRALINA LOW TIRE
from £544.74
from £544.74

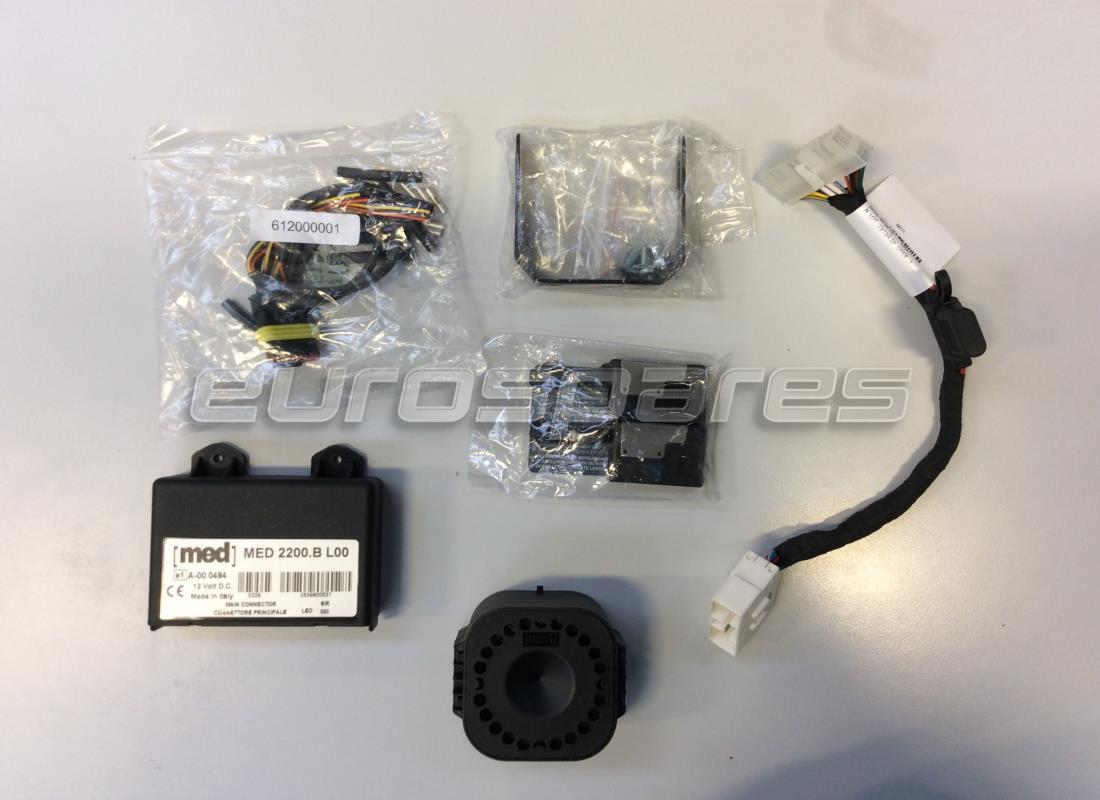

# 022
MPN: 0061001923
REMO. LOCKING E.C.U.
ANTI-THEFT CONTROL UNIT AND REMOTE CONTROL
from £577.50
from £577.50
# 023
MPN: 001629258
FUSE
FUSIBILE20A
from £0.54
from £0.54
# 024
MPN: 0060002330
WINDOW LIFT E.C.U.
CENTRALINA ALZAVETRO
from £834.75
from £834.75
# 025
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 026
MPN: 001128397
STUD
COLONNETTA
from £22.23
from £22.23
# 027
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 028
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 029
MPN: 006137314
LOW TIRE E. DEVICE
INTERFACCIA- LOW TIRE
from £227.19
from £227.19
# 030
MPN: 005134572
KONI E.C.U.
CENTRALINA KONI
from £1,413.63
from £1,413.63
# 031
MPN: 00603007
RELAY
RELE
# 032
MPN: 006311155
RELAY
RELE
from £36.37
from £36.37
