61.02.00 - electrical system

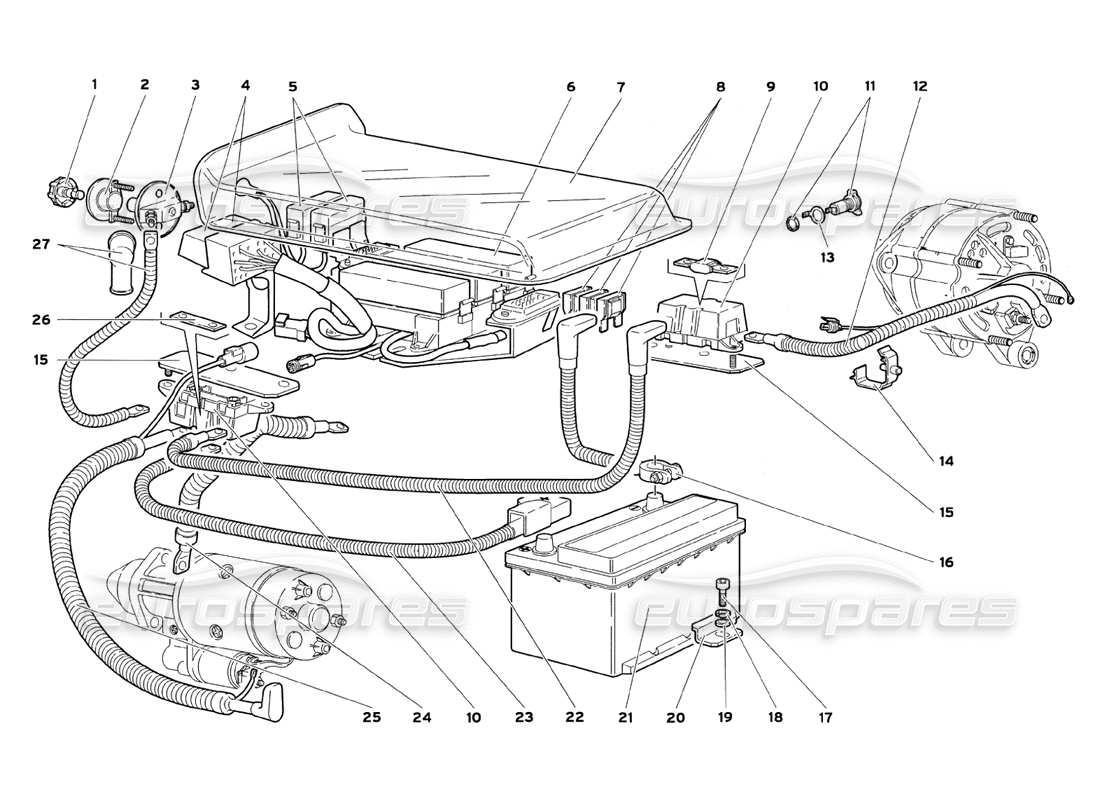

Lamborghini Diablo SV (1999) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005931167
KNOB
POMELLO
from £56.47
from £56.47
# 002
MPN: 005931299
FLANGE
FLANGIA
from £146.75
from £146.75
# 003
MPN: 005931163
CONNECTION
STACCABATTERIA
from £147.59
from £147.59
# 004
MPN: 005937770
RELAY
RELE
from £22.48
from £22.48
# 005
MPN: 006137478
MEGA FUSE CASE
MEGA FUSE BOX
Supersession
Supersession
# 006
MPN: 0061002728
CASE
SCATOLA RELE/FUSE
from £829.12
from £829.12
# 007
MPN: 005937289
SHIELD
PROTEZIONE
from £106.13
from £106.13
# 008
MPN: 006138009
MEGAFUSE
FUSIBILEDA50 A
from £31.60
from £31.60
# 008
MPN: 006138010
MEGAFUSE
FUSIBILEDA80 A
from £31.60
from £31.60
# 009
MPN: 006137479
FUSE
FUSE
Supersession
Supersession
# 010
MPN: 006137478
CASE
SCATOLA
Supersession
Supersession
# 011
MPN: 005936741
TAP BATTERY CHARG.
BATTERY CHARGER SOCKET
from £11.32
from £11.32
# 012
MPN: 006137477
ELECT CABLE
CAVO ELETTRICO
from £50.66
from £50.66
# 013
MPN: 005937868
GROUND CONNEC.
LINGUETTA PER PR. CARICA BATT.
from £10.90
from £10.90
# 014
MPN: 008832006
STRAP
FASCETTA
from £1.94
from £1.94
# 015
MPN: 005937655
SUPPORT
SUPPORTO
# 016
MPN: 006136784
GROUND CABLE
CAVO MASSA
from £54.15
from £54.15
# 017
MPN: 008700815
SCREW
VITE
from £0.54
from £0.54
# 018
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 020
MPN: 004130608
BRACKET
STAFFA
from £18.29
from £18.29
# 021
MPN: 0059004598
Battery
Batteria
from £297.66
from £297.66
# 022
MPN: 006137474
ELECT CABLE
CAVO ELETTRICO
from £60.03
from £60.03
# 023
MPN: 006137475
ELECT CABLE
CAVO ELETTRICO
from £144.40
from £144.40
# 024
MPN: 006135923
GROUND CABLE
CAVO MASSA
from £51.49
from £51.49
# 025
MPN: 006137473
ELECT CABLE
CAVO ELETTRICO
from £106.79
from £106.79
# 026
MPN: 006137471
CONNECTION
CONNESSIONE
# 027
MPN: 006137476
ELECT CABLE
CAVO ELETTRICO
from £45.36
from £45.36
